Mercury Grand Marquis 2004  Owners Manuals Seating and Safety Restraints 86
Seating 86
Safety restraints 90
Air bags 104
Child restraints 111
Driving 123
Starting 123
Brakes 127
Traction control 130
Air suspension 132
Transmission operation 13

Page 133 of 240

Mercury Grand Marquis 2004  Owners Manuals This system keeps the rear of your vehicle at a constant level by
automatically adding air or releasing air from the springs.
If you exceed the load limit, the rear air suspension may not operate.
The

Page 146 of 240

Mercury Grand Marquis 2004  Owners Manuals The fuel pump shut-off switch is
located on the left side of the trunk
behind the left rear tail light and the
trunk liner.
Use the following procedure to reset the fuel pump shut-off switch.
1. Turn

Page 148 of 240

Mercury Grand Marquis 2004  Owners Manuals The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 15A Audio, CD changer
2 5A Audio
3 7.5A Mirrors
4 10A Air bags
5—Not used
6 15A Instr

Page 149 of 240

Mercury Grand Marquis 2004  Owners Manuals Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
10 10A Rear window defrost, Heated
mirrors
11 5A Traction control indicator relay
(ABS w/traction control only)
12 15A Mu

Page 150 of 240

Mercury Grand Marquis 2004  Owners Manuals Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
23 15A EATC module, Instrument cluster,
LCM, Interior lamps, Door lock
switches
24 10A Left-hand low beam
25 20A Cigar li

Page 151 of 240

Mercury Grand Marquis 2004  Owners Manuals The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 25A* Audio
2 20A* Power point
3 25A* Heated seats
4 15A* Horns
5 20A* Fuel pump modu

Page 152 of 240

Mercury Grand Marquis 2004  Owners Manuals Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
16—Not used
17—Not used
18—Not used
19 15A* Powertrain Control Module
(PCM), Fuel injectors
20 15A* PCM, HEGOs
21—Not used

Page 153 of 240

Mercury Grand Marquis 2004  Owners Manuals Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
115 50A** Ignition switch feed to IP fuses 16
and 18
116 30A** Wipers
117–Not used
118 20A** ABS
201 1/2 ISO Horn relay
202 1/2 I

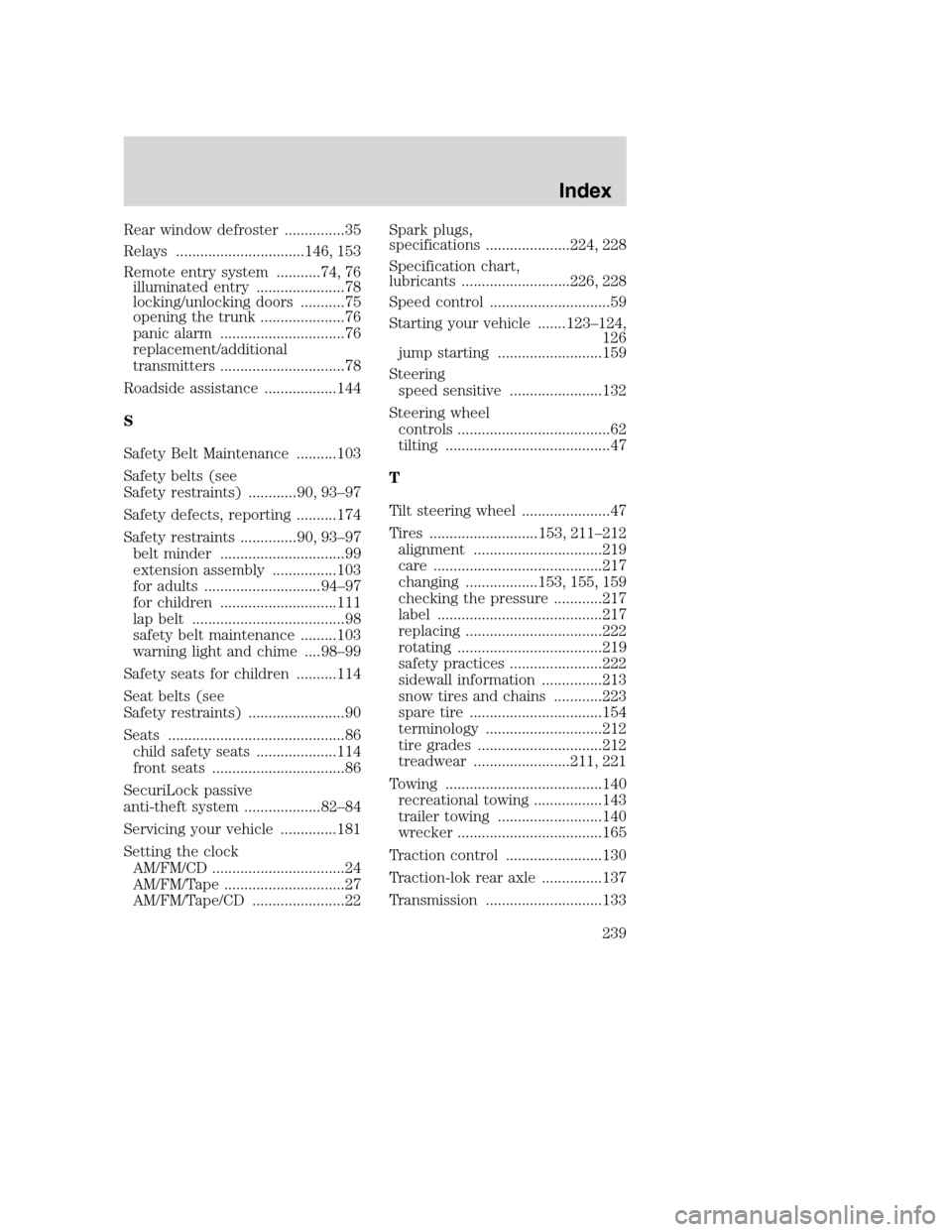

Page 239 of 240

Mercury Grand Marquis 2004  Owners Manuals Rear window defroster ...............35
Relays ................................146, 153
Remote entry system ...........74, 76
illuminated entry ......................78
locking/unlocking doors .......
