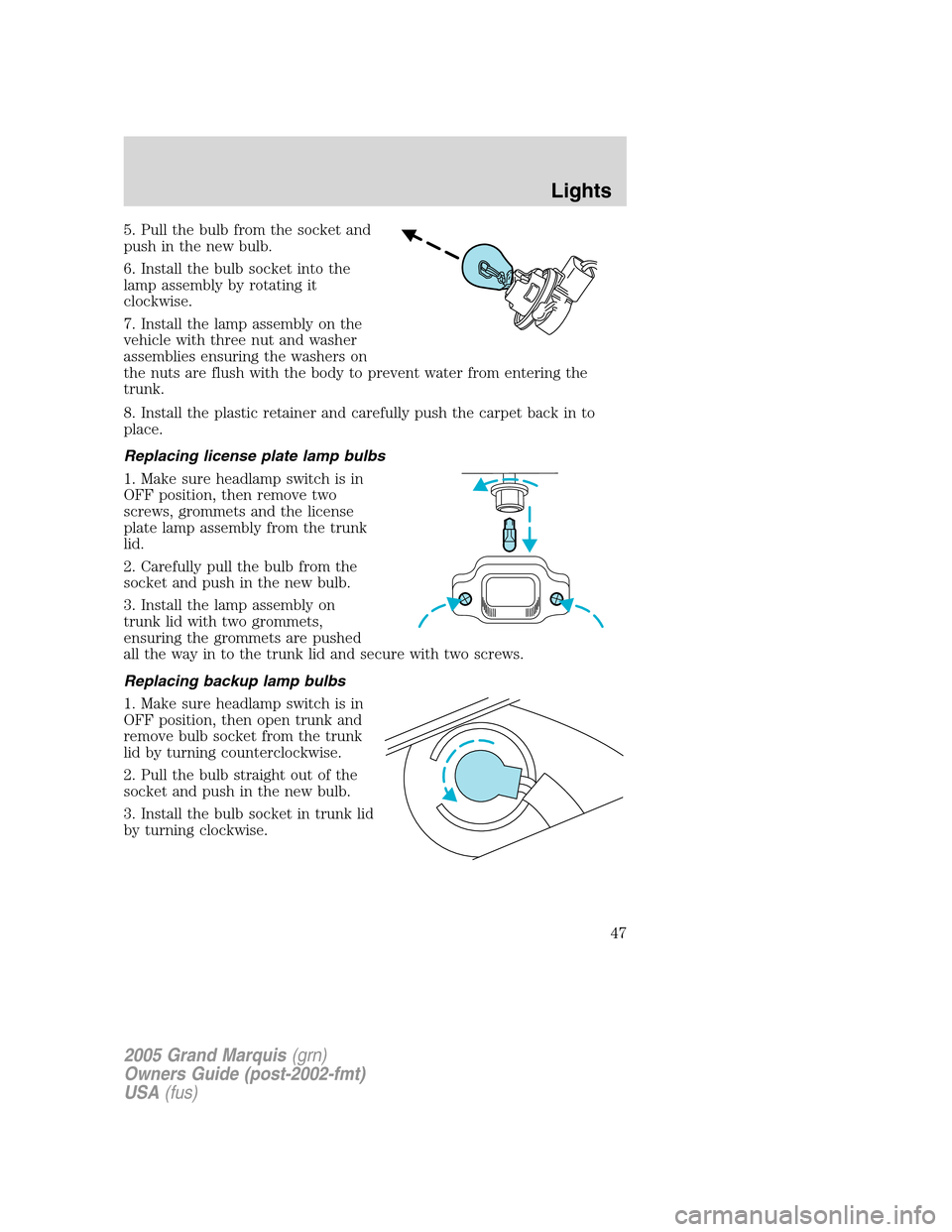

5. Pull the bulb from the socket and
push in the new bulb.
6. Install the bulb socket into the
lamp assembly by rotating it
clockwise.
7. Install the lamp assembly on the
vehicle with three nut and washer
assemblies ensuring the washers on
the nuts are flush with the body to prevent water from entering the
trunk.
8. Install the plastic retainer and carefully push the carpet back in to
place.
Replacing license plate lamp bulbs
1. Make sure headlamp switch is in
OFF position, then remove two
screws, grommets and the license
plate lamp assembly from the trunk
lid.
2. Carefully pull the bulb from the
socket and push in the new bulb.
3. Install the lamp assembly on
trunk lid with two grommets,
ensuring the grommets are pushed
all the way in to the trunk lid and secure with two screws.
Replacing backup lamp bulbs
1. Make sure headlamp switch is in
OFF position, then open trunk and
remove bulb socket from the trunk
lid by turning counterclockwise.
2. Pull the bulb straight out of the
socket and push in the new bulb.
3. Install the bulb socket in trunk lid
by turning clockwise.
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
47

Replacing high-mount brakelamp bulbs
1. Make sure headlamp switch is in
OFF position, then remove two
screws from the lamp assembly.
2. Carefully lift the lamp assembly
up for access to the bulbs.
3. Carefully pull the bulb socket out
of the lamp assembly.
4. Pull the bulb straight out of the
socket and push in the new bulb.
To install, reverse the removal
procedure.
Overhead console lamps
To remove and replace the lamps in the overhead console:
1. Make sure the headlamp switch is
in the OFF position and remove the
overhead console from the headliner
by pulling it straight down.
2. Remove the bulb socket from the
back of the lamp housing by pulling
it straight out.
3. Remove the bulb from the socket
by pulling straight out.
Install the new bulb in reverse order.
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
48

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Windshield wiper/washer features
The exterior lamps will turn on with the ignition on, Headlamp control in
the Autolamp position and the windshield wipers are turned on.
Changing the wiper blades
1. Pull the wiper arm away from the
glass one to two inches and proceed
to step 2.
2. Pull the retainer clip of the blade
up and slide the blade off the wiper
arm pin.
3. To attach the new wiper blade,
pull the retainer clip of the blade up
and slide the blade into the wiper
arm pin, then push down the
retainer clip to lock position..
4. Clean blades and glass as recommended inCleaningchapter and
replace wiper blades at least once per year or before winter for optimum
performance
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
49

If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
A computer system controls the engine’s idle revolutions per minute
(RPM). When the engine starts, the idle RPM runs higher than normal in
order to warm the engine. If the engine idle speed does not slow down
automatically, have the vehicle checked. Do not allow the vehicle to idle
for more than 10 minutes at the higher engine RPM.
Before starting the vehicle:
1. Make sure all vehicle occupants have buckled their safety belts. For
more information on safety belts and their proper usage, refer to the
Seating and Safety Restraintschapter.
2. Make sure the headlamps and vehicle accessories are off.
3. Make sure the gearshift is in P
(Park).
4. Make sure the parking brake is
set.
HOOD
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
164

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
8 10A Ignition (ON) - Rear Air
Suspension Module (RASM),
Variable Assist Power Steering
(VAPS)
9 20A LCM (Headlamps, Cornering
lamps)
10 5A Ignition (ON/START) - Driver’s
Door Module (DDM)
11 10A Ignition (START) - ON/ACC relay
coil
12 10A Ignition (ON/START) - Starter
relay coil
13 10A Ignition (START) - Wiper module
14 10A Ignition (ON) - BTSI (Floor-shift
transmission)
15 7.5A Ignition (START) - LCM, Door
lock switch illumination, Heated
seat switch illumination,
Moonroof, Overhead console,
Electrochromatic mirror
16 15A Ignition (ON) - Turn signals
17 10A Ignition (START) - Audio
18 10A Ignition (ON) - A/C mode switch
(vehicles equipped with manual
A/C), Blend door, DDM, Heated
seat modules, Daytime Running
Lamps (DRL) module
19 10A Left-hand low beam, DRL
20 10A Ignition (ON/ACC) - Back-up
lamps
21 10A Right-hand low beam, DRL
22 10A Ignition (ON/ACC) - Restraint
Control Module (RCM), Occupant
Classification Sensor (OCS),
Passenger Air bag Deactivation
Indicator (PADI)
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
185

MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Mercury Accessories are available for your
vehicle through your local authorized Mercury or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Mercury
Accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Mercury Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles
(60,000 km) (whichever occurs first). Contact your dealer for details and
a copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Genuine Mercury Accessory products. Not
all accessories are available for all models. To find out what accessories
are available for your vehicle, please contact your dealer or visit our
online store at: www.mercuryaccessories.com.
Exterior style
Bug shields
Deflectors
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
248

F
Fail safe cooling ........................224
Floor mats ...................................77
Fluid capacities .........................241
Fuel ............................................225
calculating fuel
economy ............................55, 230
cap ...........................................227
capacity ...................................241
choosing the right fuel ...........228
comparisons with EPA fuel
economy estimates .................233
detergent in fuel .....................229
filling your vehicle with
fuel ...........................225, 227, 230
filter, specifications ........230, 240
fuel pump shut-off switch .....181
improving fuel economy ........230
octane rating ...................229, 244
quality ......................................229
running out of fuel .................229
safety information relating to
automotive fuels .....................225
Fuses ..................................182–183
G
Garage Door Opener (see
Homelink wireless control
system) ........................................68
Gas cap (see Fuel cap) ............227
Gas mileage (see Fuel
economy) ...................................230
Gauges .........................................15
H
Hazard flashers .........................181
Head restraints ...........................91Headlamps ...................................38
aiming ........................................40
autolamp system .......................38
bulb specifications ....................43
daytime running lights .............38
flash to pass ..............................39
high beam .................................39
replacing bulbs .........................44
turning on and off ....................38
Heating
heating and air conditioning
system .................................34–35
Homelink wireless control
system ..........................................68
Hood ..........................................212
I
Ignition ...............................163, 244
Infant seats (see Safety seats) 124
Inspection/maintenance (I/M)
testing ........................................235
Instrument panel
cleaning ...................................208
cluster ........................................10
lighting up panel and interior .39
J
Jack ............................................137
positioning ...............................137
storage .....................................137
Jump-starting your vehicle ......190
K
Keyless entry system .................86
autolock .....................................85
keypad .......................................86
programming entry code .........86
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
252

Keys .......................................78, 90
positions of the ignition .........163
L
Lamps
autolamp system .......................38
bulb replacement
specifications chart ..................43
daytime running light ...............38
headlamps .................................38
headlamps, flash to pass ..........39
instrument panel, dimming .....39
interior lamps ...............42–44, 48
replacing bulbs ....... 43–44, 46–48
Lane change indicator (see
Turn signal) .................................41
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........168
Limited slip axle (see Traction
Loc) ............................................178
Load limits .................................153
Locks
autolock .....................................85
childproof ..................................79
doors ..........................................78
Lubricant specifications ...242, 244
Lug nuts ....................................143
Lumbar support, seats ...............93
M
Message center ...........................72
reset button ..............................72
select button .............................73
Mirrors .........................................50
automatic dimming rearview
mirror ........................................62
fold away ...................................62heated ........................................62
side view mirrors (power) .......62
Moon roof ....................................67
Motorcraft parts ................230, 240
O
Octane rating ............................229
Oil (see Engine oil) ..................213
P
Parking brake ............................169
Parts (see Motorcraft parts) ....240
Passenger Occupant
Classification Sensor ...................97
Pedals (see Power adjustable
foot pedals) .................................63
Power adjustable foot pedals .....63
Power distribution box (see
Fuses) ........................................186
Power door locks ..................78, 85
Power mirrors .............................62
Power point .................................60
Power steering ..................171–172
fluid, checking and adding ....235
fluid, refill capacity ................241
fluid, specifications .................242
Power Windows ...........................61
R
Radio ................................20, 23, 28
Rear window defroster ...............37
Relays ................................182, 189
Remote entry system .................80
illuminated entry ......................84
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
253
