Page 2 of 256

Seating and Safety Restraints 91
Seating 91
Safety restraints 96
Airbags 110
Child restraints 121
Tires, Wheels and Loading 132
Tire Information 132
Changing tires 137
Lug Nut Torque 143
Vehicle loading 153
Trailer towing 159
Recreational towing 162
Driving 163
Starting 163
Brakes 167
Traction control 170
Air suspension 172
Transmission operation 173
Roadside Emergencies 180
Getting roadside assistance 180
Hazard flasher switch 181
Fuel pump shut-off switch 181
Fuses and relays 182
Jump starting 190
Wrecker towing 195
Customer Assistance 196
Reporting safety defects (U.S. only) 204
Cleaning 205
Table of Contents
2
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Page 180 of 256

GETTING ROADSIDE ASSISTANCE
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the New Vehicle Limited Warranty period of three years or 36,000
miles (60,000 km), whichever occurs first on Ford and Mercury
vehicles, and four years or 50,000 miles (80,000 km) on Lincoln
vehicles.
Roadside assistance will cover:
•a flat tire change with a good spare (except Ford GT which has a tire
inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery (2.0 gallons [7.5L], maximum two occurrences within 12
month period)
•towing of your disabled vehicle to the nearest Ford Motor Company
dealership, or your selling dealer if within 35 miles (56.3 km) of the
nearest Ford Motor Company dealership (one tow per disablement).
Even non-warranty related tows, like accidents, are covered (some
exclusions apply, such as impound towing or repossession).
Canadian customers refer to your Owner Information Guide for
information on:
•coverage period
•exact fuel amounts
•towing of your disabled vehicle
•emergency travel expense reimbursement
•travel planning benefits
USING ROADSIDE ASSISTANCE
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in theOwner Information Guidein the glove compartment.
U.S. Ford or Mercury vehicle customers who require roadside assistance,
call 1–800–241–3673; Lincoln vehicle customers call 1–800–521–4140.
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
180
Page 190 of 256

JUMP STARTING YOUR VEHICLE
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
Batteries contain sulfuric acid which can burn skin, eyes and
clothing, if contacted.
Do not attempt to push-start your vehicle. Automatic
transmissions do not have push-start capability; doing so may
damage the catalytic converter.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
transmission must relearn its shift strategy. As a result, the transmission
may have firm and/or soft shifts. This operation is considered normal and
will not affect function or durability of the transmission. Over time, the
adaptive learning process will fully update transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect any electrical
surges. Turn all other accessories off.
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
190
Page 192 of 256

3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel lines, engine rocker
covers or the intake manifold asgroundingpoints.
Do not connect the end of the second cable to the negative (-)
terminal of the battery to be jumped. A spark may cause an
explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
+–+–
+–+–
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
192
Page 193 of 256

3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from thegroundmetal surface.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Remove the jumper cable on the negative (-) connection of the
booster vehicle’s battery.
+–+–
+–+–
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
193
Page 194 of 256

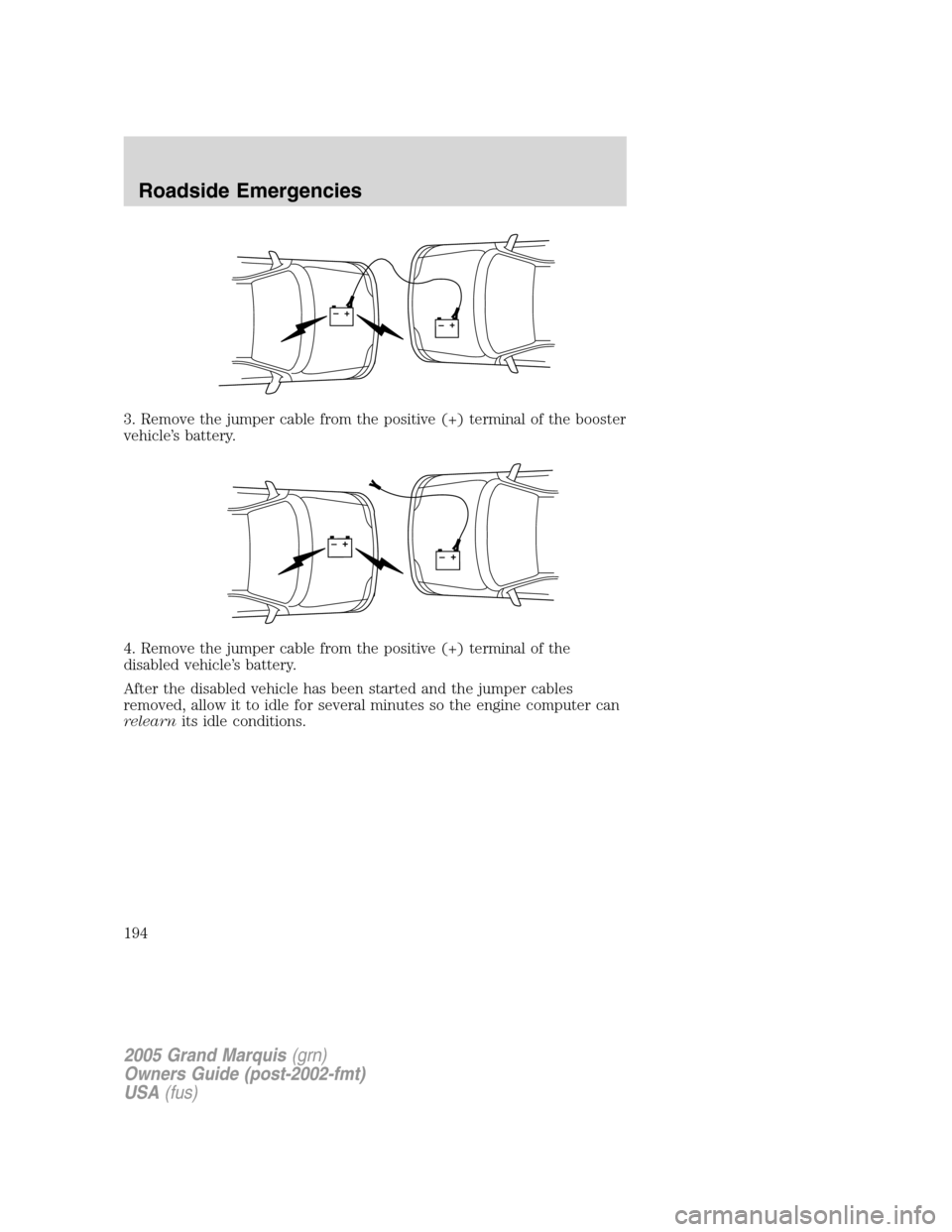

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
194
Page 251 of 256

Climate control (see Air
conditioning or Heating) ............35
Clock adjust
6-CD in dash .............................31
AM/FM/CD .................................22
AM/FM/Tape/CD .......................26
Compass, electronic
set zone adjustment .................53
Console ........................................76
overhead ..............................51–52
Controls
power seat .................................94
steering column ........................66
Coolant
checking and adding ..............219
refill capacities ................223, 241
specifications ..................242, 244
Cruise control (see Speed
control) ........................................63
Cupholder(s) ...............................96
Customer Assistance ................180
Ford accessories for your
vehicle .....................................209
Ford Extended Service Plan .202
Getting assistance outside the
U.S. and Canada .....................203
Getting roadside assistance ...180
Getting the service you need 196
Ordering additional owner’s
literature .................................203
The Dispute Settlement
Board .......................................199
Utilizing the
Mediation/Arbitration
Program ...................................201
D
Daytime running lamps (see
Lamps) .........................................38Defrost
rear window ..............................37
Dipstick
automatic transmission
fluid ..........................................236
engine oil .................................213
Doors
lubricant specifications ..........242
Driving under special
conditions ..................................178
through water .........................179
E
Electronic message center .........72
Emergencies, roadside
jump-starting ..........................190
Emission control system ..........233
Engine ........................................244
cleaning ...................................206
coolant .....................................219
fail-safe cooling .......................224
idle speed control ...................217
lubrication
specifications ..................242, 244
refill capacities ........................241
service points ..........................212
starting after a collision .........181
Engine block heater .................166
Engine oil ..................................213
change oil soon warning,
message center .......................213
checking and adding ..............213
dipstick ....................................213
filter, specifications ........216, 240
recommendations ...................216
refill capacities ........................241
specifications ..................242, 244
Exhaust fumes ..........................166
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
251
Page 252 of 256

F
Fail safe cooling ........................224
Floor mats ...................................77
Fluid capacities .........................241
Fuel ............................................225
calculating fuel
economy ............................55, 230
cap ...........................................227
capacity ...................................241
choosing the right fuel ...........228
comparisons with EPA fuel
economy estimates .................233
detergent in fuel .....................229
filling your vehicle with
fuel ...........................225, 227, 230
filter, specifications ........230, 240
fuel pump shut-off switch .....181
improving fuel economy ........230
octane rating ...................229, 244
quality ......................................229
running out of fuel .................229
safety information relating to
automotive fuels .....................225
Fuses ..................................182–183
G
Garage Door Opener (see
Homelink wireless control
system) ........................................68
Gas cap (see Fuel cap) ............227
Gas mileage (see Fuel
economy) ...................................230
Gauges .........................................15
H
Hazard flashers .........................181
Head restraints ...........................91Headlamps ...................................38
aiming ........................................40
autolamp system .......................38
bulb specifications ....................43
daytime running lights .............38
flash to pass ..............................39
high beam .................................39
replacing bulbs .........................44
turning on and off ....................38
Heating
heating and air conditioning
system .................................34–35
Homelink wireless control
system ..........................................68
Hood ..........................................212
I
Ignition ...............................163, 244
Infant seats (see Safety seats) 124
Inspection/maintenance (I/M)
testing ........................................235
Instrument panel
cleaning ...................................208
cluster ........................................10
lighting up panel and interior .39
J
Jack ............................................137
positioning ...............................137
storage .....................................137
Jump-starting your vehicle ......190
K
Keyless entry system .................86
autolock .....................................85
keypad .......................................86
programming entry code .........86
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
252
Page 254 of 256

locking/unlocking doors ...........81
opening the trunk .....................82
replacement/additional
transmitters ...............................83
Roadside assistance ..................180
S
Safety Belt Maintenance ..........110
Safety belts (see Safety
restraints) ..............96, 99, 101–103
Safety defects, reporting ..........204
Safety restraints ....96, 99, 101–103
belt minder .............................105
extension assembly ................109
for adults .........................101–103
for children .............................121
lap belt ....................................104
Occupant Classification
Sensor ........................................97
safety belt maintenance .........110
warning light and chime 104–105
Safety seats for children ..........124
Safety Compliance
Certification Label ....................245
Seat belts (see Safety
restraints) ....................................96
Seats ............................................91
child safety seats ....................124
front seats .................................91
SecuriLock passive anti-theft
system ..........................................90
Servicing your vehicle ..............211
Setting the clock
AM/FM single CD .....................22
AM/FM/In-dash 6 CD ................31
AM/FM/Tape/CD .......................26Spark plugs,
specifications .....................240, 244
Specification chart,
lubricants ...........................242, 244
Speed control ..............................63
Starting your vehicle .......163–164,
166
jump starting ..........................190
Steering
speed sensitive .......................172
Steering wheel
controls ......................................66
tilting .........................................50
T
Tilt steering wheel ......................50
Tires ...........................132–133, 137
alignment ................................150
care ..........................................149
changing ..........................137, 139
checking the pressure ............135
inspecting and inflating .........134
label .........................................148
replacing ..................................137
rotating ....................................151
safety practices .......................150
sidewall information ...............143
snow tires and chains ............153
spare tire .........................137–138
terminology .............................133
tire grades ...............................133
treadwear ........................132, 149
Towing .......................................159
recreational towing .................162
trailer towing ..........................159
wrecker ....................................195
Traction control ........................170
Traction-lok rear axle ...............178
2005 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
254
