•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toLubricant specificationsin
this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
EPA window sticker
Every new vehicle should have the EPA window sticker. Contact your
authorized dealer if the window sticker is not supplied with your vehicle.
The EPA window sticker should be your guide for the fuel economy
comparisons with other vehicles.
It is important to note the box in the lower left corner of the window
sticker. These numbers represent the Range of MPG (L/100 km)
expected on the vehicle under optimum conditions. Your fuel economy
may vary depending upon the method of operation and conditions.
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
244

condition. To ready the on-board diagnostics system for I/M testing, a
minimum of 30 minutes of city and highway driving is necessary as
described below:
•First, at least 10 minutes of driving on an expressway or highway.
•Next, at least 20 minutes driving in stop-and-go, city-type traffic with
at least four idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete.
POWER STEERING FLUID
Check the power steering fluid.
Refer toscheduled maintenance
for the service interval schedules.If
adding fluid is necessary, use
only MERCONAT F.
1. Start the engine and let it run until it reaches normal operating
temperature (the engine coolant temperature gauge indicator will be
near the center of the normal area between H and C).
2. While the engine idles, turn the steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
DONOTOVERFILLPOWERSTEERINGFLUID
MAX
MIN
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
247

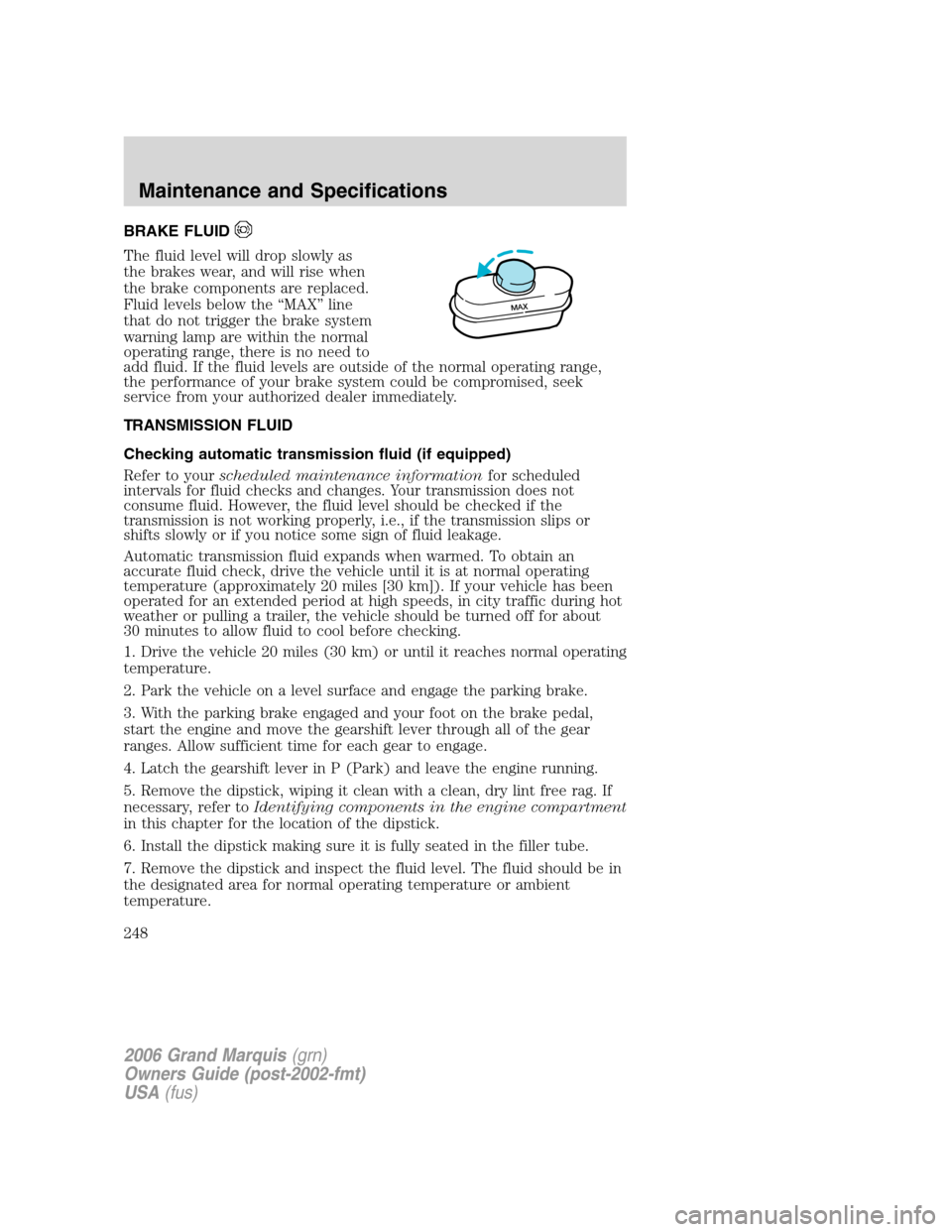

BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels below the “MAX” line
that do not trigger the brake system
warning lamp are within the normal
operating range, there is no need to
add fluid. If the fluid levels are outside of the normal operating range,
the performance of your brake system could be compromised, seek
service from your authorized dealer immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic during hot
weather or pulling a trailer, the vehicle should be turned off for about
30 minutes to allow fluid to cool before checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
MAX
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
248

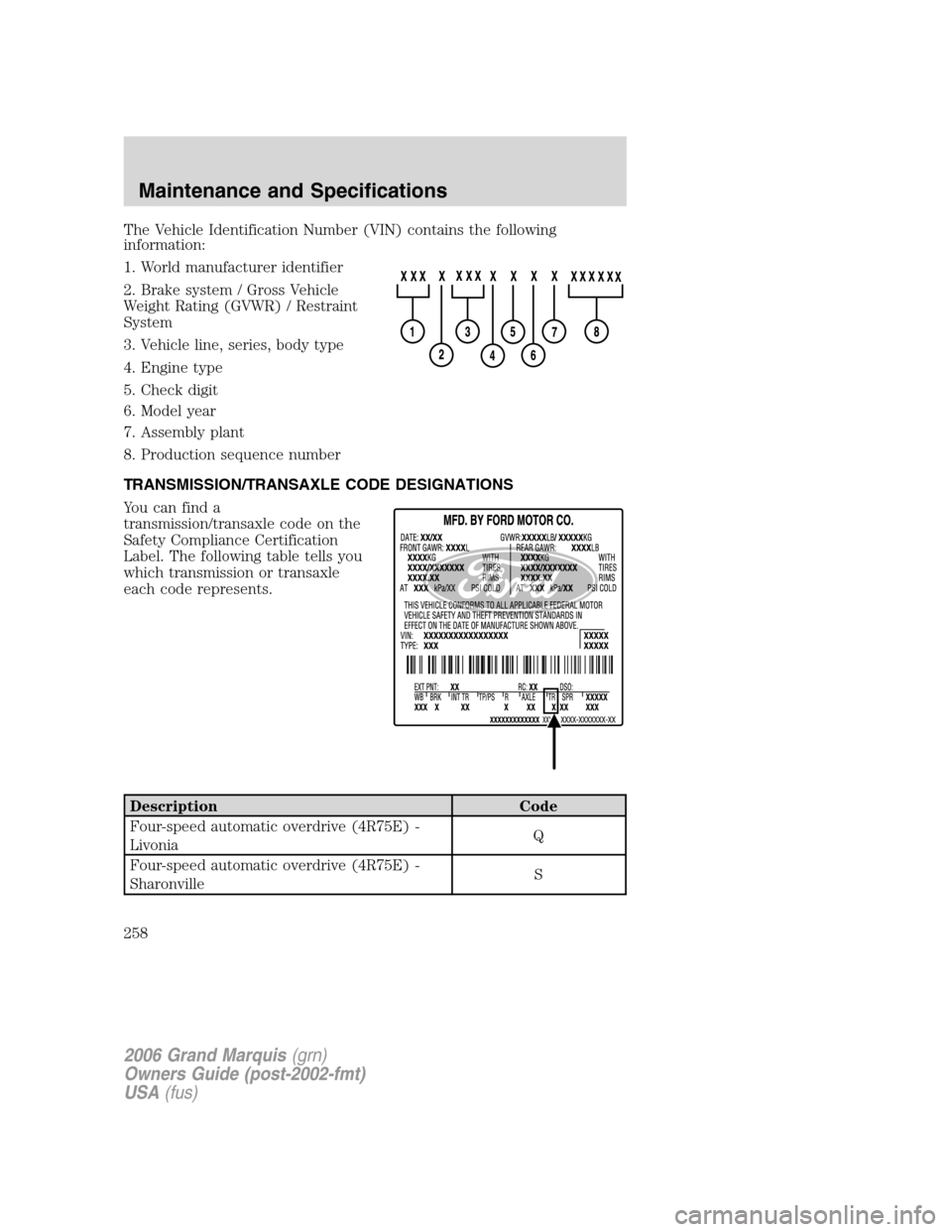

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic overdrive (4R75E) -
LivoniaQ
Four-speed automatic overdrive (4R75E) -
SharonvilleS
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
258

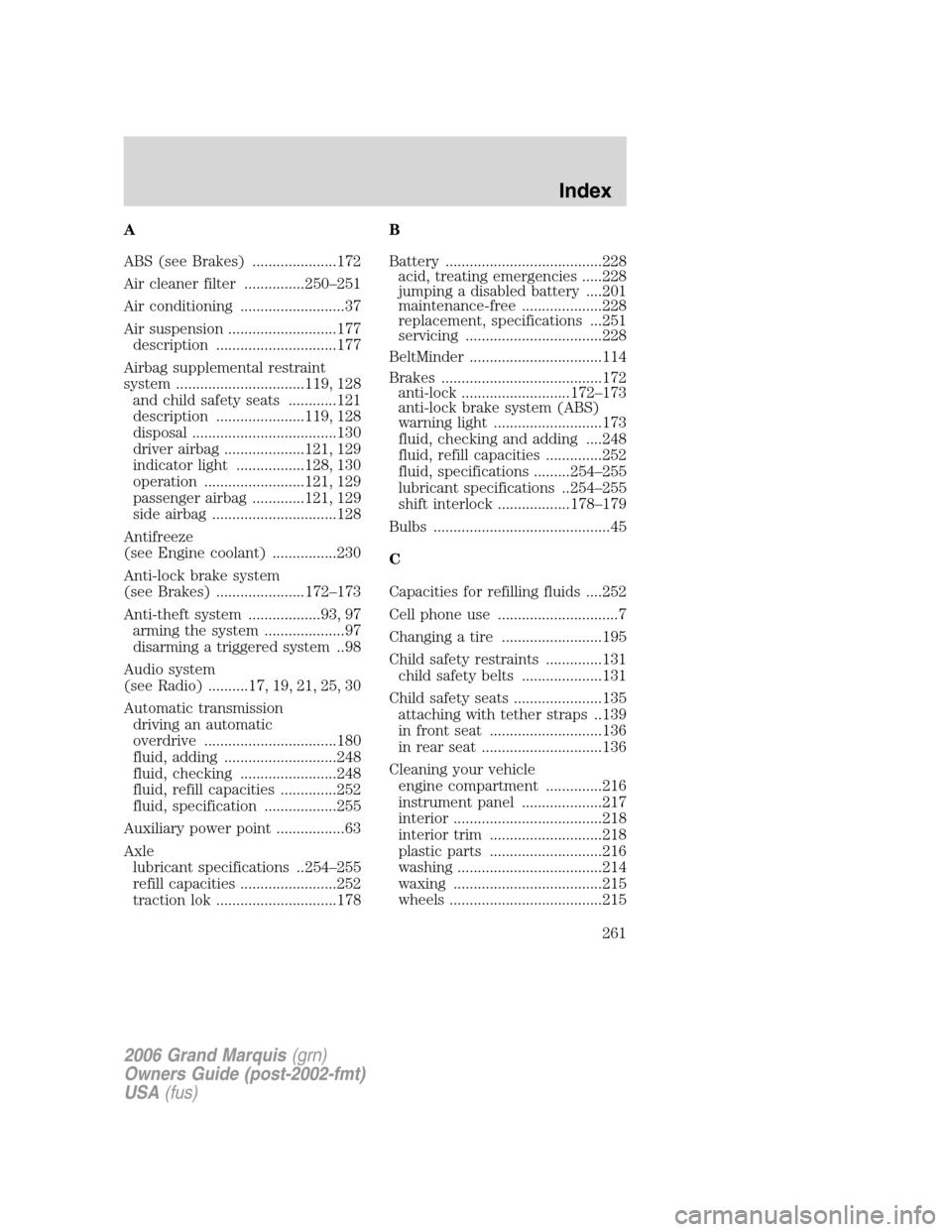

A
ABS (see Brakes) .....................172
Air cleaner filter ...............250–251
Air conditioning ..........................37
Air suspension ...........................177
description ..............................177
Airbag supplemental restraint
system ................................119, 128
and child safety seats ............121
description ......................119, 128
disposal ....................................130
driver airbag ....................121, 129
indicator light .................128, 130
operation .........................121, 129
passenger airbag .............121, 129
side airbag ...............................128
Antifreeze
(see Engine coolant) ................230
Anti-lock brake system
(see Brakes) ......................172–173
Anti-theft system ..................93, 97
arming the system ....................97
disarming a triggered system ..98
Audio system
(see Radio) ..........17, 19, 21, 25, 30
Automatic transmission
driving an automatic
overdrive .................................180
fluid, adding ............................248
fluid, checking ........................248
fluid, refill capacities ..............252
fluid, specification ..................255
Auxiliary power point .................63
Axle
lubricant specifications ..254–255
refill capacities ........................252
traction lok ..............................178B
Battery .......................................228
acid, treating emergencies .....228
jumping a disabled battery ....201
maintenance-free ....................228
replacement, specifications ...251
servicing ..................................228
BeltMinder .................................114
Brakes ........................................172
anti-lock ...........................172–173
anti-lock brake system (ABS)
warning light ...........................173
fluid, checking and adding ....248
fluid, refill capacities ..............252
fluid, specifications .........254–255
lubricant specifications ..254–255
shift interlock ..................178–179
Bulbs ............................................45
C
Capacities for refilling fluids ....252
Cell phone use ..............................7
Changing a tire .........................195
Child safety restraints ..............131
child safety belts ....................131
Child safety seats ......................135
attaching with tether straps ..139
in front seat ............................136
in rear seat ..............................136
Cleaning your vehicle
engine compartment ..............216
instrument panel ....................217
interior .....................................218
interior trim ............................218
plastic parts ............................216
washing ....................................214
waxing .....................................215
wheels ......................................215
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
261

wiper blades ............................217
Climate control (see Air
conditioning or Heating) ............37
Clock adjust
6-CD in dash .............................33
AM/FM .......................................18
AM/FM/Cassette ........................19
AM/FM/CD .................................23
AM/FM/Tape/CD .......................28
Compass, electronic
set zone adjustment .................55
Console ........................................53
overhead ..............................53, 55
Controls
power seat ...............................101
steering column ........................69
Coolant
checking and adding ..............230
refill capacities ................234, 252
specifications ..................254–255
Cruise control
(see Speed control) ....................66
Cupholder(s) .............................104
Customer Assistance ................184
Ford Extended Service
Plan ..........................................211
Getting assistance outside the
U.S. and Canada .....................212
Getting roadside assistance ...184
Getting the service you
need .........................................207
Ordering additional owner’s
literature .................................212
Utilizing the
Mediation/Arbitration
Program ...................................210D
Daytime running lamps
(see Lamps) ................................41
Defrost
rear window ..............................39
Dipstick
automatic transmission
fluid ..........................................248
engine oil .................................225
Doors
lubricant specifications ..........254
Driving under special
conditions ..................................183
through water .........................183
E
Electronic message center .........74
Emergencies, roadside
jump-starting ..........................201
Emission control system ..........245
Engine ................................255–256
cleaning ...................................216
coolant .....................................230
fail-safe cooling .......................235
idle speed control ...................228
lubrication
specifications ..................254–255
refill capacities ........................252
service points ..........................223
starting after a collision .........186
Engine block heater .................171
Engine oil ..................................225
change oil soon warning,
message center .......................225
checking and adding ..............225
dipstick ....................................225
filter, specifications ........227, 251
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
262

Jump-starting your vehicle ......201
K
Keyless entry system .................91
autolock .....................................90
keypad .......................................91
programming entry code .........91
Keys .......................................83, 96
positions of the ignition .........168
L
Lamps
autolamp system .......................40
bulb replacement
specifications chart ..................46
daytime running light ...............41
fog lamps ...................................42
headlamps .................................40
headlamps, flash to pass ..........41
instrument panel, dimming .....42
interior lamps .....................44–47
replacing bulbs .........................47
Lane change indicator (see
Turn signal) .................................44
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........173
Limited slip axle
(see Traction Loc) ....................178
Load limits .................................157
Locks
autolock .....................................90
childproof ..................................84
doors ..........................................83
Lubricant specifications ...254–255
Lug nuts ....................................200
Lumbar support, seats .............103
M
Message center .....................74–75english/metric button ...............78
system check button ................77
warning messages .....................79
Mirrors .........................................65
automatic dimming rearview
mirror ........................................64
fold away ...................................65
heated ........................................65
side view mirrors (power) .......65
Moon roof ....................................70
Motorcraft parts ........219, 236, 251
O
Octane rating ............................240
Oil (see Engine oil) ..................225
P
Parking brake ............................174
Parts (see Motorcraft parts) ....251
Passenger Occupant
Classification Sensor .................106
Pedals (see Power adjustable
foot pedals) .................................66
Power adjustable foot pedals .....66
Power distribution box
(see Fuses) ...............................191
Power door locks ..................83, 90
Power mirrors .............................65
Power point .................................63
Power steering ..................176–177
fluid, checking and adding ....247
fluid, refill capacity ................252
fluid, specifications .................254
Power Windows ...........................63
R
Radio ....................17, 19, 21, 25, 30
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
264
