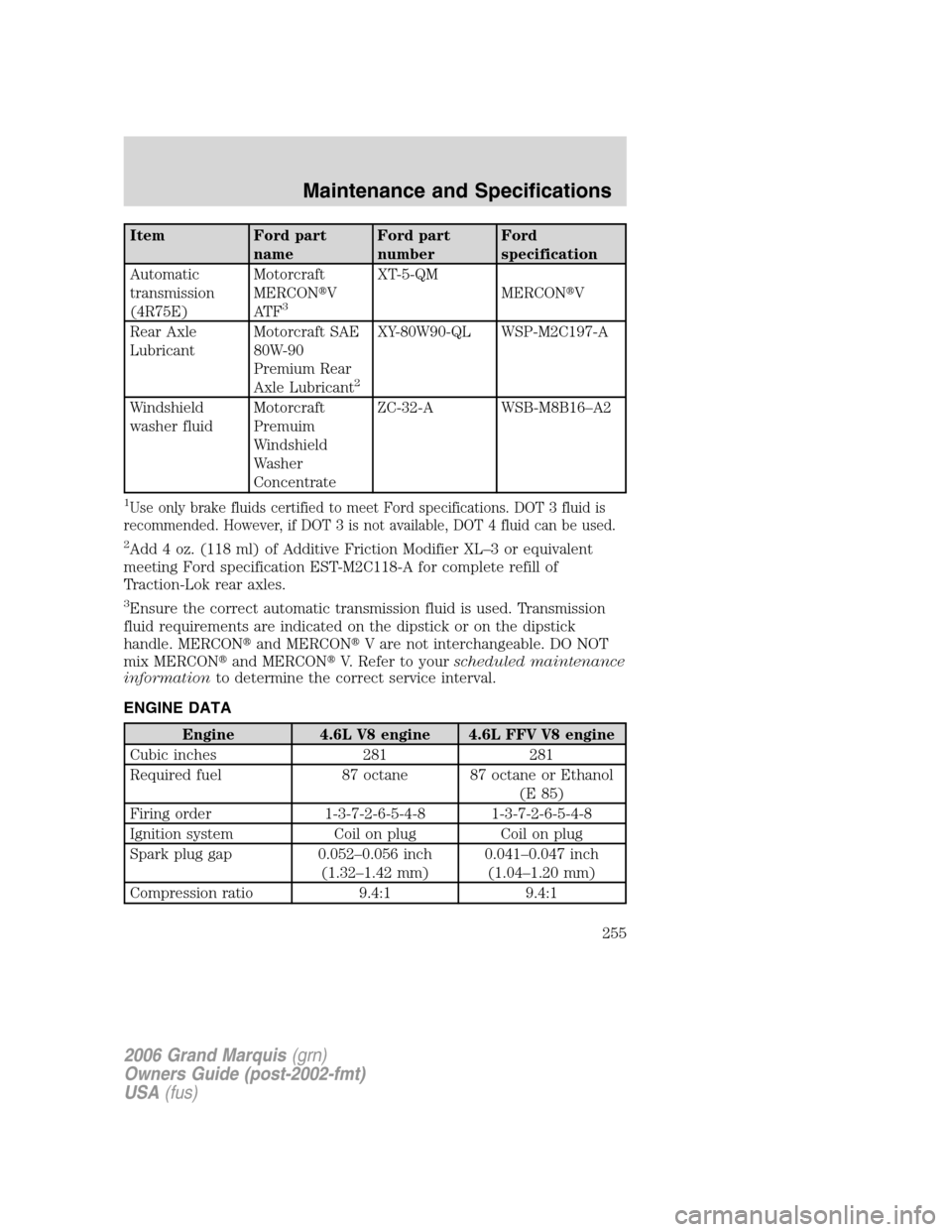

compression ratio Mercury Grand Marquis 2006 Owner's Manuals

Item Ford part
nameFord part
numberFord
specification
Automatic
transmission
(4R75E)Motorcraft
MERCONV
AT F
3
XT-5-QM
MERCONV
Rear Axle
LubricantMotorcraft SAE
80W-90
Premium Rear
Axle Lubricant
2
XY-80W90-QL WSP-M2C197-A
Windshield
washer fluidMotorcraft
Premuim
Windshield
Washer
ConcentrateZC-32-A WSB-M8B16–A2
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid is
recommended. However, if DOT 3 is not available, DOT 4 fluid can be used.
2Add 4 oz. (118 ml) of Additive Friction Modifier XL–3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of
Traction-Lok rear axles.
3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to yourscheduled maintenance
informationto determine the correct service interval.
ENGINE DATA
Engine 4.6L V8 engine 4.6L FFV V8 engine
Cubic inches 281 281
Required fuel 87 octane 87 octane or Ethanol
(E 85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.041–0.047 inch
(1.04–1.20 mm)
Compression ratio 9.4:1 9.4:1
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
255
