Page 44 of 272
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
The flash rate of the turn signal will speed up considerably if the left or
right turn lamp bulb (front or rear) is burned out.
Cornering lamps
When the turn signal is used and the headlamps are on, the cornering
lamps will light either the right or left side depending on the direction of
the turn.
INTERIOR LAMPS
Map/Courtesy lamps
The courtesy lamps light when:
•any door is opened.
•the instrument panel dimmer
switch is rotated past the detent.
•the UNLOCK control of the
remote entry controls is pressed
and the ignition is OFF.
The reading lamps can be turned on
by pressing the rocker controls next
to each lamp.
If equipped with Remote Keyless Entry, the courtesy lamp will illuminate
whenever any door is opened and will remain on for 25 seconds after the
door is shut or when the ignition is turned to the ON position.
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
44
Page 82 of 272
2. Press and hold the RESET
control for 3 seconds and release.
Oil life is set to 100% and “OIL LIFE
START VALUE SET TO XXX%” is
displayed.
INTERIOR TRUNK CONTROL
The remote trunk release control is
located on the driver’s door trim
panel and can be operated at any
time.
You can render the switch
inoperable by locking the button
with your master key.
If equipped with a perimeter alarm system, the remote trunk release
control and power door locks will be disabled when the vehicle perimeter
alarm system is armed. This control will not work until the vehicle
perimeter alarm system is disarmed. Refer toPerimeter Alarm System
in theLocks and Securitychapter.
POSITIVE RETENTION FLOOR MAT
Do not install additional floor mats on top of the factory installed
floor mats as they may interfere with the accelerator or the
brake pedals.
Position the driver floor mat so that
the eyelet is over the pointed end of
the retention post and rotate
forward to lock in. Make sure that
the mat does not interfere with the
operation of the accelerator or the
brake pedal. To remove the floor
mat, reverse the installation procedure.
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
82

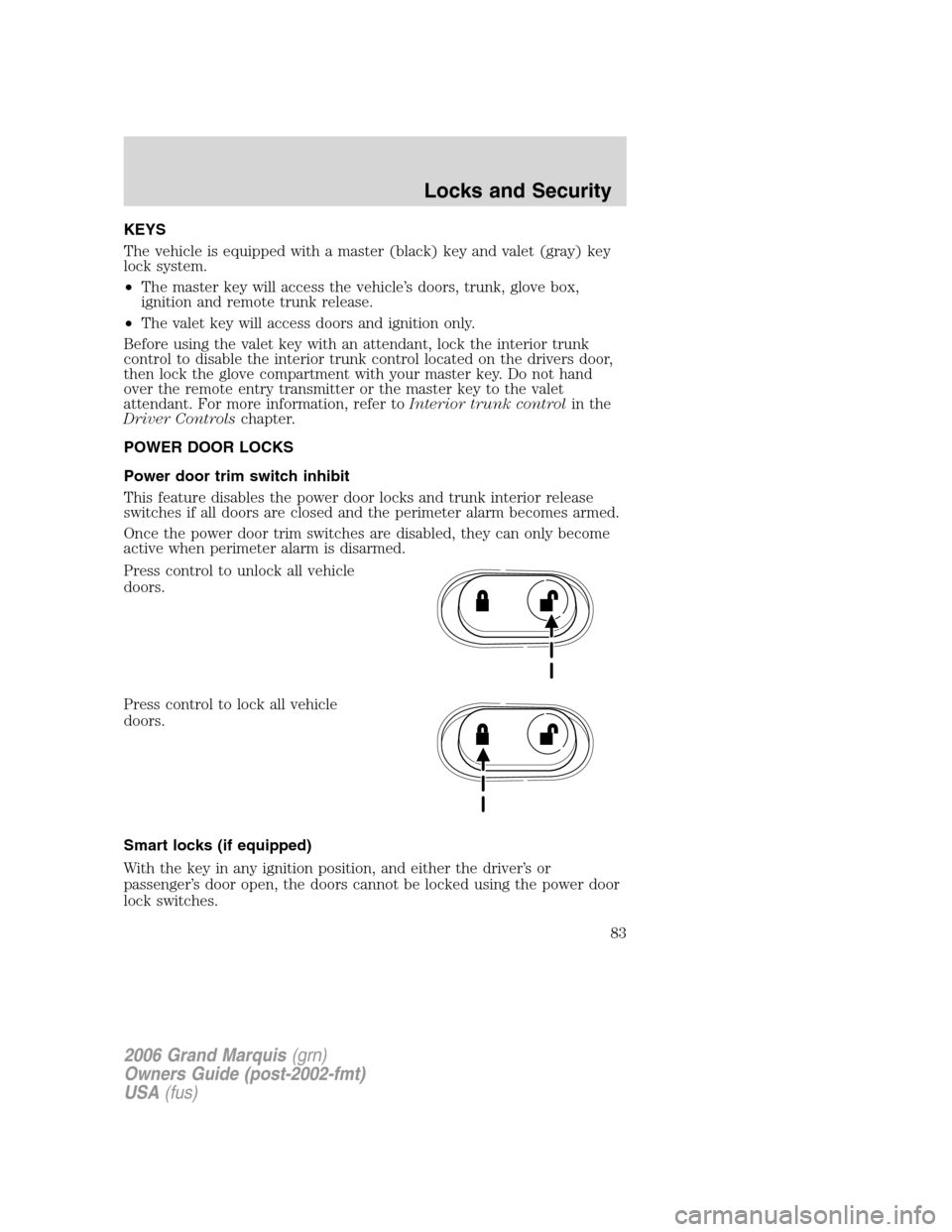

Page 83 of 272
KEYS
The vehicle is equipped with a master (black) key and valet (gray) key
lock system.
•The master key will access the vehicle’s doors, trunk, glove box,
ignition and remote trunk release.
•The valet key will access doors and ignition only.
Before using the valet key with an attendant, lock the interior trunk
control to disable the interior trunk control located on the drivers door,
then lock the glove compartment with your master key. Do not hand
over the remote entry transmitter or the master key to the valet
attendant. For more information, refer toInterior trunk controlin the
Driver Controlschapter.
POWER DOOR LOCKS
Power door trim switch inhibit
This feature disables the power door locks and trunk interior release
switches if all doors are closed and the perimeter alarm becomes armed.
Once the power door trim switches are disabled, they can only become
active when perimeter alarm is disarmed.
Press control to unlock all vehicle
doors.
Press control to lock all vehicle
doors.
Smart locks (if equipped)
With the key in any ignition position, and either the driver’s or
passenger’s door open, the doors cannot be locked using the power door
lock switches.
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
83
Page 84 of 272
The vehicle may still be locked with the key in the ignition, and
performing one of the following actions:
•Pressing the manual lock button on the door.
•Operating the remote entry transmitter (if equipped).
•Operating the keyless entry keypad (if equipped).
•Operating the driver’s door with a key.
CHILDPROOF DOOR LOCKS
When these locks are set, the rear
doors cannot be opened from the
inside. The rear doors can be
opened from the outside when the
doors are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.
Move lock control up to engage the
childproof lock. Move control down
to disengage childproof locks.
INTERIOR LUGGAGE COMPARTMENT RELEASE
Your vehicle is equipped with a mechanical interior luggage compartment
release handle that provides a means of escape for children and adults in
the event they become locked inside the luggage compartment.
Adults are advised to familiarize themselves with the operation and
location of the release handle.
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
84
Page 89 of 272
•Perform the following programming procedure yourself:
Place the key in the ignition and
cycle from 1 (OFF/LOCK) to 3 (ON)
eight times in rapid succession
within 10 seconds. After doors
lock/unlock, press any control on all
transmitters (up to four). After
pressing the control on each remote
transmitter, the door will lock and
unlock. If programming multiple
remote transmitters, you must press
the control buttons on each remote transmitter within 7 seconds of each
other to remain in programming mode. When completed, turn the
ignition to 1 (OFF/LOCK).
All transmittersmustbe programmed at the same time.
•When completed, turn the ignition to the 1 (OFF/LOCK) position and
wait at least 20 seconds in order to use the recently programmed
transmitter(s).
•Alltransmittersmustbe programmed during the same programming
cycle. A transmitter that is not programmed within the same
programming cycle will be erased and will no longer operate your
vehicle’s locks. If this occurs, you will have to reprogram all the
transmitters again, as you cannot just “add” a transmitter.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 2 (ACCESSORY) or 4 (START)
positions, or
•the remote transmitter unlock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control mustnotbe set to theoffposition for the
illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
The battery saver will shut off the interior lamps 30 minutes after the
last door is closed, or after 10 minutes if the last door is left open.
4
3
2
1
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
89
Page 91 of 272
5. Turn the ignition back to the 3 (ON) position.
6. The door locks will lock/unlock to confirm programming mode is
entered/active.
7. With the ignition still in the 3 (ON) position,for the autolock
feature,press the unlock control once then press the lock control once.
The horn will chirp once to confirm successful programming.For the
auto-unlock feature,press the lock control once, then press the unlock
control once. The horn will chirp twice to confirm successful
programming.
8. After having waited the necessary time for the programming to
confirm, turn the ignition to the 1 (OFF/LOCK) position.
Once disabled, the autolock feature can be enabled by repeating the
procedure in Steps 1–8.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
With the keyless entry keypad, you
can:
•lock or unlock the vehicle doors
without using the key.
•open the trunk.
See alsoRemote entry systemin this chapter for more information.
Your vehicle has a factory-set 5–digit code that operates the keyless
entry system. You can also program your own 5–digit personal entry
code.
The factory-set code is located:
•On the owner’s wallet card in the glove compartment, or
•At your dealer.
When using the keyless entry keypad, press the middle of each button in
order to ensure a good activation.
Programming a personal entry code
You can program up to three personal codes to unlock your vehicle.
These codes do not replace the permanent code that the authorized
dealer gave you.
To create your own personal entry code:
1. Enter the factory set code.Note:The keypad will illuminate when
pressed.
123
45678
90
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
91
Page 93 of 272
2. Press and release 1•2 within 5 seconds of step 1.
3. Press and hold 1•2 for two seconds. All of the vehicle doors will lock
and then unlock to confirm erasure.
Unlocking the doors and releasing the trunk with the keyless entry
system
To unlock the driver door, enter either the factory-set code or personal
code (each digit pressed within 5 seconds of prior digit). The interior
lamps will illuminate.
•Tounlock all doors,enter the factory-set code or personal code
(driver door unlocks) and press 3•4 within five seconds.
•Torelease the trunk,enter the factory-set code or personal code
(driver door unlocks) and press 5•6 within five seconds.
After the factory-set code or personal code has been entered, you can
unlock all doors (press 3•4) and release the trunk (press 5•6) as
long as the controls are pressed within 5 seconds of each other.
Locking doors with the keyless entry system
It is not necessary to enter the factory-set code prior to locking all doors.
Tolock the doors,press 7•8 and press 9•0 at the same time.Note:
The doors will not lock if the driver door is ajar.
Anti-scan feature
If the wrong code has been entered 7 times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the remote entry transmitter.
•the ignition is turned to the 3 (ON) position.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
93

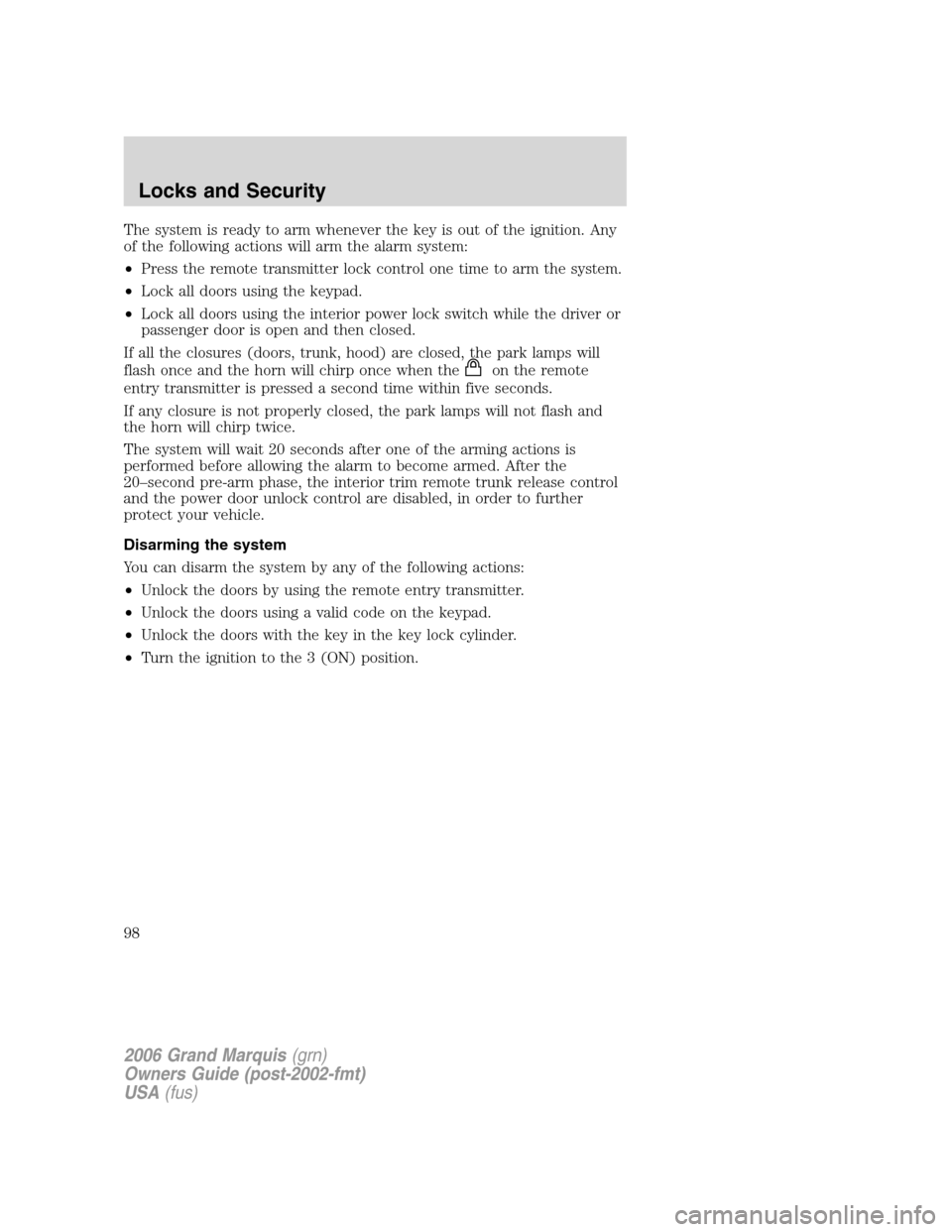

Page 98 of 272
The system is ready to arm whenever the key is out of the ignition. Any
of the following actions will arm the alarm system:
•Press the remote transmitter lock control one time to arm the system.
•Lock all doors using the keypad.
•Lock all doors using the interior power lock switch while the driver or
passenger door is open and then closed.
If all the closures (doors, trunk, hood) are closed, the park lamps will
flash once and the horn will chirp once when the
on the remote
entry transmitter is pressed a second time within five seconds.
If any closure is not properly closed, the park lamps will not flash and
the horn will chirp twice.
The system will wait 20 seconds after one of the arming actions is
performed before allowing the alarm to become armed. After the
20–second pre-arm phase, the interior trim remote trunk release control
and the power door unlock control are disabled, in order to further
protect your vehicle.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by using the remote entry transmitter.
•Unlock the doors using a valid code on the keypad.
•Unlock the doors with the key in the key lock cylinder.
•Turn the ignition to the 3 (ON) position.
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
98
Page 265 of 272
Rear window defroster ...............39
Relays ................................187, 194
Remote entry system .................86
illuminated entry ......................89
locking/unlocking doors ...........87
opening the trunk .....................87
panic alarm ...............................87
replacement/additional
transmitters ...............................88
replacing the batteries .............87
Roadside assistance ..................184
S
Safety Belt Maintenance ..........113
Safety belts (see Safety
restraints) ..................104, 108–112
Safety defects, reporting ..........213
Safety restraints ........104, 108–112
belt minder .............................114
extension assembly ................113
for adults .........................109–112
for children .............................131
lap belt ....................................110
Occupant Classification
Sensor ......................................106
safety belt maintenance .........113
warning light and chime ........114
Safety seats for children ..........135
Safety Compliance
Certification Label ....................257
Seat belts
(see Safety restraints) .............104
Seats ............................................99
child safety seats ....................135
front seats .................................99
SecuriLock passive anti-theft
system ....................................93, 96Servicing your vehicle ..............221
Setting the clock
AM/FM single CD .....................23
AM/FM stereo ...........................18
AM/FM/Cassette ........................19
AM/FM/In-dash 6 CD ................33
AM/FM/Tape/CD .......................28
Spark plugs,
specifications .............251, 255–256
Specification chart,
lubricants ...........................254–255
Speed control ..............................66
Starting a flex fuel vehicle .......170
Starting your vehicle ........168–170
jump starting ..........................201
Steering
speed sensitive .......................177
Steering wheel
controls ......................................69
tilting .........................................52
T
Tilt steering wheel ......................52
Tires ...........................143–144, 195
alignment ................................150
care ..........................................147
changing ..........................195, 197
checking the pressure ............147
inflating ...................................145
label .........................................156
replacing ..................................149
rotating ....................................150
safety practices .......................149
sidewall information ...............151
snow tires and chains ............157
spare tire .........................195, 197
terminology .............................144
tire grades ...............................144
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
265
Page 266 of 272
treadwear ........................143, 148
Towing .......................................163
recreational towing .................166
trailer towing ..........................163
wrecker ....................................206
Traction control ........................175
Traction-lok rear axle ...............178
Transmission .............................178
brake-shift interlock
(BSI) ................................178–179
fluid, checking and adding
(automatic) .............................248
fluid, refill capacities ..............252
lubricant specifications ..254–255
Trunk ...........................................84
remote release ....................82, 87
Turn signal ..................................44
V
Vehicle dimensions ...................256Vehicle Identification Number
(VIN) ..........................................257
Vehicle loading
..........................157
Ventilating your vehicle
...........171
W
Warning lights (see Lights)
.......10
Washer fluid
..............................224
Water, Driving through
.............183
Windows
power
.........................................63
Windshield washer fluid and
wipers
..........................................52
checking and adding fluid
.....224
replacing wiper blades
...........224
Wrecker towing
.........................206
2006 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
266
