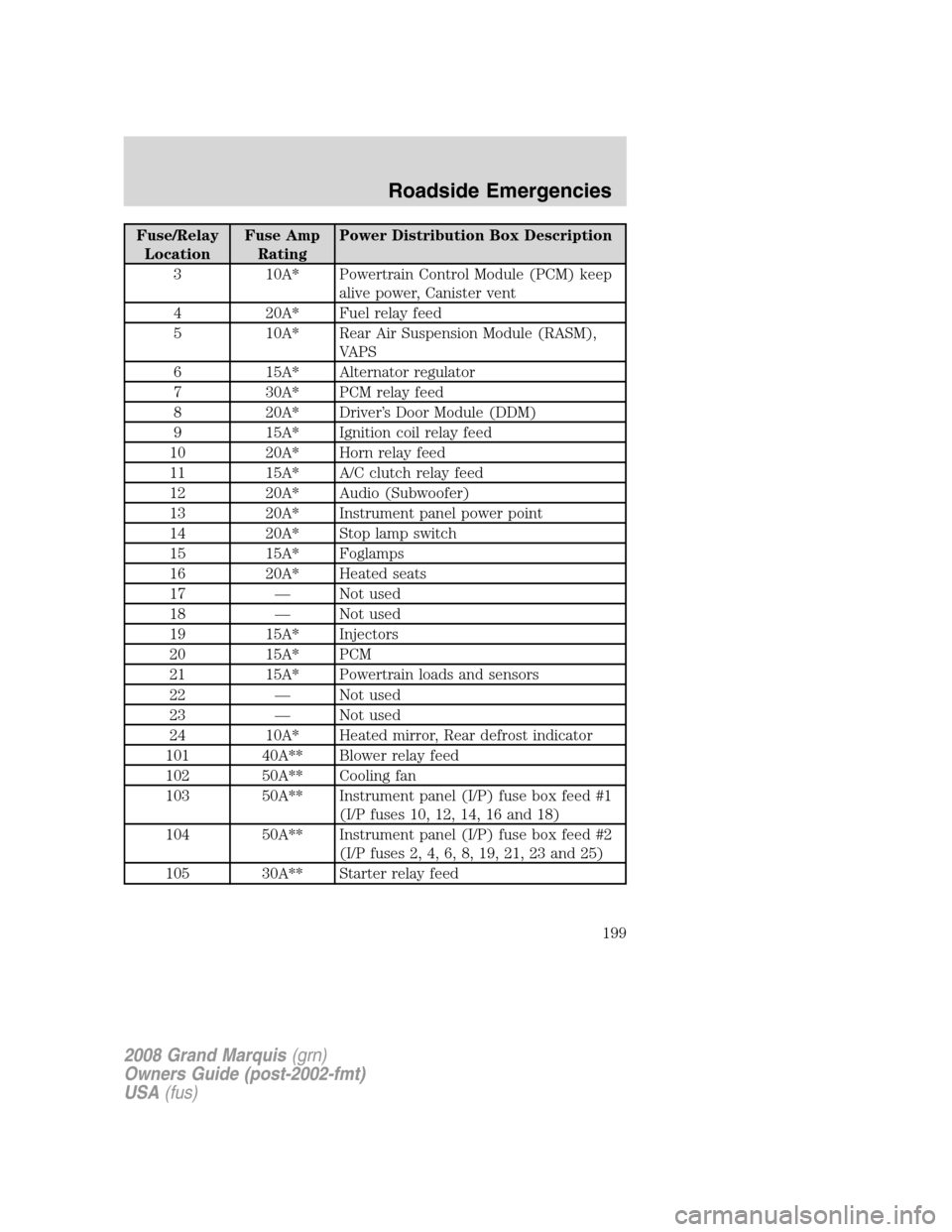

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
3 10A* Powertrain Control Module (PCM) keep
alive power, Canister vent
4 20A* Fuel relay feed
5 10A* Rear Air Suspension Module (RASM),
VAPS
6 15A* Alternator regulator
7 30A* PCM relay feed
8 20A* Driver’s Door Module (DDM)
9 15A* Ignition coil relay feed
10 20A* Horn relay feed
11 15A* A/C clutch relay feed
12 20A* Audio (Subwoofer)
13 20A* Instrument panel power point
14 20A* Stop lamp switch
15 15A* Foglamps
16 20A* Heated seats
17 — Not used
18 — Not used
19 15A* Injectors
20 15A* PCM
21 15A* Powertrain loads and sensors
22 — Not used
23 — Not used
24 10A* Heated mirror, Rear defrost indicator
101 40A** Blower relay feed
102 50A** Cooling fan
103 50A** Instrument panel (I/P) fuse box feed #1
(I/P fuses 10, 12, 14, 16 and 18)
104 50A** Instrument panel (I/P) fuse box feed #2
(I/P fuses 2, 4, 6, 8, 19, 21, 23 and 25)
105 30A** Starter relay feed
