Page 8 of 280
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
8
Page 39 of 280
5. At the desired autolamp time delay, place the headlamp switch in the
OFF position.
•At this point, the exterior lamps turn off and the time delay is set.
Foglamp control (if equipped)
The foglamps can be turned on
when the headlamp control is pulled
toward you and is in any of the
following positions:
•Parking lamps
•Low beams
•Autolamps (when active)
Foglamps will turn off when the
highbeams are activated.
High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output. To activate:
•the key must be in the ON position,
•the headlamp control is in the OFF or Parking lamps position.
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
39
Page 44 of 280
BULB REPLACEMENT
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Trade Number
Headlamp H13
Park, turn and sidemarker lamp (front) 3157 AK (amber)
Cornering lamp (front) 3156K
Tail, stop, turn and sidemarker lamp (rear) 3157K
Backup lamp 3156K
Foglamp 9145
License plate lamp 168
High-mount brakelamp 912
Luggage compartment lamp 212-2
Rear reading lamp 578
Map lamp 906
Visor vanity lamp - Slide on Rail system
(SOR)37
Dual floorwell lamp 906
Glove compartment 168
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
Replacing the interior bulbs
Check the operation of all bulbs frequently.
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
44

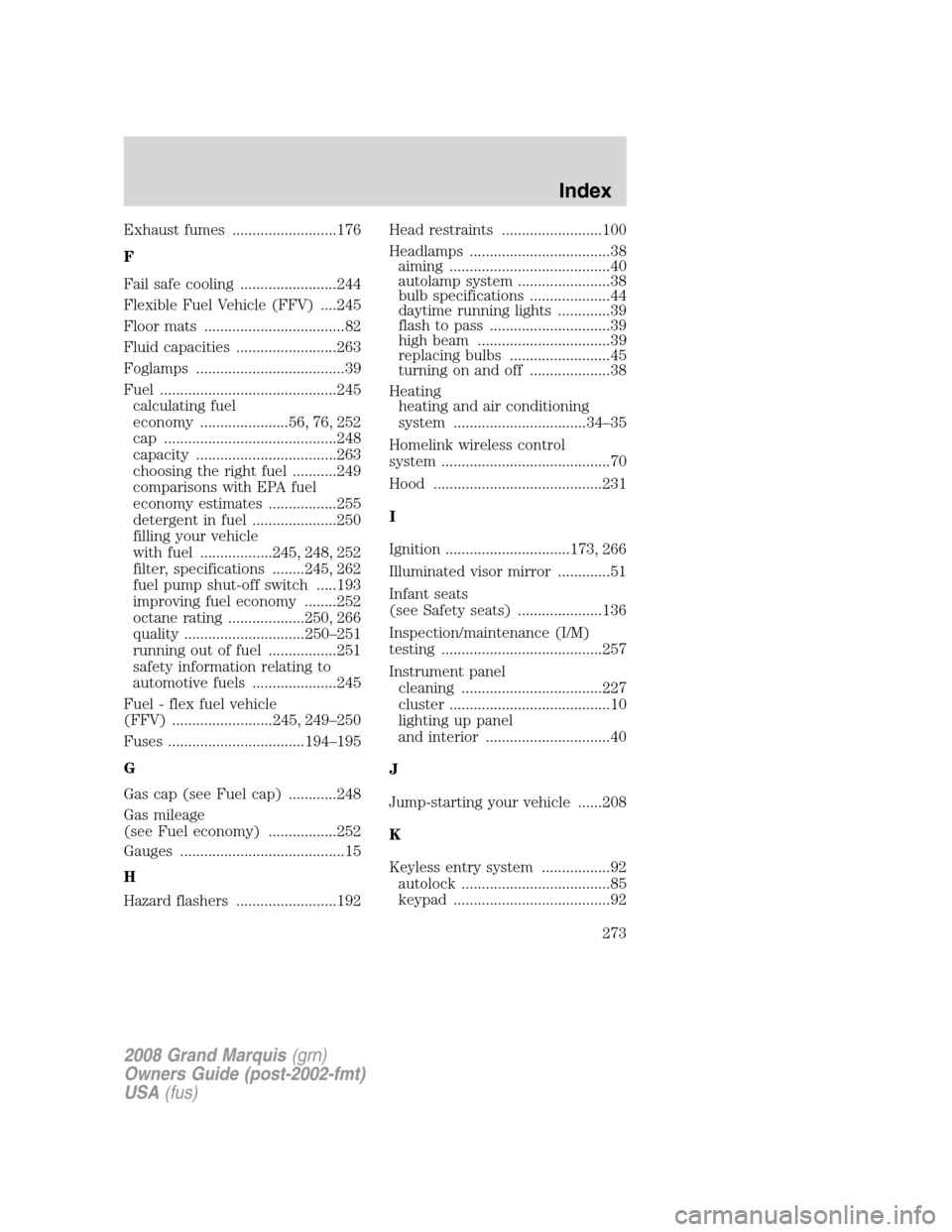

Page 273 of 280
Exhaust fumes ..........................176
F
Fail safe cooling ........................244
Flexible Fuel Vehicle (FFV) ....245
Floor mats ...................................82
Fluid capacities .........................263
Foglamps .....................................39
Fuel ............................................245
calculating fuel
economy ......................56, 76, 252
cap ...........................................248
capacity ...................................263
choosing the right fuel ...........249
comparisons with EPA fuel
economy estimates .................255
detergent in fuel .....................250
filling your vehicle
with fuel ..................245, 248, 252
filter, specifications ........245, 262
fuel pump shut-off switch .....193
improving fuel economy ........252
octane rating ...................250, 266
quality ..............................250–251
running out of fuel .................251
safety information relating to
automotive fuels .....................245
Fuel - flex fuel vehicle
(FFV) .........................245, 249–250
Fuses ..................................194–195
G
Gas cap (see Fuel cap) ............248
Gas mileage
(see Fuel economy) .................252
Gauges .........................................15
H
Hazard flashers .........................192Head restraints .........................100
Headlamps ...................................38
aiming ........................................40
autolamp system .......................38
bulb specifications ....................44
daytime running lights .............39
flash to pass ..............................39
high beam .................................39
replacing bulbs .........................45
turning on and off ....................38
Heating
heating and air conditioning
system .................................34–35
Homelink wireless control
system ..........................................70
Hood ..........................................231
I
Ignition ...............................173, 266
Illuminated visor mirror .............51
Infant seats
(see Safety seats) .....................136
Inspection/maintenance (I/M)
testing ........................................257
Instrument panel
cleaning ...................................227
cluster ........................................10
lighting up panel
and interior ...............................40
J
Jump-starting your vehicle ......208
K
Keyless entry system .................92
autolock .....................................85
keypad .......................................92
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
273

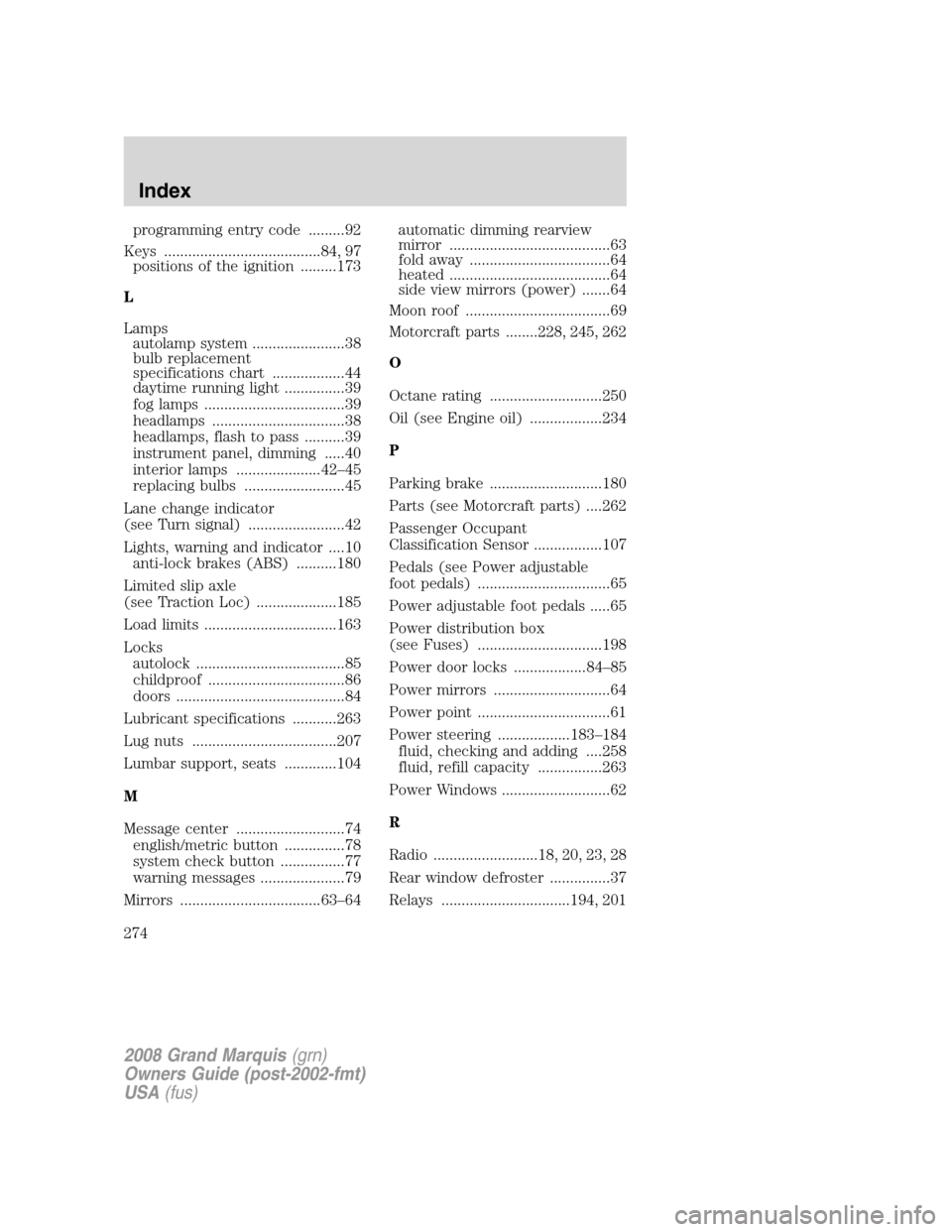

Page 274 of 280
programming entry code .........92
Keys .......................................84, 97
positions of the ignition .........173
L
Lamps
autolamp system .......................38
bulb replacement
specifications chart ..................44
daytime running light ...............39
fog lamps ...................................39
headlamps .................................38
headlamps, flash to pass ..........39
instrument panel, dimming .....40
interior lamps .....................42–45
replacing bulbs .........................45
Lane change indicator
(see Turn signal) ........................42
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........180
Limited slip axle
(see Traction Loc) ....................185
Load limits .................................163
Locks
autolock .....................................85
childproof ..................................86
doors ..........................................84
Lubricant specifications ...........263
Lug nuts ....................................207
Lumbar support, seats .............104
M
Message center ...........................74
english/metric button ...............78
system check button ................77
warning messages .....................79
Mirrors ...................................63–64automatic dimming rearview
mirror ........................................63
fold away ...................................64
heated ........................................64
side view mirrors (power) .......64
Moon roof ....................................69
Motorcraft parts ........228, 245, 262
O
Octane rating ............................250
Oil (see Engine oil) ..................234
P
Parking brake ............................180
Parts (see Motorcraft parts) ....262
Passenger Occupant
Classification Sensor .................107
Pedals (see Power adjustable
foot pedals) .................................65
Power adjustable foot pedals .....65
Power distribution box
(see Fuses) ...............................198
Power door locks ..................84–85
Power mirrors .............................64
Power point .................................61
Power steering ..................183–184
fluid, checking and adding ....258
fluid, refill capacity ................263
Power Windows ...........................62
R
Radio ..........................18, 20, 23, 28
Rear window defroster ...............37
Relays ................................194, 201
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
274
