Page 261 of 270

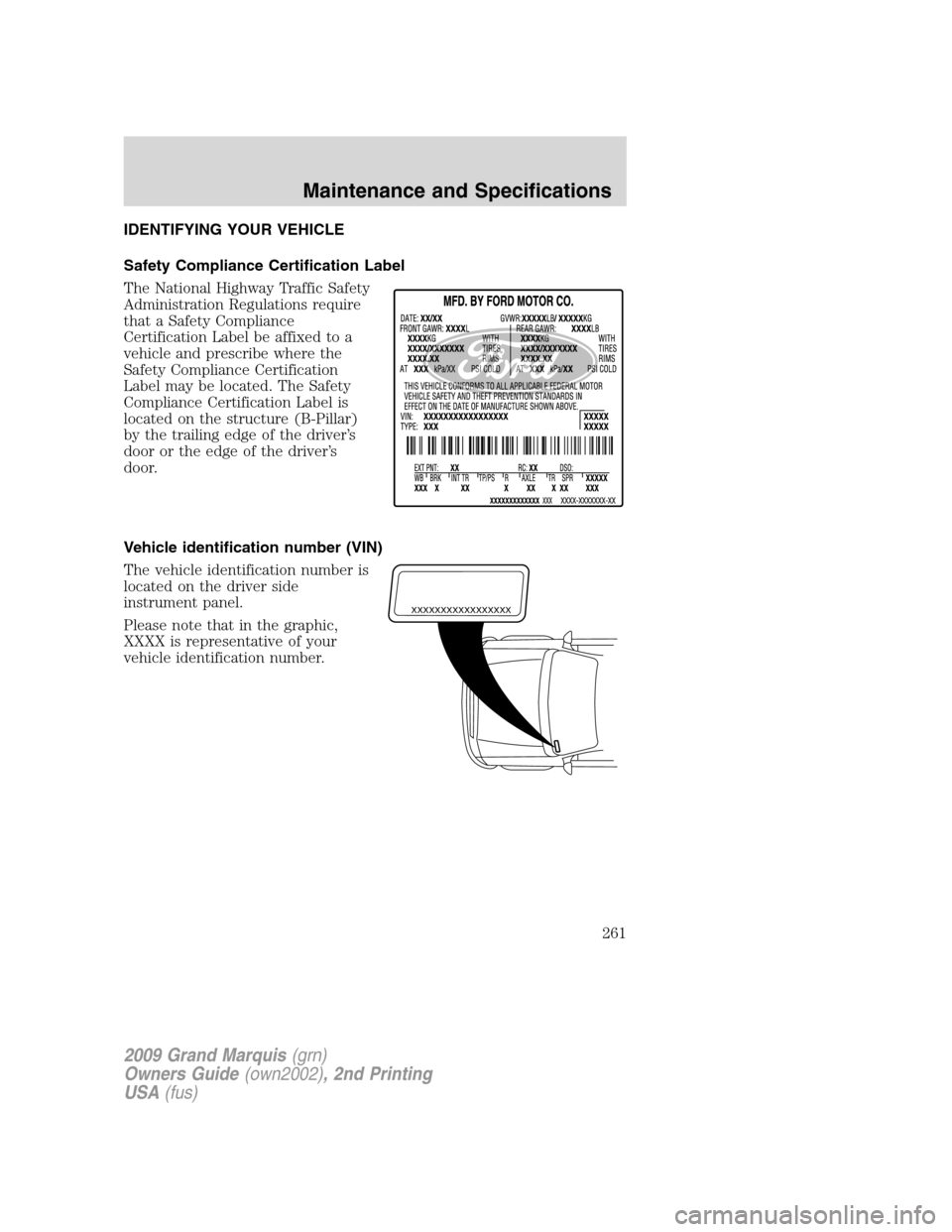

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Maintenance and Specifications
261
Page 262 of 270

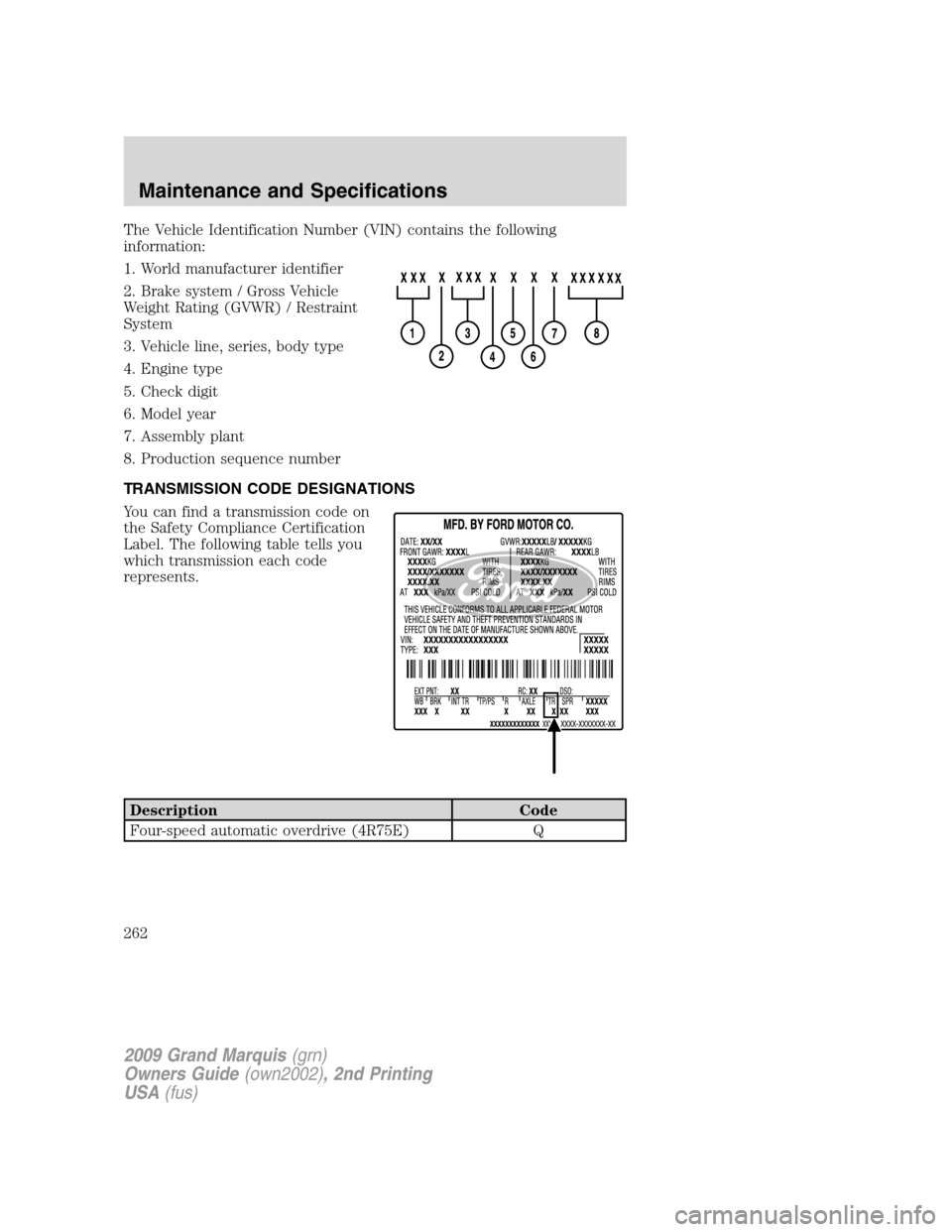

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic overdrive (4R75E) Q
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Maintenance and Specifications
262
Page 263 of 270

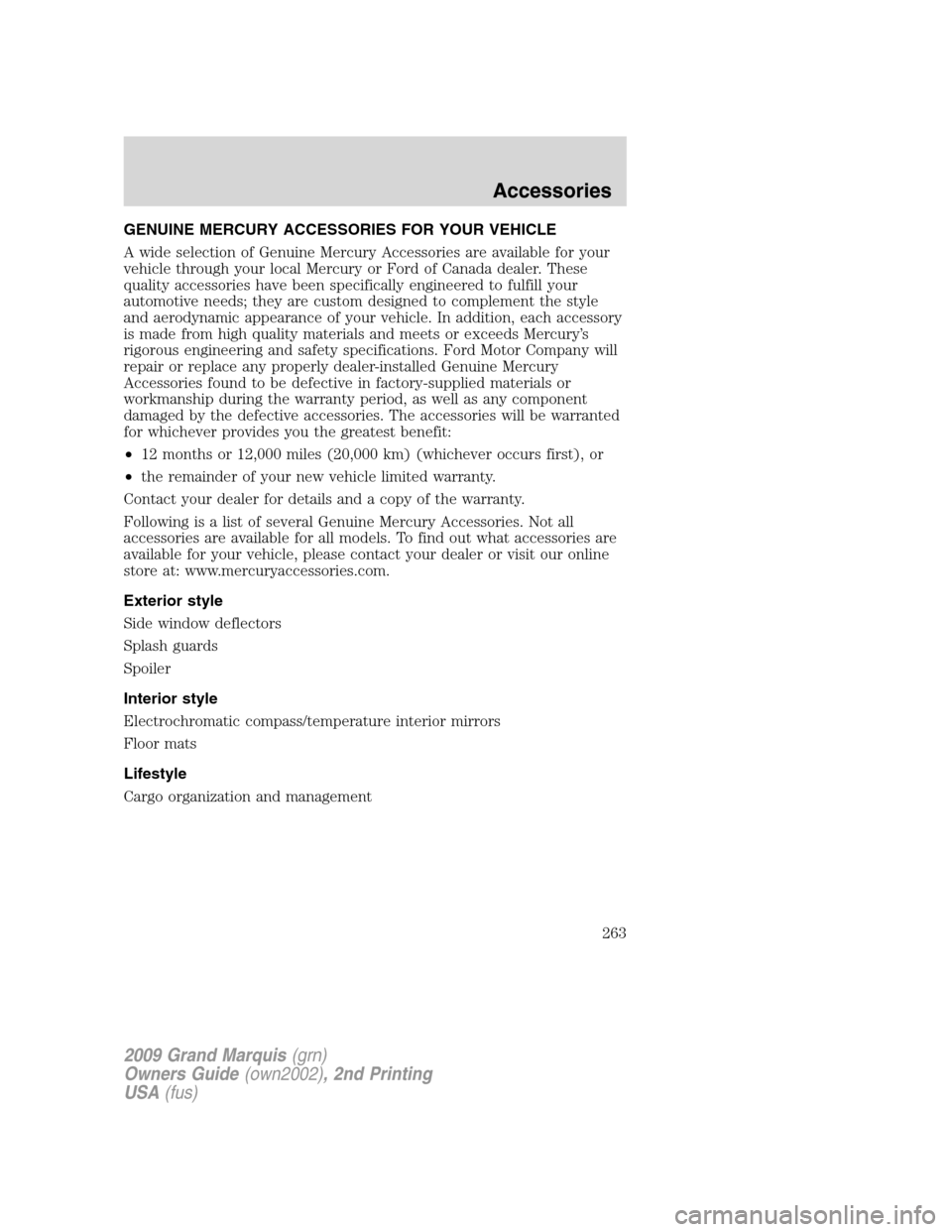

GENUINE MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Mercury Accessories are available for your
vehicle through your local Mercury or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Mercury
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Mercury Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.mercuryaccessories.com.
Exterior style
Side window deflectors
Splash guards
Spoiler
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Cargo organization and management
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Accessories
263
Page 264 of 270
Peace of mind
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Accessories
264
Page 265 of 270
A
ABS (see Brakes) .....................174
Air cleaner filter ...............254–255
Air conditioning ..........................38
Air suspension ...........................178
description ..............................178
Airbag supplemental
restraint system ................108, 117
and child safety seats ............110
description ......................108, 117
disposal ....................................120
driver airbag ....................111, 118
indicator light .................117, 119
operation .........................111, 118
passenger airbag .............111, 118
side airbag ...............................117
Antifreeze
(see Engine coolant) ................232
Anti-lock brake system
(see Brakes) ......................174–175
Anti-theft system ........................82
Audio system
(see Radio) ................20, 22, 25, 30
Automatic transmission
driving an automatic
overdrive .................................180
fluid, adding ............................252
fluid, checking ........................252
fluid, refill capacities ..............257
fluid, specification ..................257
Auxiliary power point .................54
Axle
lubricant specifications ..........257
refill capacities ........................257
traction lok ..............................179
B
Battery .......................................230acid, treating emergencies .....230
jumping a disabled battery ....202
maintenance-free ....................230
replacement, specifications ...255
servicing ..................................230
Belt-Minder.............................103
Booster seats .............................134
Brakes ................................173–174
anti-lock ...........................174–175
anti-lock brake system (ABS)
warning light ...........................175
fluid, checking and adding ....252
fluid, refill capacities ..............257
fluid, specifications .................257
lubricant specifications ..........257
shift interlock ..........................179
Bulbs ............................................46
C
Capacities for refilling fluids ....257
Cell phone use ..............................8
Child safety seats ......................124
attaching with tether straps ..132
in front seat ............................125
in rear seat ......................125, 128
LATCH .....................................129
recommendations ...................122
Child safety seats - booster
seats ...........................................134
Cleaning your vehicle
engine compartment ..............218
instrument panel ....................220
interior .....................................220
plastic parts ............................219
washing ....................................216
waxing .....................................217
wheels ......................................217
wiper blades ............................219
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
265
Page 266 of 270
Climate control (see Air
conditioning or Heating) ............38
Clock adjust
6-CD in dash .............................33
AM/FM .......................................21
AM/FM/CD .................................24
AM/FM/Tape/CD .......................28
Console ........................................53
Controls
power seat .................................89
steering column ........................61
Coolant
checking and adding ..............232
refill capacities ................236, 257
specifications ..........................257
Cruise control
(see Speed control) ....................58
Cupholder(s) ...............................93
Customer Assistance ................184
Ford Extended Service
Plan ..........................................213
Getting assistance outside
the U.S. and Canada ..............213
Getting roadside assistance ...184
Getting the service you
need .........................................209
Ordering additional owner’s
literature .................................214
Utilizing the
Mediation/Arbitration
Program ...................................212
D
Daytime running lamps
(see Lamps) ................................42
Defrost
rear window ..............................40Dipstick
automatic transmission
fluid ..........................................252
engine oil .................................227
Driving under special
conditions ..................................182
through water .........................183
E
Electronic message center .........62
Emergencies, roadside
jump-starting ..........................202
Emission control system ..........248
Engine ........................................260
cleaning ...................................218
coolant .....................................232
fail-safe cooling .......................237
idle speed control ...................230
lubrication specifications .......257
refill capacities ........................257
service points ..................225–226
starting after a collision .........186
Engine block heater .................172
Engine oil ..................................227
change oil soon warning,
message center .......................227
checking and adding ..............227
dipstick ....................................227
filter, specifications ........229, 255
recommendations ...................229
refill capacities ........................257
specifications ..........................257
Event data recording ....................7
Exhaust fumes ..........................171
F
Fail safe cooling ........................237
Flexible Fuel Vehicle (FFV) ....238
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
266
Page 267 of 270
Floor mats ...................................70
Fluid capacities .........................257
Fog lamps ....................................42
Fuel ............................................238
calculating fuel
economy ............................64, 245
cap ...........................................241
capacity ...................................257
choosing the right fuel ...........243
comparisons with EPA fuel
economy estimates .................248
detergent in fuel .....................243
filling your vehicle with
fuel ...........................238, 241, 245
filter, specifications ........238, 255
fuel pump shut-off switch .....186
improving fuel economy ........245
octane rating ...................243, 260
quality ......................................244
running out of fuel .................244
safety information relating to
automotive fuels .....................238
Fuel - flex fuel vehicle
(FFV) .................................238, 243
Fuses ..................................187–188
G
Gas cap (see Fuel cap) ............241
Gas mileage
(see Fuel economy) .................245
Gauges .........................................17
H
Hazard flashers .........................185
Head restraints ...........................87
Headlamps ...................................41
aiming ........................................43autolamp system .......................41
bulb specifications ....................47
daytime running lights .............42
flash to pass ..............................42
high beam .................................42
replacing bulbs .........................48
turning on and off ....................41
Heating
heating and air conditioning
system .................................37–38
Hood ..........................................224
I
Ignition ...............................168, 260
Illuminated visor mirror .............53
Infant seats
(see Safety seats) .....................124
Inspection/maintenance (I/M)
testing ........................................250
Instrument panel
cleaning ...................................220
cluster ........................................12
lighting up panel and
interior .......................................43
J
Jump-starting your vehicle ......202
K
Keyless entry system .................80
autolock .....................................72
keypad .......................................80
programming entry code .........80
Keys .......................................72, 85
positions of the ignition .........168
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
267
Page 268 of 270
L
Lamps
autolamp system .......................41
bulb replacement
specifications chart ..................47
daytime running light ...............42
fog lamps ...................................42
headlamps .................................41
headlamps, flash to pass ..........42
instrument panel, dimming .....43
interior lamps .....................45–47
replacing bulbs .........................48
LATCH anchors .........................129
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........175
Limited slip axle
(see Traction Loc) ....................179
Load limits .................................158
Locks
autolock .....................................72
childproof ..................................74
doors ..........................................72
Lubricant specifications ...........257
Lug nuts ....................................201
Lumbar support, seats ...............91
M
Message center ...........................62
english/metric button ...............66
system check button ................65
warning messages .....................67
Mirrors .........................................56
automatic dimming rearview
mirror ........................................56
fold away ...................................57
heated ........................................57
side view mirrors (power) .......56Motorcraft parts ........222, 238, 255
O
Octane rating ............................243
Oil (see Engine oil) ..................227
P
Parking brake ............................176
Parts (see Motorcraft parts) ....255
Passenger Occupant
Classification Sensor ...................95
Pedals (see Power adjustable
foot pedals) .................................57
Power adjustable foot pedals .....57
Power distribution box
(see Fuses) ...............................191
Power door locks ........................72
Power mirrors .............................56
Power point .................................54
Power steering ..........................178
fluid, checking and adding ....251
fluid, refill capacity ................257
Power Windows ...........................55
R
Radio ..........................20, 22, 25, 30
Rear window defroster ...............40
Recommendations for
attaching safety restraints for
children ......................................122
Relays ................................187, 194
Remote entry system .................76
illuminated entry ......................79
locking/unlocking doors ...........77
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
268
Page 269 of 270
opening the trunk .....................77
panic alarm ...............................77
replacement/additional
transmitters ...............................78
replacing the batteries .............78
Roadside assistance ..................184
S
Safety belts (see Safety
restraints) ......................93, 97–102
Safety Canopy ...........................117
Safety defects, reporting ..........215
Safety restraints ............93, 97–102
Belt-Minder...........................103
extension assembly ................101
for adults ...........................98–101
for children .............................120
lap belt ......................................99
Occupant Classification
Sensor ........................................95
warning light and chime ........102
Safety restraints - LATCH
anchors ......................................129
Safety seats for children ..........124
Safety Compliance
Certification Label ....................261
Seats ............................................87
child safety seats ....................124
front seats .................................88
heated ........................................92
SecuriLock passive
anti-theft system ...................82, 85
Servicing your vehicle ..............223
Setting the clock
AM/FM single CD .....................24
AM/FM stereo ...........................21
AM/FM/In-dash 6 CD ................33AM/FM/Tape/CD .......................28
Spark plugs, specifications ......255,
260
Specification chart,
lubricants ...................................257
Speed control ..............................58
Starting a flex fuel vehicle .......170
Starting your vehicle ........168–170
jump starting ..........................202
Steering wheel
controls ......................................61
tilting .........................................53
T
Tilt steering wheel ......................53
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....153
Tires ...................................138–139
alignment ................................146
care ..........................................142
changing ..................................198
checking the pressure ............142
inflating ...................................140
label .........................................152
replacing ..................................144
rotating ....................................146
safety practices .......................145
sidewall information ...............147
snow tires and chains ............158
spare tire .........................195, 197
terminology .............................139
tire grades ...............................139
treadwear ........................138, 143
Towing .......................................164
recreational towing .................167
trailer towing ..........................164
wrecker ....................................207
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
269
Page 270 of 270
Traction control ........................177
Traction-lok rear axle ...............179
Transmission .............................179
brake-shift interlock (BSI) ....179
fluid, checking and adding
(automatic) .............................252
fluid, refill capacities ..............257
lubricant specifications ..........257
Trunk ...........................................74
remote release ....................71, 77
Turn signal ..................................45
V
Vehicle Identification Number
(VIN) ..........................................261
Vehicle loading ..........................158Ventilating your vehicle
...........171
W
Warning lights (see Lights)
.......12
Washer fluid
..............................226
Water, Driving through
.............183
Windows
power
.........................................55
Windshield washer fluid and
wipers
..........................................52
checking and adding fluid
.....226
replacing wiper blades
...........226
Wrecker towing
.........................207
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
270
