Page 2 of 270
Seating and Safety Restraints 87
Seating 87
Safety restraints 93
Airbags 108
Child restraints 120
Tires, Wheels and Loading 138
Tire information 138
Tire inflation 140
Tire Pressure Monitoring System (TPMS) 153
Vehicle loading 158
Trailer towing 164
Recreational towing 167
Driving 168
Starting 168
Brakes 173
Traction Control™ 177
Air suspension 178
Transmission operation 179
Roadside Emergencies 184
Getting roadside assistance 184
Hazard flasher switch 185
Fuel pump shut-off switch 186
Fuses and relays 187
Changing tires 194
Wheel lug nut torque 201
Jump starting 202
Wrecker towing 207
Customer Assistance 209
Reporting safety defects (U.S. only) 215
Reporting safety defects (Canada only) 215
Cleaning 216
Table of Contents
2
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)

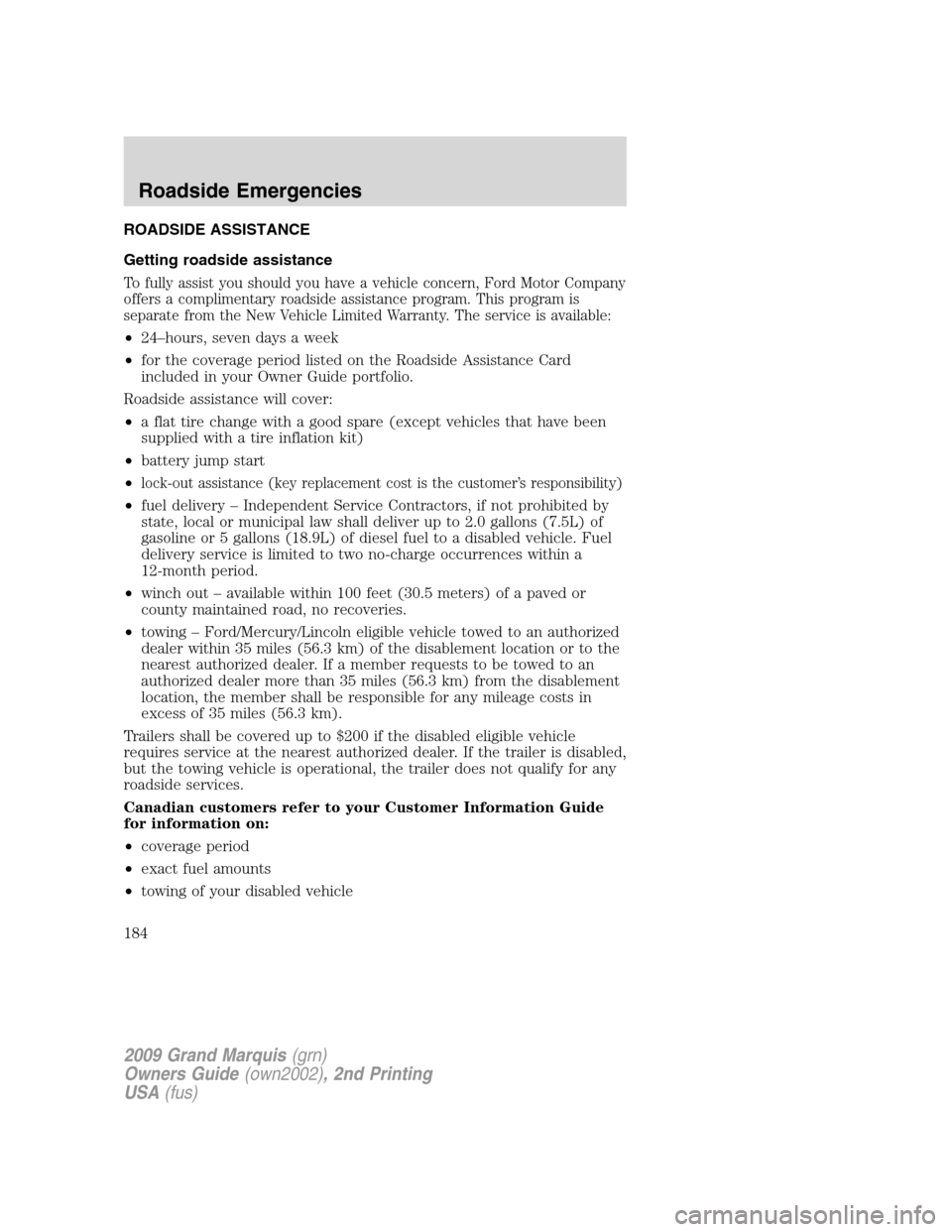

Page 184 of 270
ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor Company
offers a complimentary roadside assistance program. This program is
separate from the New Vehicle Limited Warranty. The service is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•
lock-out assistance (key replacement cost is the customer’s responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
•exact fuel amounts
•towing of your disabled vehicle
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Roadside Emergencies
184
Page 202 of 270
JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Roadside Emergencies
202

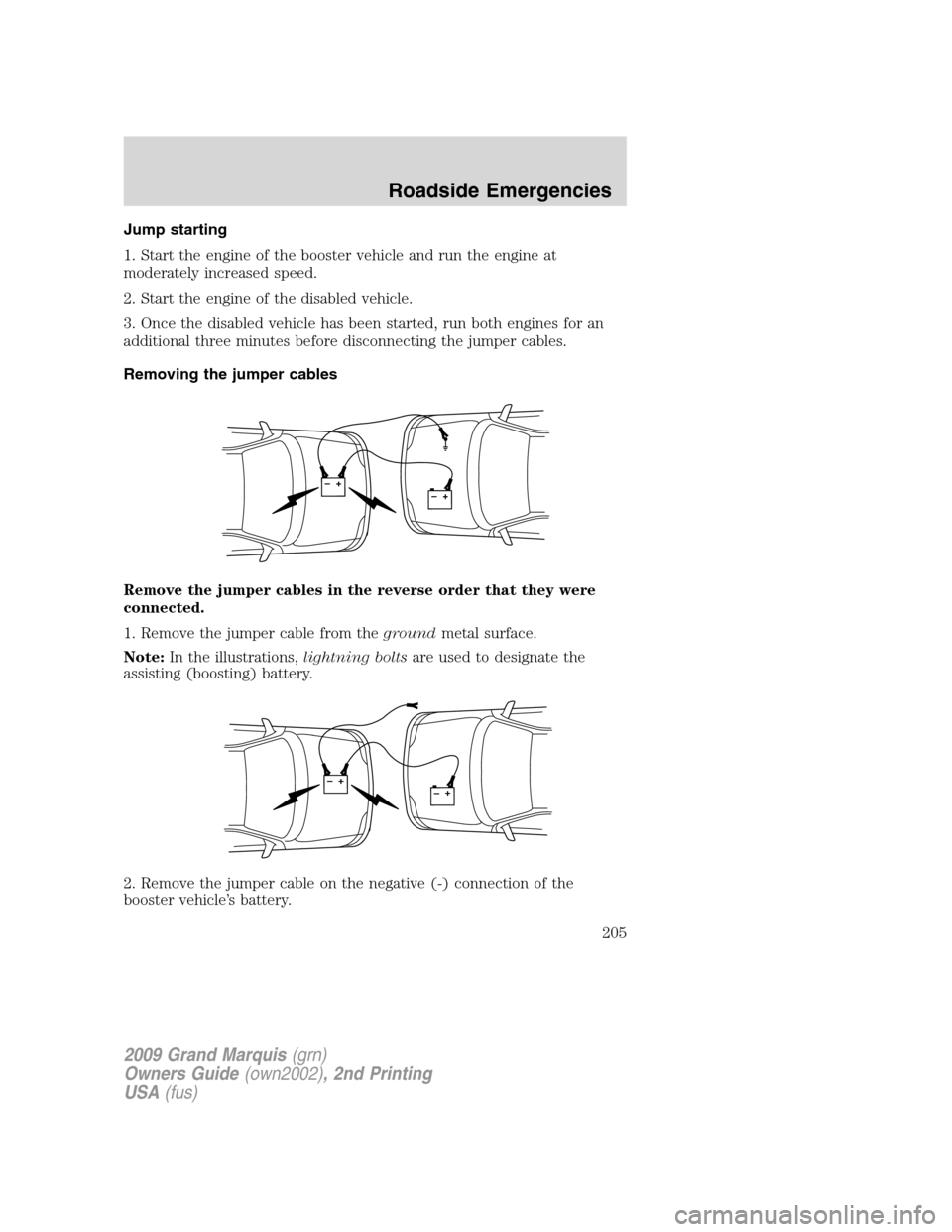

Page 205 of 270
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from thegroundmetal surface.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Remove the jumper cable on the negative (-) connection of the
booster vehicle’s battery.
+–+–
+–+–
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Roadside Emergencies
205

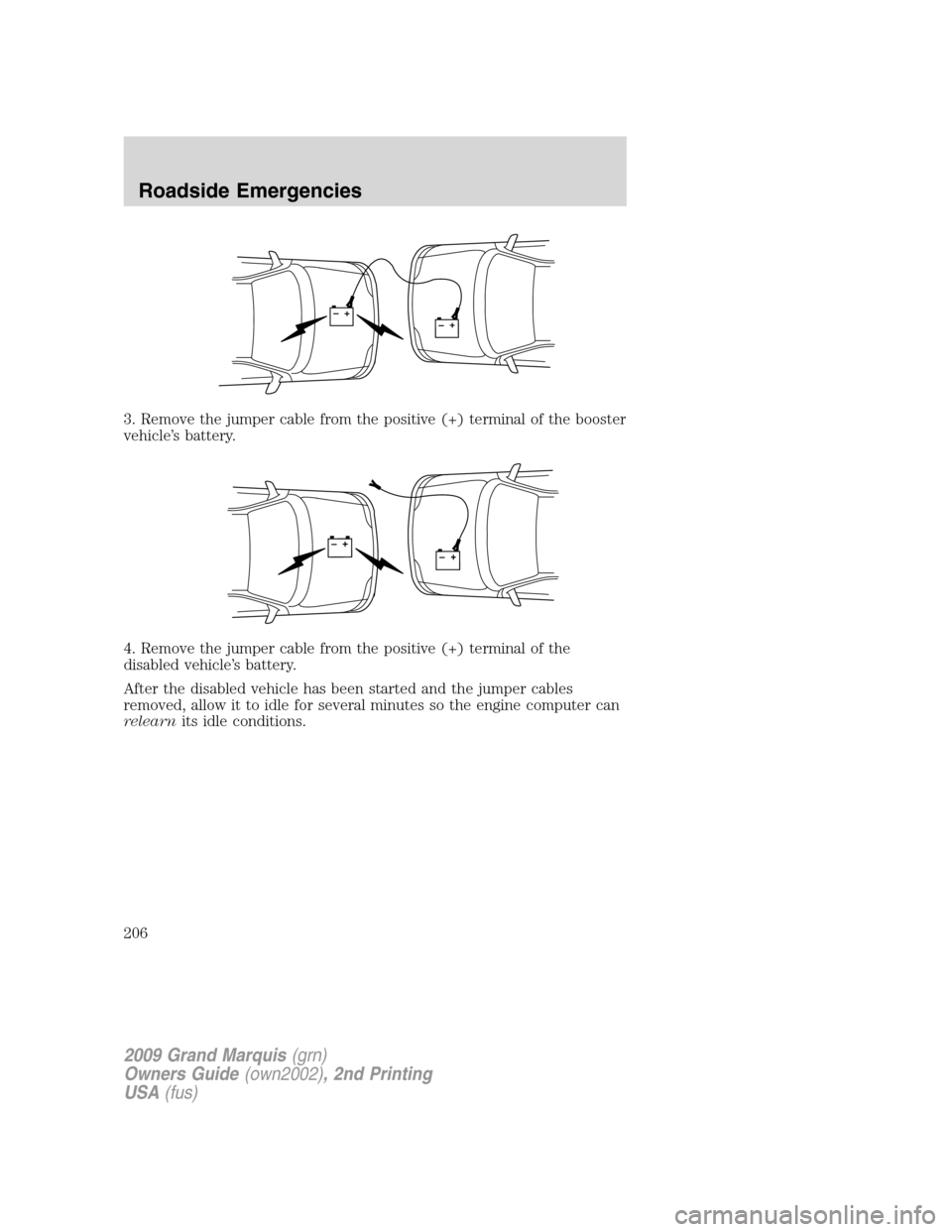

Page 206 of 270
3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Roadside Emergencies
206
Page 266 of 270
Climate control (see Air
conditioning or Heating) ............38
Clock adjust
6-CD in dash .............................33
AM/FM .......................................21
AM/FM/CD .................................24
AM/FM/Tape/CD .......................28
Console ........................................53
Controls
power seat .................................89
steering column ........................61
Coolant
checking and adding ..............232
refill capacities ................236, 257
specifications ..........................257
Cruise control
(see Speed control) ....................58
Cupholder(s) ...............................93
Customer Assistance ................184
Ford Extended Service
Plan ..........................................213
Getting assistance outside
the U.S. and Canada ..............213
Getting roadside assistance ...184
Getting the service you
need .........................................209
Ordering additional owner’s
literature .................................214
Utilizing the
Mediation/Arbitration
Program ...................................212
D
Daytime running lamps
(see Lamps) ................................42
Defrost
rear window ..............................40Dipstick
automatic transmission
fluid ..........................................252
engine oil .................................227
Driving under special
conditions ..................................182
through water .........................183
E
Electronic message center .........62
Emergencies, roadside
jump-starting ..........................202
Emission control system ..........248
Engine ........................................260
cleaning ...................................218
coolant .....................................232
fail-safe cooling .......................237
idle speed control ...................230
lubrication specifications .......257
refill capacities ........................257
service points ..................225–226
starting after a collision .........186
Engine block heater .................172
Engine oil ..................................227
change oil soon warning,
message center .......................227
checking and adding ..............227
dipstick ....................................227
filter, specifications ........229, 255
recommendations ...................229
refill capacities ........................257
specifications ..........................257
Event data recording ....................7
Exhaust fumes ..........................171
F
Fail safe cooling ........................237
Flexible Fuel Vehicle (FFV) ....238
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
266
Page 267 of 270
Floor mats ...................................70
Fluid capacities .........................257
Fog lamps ....................................42
Fuel ............................................238
calculating fuel
economy ............................64, 245
cap ...........................................241
capacity ...................................257
choosing the right fuel ...........243
comparisons with EPA fuel
economy estimates .................248
detergent in fuel .....................243
filling your vehicle with
fuel ...........................238, 241, 245
filter, specifications ........238, 255
fuel pump shut-off switch .....186
improving fuel economy ........245
octane rating ...................243, 260
quality ......................................244
running out of fuel .................244
safety information relating to
automotive fuels .....................238
Fuel - flex fuel vehicle
(FFV) .................................238, 243
Fuses ..................................187–188
G
Gas cap (see Fuel cap) ............241
Gas mileage
(see Fuel economy) .................245
Gauges .........................................17
H
Hazard flashers .........................185
Head restraints ...........................87
Headlamps ...................................41
aiming ........................................43autolamp system .......................41
bulb specifications ....................47
daytime running lights .............42
flash to pass ..............................42
high beam .................................42
replacing bulbs .........................48
turning on and off ....................41
Heating
heating and air conditioning
system .................................37–38
Hood ..........................................224
I
Ignition ...............................168, 260
Illuminated visor mirror .............53
Infant seats
(see Safety seats) .....................124
Inspection/maintenance (I/M)
testing ........................................250
Instrument panel
cleaning ...................................220
cluster ........................................12
lighting up panel and
interior .......................................43
J
Jump-starting your vehicle ......202
K
Keyless entry system .................80
autolock .....................................72
keypad .......................................80
programming entry code .........80
Keys .......................................72, 85
positions of the ignition .........168
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
267
Page 269 of 270
opening the trunk .....................77
panic alarm ...............................77
replacement/additional
transmitters ...............................78
replacing the batteries .............78
Roadside assistance ..................184
S
Safety belts (see Safety
restraints) ......................93, 97–102
Safety Canopy ...........................117
Safety defects, reporting ..........215
Safety restraints ............93, 97–102
Belt-Minder...........................103
extension assembly ................101
for adults ...........................98–101
for children .............................120
lap belt ......................................99
Occupant Classification
Sensor ........................................95
warning light and chime ........102
Safety restraints - LATCH
anchors ......................................129
Safety seats for children ..........124
Safety Compliance
Certification Label ....................261
Seats ............................................87
child safety seats ....................124
front seats .................................88
heated ........................................92
SecuriLock passive
anti-theft system ...................82, 85
Servicing your vehicle ..............223
Setting the clock
AM/FM single CD .....................24
AM/FM stereo ...........................21
AM/FM/In-dash 6 CD ................33AM/FM/Tape/CD .......................28
Spark plugs, specifications ......255,
260
Specification chart,
lubricants ...................................257
Speed control ..............................58
Starting a flex fuel vehicle .......170
Starting your vehicle ........168–170
jump starting ..........................202
Steering wheel
controls ......................................61
tilting .........................................53
T
Tilt steering wheel ......................53
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....153
Tires ...................................138–139
alignment ................................146
care ..........................................142
changing ..................................198
checking the pressure ............142
inflating ...................................140
label .........................................152
replacing ..................................144
rotating ....................................146
safety practices .......................145
sidewall information ...............147
snow tires and chains ............158
spare tire .........................195, 197
terminology .............................139
tire grades ...............................139
treadwear ........................138, 143
Towing .......................................164
recreational towing .................167
trailer towing ..........................164
wrecker ....................................207
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
269
