wiper blades Mercury Grand Marquis 2009 Owner's Manuals

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Press the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick press and hold: the
wipers will swipe three times with
washer fluid.
•a long press and hold: the wipers and washer fluid will be activated for
up to five seconds.
Courtesy wipe feature:One extra wipe will happen a few seconds
after washing the front window to clear any water that is dripping down
from the top of the windshield caused by the washing.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper/washer features
When the windshield wipers are turned on during daylight, and the
headlamp control is in the autolamp position, the exterior lamps will turn
on after a brief delay and will remain on until the wipers are turned off.
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Driver Controls
52

PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Cleaning
219

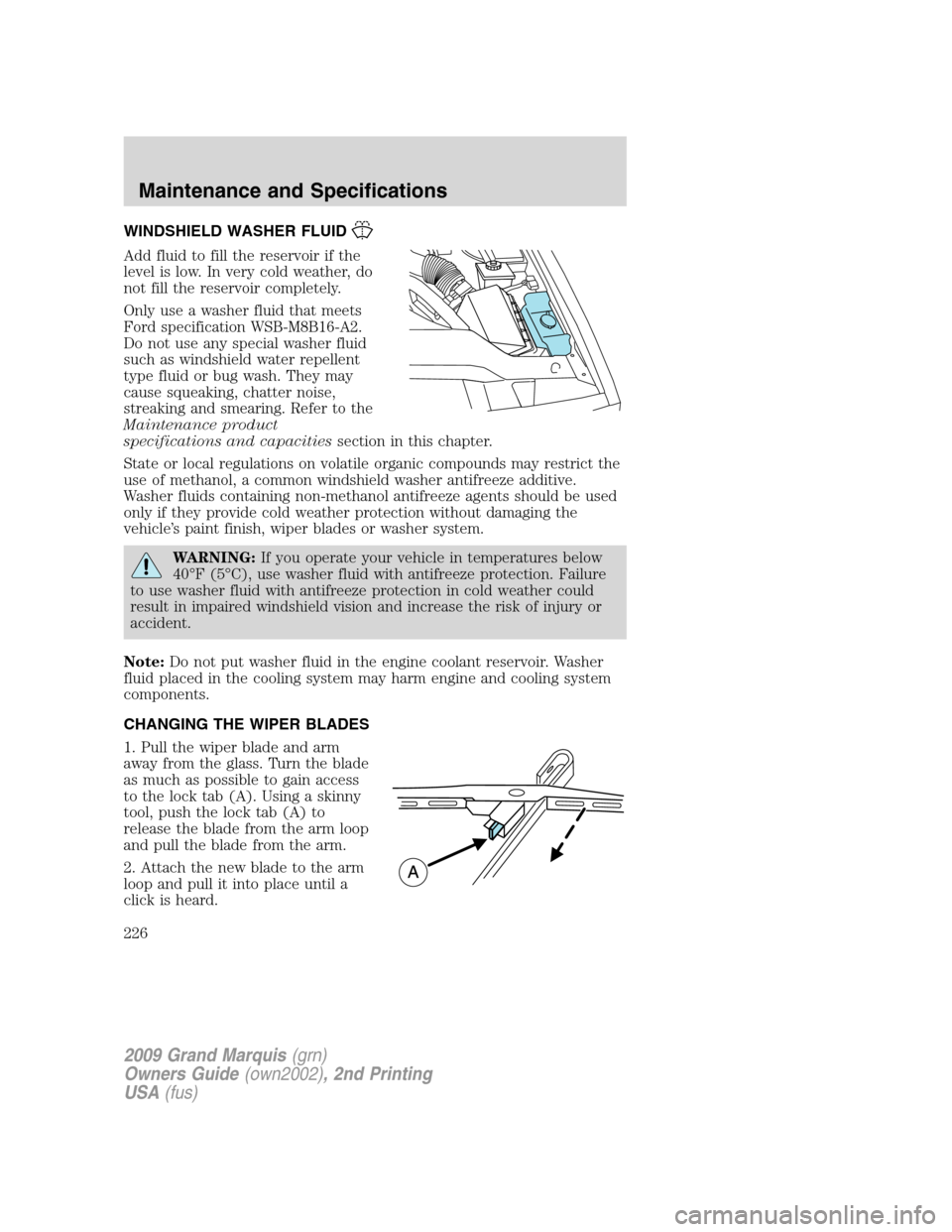

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16-A2.
Do not use any special washer fluid
such as windshield water repellent
type fluid or bug wash. They may
cause squeaking, chatter noise,
streaking and smearing. Refer to the
Maintenance product
specifications and capacitiessection in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
CHANGING THE WIPER BLADES
1. Pull the wiper blade and arm
away from the glass. Turn the blade
as much as possible to gain access
to the lock tab (A). Using a skinny
tool, push the lock tab (A) to
release the blade from the arm loop
and pull the blade from the arm.
2. Attach the new blade to the arm
loop and pull it into place until a
click is heard.
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Maintenance and Specifications
226

Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer toWindows and wiper bladesin theCleaning
chapter.
To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
ENGINE OIL
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait up to 15 minutes for the oil to drain into
the oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the
engine oil level dipstick.
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Maintenance and Specifications
227

A
ABS (see Brakes) .....................174
Air cleaner filter ...............254–255
Air conditioning ..........................38
Air suspension ...........................178
description ..............................178
Airbag supplemental
restraint system ................108, 117
and child safety seats ............110
description ......................108, 117
disposal ....................................120
driver airbag ....................111, 118
indicator light .................117, 119
operation .........................111, 118
passenger airbag .............111, 118
side airbag ...............................117
Antifreeze
(see Engine coolant) ................232
Anti-lock brake system
(see Brakes) ......................174–175
Anti-theft system ........................82
Audio system
(see Radio) ................20, 22, 25, 30
Automatic transmission
driving an automatic
overdrive .................................180
fluid, adding ............................252
fluid, checking ........................252
fluid, refill capacities ..............257
fluid, specification ..................257
Auxiliary power point .................54
Axle
lubricant specifications ..........257
refill capacities ........................257
traction lok ..............................179
B
Battery .......................................230acid, treating emergencies .....230
jumping a disabled battery ....202
maintenance-free ....................230
replacement, specifications ...255
servicing ..................................230
Belt-Minder.............................103
Booster seats .............................134
Brakes ................................173–174
anti-lock ...........................174–175
anti-lock brake system (ABS)
warning light ...........................175
fluid, checking and adding ....252
fluid, refill capacities ..............257
fluid, specifications .................257
lubricant specifications ..........257
shift interlock ..........................179
Bulbs ............................................46
C
Capacities for refilling fluids ....257
Cell phone use ..............................8
Child safety seats ......................124
attaching with tether straps ..132
in front seat ............................125
in rear seat ......................125, 128
LATCH .....................................129
recommendations ...................122
Child safety seats - booster
seats ...........................................134
Cleaning your vehicle
engine compartment ..............218
instrument panel ....................220
interior .....................................220
plastic parts ............................219
washing ....................................216
waxing .....................................217
wheels ......................................217
wiper blades ............................219
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
265

Traction control ........................177
Traction-lok rear axle ...............179
Transmission .............................179
brake-shift interlock (BSI) ....179
fluid, checking and adding
(automatic) .............................252
fluid, refill capacities ..............257
lubricant specifications ..........257
Trunk ...........................................74
remote release ....................71, 77
Turn signal ..................................45
V
Vehicle Identification Number
(VIN) ..........................................261
Vehicle loading ..........................158Ventilating your vehicle
...........171
W
Warning lights (see Lights)
.......12
Washer fluid
..............................226
Water, Driving through
.............183
Windows
power
.........................................55
Windshield washer fluid and
wipers
..........................................52
checking and adding fluid
.....226
replacing wiper blades
...........226
Wrecker towing
.........................207
2009 Grand Marquis(grn)
Owners Guide(own2002), 2nd Printing
USA(fus)
Index
270
