AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraft
part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Changing the air filter element
1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves of the air filter housing.
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be
careful not to crimp the filter
element edges between the air filter
housing and cover. This could cause
filter damage and allow unfiltered
air to enter the engine if not
properly seated.
6. Replace the air filter housing cover and secure the clamps.
7. Replace the air inlet tube and secure the clamp.
Note:Be sure the hinge features of the air filter cover to the air filter
housing are fully engaged when reassembling the air filter assembly.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
Maintenance and Specifications
261
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

MOTORCRAFT PART NUMBERS
Component 4.6L V8 engine
Air filter element FA-1783
Fuel filter FG-1114
Battery-standard BXT-65–650
Battery-heavy duty BXT-65–750
Oil filter FL-820-S
Oil filter (with oil cooler ) FL-910
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft
or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
262
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

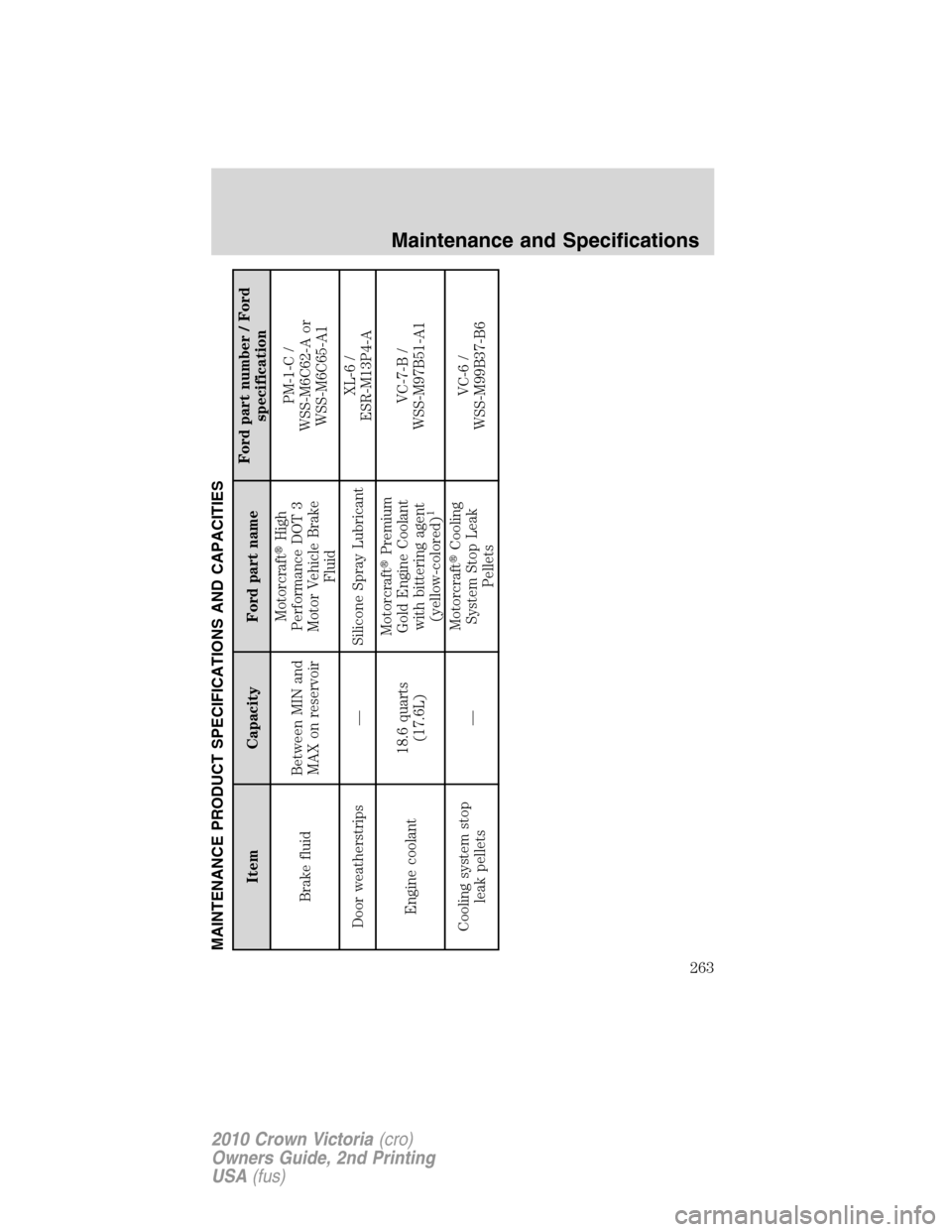

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number / Ford
specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft
High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Engine coolant18.6 quarts
(17.6L)Motorcraft
Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1
Cooling system stop
leak pellets—Motorcraft
Cooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Maintenance and Specifications
263
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Item Capacity Ford part nameFord part number / Ford
specification
Engine oil 6.0 quarts (5.7L)•Motorcraft
SAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•Motorcraft
SAE 5W20
Full Synthetic Motor Oil
(US)
•Motorcraft
SAE
5W-20 Super Premium
Motor Oil (Canada)
•Motorcraft
SAE
5W-20 Synthetic Motor
Oil (Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12 (Canada)
•CXO-5W20-LFS12 (Canada) /
WSS-M2C930-A with API
Certification Mark
Hinges, latches, striker
plates, fuel filler door
hinge and seat tracks— Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft
Penetrating
and Lock LubricantXL-1 /
None
Power steering fluidBetween MIN and
MAX on reservoirMotorcraft

MERCON
VATFXT-5-QM /
MERCON
V
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
3
Motorcraft

MERCON
LV AT F
4
XT-10-QLV /
MERCON
LV
Maintenance and Specifications
264
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Item Capacity Ford part nameFord part number / Ford
specification
Rear axle fluid
5
5.0 pints (2.4L)
6,7
Motorcraft
SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid
(Police)
5
Motorcraft
SAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140- QL /
WSL-M2C192-A
Windshield washer fluidFill to line on
reservoirMotorcraft
Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank19.0 gallons
(71.9L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range. Police or Handling Package refill
capacity- 12.8 quarts (12.1L).4Use of any fluid other than the recommended fluid may cause transmission damage. Refer to
scheduled maintenance informationto determine the correct service interval.5Rear axles are considered lubricated for life when the vehicle is used for normal service. For
severe duty requirements, seeExceptions and/or Special Operating Conditionsinscheduled
maintenance information.6Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6 mm to
14 mm) below the bottom of the filler hole.7Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok rear axles.
Maintenance and Specifications
265
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

ENGINE DATA
Engine 4.6L V8 engine 4.6L FFV V8 engine
Cubic inches 281 281
Required fuel 87 octane 87 octane or Ethanol
(E85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.041–0.047 inch
(1.04–1.20 mm)
Compression ratio 9.4:1 9.4:1
Engine drivebelt routing
Maintenance and Specifications
266
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

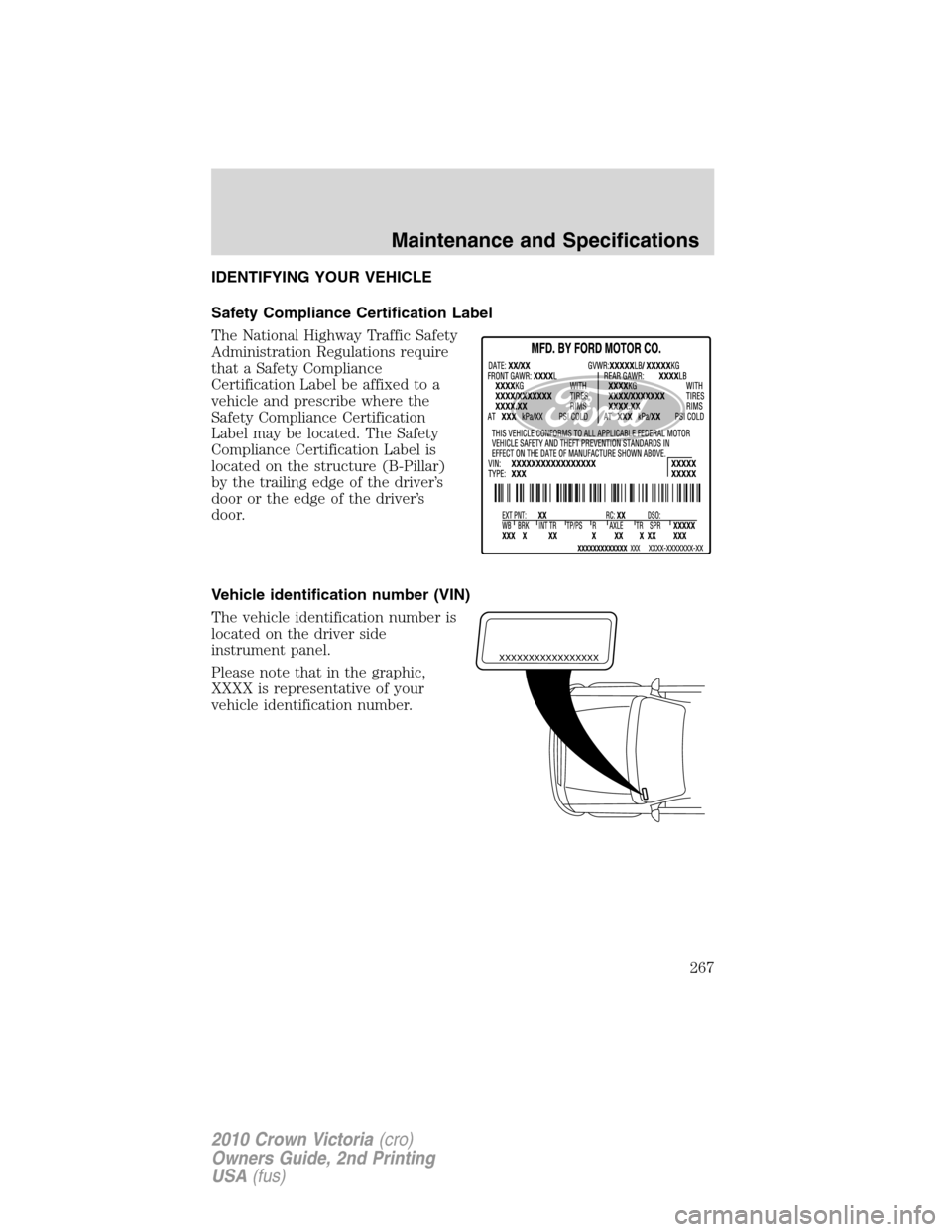

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
267
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic overdrive (4R75E) Q
Maintenance and Specifications
268
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

This information is intended to aid the operators of police or fleet
vehicles (used in severe duty, high mileage operations) in understanding
the required maintenance services for such vehicles. It covers
maintenance services for vehicles equipped with Heavy Duty packages.
However, other vehicles operated under the conditions listed in this
supplement are also considered “severe service” vehicles and should be
serviced and maintained as prescribed in this brochure. This brochure
applies to rear-wheel drive passenger cars only.
CONTACT US
Ford Fleet Hotline - The Ford Fleet Hotline provides police and fleet
customers with direct access to Ford Motor Company for fleet sales or
service information. The hotline number is (800) 34-FLEET.
Ford Fleet Website - Additionally, Ford maintains a website for police
and other fleet vehicles. The Ford Fleet website is located at
www.fleet.ford.com.
Police and fleet vehicles are manufactured with certain heavy-duty parts
that are designed specifically for the varying demands and unique
requirements under which they are operated.
Note:As the police proportion of the Crown Victoria market continues
to increase, some of these heavy duty components have become standard
across the Crown Victoria line to reduce parts and manufacturing
complexity.
Components that are part of the option packages are listed below and on
the following pages with a brief outline of their major features and their
contribution to overall vehicle performance, handling and usage.
Failure to maintain your vehicle(s) properly may restrict your warranty
coverage, reduce vehicle performance and operational capabilities and
adversely affect driver-passenger safety. The severe duty maintenance
intervals are listed in thescheduled maintenance information.
The descriptions, specifications and material described in this publication
were in effect at the time the publication was approved for printing.
Ford Motor Company reserves the right to discontinue models at any
time, or change specifications, design or testing procedures without
notice and without incurring obligation.
Crown Victoria Severe Duty
269
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

TRANSMISSION
The police vehicle has a unique high-performance powertrain including
transmission and an aluminum driveshaft, which is designed for
maximum vehicle performance. Due to the nature of this powertrain,
some powertrain noise may be present.
Driving in the overdrive cancel mode for prolonged periods at high speeds
will deteriorate performance and may cause extensive engine damage.
Crown Victoria police vehicles are designed to operate in the
(Overdrive) gear selector position while in pursuit. Optimum performance
will be obtained in
(Overdrive). Operation in the overdrive cancel
mode should only be used in situations noted in this publication.
WARNING:Under no circumstances should the aluminum
driveshaft be replaced with a steel driveshaft. Doing so will
adversely affect vehicle operation which could lead to personal injury.
POWERTRAIN OVERSPEED PROTECTION
The powertrain control module (PCM) includes logic to electronically
prevent powertrain overspeed in any transmission selector position.
IDLE METER
Your vehicle may be equipped with an idle meter to indicate how much
time the vehicle is idling in P (Park) or N (Neutral). The meter is
incorporated with the vehicle odometer. Pressing the odometer-reset
button once will display the trip odometer (miles followed by aTfor
trip odometer). Pressing the odometer-reset button a second time will
display the idle meter (hours followed by anhfor hours). The idle
meter only accumulates time when the vehicle is in P (Park) or N
(Neutral). Displayed time is cumulative for the vehicle. It cannot be reset
to zero.
Police/Fleet vehicles often experience long periods of idling, during
which engine oil will continue to break down but mileage is not
accumulated on the odometer.
To assist fleet managers in maintaining proper oil change intervals, the
idle meter will help determine when an oil change is required. For every
hour that the vehicle idles, it has accumulated the equivalent of
approximately 33 miles (53 km) of driving. Using the combination of the
vehicle odometer and idle meter allows the fleet manager to better
determine when the oil needs to be changed.
Crown Victoria Severe Duty
270
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
