At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or CHECK FUEL CAP message may not reset immediately; it
may take several driving cycles for the check fuel cap light
or CHECK
FUEL CAP message to turn off. A driving cycle consists of an engine
start-up (after four or more hours with the engine off) followed by city
and highway driving.
Continuing to drive with the check fuel cap light
or CHECK FUEL
CAP message on may cause the
light to turn on as well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraft or other certified fuel filler cap
is not used.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a collision, which may result in
personal injury.
FFV (Flex Fuel Vehicle) fuel cap
If your vehicle is FFV capable, it will have a yellow colored fuel cap.
Maintenance and Specifications
248
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Driving style — good driving and fuel economy habits
Give consideration to the lists that follow and you may be able to change
a number of variables and improve your fuel economy.
Habits
•Smooth, moderate operation can yield up to 10% savings in fuel.
•Steady speeds without stopping will usually give the best fuel
economy.
•Idling for long periods of time (greater than one minute) may waste
fuel.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Maintenance and Specifications
253
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

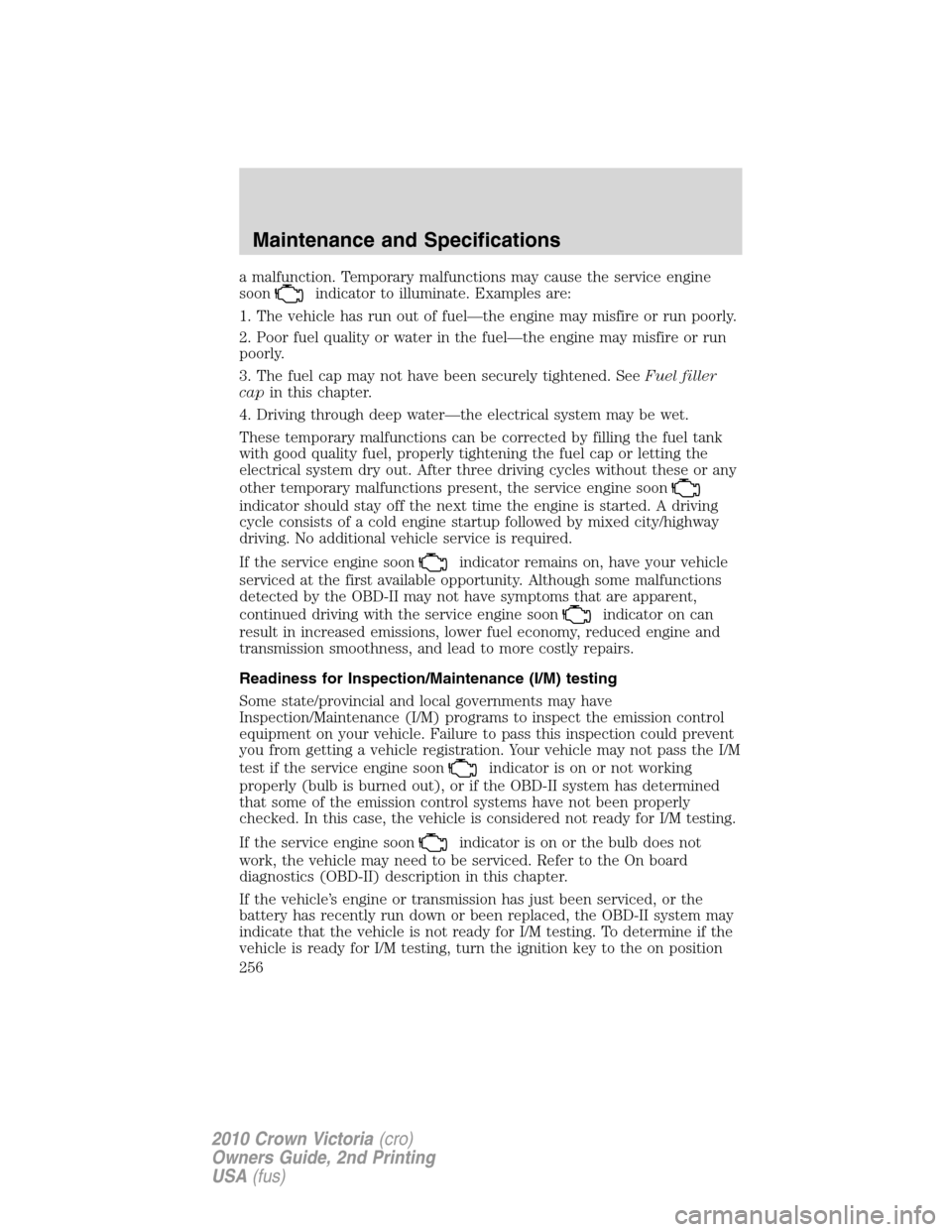

a malfunction. Temporary malfunctions may cause the service engine
soon
indicator to illuminate. Examples are:
1. The vehicle has run out of fuel—the engine may misfire or run poorly.
2. Poor fuel quality or water in the fuel—the engine may misfire or run
poorly.
3. The fuel cap may not have been securely tightened. SeeFuel filler
capin this chapter.
4. Driving through deep water—the electrical system may be wet.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel, properly tightening the fuel cap or letting the
electrical system dry out. After three driving cycles without these or any
other temporary malfunctions present, the service engine soon
indicator should stay off the next time the engine is started. A driving
cycle consists of a cold engine startup followed by mixed city/highway
driving. No additional vehicle service is required.
If the service engine soon
indicator remains on, have your vehicle
serviced at the first available opportunity. Although some malfunctions
detected by the OBD-II may not have symptoms that are apparent,
continued driving with the service engine soon
indicator on can
result in increased emissions, lower fuel economy, reduced engine and
transmission smoothness, and lead to more costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the service engine soon
indicator is on or not working
properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If the service engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
Maintenance and Specifications
256
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid.
Refer toscheduled maintenance
information.
1. Start the engine and let it run until it reaches normal operating
temperature (the engine coolant temperature gauge indicator will be
near the center of the normal area between H and C).
2. While the engine idles, turn the steering wheel left and right several
times.
3. Turn the engine off.
Maintenance and Specifications
257
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the ambient temperature is
above 50°F (10°C).
Correct fluid level
The transmission fluid should be checked at normal operating
temperature 150°F-170°F (66°C-77°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
You can check the fluid without driving if the ambient temperature is
above 50°F (10°C). However, if fluid is added at this time, an overfill
condition could result when the vehicle reaches normal operating
temperature.
The transmission fluid should be in
this range if at normal operating
temperature (150°F-170°F
[66°C-77°C]).
Maintenance and Specifications
259
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic overdrive (4R75E) Q
Maintenance and Specifications
268
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

3. A firm strike on the cover (about 20 lbft [89 N•m] of force) will
deploy the system any time the key or engine is turned on.
In the event of a manual deployment, nozzles will deploy to near ground
level and the underbody of the vehicle will be covered with suppressant
fluid. The suppressant contains no hazardous materials (but may cause
minor skin or eye irritation) and can be readily cleaned up by flushing
the underbody with water (or soap and water). Manual deployment
should have no adverse affect on vehicle handling; however, caution
should be exercised in moving the vehicle as ground clearance will be
compromised by the deployed nozzles. Because of reduced ground
clearance, the vehicle should not be driven through an automatic car
wash with nozzles in the deployed condition.
The fire suppression system is a single use system - all major
components will have to be replaced in the event of a manual
deployment.
Figure A
The approved ISO symbol for fire suppression is shown in Figure A. This
symbol is printed on the manual activation switch and on the diagnostic
telltale on the instrument cluster.
The system automatically performs a diagnostic check self check and
momentarily lights the cluster lamp when the key is turned on. If the
diagnostic lamp stays on refer to the appropriate sections of the Ford
service manual for further diagnostic and service procedures.
The system is active any time the key or engine is turned on following
the diagnostic check.
The system has been designed and tested to withstand a 75 mph
(120 km/h) 50% off-set rear impact by Taurus-sized vehicle. However, in
some crashes, including very high-energy crashes, the fire suppression
system could be so damaged by the crash forces that it cannot deploy.
Like any vehicle component, the fire suppression system cannot
withstand any and all crashes. No vehicle can eliminate the risk of fires.
You should not consider the vehiclefireproofbecause it is equipped
with a fire suppression system.
Crown Victoria Severe Duty
286
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

A
ABS (see Brakes) .....................179
Accessory delay ..........................69
Air cleaner filter ...............261–262
Air conditioning ..........................44
Air suspension ...........................183
description ..............................183
Airbag supplemental restraint
system ................................111, 121
and child safety seats ............113
description ......................111, 121
disposal ....................................123
driver airbag ....................114, 122
indicator light .................121, 123
operation .........................114, 122
passenger airbag .............114, 122
side airbag ...............................121
Airbags (police) ........................288
Alternator ..................................272
Antifreeze
(see Engine coolant) ................238
Anti-lock brake system
(see Brakes) ......................179–180
Anti-theft system ........................86
Audio system (see Radio) ..27, 29,
32, 37
Automatic transmission
driving an automatic
overdrive .................................185
fluid, adding ............................258
fluid, checking ........................258
fluid, refill capacities ..............263
fluid, specification ..................263
Police and fleet vehicles ........270
Auxiliary power point .................67Axle
lubricant specifications ..........263
Police and fleet vehicles ........271
refill capacities ........................263
traction lok ..............................184
B
Battery .......................................236
acid, treating emergencies .....236
jumping a disabled battery ....208
maintenance-free ....................236
Police vehicles ........................271
replacement, specifications ...262
servicing ..................................236
Belt-Minder
.............................107
Booster seats .............................138
Brakes ........................................179
anti-lock ...........................179–180
anti-lock brake system (ABS)
warning light ...........................180
fluid, checking and adding ....258
fluid, refill capacities ..............263
fluid, specifications .................263
lubricant specifications ..........263
police .......................................280
shift interlock ..........................184
Bulbs ............................................53
C
Capacities for refilling fluids ....263
Cell phone use ..............................8
Child safety seats ......................128
attaching with tether straps ..136
in front seat ............................129
in rear seat ......................129, 132
LATCH .....................................133
recommendations ...................126
Index
303
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Child safety seats - booster
seats ...........................................138
Cleaning your vehicle
engine compartment ..............224
instrument panel ....................226
interior .....................................226
plastic parts ............................225
washing ....................................222
waxing .....................................223
wheels ......................................223
wiper blades ............................225
Climate control (see Air
conditioning or Heating) ............44
Clock adjust
6-CD in dash .............................40
AM/FM .......................................28
AM/FM/CD .................................31
AM/FM/Tape/CD .......................35
Compass, electronic
set zone adjustment .................24
Console ........................................67
Controls
power seat .................................93
steering column ........................74
Coolant
checking and adding ..............238
refill capacities ................242, 263
specifications ..........................263
Cooler ........................................274
Cruise control (see Speed
control) ........................................71
Cupholder(s) ...............................97
Customer Assistance ................189
Ford Extended Service
Plan ..........................................300
Getting assistance outside
the U.S. and Canada ..............219
Getting roadside assistance ...189Getting the service you
need .........................................215
Ordering additional owner’s
literature .................................220
Utilizing the
Mediation/Arbitration
Program ...................................219
D
Daytime running lamps
(see Lamps) ................................48
Defrost
rear window ..............................46
Dipstick
automatic transmission
fluid ..........................................258
engine oil .................................233
Driving under special
conditions ..................................187
through water .........................188
E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................208
Emergency Flashers .................190
Emission control system ..........254
Engine ........................................266
cleaning ...................................224
coolant .....................................238
fail-safe cooling .......................243
idle speed control ...................236
lubrication specifications .......263
refill capacities ........................263
service points ..................231–232
starting after a collision .........191
Engine block heater .................177
Index
304
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Engine oil ..................................233
change oil soon warning,
message center .......................233
checking and adding ..............233
dipstick ....................................233
filter, specifications ........235, 262
recommendations ...................235
refill capacities ........................263
specifications ..........................263
Event data recording ....................7
Exhaust fumes ..........................176
F
Fail safe cooling ........................243
Fire suppression system
(police) ..............................285, 287
Flexible Fuel Vehicle (FFV) ....244
Fluid capacities .........................263
Fog lamps ....................................48
Fuel ............................................244
calculating fuel economy..24, 251
cap ...........................................247
capacity ...................................263
choosing the right fuel ...........249
comparisons with EPA fuel
economy estimates .................254
detergent in fuel .....................249
filling your vehicle with
fuel ...........................244, 247, 251
filter, specifications ........244, 262
fuel pump shut-off switch .....191
improving fuel economy ........251
octane rating ...........249–250, 266
quality ......................................250
running out of fuel .................251
safety information relating to
automotive fuels .....................244
Fuel - flex fuel vehicle
(FFV) .........................244, 249–250Fuses ..................................192–193
G
Gas cap (see Fuel cap) ............247
Gas mileage
(see Fuel economy) .................251
Gauges .........................................17
H
Hazard flashers .........................190
Head restraints ...........................91
Headlamps ...................................47
aiming ..................................49, 51
autolamp system .......................47
bulb specifications ....................54
daytime running lights .............48
flash to pass ..............................48
high beam .................................48
replacing bulbs ...................55, 60
turning on and off ....................47
Heating
heating and air conditioning
system .................................43–44
Hood ..........................................230
I
Idle Meter ..................................270
Ignition ...............................173, 266
Illuminated visor mirror .............66
Infant seats
(see Safety seats) .....................128
Inspection/maintenance (I/M)
testing ........................................256
Instrument panel
cleaning ...................................226
Index
305
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
