sensor Mercury Grand Marquis 2010 s Owner's Guide

4. Press and hold the brake pedal
for two (2) seconds, then release.
5. Turn the ignition to off—DO
NOTremove the key.
6. Cycle the ignition from off to on three (3) times ending in on—DO
NOTstart the engine.
If the reset mode has been entered successfully, the horn will sound
once, and the TPMS indicator
will flash.
If after repeated attempts to enter the reset mode, the horn does not
sound, and the TPMS indicator
does not flash, seek service from
your authorized dealer.
7. Train the TPMS sensors in the tires using the following TPMS reset
sequence starting with theleft front tirein the following clockwise
order:
1. Left front tire (Front driver’s side)
2. Right front tire (Front passenger’s side)
3. Right rear tire (Rear passenger’s side)
4. Left rear tire (Rear driver’s side)
Crown Victoria Severe Duty
278
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

8.Left front tire:Place the TPMS reset tool against the left front tire
where the tire meets the rim, opposite from the valve stem (1) as shown.
This is where the sensor is located inside the rim.
Both tools, the TPMS training tool (part number 8C2Z-1A203-A)
or the Tire Pressure Monitor Activitation Tool (part number
204-363) must be held against the tire sidewall opposite the valve
stem as illustrated. For the TPMS training tool, the device should
be held as illustrated, with the arrow on the tool pointing
towards the rim; do not use the tool with the arrow pointing away
from the rim as it may not activate the sensor.
9. Press and release the activation button while holding either tool to the
side wall until the horn sounds. The horn will sound once within
approximately 10 seconds to indicate the process was successful.
Note:
•If a double horn chirp is heard, repeat the procedure. If a single horn
chirp is not heard, move the vehicle to rotate the wheels at least a
14-turn and repeat the procedure starting with Step 1.
•If the horn does not sound while attempting to reset any wheel, seek
service from your authorized dealer.
10. Perform Steps 8 and 9 on the right front tire, right rear tire and
finally the left rear tire. Training is complete after the horn sounds for
the last tire trained (left rear tire).
Turn the ignition to off. If two short horn beeps are heard, the reset
procedure was unsuccessful and must be repeated.
Crown Victoria Severe Duty
279
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

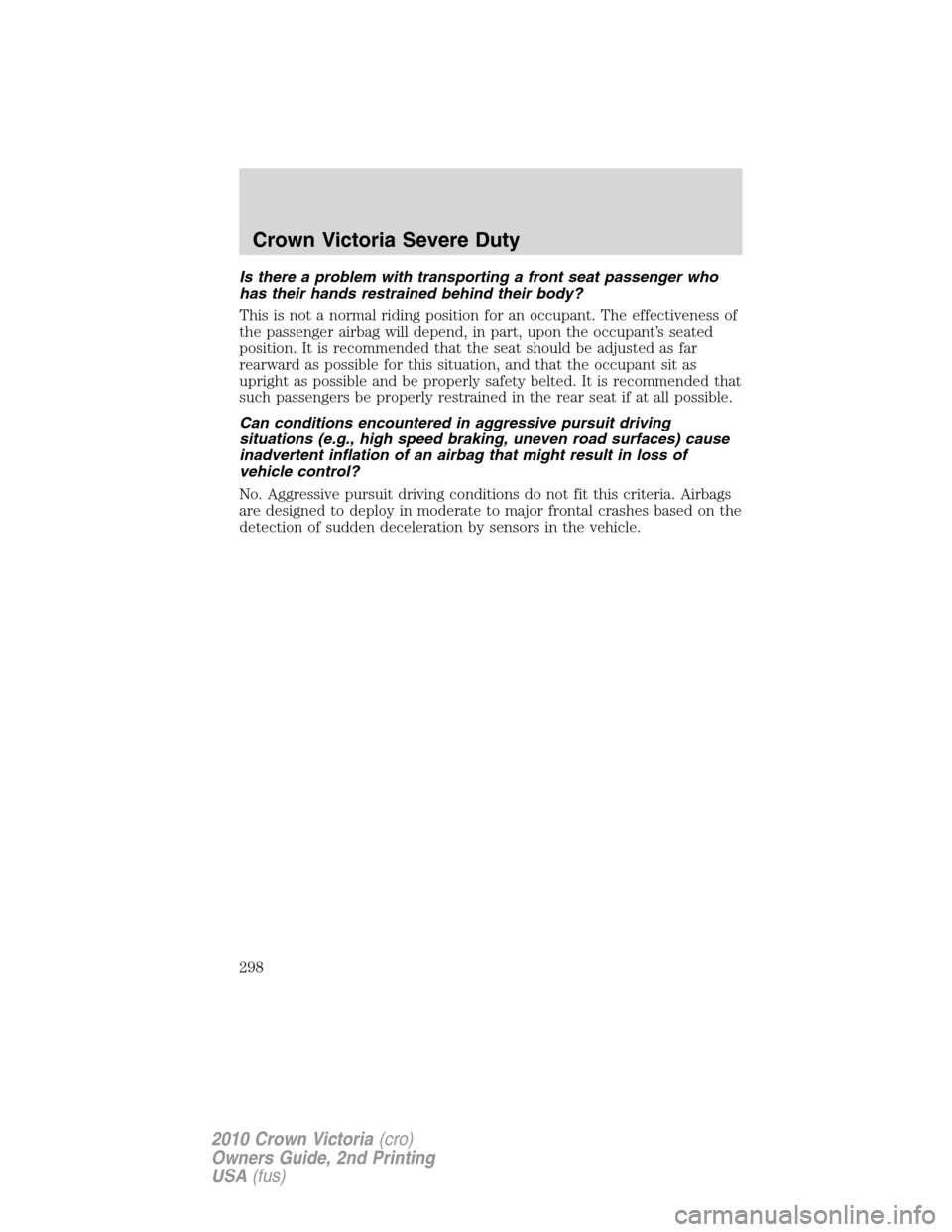

Is there a problem with transporting a front seat passenger who
has their hands restrained behind their body?
This is not a normal riding position for an occupant. The effectiveness of
the passenger airbag will depend, in part, upon the occupant’s seated
position. It is recommended that the seat should be adjusted as far
rearward as possible for this situation, and that the occupant sit as
upright as possible and be properly safety belted. It is recommended that
such passengers be properly restrained in the rear seat if at all possible.
Can conditions encountered in aggressive pursuit driving
situations (e.g., high speed braking, uneven road surfaces) cause
inadvertent inflation of an airbag that might result in loss of
vehicle control?
No. Aggressive pursuit driving conditions do not fit this criteria. Airbags
are designed to deploy in moderate to major frontal crashes based on the
detection of sudden deceleration by sensors in the vehicle.
Crown Victoria Severe Duty
298
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

cluster ........................................12
lighting up panel and
interior .......................................49
J
Jump-starting your vehicle ......208
K
Keyless entry system .................84
autolock .....................................76
keypad .......................................84
programming entry code .........84
Keys .......................................76, 89
positions of the ignition .........173
L
Lamps
autolamp system .......................47
bulb replacement
specifications chart ..................54
daytime running light ...............48
fog lamps ...................................48
headlamps .................................47
headlamps, flash to pass ..........48
instrument panel, dimming .....49
interior lamps .....................52–54
Police red/white map light .....281
replacing bulbs ...................55, 60
LATCH anchors .........................133
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........180
Limited slip axle
(see Traction Loc) ....................184
Load limits .................................163
Locks
autolock .....................................76
childproof ..................................78doors ..........................................76
Lubricant specifications ...........263
Lug nuts ....................................207
Lumbar support, seats ...............95
M
Message center .....................19–20
english/metric button .........24–25
system check button ................24
warning messages .....................25
Mirrors ...................................69–70
automatic dimming rearview
mirror ........................................69
fold away ...................................70
heated ........................................70
side view mirrors (power) .......70
Mobile media system
Police and fleet vehicles ........281
Motorcraft
parts ......228, 244, 262
O
Octane rating ....................249–250
Oil (see Engine oil) ..................233
P
Parking brake ............................181
Parts
(see Motorcraft
parts) ...........262
Passenger Occupant
Classification Sensor ...................99
Pedals (see Power adjustable
foot pedals) .................................71
Power adjustable foot pedals .....71
Power distribution box
(see Fuses) ...............................196
Index
306
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Power distribution connector
(police and fleet vehicles) .......272
Power door locks ........................76
Power mirrors .............................70
Power point .................................67
Rear (police) ...........................273
Power steering ..........................183
fluid, checking and adding ....257
fluid, refill capacity ................263
Power Windows ...........................68
R
Radio ..........................27, 29, 32, 37
Rear window defroster ...............46
Recommendations for
attaching safety restraints for
children ......................................126
Relays ................................192, 200
Remote entry system .................80
illuminated entry ......................83
locking/unlocking doors ...........81
opening the trunk .....................81
panic alarm ...............................81
replacement/additional
transmitters ...............................82
replacing the batteries .............82
Roadside assistance ..................189
S
Safety belts (see Safety
restraints) ....................97, 101–106
Safety Canopy ...........................121
Safety defects, reporting ..........221
Safety restraints ..........97, 101–106
Belt-Minder
...........................107
extension assembly ................105for adults .........................102–105
for children .............................124
lap belt ....................................103
Occupant Classification
Sensor ........................................99
warning light and chime ........106
Safety restraints - LATCH
anchors ......................................133
Safety seats for children ..........128
Safety Compliance
Certification Label ....................267
Seat belt extenders (police) ....280
Seats ............................................91
child safety seats ....................128
front seats .................................92
heated ........................................96
Heavy duty (police) ...............280
SecuriLock passive anti-theft
system ....................................86, 89
Servicing your vehicle ..............229
Setting the clock
AM/FM single CD .....................31
AM/FM stereo ...........................28
AM/FM/In-dash 6 CD ................40
AM/FM/Tape/CD .......................35
Spark plugs, specifications ......262,
266
Specification chart,
lubricants ...................................263
Speed control ..............................71
Speedometer
calibrated (police) ..................281
Starting a flex fuel vehicle .......175
Starting your vehicle ........173–175
jump starting ..........................208
Steering wheel
controls ......................................74
Index
307
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
