Maintenance and Specifications 229
Engine compartment 231
Engine oil 233
Battery 236
Engine coolant 238
Fuel information 244
Air filter(s) 261
Part numbers 262
Maintenance product specifications and capacities 263
Engine data 266
Crown Victoria Severe Duty 269
Accessories 299
Ford Extended Service Plan 300
Index 303
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2009 Ford Motor Company
Table of Contents
3
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
1. Brake fluid reservoir
2. Engine oil dipstick
3. Windshield washer fluid reservoir
4. Air filter assembly
5. Power steering fluid reservoir
6. Engine coolant reservoir
7. Battery
8. Power distribution box
9. Engine oil filler cap
10. Automatic transmission fluid dipstick
Maintenance and Specifications
231
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils certified for gasoline engines by the American Petroleum
Institute (API). An oil with this trademark symbol conforms to the
current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use Motorcraft
SAE
5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C930-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.Refer toMaintenance product specifications and
capacitieslater in this chapter for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
Ford production and Motorcraft
replacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft
oil filter or
another with equivalent performance for your engine application.
Maintenance and Specifications
235
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

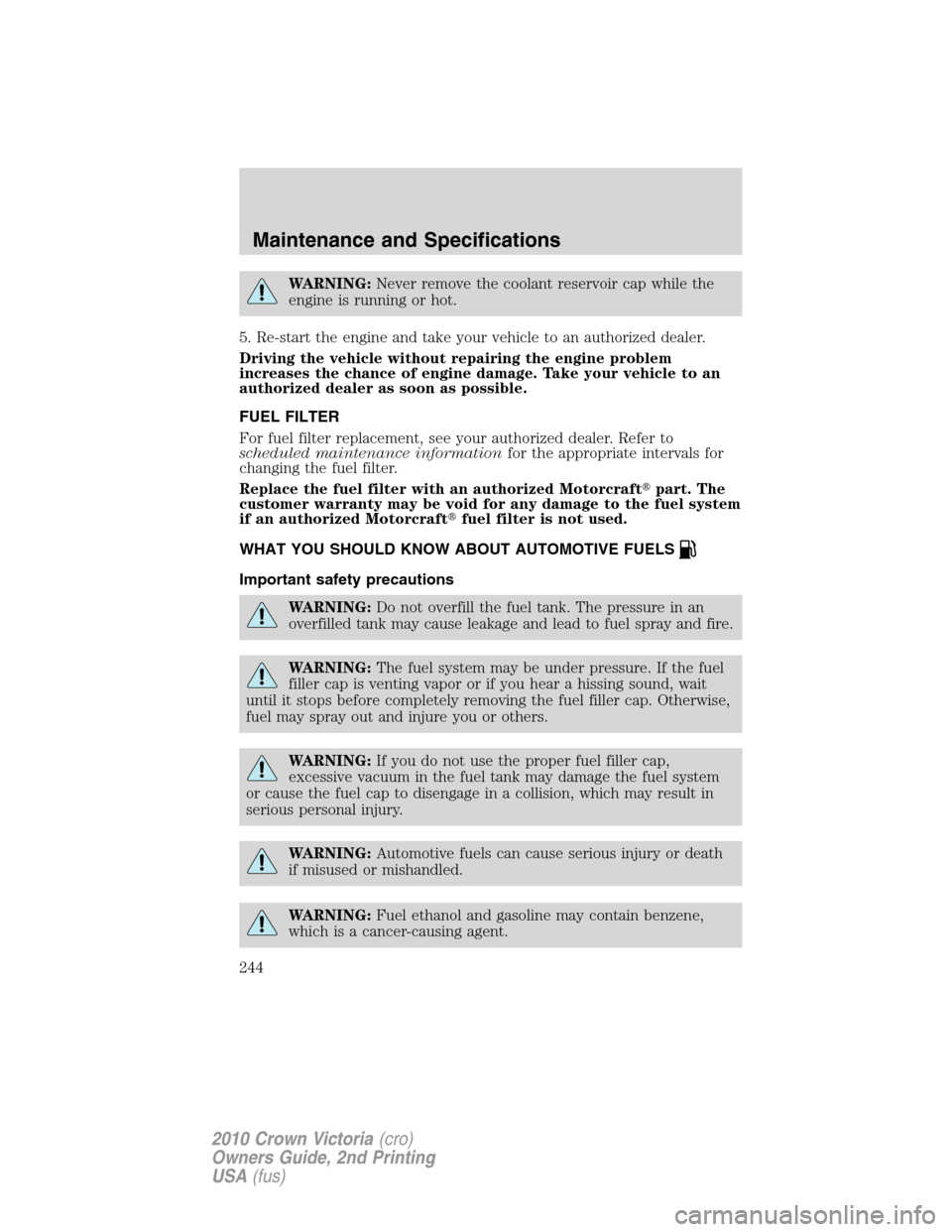

WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Re-start the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
For fuel filter replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the fuel filter.
Replace the fuel filter with an authorized Motorcraft
part. The
customer warranty may be void for any damage to the fuel system
if an authorized Motorcraft
fuel filter is not used.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a collision, which may result in
serious personal injury.
WARNING:Automotive fuels can cause serious injury or death
if misused or mishandled.
WARNING:Fuel ethanol and gasoline may contain benzene,
which is a cancer-causing agent.
Maintenance and Specifications
244
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraft
part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Changing the air filter element
1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves of the air filter housing.
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be
careful not to crimp the filter
element edges between the air filter
housing and cover. This could cause
filter damage and allow unfiltered
air to enter the engine if not
properly seated.
6. Replace the air filter housing cover and secure the clamps.
7. Replace the air inlet tube and secure the clamp.
Note:Be sure the hinge features of the air filter cover to the air filter
housing are fully engaged when reassembling the air filter assembly.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
Maintenance and Specifications
261
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

MOTORCRAFT PART NUMBERS
Component 4.6L V8 engine
Air filter element FA-1783
Fuel filter FG-1114
Battery-standard BXT-65–650
Battery-heavy duty BXT-65–750
Oil filter FL-820-S
Oil filter (with oil cooler ) FL-910
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft
or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
262
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

A
ABS (see Brakes) .....................179
Accessory delay ..........................69
Air cleaner filter ...............261–262
Air conditioning ..........................44
Air suspension ...........................183
description ..............................183
Airbag supplemental restraint
system ................................111, 121
and child safety seats ............113
description ......................111, 121
disposal ....................................123
driver airbag ....................114, 122
indicator light .................121, 123
operation .........................114, 122
passenger airbag .............114, 122
side airbag ...............................121
Airbags (police) ........................288
Alternator ..................................272
Antifreeze
(see Engine coolant) ................238
Anti-lock brake system
(see Brakes) ......................179–180
Anti-theft system ........................86
Audio system (see Radio) ..27, 29,
32, 37
Automatic transmission
driving an automatic
overdrive .................................185
fluid, adding ............................258
fluid, checking ........................258
fluid, refill capacities ..............263
fluid, specification ..................263
Police and fleet vehicles ........270
Auxiliary power point .................67Axle
lubricant specifications ..........263
Police and fleet vehicles ........271
refill capacities ........................263
traction lok ..............................184
B
Battery .......................................236
acid, treating emergencies .....236
jumping a disabled battery ....208
maintenance-free ....................236
Police vehicles ........................271
replacement, specifications ...262
servicing ..................................236
Belt-Minder
.............................107
Booster seats .............................138
Brakes ........................................179
anti-lock ...........................179–180
anti-lock brake system (ABS)
warning light ...........................180
fluid, checking and adding ....258
fluid, refill capacities ..............263
fluid, specifications .................263
lubricant specifications ..........263
police .......................................280
shift interlock ..........................184
Bulbs ............................................53
C
Capacities for refilling fluids ....263
Cell phone use ..............................8
Child safety seats ......................128
attaching with tether straps ..136
in front seat ............................129
in rear seat ......................129, 132
LATCH .....................................133
recommendations ...................126
Index
303
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Engine oil ..................................233
change oil soon warning,
message center .......................233
checking and adding ..............233
dipstick ....................................233
filter, specifications ........235, 262
recommendations ...................235
refill capacities ........................263
specifications ..........................263
Event data recording ....................7
Exhaust fumes ..........................176
F
Fail safe cooling ........................243
Fire suppression system
(police) ..............................285, 287
Flexible Fuel Vehicle (FFV) ....244
Fluid capacities .........................263
Fog lamps ....................................48
Fuel ............................................244
calculating fuel economy..24, 251
cap ...........................................247
capacity ...................................263
choosing the right fuel ...........249
comparisons with EPA fuel
economy estimates .................254
detergent in fuel .....................249
filling your vehicle with
fuel ...........................244, 247, 251
filter, specifications ........244, 262
fuel pump shut-off switch .....191
improving fuel economy ........251
octane rating ...........249–250, 266
quality ......................................250
running out of fuel .................251
safety information relating to
automotive fuels .....................244
Fuel - flex fuel vehicle
(FFV) .........................244, 249–250Fuses ..................................192–193
G
Gas cap (see Fuel cap) ............247
Gas mileage
(see Fuel economy) .................251
Gauges .........................................17
H
Hazard flashers .........................190
Head restraints ...........................91
Headlamps ...................................47
aiming ..................................49, 51
autolamp system .......................47
bulb specifications ....................54
daytime running lights .............48
flash to pass ..............................48
high beam .................................48
replacing bulbs ...................55, 60
turning on and off ....................47
Heating
heating and air conditioning
system .................................43–44
Hood ..........................................230
I
Idle Meter ..................................270
Ignition ...............................173, 266
Illuminated visor mirror .............66
Infant seats
(see Safety seats) .....................128
Inspection/maintenance (I/M)
testing ........................................256
Instrument panel
cleaning ...................................226
Index
305
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
