Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range (between “H” and
“C”).If it enters the red section,
the engine is overheating. Stop
the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Odometer:Registers the total miles (kilometers) of the vehicle.
•Without Message center
To switch the display from Metric to
English, press and hold the button
on the cluster for three seconds.
•With Message center
Refer toMessage centerin this
chapter on how to switch the
display from Metric to English and
the odometer to the speedometer.
Trip odometer:Registers the miles (kilometers) of individual journeys.
•Without message center
Press and release the button on the
cluster to switch between odometer
and trip odometer display. To reset,
press the button again until the trip
reading is 000000.0 miles.
Instrument Cluster
18
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

2. Press and release RESET to pause the timer.
3. Press and hold RESET until the timer resets.
System Check and Vehicle Feature Customization
Press the SETUP button repeatedly to cycle the message center through
the following features listed:
Press SELECT to select functions in the setup menu:
PRESS SELECT TO BEGIN SYSTEM CHECK
When this message appears, press SELECT and the message center will
begin to cycle through the following systems and provide a status of the
item if needed.
Note:Some systems show a message only if a condition is present.
1. OIL LIFE
— HOLD RESET IF NEW OIL
2. WASHER FLUID
3. AIR SUSPENSION (if equipped)
4. RECONFIGURABLE TELLTALES
—OK
— FAILED RED
— FAILED AMBER
SCREEN FORM
Press SELECT to change the display:
•ODOMETER
•SPEEDO
TEXT SIZE
Press SELECT to change the display text size:
•NORMAL
•LARGE
Instrument Cluster
22
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

Compass zone/calibration adjustment
1. Determine your magnetic zone by
referring to the zone map.
2. Turn ignition to the on position.
3. Start the engine.
4. Press SETUP to reach the
Compass/Odometer function.
5. Press SELECT to show COMPASS
ZONE PRESS SELECT TO
CHANGE.
6. Press the SELECT control
repeatedly until the correct zone setting for your geographic location is
displayed on the message center. The range of zone values are from 01
to 15 and “wraps” back to 01.
7. To exit the zone setting mode, and to “lock in” your change, press and
release the SETUP control.
Perform compass calibration in an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater/air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.
8. Press the SELECT control to start the compass calibration function.
9. Slowly drive the vehicle in a circle (less than 3 mph [5 km/h]) until
the CIRCLE SLOWLY TO CALIBRATE COMPASS display changes to
COMPASS CALIBRATION COMPLETED. It will take up to five circles to
complete calibration.
10. The compass is now calibrated.
OIL LIFE START VALUE PRESS SELECT TO CHANGE
Press SELECT to change the oil life start value. OIL LIFE START VALUE
SET TO XXX% will be displayed.
To reset the oil monitoring system to 100% after each oil change
(approximately 7,500 miles [12,000 km] or six months) perform the
following:
1. Press and hold the RESET control for two seconds and release. Oil life
is set to 100% and “OIL LIFE XXX% HOLD RESET IF NEW OIL” is
displayed.
2. Press and hold the RESET control for three seconds and release. Oil
life is set to 100% and “OIL LIFE START VALUE SET TO XXX%” is
displayed.
1 2 3
4
5
6 7 8 9 101112 13 14 15
Instrument Cluster
24
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

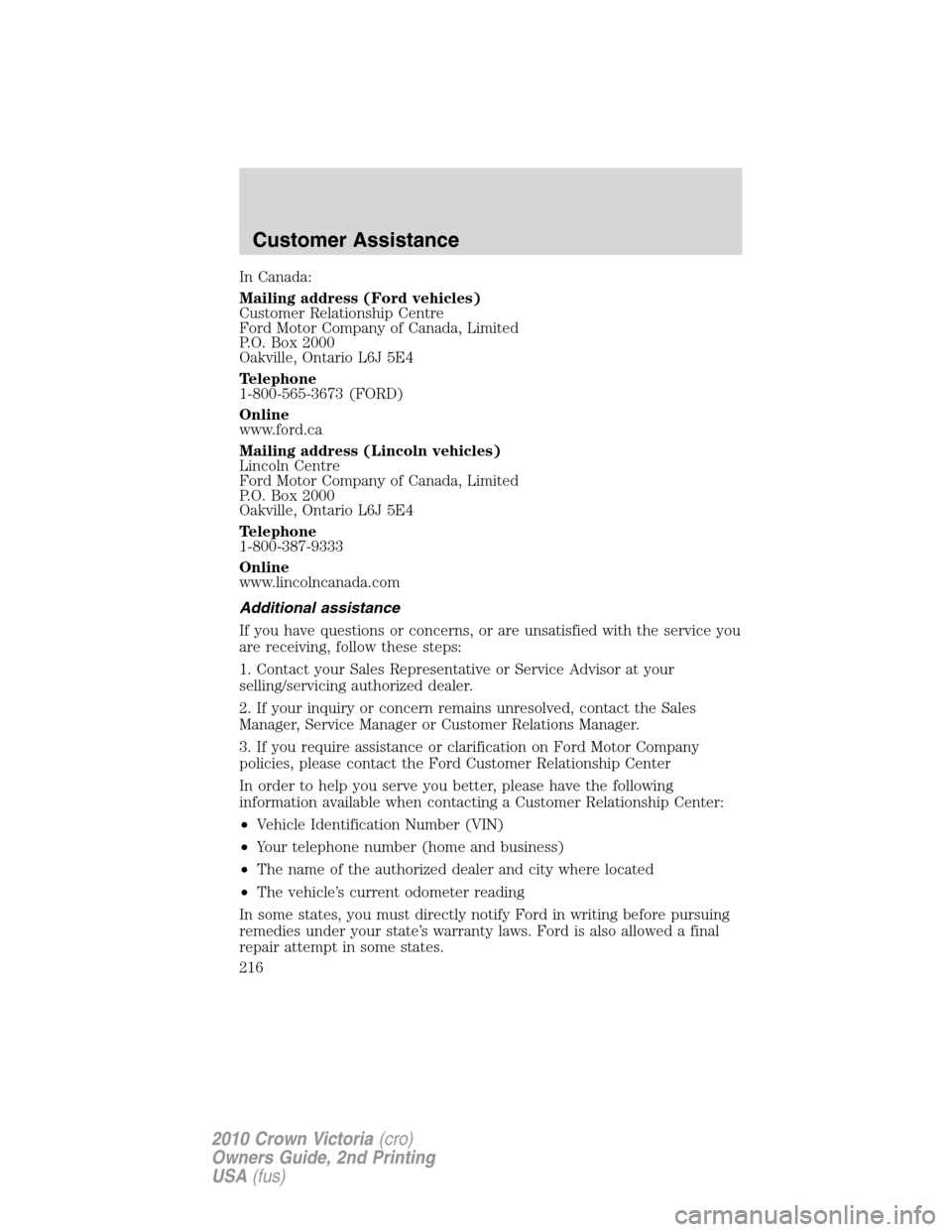

In Canada:
Mailing address (Ford vehicles)
Customer Relationship Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
Telephone
1-800-565-3673 (FORD)
Online
www.ford.ca
Mailing address (Lincoln vehicles)
Lincoln Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
Telephone
1-800-387-9333
Online
www.lincolncanada.com
Additional assistance
If you have questions or concerns, or are unsatisfied with the service you
are receiving, follow these steps:
1. Contact your Sales Representative or Service Advisor at your
selling/servicing authorized dealer.
2. If your inquiry or concern remains unresolved, contact the Sales
Manager, Service Manager or Customer Relations Manager.
3. If you require assistance or clarification on Ford Motor Company
policies, please contact the Ford Customer Relationship Center
In order to help you serve you better, please have the following
information available when contacting a Customer Relationship Center:
•Vehicle Identification Number (VIN)
•Your telephone number (home and business)
•The name of the authorized dealer and city where located
•The vehicle’s current odometer reading
In some states, you must directly notify Ford in writing before pursuing
remedies under your state’s warranty laws. Ford is also allowed a final
repair attempt in some states.
Customer Assistance
216
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

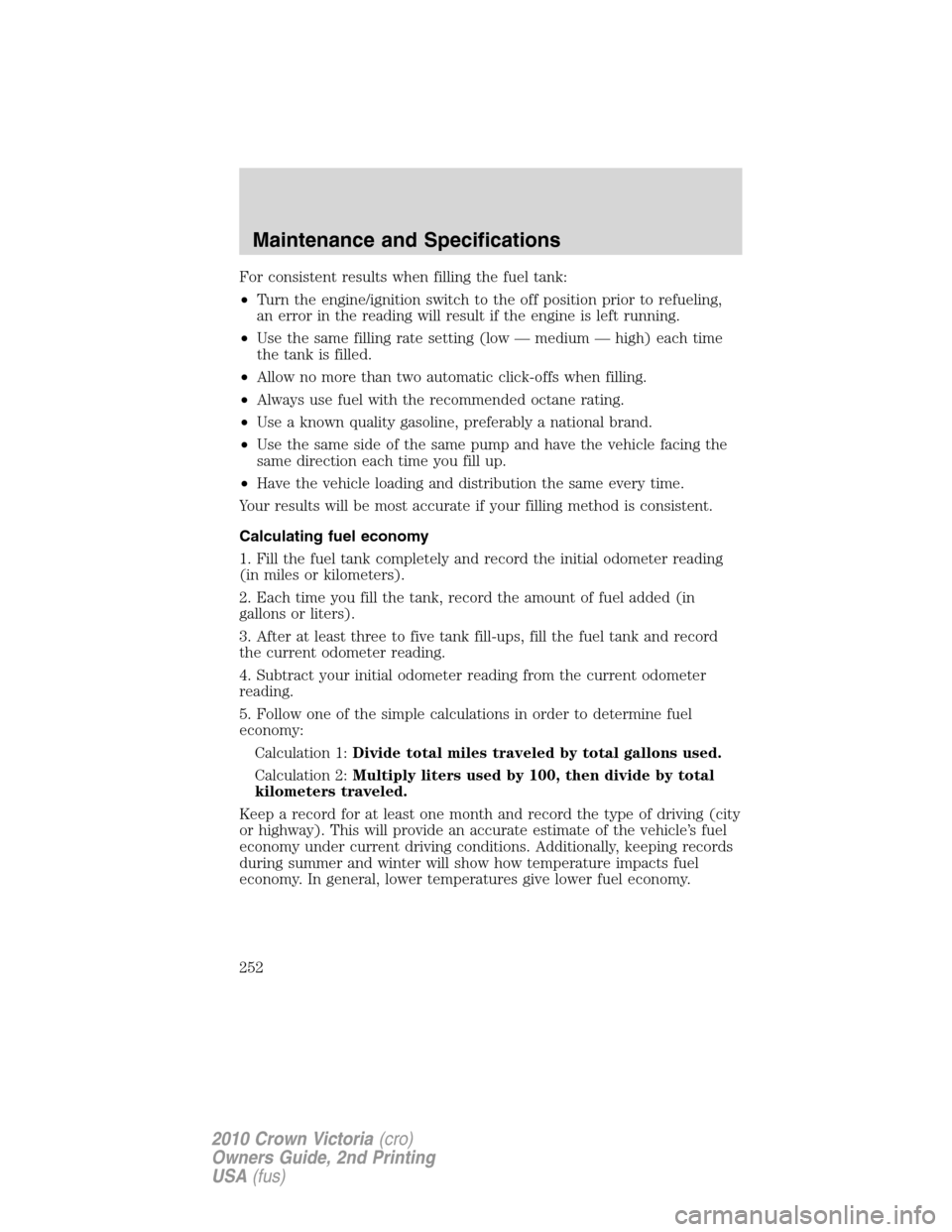

For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
•Use the same filling rate setting (low — medium — high) each time
the tank is filled.
•Allow no more than two automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
•Use the same side of the same pump and have the vehicle facing the
same direction each time you fill up.
•Have the vehicle loading and distribution the same every time.
Your results will be most accurate if your filling method is consistent.
Calculating fuel economy
1. Fill the fuel tank completely and record the initial odometer reading
(in miles or kilometers).
2. Each time you fill the tank, record the amount of fuel added (in
gallons or liters).
3. After at least three to five tank fill-ups, fill the fuel tank and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
5. Follow one of the simple calculations in order to determine fuel
economy:
Calculation 1:Divide total miles traveled by total gallons used.
Calculation 2:Multiply liters used by 100, then divide by total
kilometers traveled.
Keep a record for at least one month and record the type of driving (city
or highway). This will provide an accurate estimate of the vehicle’s fuel
economy under current driving conditions. Additionally, keeping records
during summer and winter will show how temperature impacts fuel
economy. In general, lower temperatures give lower fuel economy.
Maintenance and Specifications
252
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

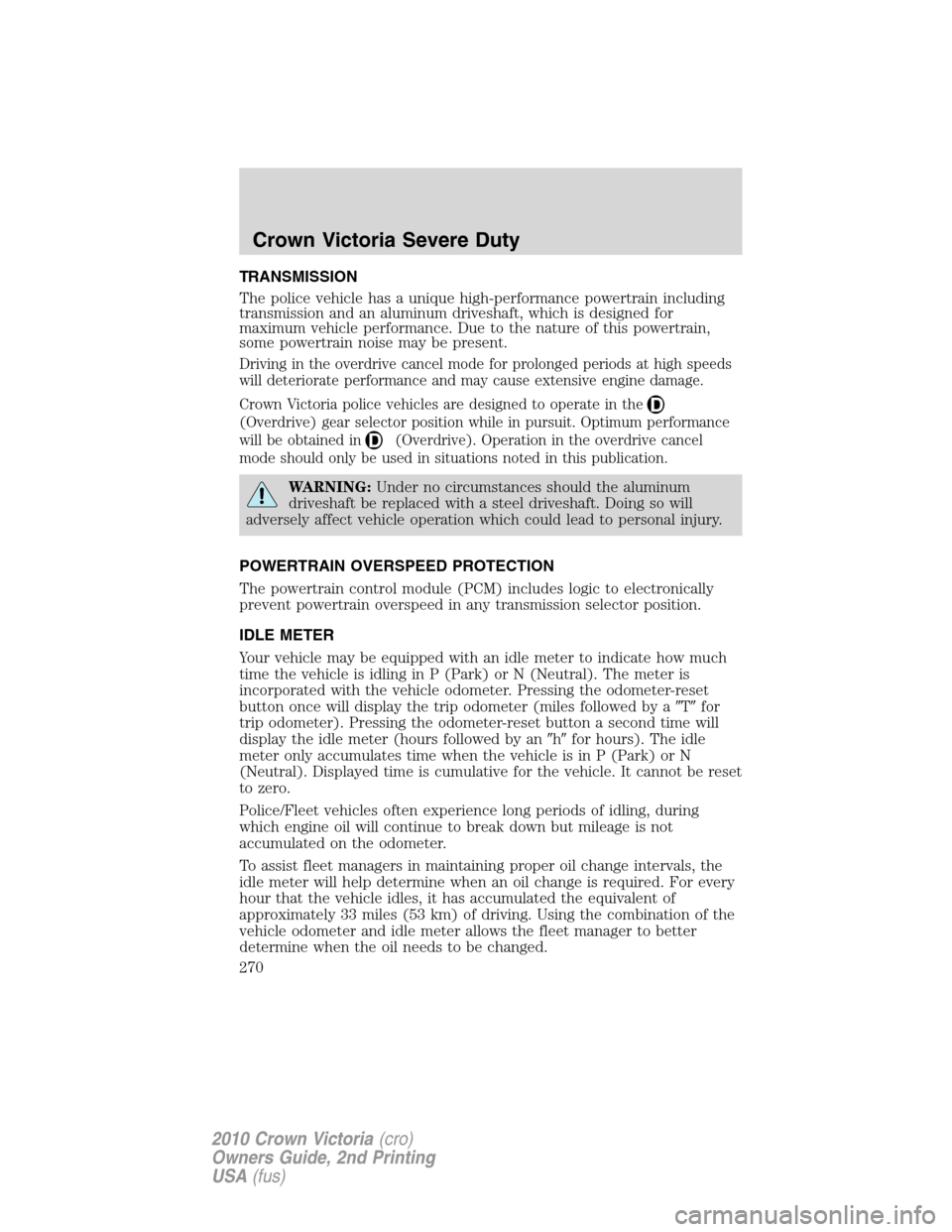

TRANSMISSION
The police vehicle has a unique high-performance powertrain including
transmission and an aluminum driveshaft, which is designed for
maximum vehicle performance. Due to the nature of this powertrain,
some powertrain noise may be present.
Driving in the overdrive cancel mode for prolonged periods at high speeds
will deteriorate performance and may cause extensive engine damage.
Crown Victoria police vehicles are designed to operate in the
(Overdrive) gear selector position while in pursuit. Optimum performance
will be obtained in
(Overdrive). Operation in the overdrive cancel
mode should only be used in situations noted in this publication.
WARNING:Under no circumstances should the aluminum
driveshaft be replaced with a steel driveshaft. Doing so will
adversely affect vehicle operation which could lead to personal injury.
POWERTRAIN OVERSPEED PROTECTION
The powertrain control module (PCM) includes logic to electronically
prevent powertrain overspeed in any transmission selector position.
IDLE METER
Your vehicle may be equipped with an idle meter to indicate how much
time the vehicle is idling in P (Park) or N (Neutral). The meter is
incorporated with the vehicle odometer. Pressing the odometer-reset
button once will display the trip odometer (miles followed by aTfor
trip odometer). Pressing the odometer-reset button a second time will
display the idle meter (hours followed by anhfor hours). The idle
meter only accumulates time when the vehicle is in P (Park) or N
(Neutral). Displayed time is cumulative for the vehicle. It cannot be reset
to zero.
Police/Fleet vehicles often experience long periods of idling, during
which engine oil will continue to break down but mileage is not
accumulated on the odometer.
To assist fleet managers in maintaining proper oil change intervals, the
idle meter will help determine when an oil change is required. For every
hour that the vehicle idles, it has accumulated the equivalent of
approximately 33 miles (53 km) of driving. Using the combination of the
vehicle odometer and idle meter allows the fleet manager to better
determine when the oil needs to be changed.
Crown Victoria Severe Duty
270
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)

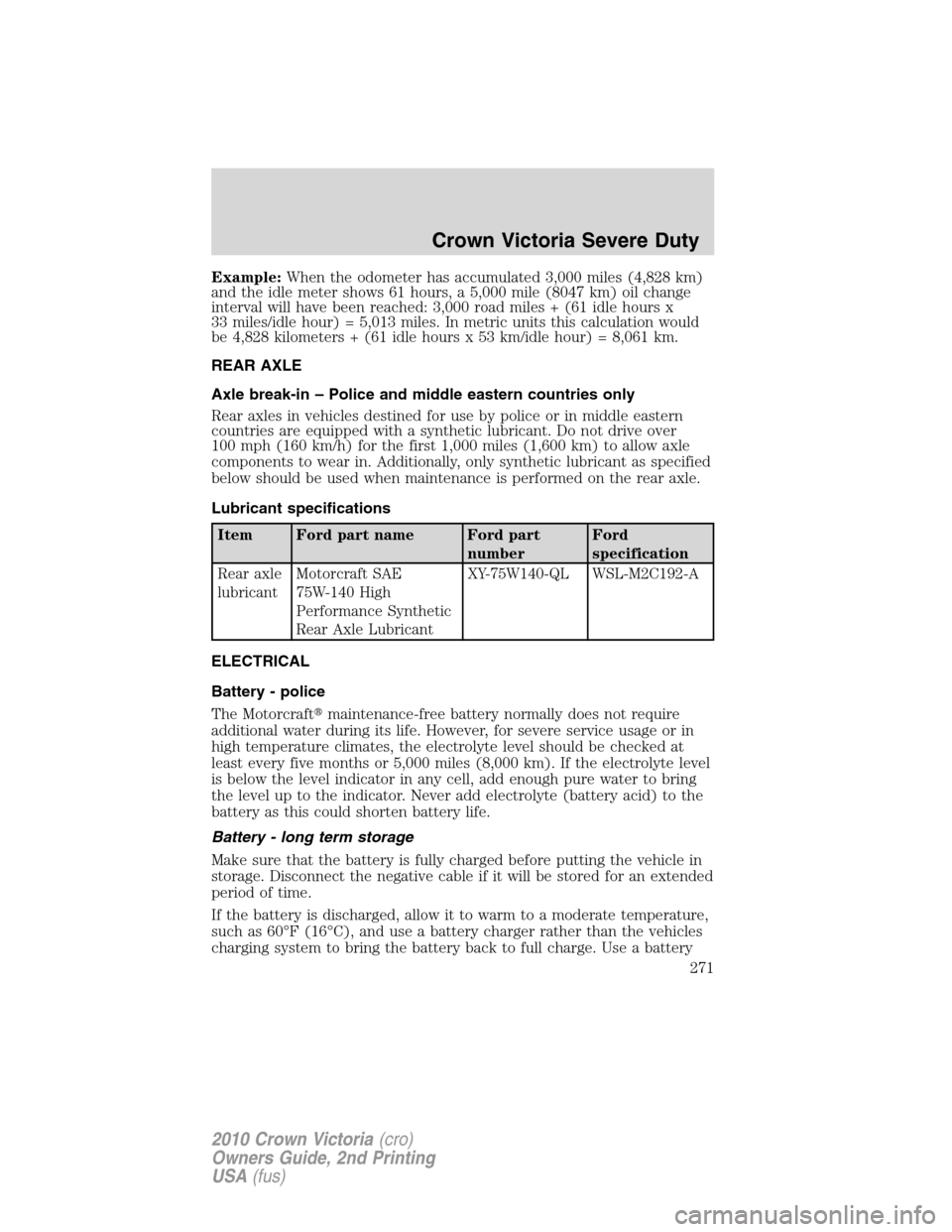

Example:When the odometer has accumulated 3,000 miles (4,828 km)
and the idle meter shows 61 hours, a 5,000 mile (8047 km) oil change
interval will have been reached: 3,000 road miles + (61 idle hours x
33 miles/idle hour) = 5,013 miles. In metric units this calculation would
be 4,828 kilometers + (61 idle hours x 53 km/idle hour) = 8,061 km.
REAR AXLE
Axle break-in – Police and middle eastern countries only
Rear axles in vehicles destined for use by police or in middle eastern
countries are equipped with a synthetic lubricant. Do not drive over
100 mph (160 km/h) for the first 1,000 miles (1,600 km) to allow axle
components to wear in. Additionally, only synthetic lubricant as specified
below should be used when maintenance is performed on the rear axle.
Lubricant specifications
Item Ford part name Ford part
numberFord
specification
Rear axle
lubricantMotorcraft SAE
75W-140 High
Performance Synthetic
Rear Axle LubricantXY-75W140-QL WSL-M2C192-A
ELECTRICAL
Battery - police
The Motorcraft
maintenance-free battery normally does not require
additional water during its life. However, for severe service usage or in
high temperature climates, the electrolyte level should be checked at
least every five months or 5,000 miles (8,000 km). If the electrolyte level
is below the level indicator in any cell, add enough pure water to bring
the level up to the indicator. Never add electrolyte (battery acid) to the
battery as this could shorten battery life.
Battery - long term storage
Make sure that the battery is fully charged before putting the vehicle in
storage. Disconnect the negative cable if it will be stored for an extended
period of time.
If the battery is discharged, allow it to warm to a moderate temperature,
such as 60°F (16°C), and use a battery charger rather than the vehicles
charging system to bring the battery back to full charge. Use a battery
Crown Victoria Severe Duty
271
2010 Crown Victoria(cro)
Owners Guide, 2nd Printing
USA(fus)
