Page 32 of 224
BULBS
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized ªD.O.T.º for North America and an
ªEº for Europe to assure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Trade Number
Headlamp 9007
Park lamp and turn lamp (front) 3157 AK
Cornering lamp (front) 3156 K
Tail, stop and turn (rear) 3157 K
Backup lamp 3156 K
License plate lamp 168
High-mount brakelamp 912
Foglamps H1
Luggage compartment lamp 211-2
Dome lamp 906
Underhood lamp 211±2
Rear reading lamp 211-2
Map lamp 168
Illuminated visor mirror 168
Dual floorwell lamp 906
Glove compartment 168
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer.
Replacing the interior bulbs
Check the operation of all bulbs frequently.
2004 Marauder(mdr)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
32

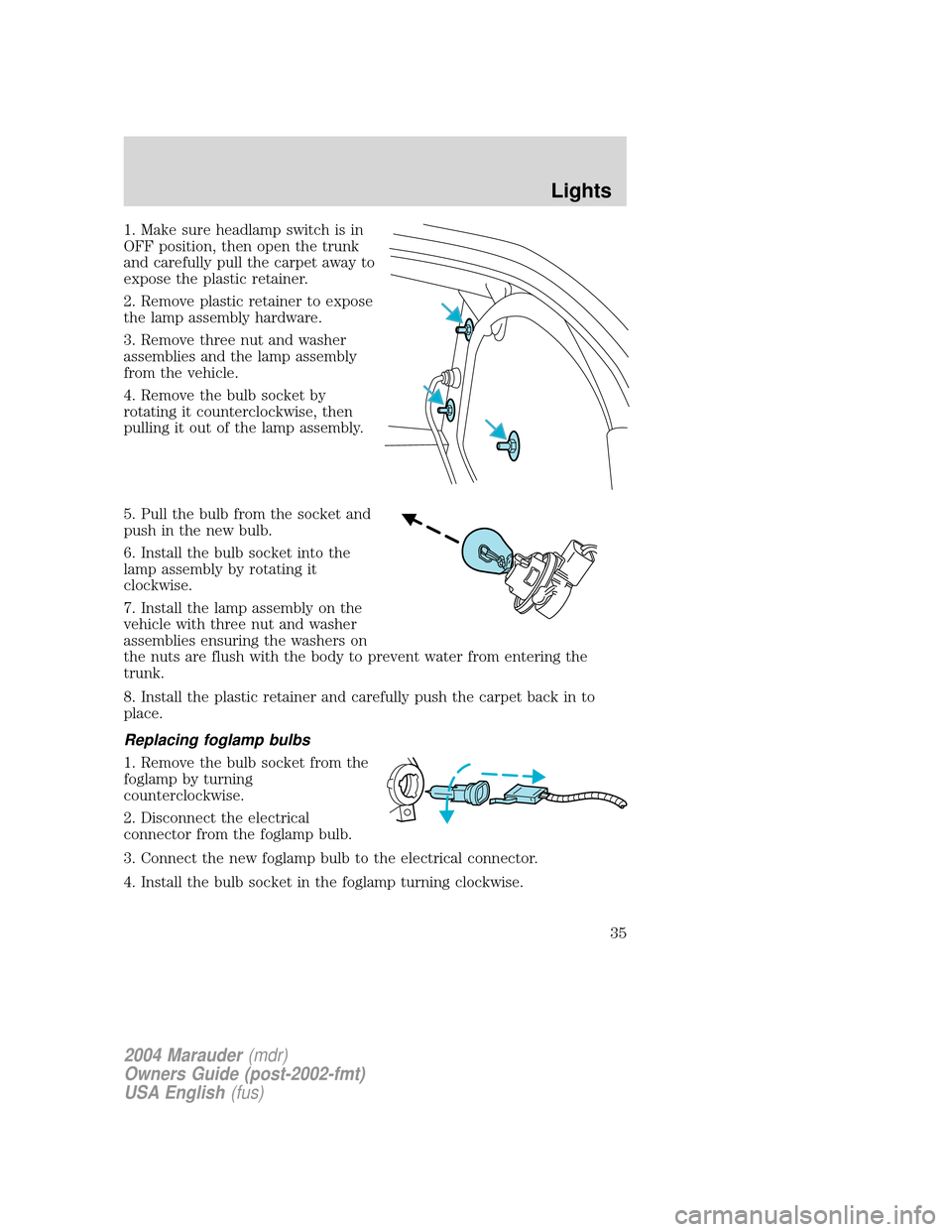

Page 35 of 224
1. Make sure headlamp switch is in
OFF position, then open the trunk
and carefully pull the carpet away to
expose the plastic retainer.
2. Remove plastic retainer to expose
the lamp assembly hardware.
3. Remove three nut and washer
assemblies and the lamp assembly
from the vehicle.
4. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
5. Pull the bulb from the socket and
push in the new bulb.
6. Install the bulb socket into the
lamp assembly by rotating it
clockwise.
7. Install the lamp assembly on the
vehicle with three nut and washer
assemblies ensuring the washers on
the nuts are flush with the body to prevent water from entering the
trunk.
8. Install the plastic retainer and carefully push the carpet back in to
place.
Replacing foglamp bulbs
1. Remove the bulb socket from the
foglamp by turning
counterclockwise.
2. Disconnect the electrical
connector from the foglamp bulb.
3. Connect the new foglamp bulb to the electrical connector.
4. Install the bulb socket in the foglamp turning clockwise.
2004 Marauder(mdr)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
35
Page 220 of 224
Exhaust fumes ..........................111
F
Floor mats ...................................59
Fluid capacities .........................208
Foglamps .....................................28
Fuel ............................................181
calculating fuel
economy ............................43, 185
cap ...........................................182
capacity ...................................208
choosing the right fuel ...........183
comparisons with EPA fuel
economy estimates .................188
detergent in fuel .....................184
filling your vehicle with
fuel ...........................181±182, 185
filter, specifications ........185, 207
fuel pump shut-off switch .....130
improving fuel economy ........185
octane rating ...................184, 211
quality ......................................184
running out of fuel .................184
safety information relating to
automotive fuels .....................181
Fuses ..................................131±132
G
Garage Door Opener
(see Homelink wireless control
system) ........................................54
Gas cap (see Fuel cap) ............182
Gas mileage
(see Fuel economy) .................185
Gauges .........................................13
H
Hazard flashers .........................130Head restraints ...........................74
Headlamps ...................................27
aiming ........................................29
autolamp system .......................27
bulb specifications ....................32
daytime running lights .............28
flash to pass ..............................29
high beam .................................28
replacing bulbs .........................33
turning on and off ....................27
Heating
heating and air conditioning
system .......................................24
HomeLink universal
transceiver (see Garage door
opener) ..................................44, 57
Homelink wireless control
system ..........................................54
Hood ..........................................167
I
Ignition ...............................108, 211
Infant seats (see Safety seats) ..99
Inspection/maintenance (I/M)
testing ........................................190
Instrument panel
cleaning ...................................163
cluster ........................................10
lighting up panel and
interior .......................................29
J
Jack ............................................139
positioning ...............................139
storage .....................................139
Jump-starting your vehicle ......145
K
Keyless entry system .................68
2004 Marauder(mdr)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
220
Page 221 of 224
autolock .....................................67
keypad .......................................68
programming entry code .........68
Keys .......................................70±72
positions of the ignition .........108
L
Lamps
autolamp system .......................27
bulb replacement
specifications chart ..................32
daytime running light ...............28
fog lamps ...................................28
headlamps .................................27
headlamps, flash to pass ..........29
instrument panel, dimming .....29
interior lamps .....................31±32
replacing bulbs ...................32±37
Lane change indicator
(see Turn signal) ........................31
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........113
Limited-slip axle .......................122
Load limits .................................122
Locks
autolock .....................................67
childproof ..................................61
doors ..........................................60
Lubricant specifications ...209, 211
Lumbar support, seats ...............74
M
Mirrors
automatic dimming rearview
mirror ........................................49
fold away ...................................49
heated ........................................49
side view mirrors (power) .......49Moon roof ....................................54
Motorcraft parts ................185, 207
O
Octane rating ............................184
Oil (see Engine oil) ..................169
P
Panic alarm feature, remote
entry system ................................64
Parking brake ............................114
Parts (see Motorcraft parts) ....207
Pedals (see Power adjustable
foot pedals) .................................50
Power adjustable foot pedals .....50
Power distribution box
(see Fuses) ...............................135
Power door locks ..................60, 67
Power mirrors .............................49
Power Point
Cigar lighter ..............................47
Power steering ..................116±117
fluid, checking and adding ....190
fluid, refill capacity ................208
fluid, specifications .................209
Power Windows ...........................48
R
Radio ............................................17
Rear window defroster ...............26
Relays ................................131, 138
Remote entry system ...........62, 64
illuminated entry ......................66
locking/unlocking doors .....60, 63
2004 Marauder(mdr)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
221
