Warnings Status
High engine temperature Warning cannot be reset
Driver door ajar
Passenger door ajar
Left rear door ajar
Right rear door ajar
Park brake on Warning returns after 10 minutes
Liftgate ajar Warning returns after the ignition key
is turned from OFF to ON.
Service emission sys
Check fuel cap
Low brake fluid
Check compass module
Compass no response
Compass data error
Low tire pressure
Tire pressure monitor fault
Tire pressure sensor fault
Service brake system
Check left headlamp
Check right headlamp
Check left high beam
Check right high beam
Check left turn lamps
Check right turn lamps
Engine change oil soon
Engine oil change now
Low fuel
Service 4WD
Turn signal on
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
60

INFO UNAVAIL.These messages indicate improper operation of the
vehicle network communication systems for the following vehicle
modules.
•Fuel computer
•Charging system
•Door sensor
•Brakes
•Exterior lamps
•Emissions system
•4WD info
Contact your Ford Dealer as soon as possible if these messages occur on
a regular basis.
LIFTGATE
To open the rear window, pull the
right side of the liftgate handle.
To open the liftgate, pull the left
side of the liftgate handle.
•Do not open the liftgate or
liftgate glass in a garage or other
enclosed area with a low ceiling.
If the liftgate glass is raised and
the liftgate is also opened, both
liftgate and glass could be
damaged against a low ceiling.
•Do not leave the liftgate or liftgate glass open while driving. Doing so
could cause serious damage to the liftgate and its components as well
as allowing carbon monoxide to enter the vehicle.
Make sure that the liftgate door and/or window are closed to
prevent exhaust fumes from being drawn into the vehicle.
Exhaust fumes contain carbon monoxide which can injure your lungs
and cause drowsiness and even death. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate door or window open, keep the vents open so outside air comes
into the vehicle.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
64

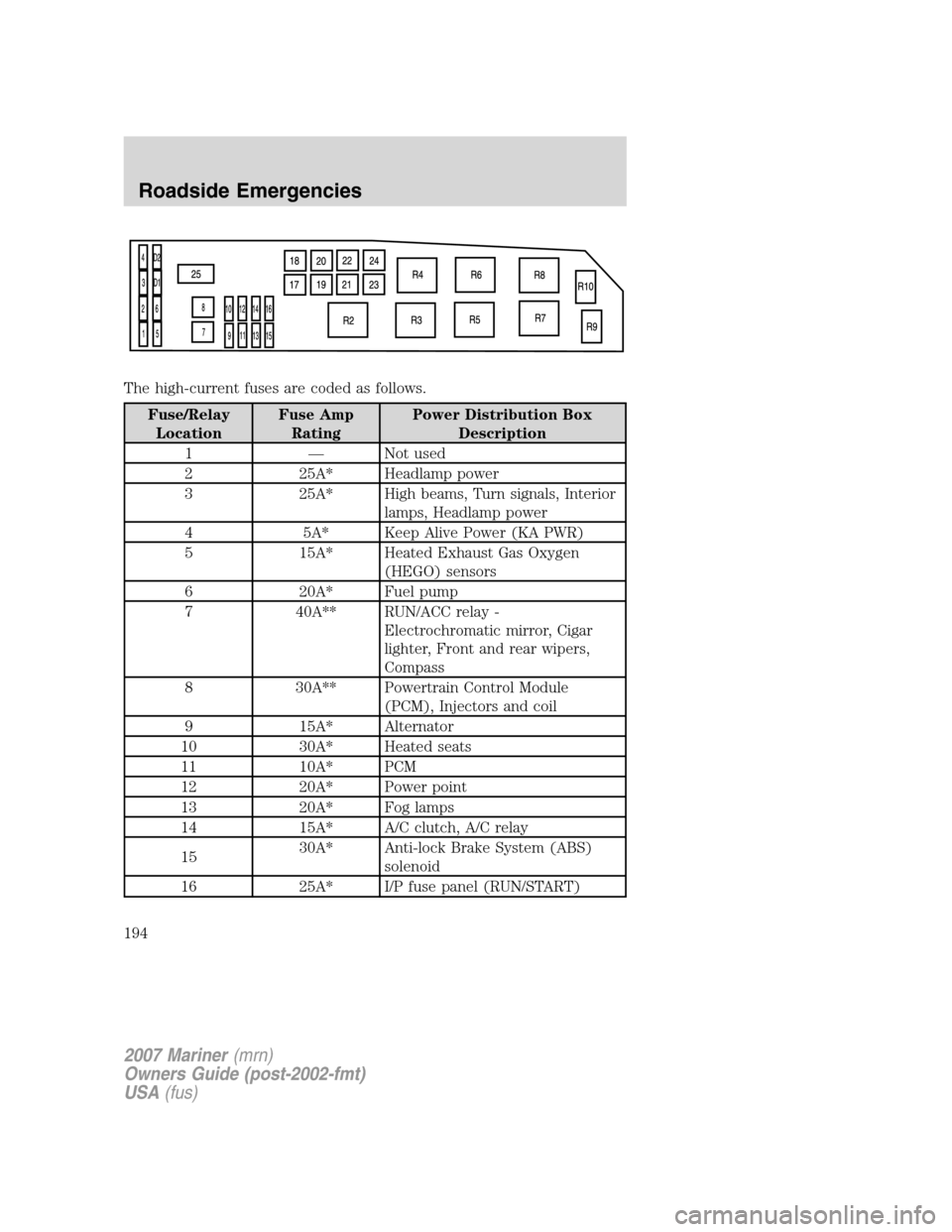

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps, Headlamp power
4 5A* Keep Alive Power (KA PWR)
5 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
6 20A* Fuel pump
7 40A** RUN/ACC relay -
Electrochromatic mirror, Cigar
lighter, Front and rear wipers,
Compass
8 30A** Powertrain Control Module
(PCM), Injectors and coil
9 15A* Alternator
10 30A* Heated seats
11 10A* PCM
12 20A* Power point
13 20A* Fog lamps
14 15A* A/C clutch, A/C relay
1530A* Anti-lock Brake System (ABS)
solenoid
16 25A* I/P fuse panel (RUN/START)
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
194

When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Tire change procedure
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the TPMS system, all road wheels equipped with the tire pressure
monitoring sensors must be mounted on the vehicle
Have a flat tire serviced by an authorized dealer in order to prevent
damage to the TPMS sensor, refer toTire Pressure Monitoring System
(TPMS)in theTires, Wheels, and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During the repairing or replacing
of the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
When one of the front wheels is off the ground, the transmission
alone will not prevent the vehicle from moving or slipping off the
jack, even if the vehicle is in P (Park).
To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)
the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.
If the vehicle slips off the jack, you or someone else could be
seriously injured.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
198

L
Lamps
autolamp system .......................33
bulb replacement
specifications chart ..................39
fog lamps ...................................35
headlamps .................................33
headlamps, flash to pass ..........35
instrument panel, dimming .....35
interior lamps .....................38–40
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................37
Liftgate ........................................64
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........169
Load limits .................................153
Loading instructions .................159
Locks
childproof ..................................71
Lubricant specifications ...........264
Lug nuts ....................................207
Luggage rack ...............................66
Lumbar support, seats ...............84
M
Message center .....................56–57
system check button ................58
warning messages .....................59
Mirrors .........................................51
automatic dimming rearview
mirror ........................................49
fold away ...................................52
heated ........................................52
side view mirrors (power) .......51
Moon roof ....................................55Motorcraft parts ........228, 247, 262
O
Octane rating ............................250
Oil (see Engine oil) ..................235
Overdrive ...................................173
P
Parking brake ............................170
Parts (see Motorcraft parts) ....262
Passenger Occupant
Classification Sensor ...................92
Power distribution box
(see Fuses) ...............................193
Power door locks ........................68
Power mirrors .............................51
Power point .................................47
Power steering ..........................170
fluid, checking and adding ....258
fluid, refill capacity ................264
fluid, specifications .................264
Power Windows ...........................47
Preparing to drive your
vehicle ........................................171
R
Radio ......................................19, 23
Rear window defroster ...............32
Relays ........................................189
Remote entry system .................71
illuminated entry ................75–76
locking/unlocking doors .....72–73
panic alarm ...............................73
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
275
