WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Service engine soon:TheService
engine soonindicator light
illuminates when the ignition is first
turned to the RUN position to check
the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. Normally, the
Service engine soon

light will stay on until the engine is cranked, then turn itself off if no
malfunctions are present. However, if after 15 seconds the
Service
engine soon
light blinks eight times, it means that the vehicle is not
ready for I/M testing. See theReadiness for Inspection/Maintenance
(I/M) testingin theMaintenance and Specificationschapter.
Solid illumination after the engine is started indicates the On Board
Diagnostics System (OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
12

Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Check fuel cap:Illuminates when the fuel cap may not be properly
installed. Continued driving with this light on may cause the Service
engine soon warning light to come on. Refer toFuel filler capin the
Maintenance and Specificationschapter.
Without message center
With message center
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON position
when the engine is not running, or in a position between ON and START,
or by applying the parking brake when the ignition is turned to the ON
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your authorized dealer. Illumination
after releasing the parking brake indicates low brake fluid level and the
brake system should be inspected immediately by your authorized dealer.
Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your authorized dealer. Driving extended distances with
the parking brake engaged can cause brake failure and the risk of
personal injury.
!
BRAKE
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
13

Parking brake
To set the parking brake, pull the
handle up as far as possible. The
BRAKE warning lamp will illuminate
and will remain illuminated until the
parking brake is released.
To release, press and hold the
button, pull the handle up slightly,
then push the handle down.
Always set the parking
brake fully and make sure
that the gearshift is securely
latched in P (Park).
STEERING
To help prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering pump fluid level
(below the MIN mark on the reservoir).
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the MAX mark on
the reservoir, as this may result in leaks from the reservoir.
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort. If the
steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
!
BRAKE
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
170

Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
208

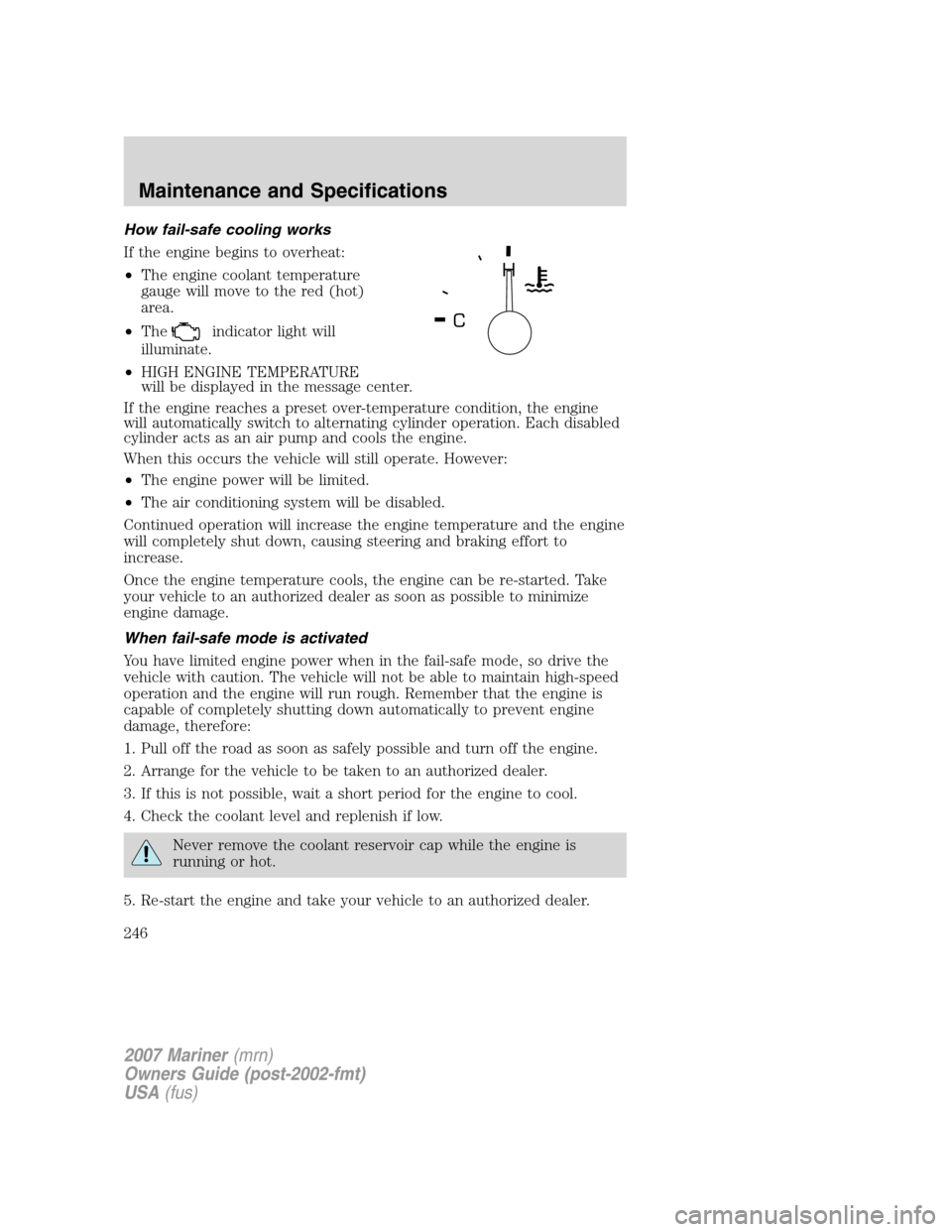

How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•The
indicator light will
illuminate.
•HIGH ENGINE TEMPERATURE
will be displayed in the message center.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature and the engine
will completely shut down, causing steering and braking effort to
increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Re-start the engine and take your vehicle to an authorized dealer.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
246

Fuel quality
If you are experiencing starting, rough idle or hesitation driveability
problems, try a different brand of unleaded gasoline. “Premium” unleaded
gasoline is not recommended for vehicles designed to use “Regular”
unleaded gasoline because it may cause these problems to become more
pronounced. If the problems persist, see your authorized dealer.
Do not add aftermarket fuel additive products to your fuel tank. It should
not be necessary to add any aftermarket products to your fuel tank if you
continue to use high quality fuel of the recommended octane rating. These
products have not been approved for your engine and could cause damage
to the fuel system. Repairs to correct the effects of using an aftermarket
product in your fuel may not be covered by your warranty.
Many of the world’s automakers approved the World-wide Fuel Charter
that recommends gasoline specifications to provide improved
performance and emission control system protection for your vehicle.
Gasolines that meet the World-wide Fuel Charter should be used when
available. Ask your fuel supplier about gasolines that meet the
World-wide Fuel Charter.
Cleaner air
Ford endorses the use of reformulated “cleaner-burning” gasolines to
improve air quality, per the recommendations in theChoosing the Right
Fuelsection.
Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from OFF to ON several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding one gallon of fuel is enough to restart the engine. If
the vehicle is out of fuel and on a steep grade, more than one gallon
may be required.
•The
indicator may come on. For more information on the “check
engine” or the “service engine soon” indicator, refer toWarning lights
and chimesin theInstrument Clusterchapter.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
251

•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
EPA window sticker
Every new vehicle should have the EPA window sticker. Contact your
authorized dealer if the window sticker is not supplied with your vehicle.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
254

A
Accessory delay ..........................48
Air cleaner filter ...............261–262
Airbag supplemental restraint
system ................104–105, 113, 116
and child safety seats ............106
description ..............105, 113, 116
disposal ....................................119
driver airbag ............107, 114, 117
indicator light .........113, 115, 118
operation .................107, 114, 117
passenger airbag .....107, 114, 117
side airbag ...............................113
All Wheel Drive (AWD),
driving off road .........................179
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................241
Anti-lock brake system
(see Brakes) ..............................169
Anti-theft system ..................77, 80
arming the system ....................80
disarming a triggered system ..81
triggering ...................................81
Audio system (see Radio) ...19, 23
Automatic transaxle
fluid, adding ............................259
fluid, checking ........................259
Automatic transmission
driving an automatic
overdrive .................................174
fluid, refill capacities ..............264
fluid, specification ..................264
Auxiliary power point .................47
Axle
lubricant specifications ..........264
refill capacities ........................264B
Battery .......................................239
acid, treating emergencies .....239
battery saver .............................39
jumping a disabled battery ....207
maintenance-free ....................239
replacement, specifications ...262
servicing ..................................239
BeltMinder...............................100
Brakes ................................168–169
anti-lock ...................................169
anti-lock brake system (ABS)
warning light ...........................169
fluid, checking and adding ....259
fluid, refill capacities ..............264
fluid, specifications .................264
lubricant specifications ..........264
parking ....................................170
shift interlock ..........................171
Bulbs ............................................39
C
Capacities for refilling fluids ....264
Cargo area shade ........................65
Cargo management system ........65
Cell phone use ..............................8
Child safety restraints ..............119
child safety belts ....................119
Child safety seats ......................123
attaching with tether straps ..127
in front seat ............................124
in rear seat ..............................124
Cleaning your vehicle
engine compartment ..............224
instrument panel ....................227
interior .....................................227
interior trim ............................227
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
272

L
Lamps
autolamp system .......................33
bulb replacement
specifications chart ..................39
fog lamps ...................................35
headlamps .................................33
headlamps, flash to pass ..........35
instrument panel, dimming .....35
interior lamps .....................38–40
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................37
Liftgate ........................................64
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........169
Load limits .................................153
Loading instructions .................159
Locks
childproof ..................................71
Lubricant specifications ...........264
Lug nuts ....................................207
Luggage rack ...............................66
Lumbar support, seats ...............84
M
Message center .....................56–57
system check button ................58
warning messages .....................59
Mirrors .........................................51
automatic dimming rearview
mirror ........................................49
fold away ...................................52
heated ........................................52
side view mirrors (power) .......51
Moon roof ....................................55Motorcraft parts ........228, 247, 262
O
Octane rating ............................250
Oil (see Engine oil) ..................235
Overdrive ...................................173
P
Parking brake ............................170
Parts (see Motorcraft parts) ....262
Passenger Occupant
Classification Sensor ...................92
Power distribution box
(see Fuses) ...............................193
Power door locks ........................68
Power mirrors .............................51
Power point .................................47
Power steering ..........................170
fluid, checking and adding ....258
fluid, refill capacity ................264
fluid, specifications .................264
Power Windows ...........................47
Preparing to drive your
vehicle ........................................171
R
Radio ......................................19, 23
Rear window defroster ...............32
Relays ........................................189
Remote entry system .................71
illuminated entry ................75–76
locking/unlocking doors .....72–73
panic alarm ...............................73
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
275
