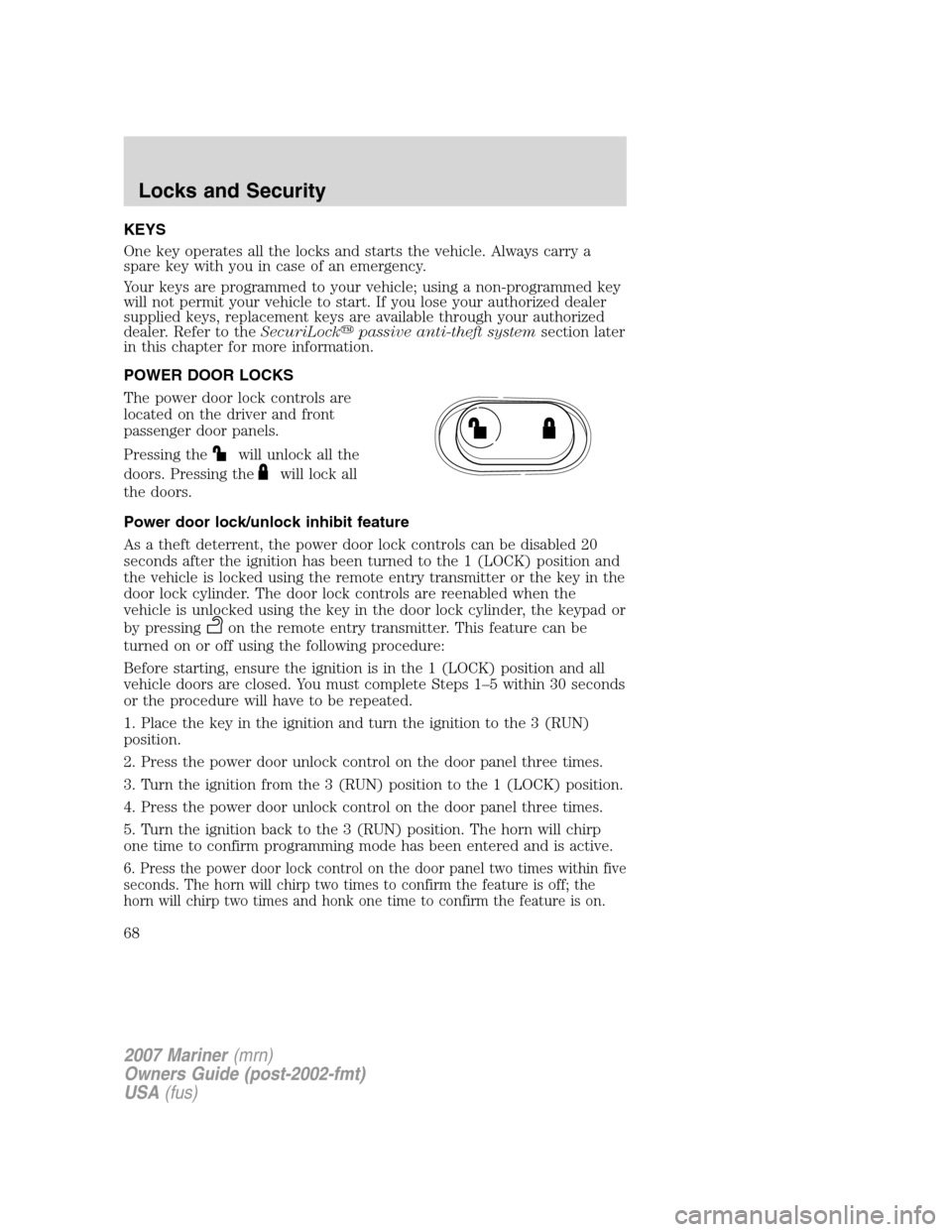

KEYS
One key operates all the locks and starts the vehicle. Always carry a
spare key with you in case of an emergency.
Your keys are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your authorized dealer
supplied keys, replacement keys are available through your authorized
dealer. Refer to theSecuriLockpassive anti-theft systemsection later
in this chapter for more information.
POWER DOOR LOCKS
The power door lock controls are
located on the driver and front
passenger door panels.
Pressing the
will unlock all the
doors. Pressing the
will lock all
the doors.
Power door lock/unlock inhibit feature
As a theft deterrent, the power door lock controls can be disabled 20
seconds after the ignition has been turned to the 1 (LOCK) position and
the vehicle is locked using the remote entry transmitter or the key in the
door lock cylinder. The door lock controls are reenabled when the
vehicle is unlocked using the key in the door lock cylinder, the keypad or
by pressing
on the remote entry transmitter. This feature can be
turned on or off using the following procedure:
Before starting, ensure the ignition is in the 1 (LOCK) position and all
vehicle doors are closed. You must complete Steps 1–5 within 30 seconds
or the procedure will have to be repeated.
1. Place the key in the ignition and turn the ignition to the 3 (RUN)
position.
2. Press the power door unlock control on the door panel three times.
3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the 3 (RUN) position. The horn will chirp
one time to confirm programming mode has been entered and is active.
6. Press the power door lock control on the door panel two times within five
seconds. The horn will chirp two times to confirm the feature is off; the
horn will chirp two times and honk one time to confirm the feature is on.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
68

Locking the doors
1. Pressand release to lock all the doors. Assuming all vehicle doors
and the liftgate are properly closed, the park/turn lamps will flash once
and the perimeter alarm (if equipped) will start the arming process. For
more information concerning the perimeter alarm, refer toPerimeter
alarm system (if equipped)later in this chapter.
2. Press
and release again within three seconds to confirm that all the
doors and liftgate are closed and locked.Note:The doors will lock again
and the horn will chirp once.
If any of the doors or the hood are not properly closed, the horn will
chirp twice and park/turn lamps will not flash when the
control is
pressed.
Sounding a panic alarm
Press
to activate the alarm. To deactivate the feature, press the
control again, turn the ignition to the 3 (RUN) or 4 (START) position, or
wait for the alarm to time out in approximately 3 minutes.
Note:The panic alarm will only operate when the ignition is in the 1
(LOCK) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
73

Note:Ensure the brake pedal is not
depressed during this sequence.
To reprogram the remote entry
transmitters:
1. Ensure the vehicle is
electronically unlocked.
2. Put the key in the ignition.
3. Turn the key from the 1 (LOCK)
position to 3 (RUN).
4. Cycle eight times rapidly (within 10 seconds) between the 1 (LOCK)
position and 3 (RUN).Note:The eighth turn must end in the 3 (RUN)
position.
5. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
6. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again.
7. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
8. Repeat Step 6 to program each additional remote entry transmitter.
9. Turn the ignition to the 1 (LOCK) position after you have finished
programming all of the remote entry transmitters.
10. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s).
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 2 (ACCESSORY) position, or
•the remote transmitter lock control is pressed, or
•the doors are locked by key in the door cylinder, or
•the doors are locked using the keypad, or
•after 25 seconds of illumination.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
75

program your spare keys to your vehicle or you can program the keys
yourself. Refer toProgramming spare keysfor instructions on how to
program the coded key.
Note:The SecuriLockpassive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Anti-theft indicator
The anti-theft indicator is located in
the instrument cluster.
•When the ignition is in the 1 (LOCK) position, the anti-theft indicator
will flash once every 2 seconds to indicate the SecuriLocksystem is
functioning as a theft deterrent.
•When the ignition is in the 3 (RUN) position, the anti-theft indicator
will glow for 3 seconds, then turn off to indicate normal system
functionality.
If a problem occurs with the SecuriLocksystem, the indicator will flash
rapidly or glow steadily when the ignition is in the 3 (RUN) position. If this
occurs, the vehicle should be taken to an authorized dealer for service.
Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
78

8. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position.
Keep the ignition in the 3 (RUN) position for at least three seconds but
not more than 10 seconds.
9. Remove the newly programmedcoded keyfrom the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out.
If the key was not successfully programmed, it will not start your
vehicle’s engine and the theft indicator light will flash on and off; you
may need to repeat Steps 1 through 5. If failure repeats, bring your
vehicle to your authorized dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait twenty seconds
and then repeat this procedure from Step 1.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Any of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Lock the doors with the key in the key cylinder.
•Lock the doors using the keypad.
•Open the driver’s door and press the power door lock control to lock
all the doors, and then close the door.
Note:The hood, doors and liftgate will arm individually, and if any of
them are open, they must be closed in order to be armed.
When you lock the vehicle using any of the methods above:
•the park/turn lamps will flash once to indicate the hood, each door
and the liftgate are closed.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
80

•the park/turn lamps willnotflash if the hood, any door, liftgate or the
liftgate window are open. Once all doors, hood, liftgate and liftgate
window are closed, the park/turn lamps will flash to confirm the alarm
will be set.
When the vehicle is locked, the alarm is set after a 20–second arming
period.
When you press the
control on the remote entry transmitter twice
within three seconds, the horn will chirp once to confirm the doors,
liftgate and hood are closed and locked, and the alarm is set.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Unlock the doors using the keypad.
•Turning the key in the ignition to the 3 (RUN) or 4 (START) position.
Triggering the anti-theft system
The armed system will be triggered if any door, liftgate or the hood is
opened without using the key, the keypad or the remote entry
transmitter.
To deactivate the triggered alarm state:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Unlock the doors using the keypad.
•Press
on the remote entry transmitter to disable the alarm; the
alarm will be disabled, but the vehicle will remain in an armed state.
•Turning the key in the ignition to the 3 (RUN) or 4 (START) position.
Note:The key must be a valid, programmed, coded key.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
81

Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Cross bars
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-Easehands-free communication system
Remote start
Vehicle security systems
Wheel locks
Not all accessories are available for all models.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
271
