Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick blade and also in the
Maintenance product specifications and capacitiessection in this
chapter.
Use of a non-approved automatic transmission fluid may cause
internal transaxle component damage.
If necessary, add fluid in 1/2 pint (250 ml) increments through the filler
tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause
shift and/or engagement concerns and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
To reduce the risk of vehicle damage and/or personal burn
injuries do not start your engine with the air cleaner removed
and do not remove it while the engine is running.
1. Loosen the clamp that secures the air inlet tube to the engine air filter
cover and disconnect the tube from the cover (for V6 only).
2. Release the clamps that secure the air filter housing cover.
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
283

3. Carefully separate the two halves
of the air filter housing.
4. Remove the air filter element from the air filter housing.
5. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
6. Install a new air filter element. Be
careful not to crimp the filter
element edges between the air filter
housing and cover. This could cause
filter damage and allow unfiltered
air to enter the engine if not
properly seated.
7. Replace the air filter housing cover and secure the clamps.
8. Replace the air inlet tube and secure the clamp.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
284

MOTORCRAFT PART NUMBERS
Component 2.3L I4 engine 3.0L DOHC V6 Duratec
engine
Air filter element
1FA-1683 FA-1683
Fuel filter FG-872 FG-872
Battery BXT-40R BXT-40R
Oil filter FL-910 FL-820-S
PCV valve
2
Spark Plugs3
1
Failure to use the correct air filter element may result in severe engine
damage. The customer warranty may be void for any damage to the
engine if the correct air filter element is not used.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
285

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A
Body hinges, latches,
door striker plates and
rollers, seat tracks, fuel
filler door hinge and
spring, primary and
auxiliary hood latches— Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Engine coolant 2.3L
engine6.3 quarts (6.0L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1
Engine coolant 3.0L
engine10.6 quarts
(10.0L)
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil
2.3L engine4.5 quarts (4.25L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
2
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark Engine oil
3.0L engine6.0 quarts (5.7L)
Transmission fluid10.2 quarts
(9.6L)
3
Motorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
286

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Rear axle fluid (4X4)
5
2.4 pints (1.15L)
6
Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
fluid
(4X4)
7
12 ounces (0.35L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer fluid 2.7 quarts (2.6L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank16.5 gallons
(62.5L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCON
V should only use MERCON
V fluid or fluid that
is specified dual usage MERCON
/MERCON
V. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.54X4 vehicles exposed for prolonged periods to temperatures less than -40°F (-40°C) should
change out the rear axle fluid to Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant, Ford part
number XY-75W140-QL meeting Ford specification WSL-M2C192-A.6Fill to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.7The Power Transfer Unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace Power Transfer Unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water. Never engage
the 4X4 feature while on dry pavement.
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
287

ENGINE DATA
Engine 2.3L I4 engine 3.0L DOHC V6
Duratec engine
Cubic inches 140 183
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Spark plug gap 0.049–0.053 inch
(1.25–1.35mm)0.052–0.056 inch
(1.32–1.42mm)
Compression ratio 9.7:1 10.0:1
Engine drivebelt routing
•2.3L I4 Engine with A/C—Without A/C similar
•3.0L V6 Engine
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
288

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic 4
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
290

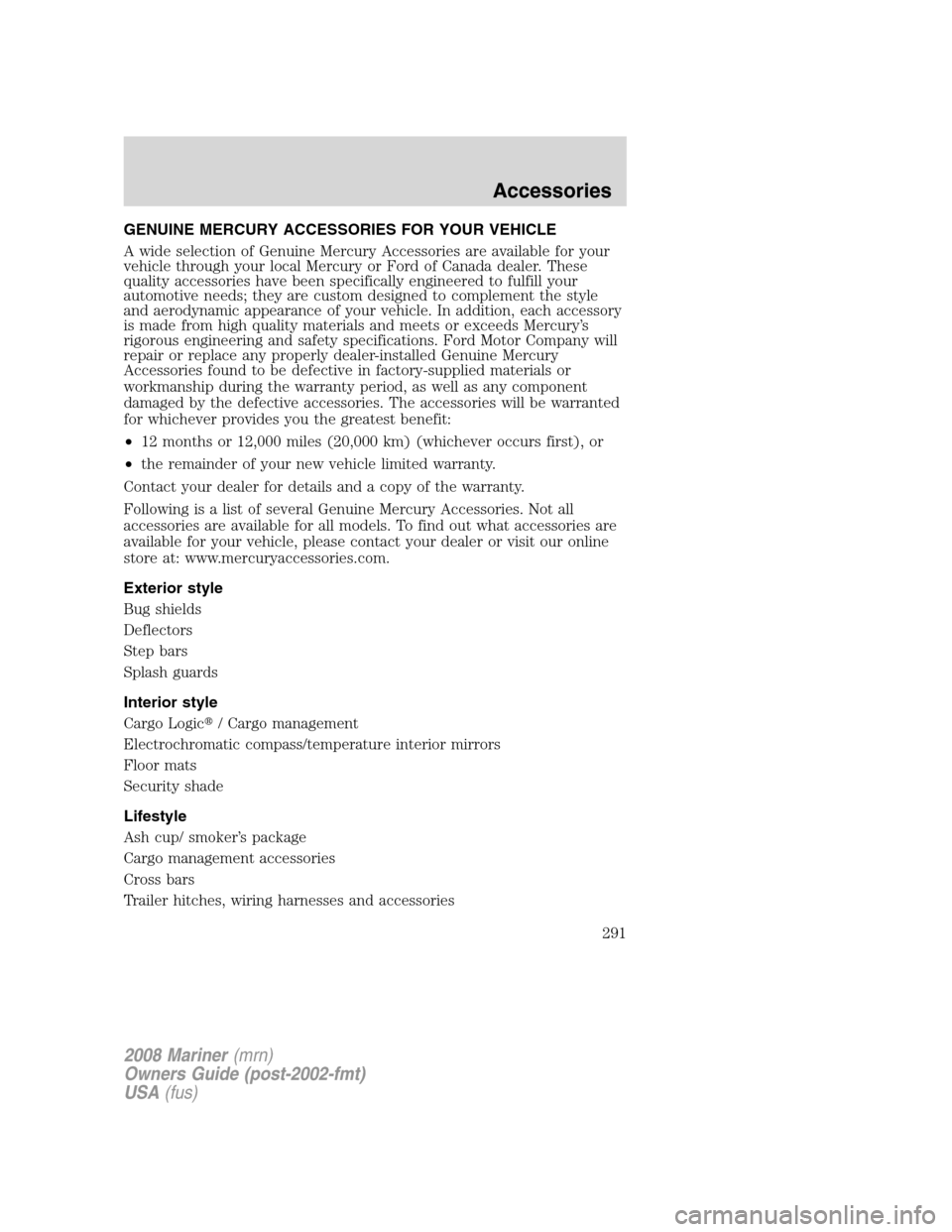

GENUINE MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Mercury Accessories are available for your
vehicle through your local Mercury or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Mercury
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Mercury Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.mercuryaccessories.com.
Exterior style
Bug shields
Deflectors
Step bars
Splash guards
Interior style
Cargo Logic
/ Cargo management
Electrochromatic compass/temperature interior mirrors
Floor mats
Security shade
Lifestyle
Ash cup/ smoker’s package
Cargo management accessories
Cross bars
Trailer hitches, wiring harnesses and accessories
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
291

A
Accessory delay ..........................58
AdvanceTrac ..............................189
Air cleaner filter ...............283, 285
Air conditioning
automatic temperature
control system ..........................37
manual heating and air
conditioning system .................34
Airbag supplemental
restraint system ........118, 127, 130
and child safety seats ............120
description ..............118, 127, 130
disposal ....................................133
driver airbag ............120, 128, 131
indicator light .........127, 129, 132
operation .................120, 128, 131
passenger airbag .....120, 128, 131
side airbag ...............................127
All Wheel Drive (AWD),
driving off road .........................201
Ambulance packages ....................8
AM/FM .........................................19
Antifreeze
(see Engine coolant) ................264
Anti-lock brake system
(see Brakes) ..............................187
Anti-theft system ........................91
Audio system (see Radio) .........19
Automatic transaxle
fluid, adding ............................281
fluid, checking ........................281
Automatic transmission
driving an automatic
overdrive .................................196
fluid, refill capacities ..............286
fluid, specification ..................286Auxiliary input jack (Line in) ....27
Auxiliary power point .................56
Axle
lubricant specifications ..........286
refill capacities ........................286
B
Battery .......................................262
acid, treating emergencies .....262
jumping a disabled battery ....229
maintenance-free ....................262
replacement, specifications ...285
servicing ..................................262
Belt-Minder
.............................113
Booster seats .............................134
Brakes ................................186–187
anti-lock ...................................187
anti-lock brake system
(ABS) warning light ...............187
fluid, checking and adding ....281
fluid, refill capacities ..............286
fluid, specifications .................286
lubricant specifications ..........286
parking ....................................188
shift interlock ..........................194
Bulbs ............................................47
C
Capacities for refilling fluids ....286
Cargo area shade ........................74
Cargo management system ........75
CD ................................................19
Cell phone use ..............................8
Child safety restraints ..............134
child safety belts ....................134
Child safety seats ......................137
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
293

attaching with tether
straps .......................................141
in front seat ............................138
in rear seat ..............................138
Child safety seats -
booster seats .............................134
Cleaning your vehicle
engine compartment ..............246
instrument panel ....................248
interior .....................................249
plastic parts ............................247
washing ....................................244
waxing .....................................245
wheels ......................................245
wiper blades ............................247
Climate control (see Air
conditioning or Heating) ......34, 37
Clock ............................................20
Compass, electronic ....................59
calibration .................................60
set zone adjustment .................59
Console ........................................54
overhead ....................................54
Controls
power seat .................................97
steering column ........................64
Coolant
checking and adding ..............264
refill capacities ................268, 286
specifications ..........................286
Cruise control
(see Speed control) ....................61
Customer Assistance ................208
Ford Extended Service
Plan ..........................................240
Getting assistance outside
the U.S. and Canada ..............241
Getting roadside assistance ...208Getting the service
you need .................................236
Ordering additional
owner’s literature ...................242
Utilizing the Mediation/
Arbitration Program ...............240
D
Dipstick
automatic transmission
fluid ..........................................281
engine oil .................................258
Driving under special
conditions ..................199, 203, 205
sand .........................................204
snow and ice ...........................206
through water .................204, 207
E
Electronic message center .........66
Emergencies, roadside
jump-starting ..........................229
Emergency Flashers .................210
Emission control system ..........278
Engine ........................................288
cleaning ...................................246
coolant .....................................264
fail-safe cooling .......................269
idle speed control ...................262
lubrication specifications .......286
refill capacities ........................286
service points ..................254–255
starting after a collision .........211
Engine block heater .................185
Engine oil ..................................258
checking and adding ..............258
dipstick ....................................258
filter, specifications ........261, 285
2008 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
294
