Page 248 of 339
The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Not used (spare)
2 15A Brake on/off switch
3 15A SYNCmodule
4 30A Moon roof
5 10A Keypad illumination, Brake shift
interlock (BSI), Passenger
compartment fuse panel
6 20A Turn signals, Stop lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Backlighting
11 10A Four wheel drive
12 7.5A Power mirror switch
13 5A Not used (spare)
14 10A FCIM (radio buttons), Front
display module, GPS module
Roadside Emergencies
248
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
Page 250 of 339
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
41 15A Driver/passenger door lock
switches, Automatic dimming
mirror, Compass, Ambient
lighting, Moon roof, Camera
display in mirror
42 10A Not used (spare)
43 10A Rear wiper logic, Heated seats
relay, Instrument cluster
44 10A Not used (spare)
45 5A Front wiper logic, Blower motor
relay
46 7.5A Occupant classification system
(OCS), Passenger airbag
deactivation indicator (PADI)
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
Roadside Emergencies
250
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
Page 251 of 339
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
A 80A Midi Electronic power steering module
(EPAS)
B 125A Midi Passenger compartment fuse
panel
1 15A* Heated mirror
2 30A** Rear defroster
3 20A** Rear power point (center console)
4 — Not used
5 10A* Powertrain control module (PCM)
– keep alive power, PCM relay,
Canister vent
6 15A* Alternator
7 15A* Liftgate latch
Roadside Emergencies
251
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

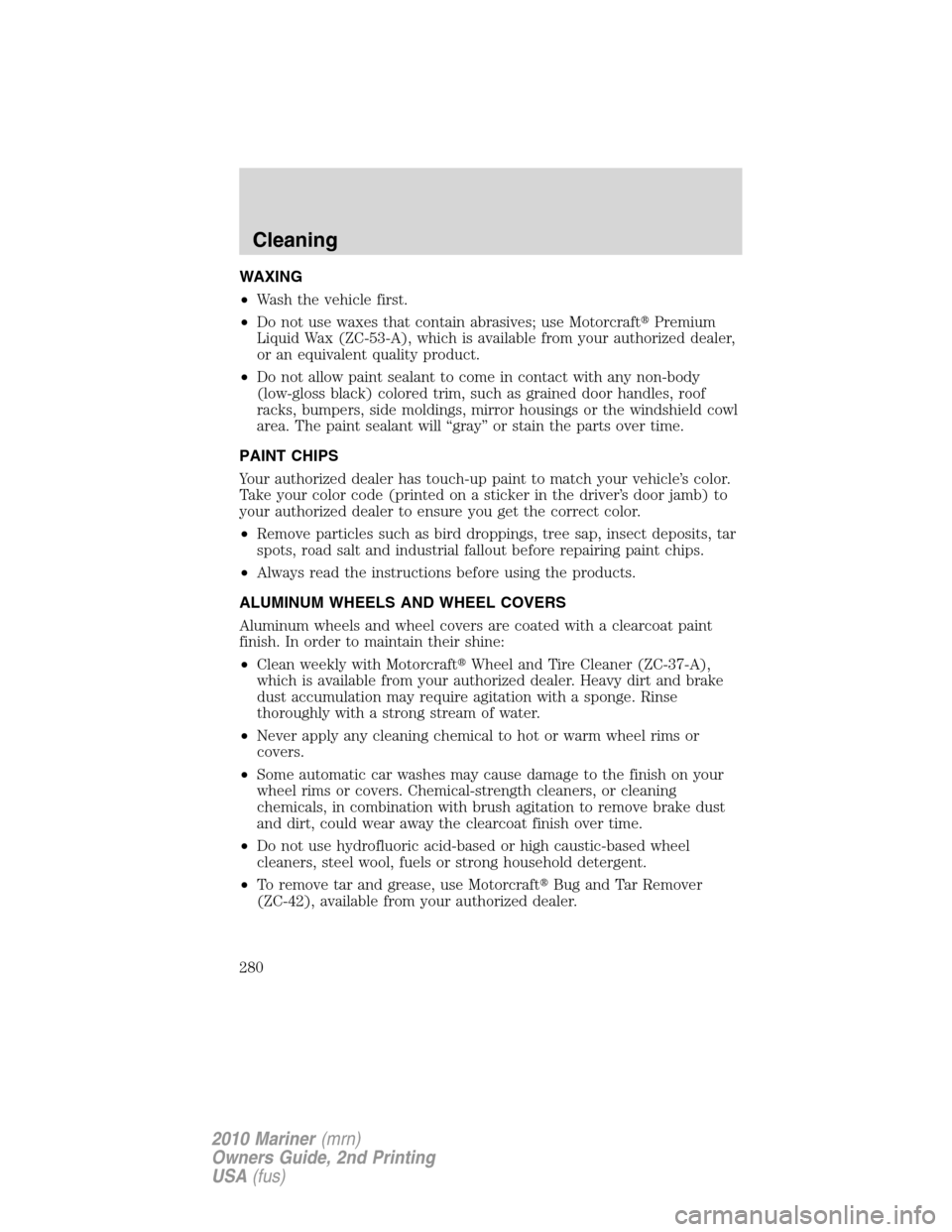

Page 280 of 339
WAXING
•Wash the vehicle first.
•Do not use waxes that contain abrasives; use MotorcraftPremium
Liquid Wax (ZC-53-A), which is available from your authorized dealer,
or an equivalent quality product.
•Do not allow paint sealant to come in contact with any non-body
(low-gloss black) colored trim, such as grained door handles, roof
racks, bumpers, side moldings, mirror housings or the windshield cowl
area. The paint sealant will “gray” or stain the parts over time.
PAINT CHIPS
Your authorized dealer has touch-up paint to match your vehicle’s color.
Take your color code (printed on a sticker in the driver’s door jamb) to
your authorized dealer to ensure you get the correct color.
•Remove particles such as bird droppings, tree sap, insect deposits, tar
spots, road salt and industrial fallout before repairing paint chips.
•Always read the instructions before using the products.
ALUMINUM WHEELS AND WHEEL COVERS
Aluminum wheels and wheel covers are coated with a clearcoat paint
finish. In order to maintain their shine:
•Clean weekly with MotorcraftWheel and Tire Cleaner (ZC-37-A),
which is available from your authorized dealer. Heavy dirt and brake
dust accumulation may require agitation with a sponge. Rinse
thoroughly with a strong stream of water.
•Never apply any cleaning chemical to hot or warm wheel rims or
covers.
•Some automatic car washes may cause damage to the finish on your
wheel rims or covers. Chemical-strength cleaners, or cleaning
chemicals, in combination with brush agitation to remove brake dust
and dirt, could wear away the clearcoat finish over time.
•Do not use hydrofluoric acid-based or high caustic-based wheel
cleaners, steel wool, fuels or strong household detergent.
•To remove tar and grease, use MotorcraftBug and Tar Remover
(ZC-42), available from your authorized dealer.
Cleaning
280
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
Page 329 of 339
GENUINE MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Mercury Accessories are available for your
vehicle through your local Mercury or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Mercury
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Mercury Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.mercuryaccessories.com.
Exterior style
Bug shields
Deflectors
Running boards
Interior style
Ambient lighting kit
Electrochromic compass/temperature interior mirrors
Floor mats
Security shade
Lifestyle
Ash cup/ smoker’s package
Cargo management accessories
Cross bars
Trailer hitches, harnesses and accessories
Accessories
329
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
Page 334 of 339
A
Accessory delay ..........................72
Active Park Assist .....................230
AdvanceTrac ..............................216
Air cleaner filter ...............321–322
Air conditioning
automatic temperature
control system ..........................48
manual heating and air
conditioning system .................45
Airbag supplemental restraint
system ........................137, 146, 149
and child safety seats ............139
description ..............137, 146, 149
disposal ....................................152
driver airbag ............139, 147, 150
indicator light .........146, 148, 151
operation .................139, 147, 150
passenger airbag .....139, 147, 150
side airbag ...............................146
All Wheel Drive (AWD),
driving off road .........................236
Ambient mood/lighting ...............58
Ambulance packages ....................7
AM/FM .........................................27
Antifreeze (see Engine
coolant) .....................................298
Anti-lock brake system
(see Brakes) ......................213–214
Anti-theft system ......................107
Audio system (see Radio) .........27
Automatic transmission
driving an automatic
overdrive .................................224
fluid, refill capacities ..............323
fluid, specification ..................323Auxiliary input jack (Line in) ....35
Auxiliary power point .................70
Axle
lubricant specifications ..........323
refill capacities ........................323
B
Battery .......................................296
acid, treating emergencies .....296
jumping a disabled battery ....265
maintenance-free ....................296
replacement, specifications ...322
servicing ..................................296
Belt-Minder.............................132
Blind Spot Spotter Mirror ........235
Booster seats .............................166
Brakes ........................................213
anti-lock ...........................213–214
anti-lock brake system (ABS)
warning light ...........................214
fluid, checking and adding ....317
fluid, refill capacities ..............323
fluid, specifications .................323
lubricant specifications ..........323
parking ....................................214
shift interlock ..........................222
Bulbs ............................................58
C
Capacities for refilling fluids ....323
Car2UHome Automation
System .........................................80
Cargo area shade ........................87
Cargo management system ........88
CD ................................................27
Cell phone use ..............................8
Index
334
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
Page 336 of 339
service points ..................288–289
starting after a collision .........246
Engine block heater .................211
Engine oil ..................................292
checking and adding ..............292
dipstick ....................................292
filter, specifications ........295, 322
recommendations ...................295
refill capacities ........................323
specifications ..........................323
Event data recording ....................7
Exhaust fumes ..........................211
F
Fail safe cooling ........................302
Fleet MyKey programming ........92
Flexible Fuel Vehicle (FFV) ....304
Fluid capacities .........................323
Fog lamps ....................................53
Four-Wheel Drive vehicles
driving off road .......................237
preparing to drive your
vehicle .....................................222
Fuel ............................................304
calculating fuel
economy ............................20, 311
cap ...........................................307
capacity ...................................323
choosing the right fuel ...........308
comparisons with EPA fuel
economy estimates .................314
detergent in fuel .....................309
filler funnel .............................310
filling your vehicle with
fuel ...........................304, 307, 311
filter, specifications ........303, 322
fuel pump shut-off switch .....246
improving fuel economy ........311octane rating ...................308, 326
quality ......................................309
running out of fuel .........264, 310
safety information relating to
automotive fuels .....................304
Fuel - flex fuel vehicle
(FFV) .................................304, 308
Fuses ..................................246–247
G
Garage door opener ....................80
Gas cap (see Fuel cap) ............307
Gas mileage (see Fuel
economy) ...................................311
Gauges .........................................16
H
Hazard flashers .........................245
Headlamps ...................................52
aiming ........................................55
bulb specifications ....................59
daytime running lights .............54
flash to pass ..............................54
high beam .................................53
replacing bulbs .........................60
turning on and off ....................52
Heating
heating and air conditioning
system .......................................48
manual heating and air
conditioning system .................45
Hood ..........................................288
I
Ignition ...............................207, 326
Illuminated visor mirror .............66
Index
336
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
Page 337 of 339
Infant seats
(see Safety seats) .....................157
Inspection/maintenance (I/M)
testing ........................................316
Instrument panel
cleaning ...................................283
cluster ........................................12
lighting up panel and
interior .......................................54
J
Jump-starting your vehicle ......265
K
Keyless entry system
autolock ...............................97, 99
keypad .....................................105
locking and unlocking doors ..106
programming entry code .......105
Keys .....................................91, 108
positions of the ignition .........207
L
Lamps
bulb replacement
specifications chart ..................59
daytime running light ...............54
fog lamps ...................................53
headlamps .................................52
headlamps, flash to pass ..........54
instrument panel, dimming .....54
interior lamps ...............56–57, 59
replacing bulbs .........................60
LATCH anchors .........................161
Liftgate ................................86, 103
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........214
Load limits .................................194Loading instructions .................200
Locks
autolock ...............................97, 99
childproof ................................101
doors ..........................................97
Lubricant specifications ...........323
Lug nuts ....................................263
Luggage rack ...............................88
Lumbar support, seats .....114–115
M
Message center ...........................18
english/metric button ...............22
system check button ................22
warning messages .....................22
Mirrors ...................................72–73
automatic dimming rearview
mirror ........................................72
fold away ...................................73
heated ........................................74
side view mirrors (power) .......73
Moon roof ....................................79
Motorcraftparts ..............285, 322
MyKey ..........................................92
N
Navigation system .......................44
O
Octane rating ............................308
Oil (see Engine oil) ..................292
Overdrive ...................................224
P
Parental MyKey programming ...92
Index
337
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
Page 338 of 339
Park Assist ................................230
Parking brake ............................214
Parts (see Motorcraft
parts) .........................................322
Passenger Occupant
Classification Sensor .................125
Power distribution box (see
Fuses) ........................................250
Power door locks ........................97
Power mirrors .............................73
Power point .................................70
Power steering ..........................221
fluid, refill capacity ................323
fluid, specifications .................323
Power Windows ...........................71
Preparing to drive your
vehicle ........................................222
R
Radio ............................................27
Rear-view camera system .........228
Recommendations for
attaching safety restraints for
children ......................................155
Relays ........................................246
Remote entry system .......101–102
illuminated entry ............104–105
locking/unlocking
doors ................................102–103
opening the trunk ...................103
panic alarm .............................103
replacement/additional
transmitters .............................104
replacing the batteries ...........103
Reverse sensing system ...........226
Roadside assistance ..................244Roof rack ...............................88–89
S
Safety belts (see Safety
restraints) ..................123, 127–131
Safety Canopy ...........146–147, 149
Safety defects, reporting ..277–278
Safety restraints ........123, 127–131
Belt-Minder...........................132
extension assembly ................132
for adults .........................128–130
for children .............................152
Occupant Classification
Sensor ......................................125
warning light and chime ........132
Safety restraints - LATCH
anchors ......................................161
Safety seats for children ..........157
Safety Compliance
Certification Label ....................327
Satellite Radio Information ........41
Seats ..........................................111
child safety seats ....................157
heated ......................................116
SecuriCode keyless entry
system ........................................105
SecuriLock passive anti-theft
system ........................................107
Servicing your vehicle ..............287
Setting the clock .........................27
Snowplowing .................................6
SOS Post Crash Alert ...............152
Spark plugs,
specifications .....................322, 326
Special notice
ambulance conversions ..............7
Index
338
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
