POWER DOOR LOCKS
•Press the
control to unlock all
doors.
•Press the
control to lock all
doors.
Door key unlocking/locking
Unlocking the doors
Turn the key in the door cylinder to unlock the driver’s door only. All
other doors will remain locked.
Locking the doors
Turn the key in the door cylinder to lock the driver’s door only.
Autolock
The autolock feature will lock all the doors, liftgate and liftgate window
when:
•all doors are closed,
•the ignition is in the on position,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is in the on position
and the vehicle speed is 9 mph (15 km/h) or lower, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
Deactivating/activating autolock
Your vehicle comes with the autolock feature enabled. There are four
methods to enable/disable this feature:
•Through your authorized dealer, or
•Performing the power door lock control procedure, or
•Performing the keyless entry keypad procedure, or
•Performing the message center procedure.
Locks and Security
97
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

Note:The autolock feature can be activated/deactivated independently
of the autounlock feature.
Before following the activation or deactivation procedures, make sure
that the anti-theft system is not armed, ignition is in the off position, and
all vehicle doors, liftgate and liftgate window are closed.
Power door unlock/lock procedure
You must complete Steps 1-5 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.
Note: Alldoors must be closed and remain closed throughout the
configuration process.
1. The ignition must be off to begin
sequence.
2. Turn the ignition to the on
position.
3. Press the power door unlock
control three times.
4. Turn the ignition from the on to
the off position.
5. Press the power door unlock control three times.
6. Turn the ignition back to the on position. The horn will chirp.
7. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
8. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad procedure
1. Turn the ignition to the off position.
2. Close all doors, the liftgate and liftgate window.
3. Enter 5–digit entry code
4. Press and hold the 3•4. While holding the 3•4pressthe7•8.
5. Release the 7•8.
6. Release the 3•4.
The user should receive a horn chirp to indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Locks and Security
98
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

Message center procedure
For information on activating/deactivating the autolock feature using the
vehicle’s message center, refer toMessage centerinformation in the
Instrument Clusterchapter.
Autounlock
The autounlock feature will unlock all the doors when:
•the ignition is in the on position, all the doors are closed, and the
vehicle has been in motion at a speed greater than 12 mph (20 km/h);
•the vehicle has then come to a stop and the ignition is turned to the
off or accessory position; and
•the driver door is opened within 10 minutes of the ignition being
transitioned to the off or accessory position.
Note:The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.
Deactivating/activating autounlock
Your vehicle comes with the autounlock feature activated. There are four
methods to enable/disable this feature:
•Through your authorized dealer, or
•by using the power door unlock/lock sequence,
•Performing the keyless entry keypad procedure (if equipped), or
•Performing the message center procedure.
Note: The autounlock feature can be activated/deactivated
independently of the autolock feature.
Power door lock switch autounlock enable/disable procedure
Before starting, ensure the ignition is in the off position and all vehicle
doors are closed. You must complete Steps 1–5 within 30 seconds or the
procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
Locks and Security
99
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

1. Place the key in the ignition and
turn the ignition to the on position.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition from the on
position to the off position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the on position. The horn will chirp one time
to confirm programming mode has been entered and is active.
6. To enable/disable the autounlock feature, press the lock control, then
press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.
7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad autounlock enable/disable procedure
1. Turn the ignition to the off position.
2. Close all doors.
3. Enter factory–set 5–digit entry code.
4. Press and hold the 3•4. While holding the 3•4, press and release
the 7•8. While still holding the 3•4, press and release the 7•8a
second time.
5. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Message center procedure
For information on activating/deactivating the autounlock feature using
the vehicle’s message center, refer toMessage centerinformation in the
Instrument Clusterchapter.
Smart unlocking feature
The smart unlocking feature helps prevent you from locking yourself out
of the vehicle. With the key in any ignition position, the driver’s door will
automatically unlock if it is locked using the power lock control on the
driver’s door panel while the driver’s door is open.
Locks and Security
100
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

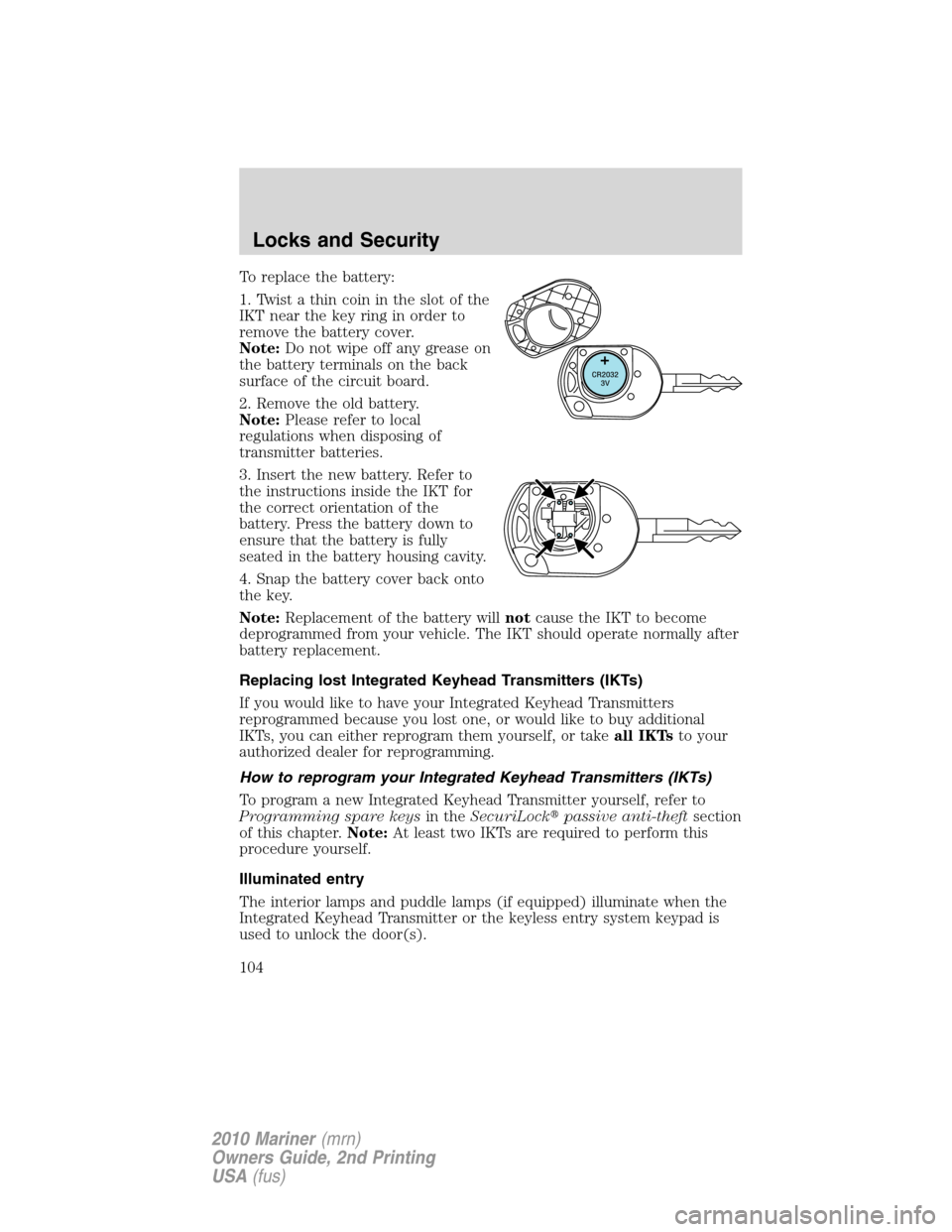

To replace the battery:
1. Twist a thin coin in the slot of the
IKT near the key ring in order to
remove the battery cover.
Note:Do not wipe off any grease on
the battery terminals on the back
surface of the circuit board.
2. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
3. Insert the new battery. Refer to
the instructions inside the IKT for
the correct orientation of the
battery. Press the battery down to
ensure that the battery is fully
seated in the battery housing cavity.
4. Snap the battery cover back onto
the key.
Note:Replacement of the battery willnotcause the IKT to become
deprogrammed from your vehicle. The IKT should operate normally after
battery replacement.
Replacing lost Integrated Keyhead Transmitters (IKTs)
If you would like to have your Integrated Keyhead Transmitters
reprogrammed because you lost one, or would like to buy additional
IKTs, you can either reprogram them yourself, or takeall IKTsto your
authorized dealer for reprogramming.
How to reprogram your Integrated Keyhead Transmitters (IKTs)
To program a new Integrated Keyhead Transmitter yourself, refer to
Programming spare keysin theSecuriLock
passive anti-theftsection
of this chapter.Note:At least two IKTs are required to perform this
procedure yourself.
Illuminated entry
The interior lamps and puddle lamps (if equipped) illuminate when the
Integrated Keyhead Transmitter or the keyless entry system keypad is
used to unlock the door(s).
Locks and Security
104
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

The illuminated entry system will turn off the interior lights if:
•the ignition is turned to the on position, or
•the Integrated Keyhead Transmitter lock control is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•after 25 seconds of illumination.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Illuminated exit
•The lamps will illuminate when the key is removed from the ignition.
The lamps automatically turn off after 25 seconds. The dome and cargo
lamp controls mustnotbe set to the off position for the illuminated exit
system to operate.
SECURICODE™ KEYLESS ENTRY SYSTEM
You can use the keyless entry keypad to:
•lock or unlock the doors without using a key,
•activate or deactivate the Autolock and Autounlock feature if
equipped
•release the liftgate glass,
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create your own
5–digit personal entry code.
When pressing the controls on the keyless entry keypad, press the
middle of the controls to ensure a good activation.
Programming your own personal entry code
To create your own personal entry code:
1. Enter the factory set code.
Locks and Security
105
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

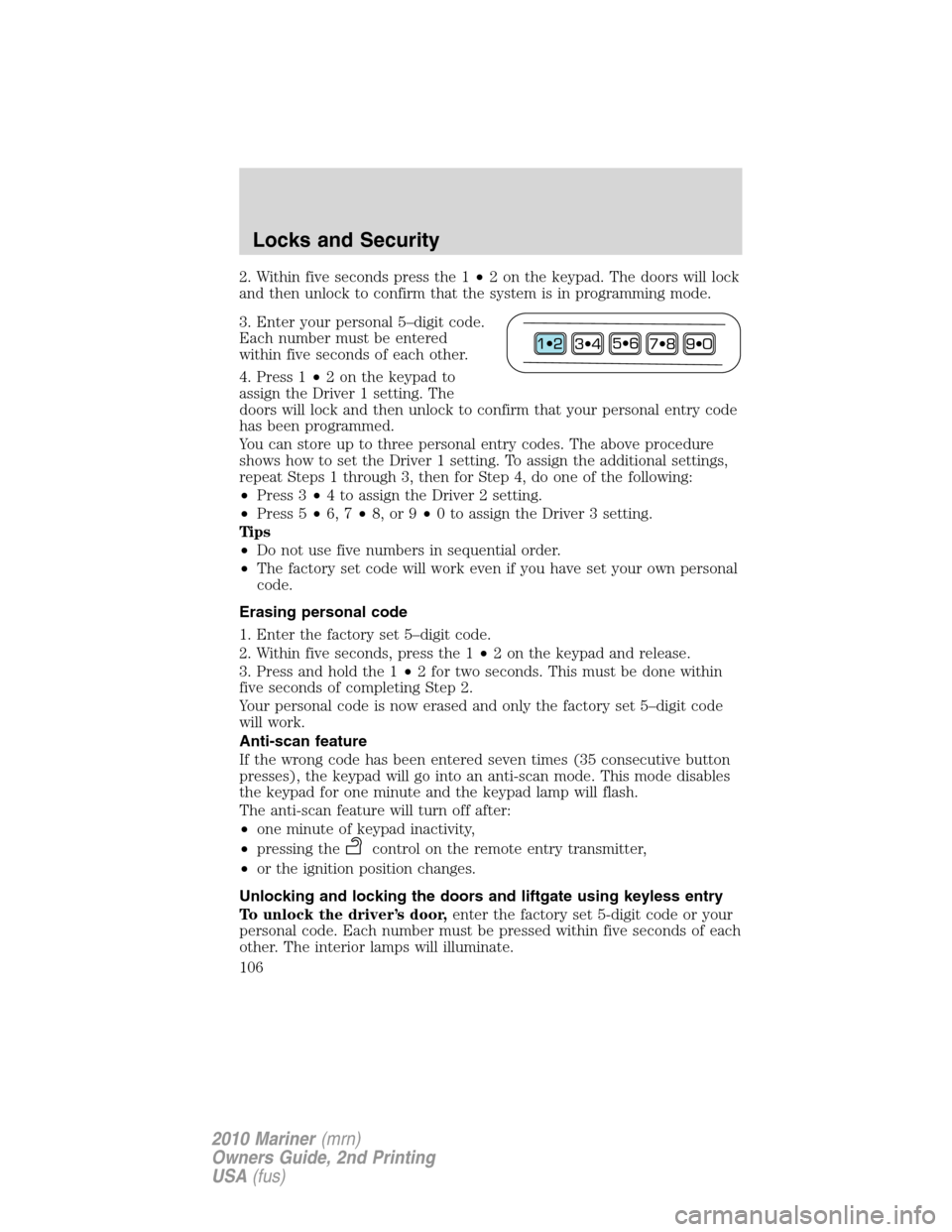

2. Within five seconds press the 1•2 on the keypad. The doors will lock
and then unlock to confirm that the system is in programming mode.
3. Enter your personal 5–digit code.
Each number must be entered
within five seconds of each other.
4. Press 1•2 on the keypad to
assign the Driver 1 setting. The
doors will lock and then unlock to confirm that your personal entry code
has been programmed.
You can store up to three personal entry codes. The above procedure
shows how to set the Driver 1 setting. To assign the additional settings,
repeat Steps 1 through 3, then for Step 4, do one of the following:
•Press 3•4 to assign the Driver 2 setting.
•Press 5•6, 7•8, or 9•0 to assign the Driver 3 setting.
Ti p s
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1•2 on the keypad and release.
3. Press and hold the 1•2 for two seconds. This must be done within
five seconds of completing Step 2.
Your personal code is now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If the wrong code has been entered seven times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity,
•pressing the
control on the remote entry transmitter,
•or the ignition position changes.
Unlocking and locking the doors and liftgate using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate.
Locks and Security
106
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

keyless entry transmitter. A maximum of eight coded keys can be
programmed to your vehicle; only four of these eight keys can be IKTs
with remote entry functionality.
If your IKTs or standard SecuriLock
coded keys are lost or stolen and
you don’t have an extra coded key, you will need to have your vehicle
towed to an authorized dealer. The key codes need to be erased from
your vehicle and new coded keys will need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
You can program your own Integrated Keyhead Transmitters or standard
SecuriLock
coded keys to your vehicle. This procedure will program
both the engine immobilizer keycode and the remote entry transmitter
portion of the IKT to your vehicle.Note:A maximum of eight coded
keys can be programmed to your vehicle; only four of these eight can be
IKTs with remote entry functionality.
Tips:
•Only use Integrated Keyhead Transmitters (IKTs) or standard
SecuriLock
keys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Please read and understand the
entire procedure before you begin.
1. Insert the first previously
programmedcoded keyinto the
ignition.
2. Turn the ignition from the 1 (off)
position to the 3 (on) position. Keep
the ignition in the 3 (on) position
for at least three seconds, but no
more than 10 seconds.
3. Turn the ignition to the 1 (off) position and remove the firstcoded
keyfrom the ignition.
Locks and Security
109
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

Infant seats
(see Safety seats) .....................157
Inspection/maintenance (I/M)
testing ........................................316
Instrument panel
cleaning ...................................283
cluster ........................................12
lighting up panel and
interior .......................................54
J
Jump-starting your vehicle ......265
K
Keyless entry system
autolock ...............................97, 99
keypad .....................................105
locking and unlocking doors ..106
programming entry code .......105
Keys .....................................91, 108
positions of the ignition .........207
L
Lamps
bulb replacement
specifications chart ..................59
daytime running light ...............54
fog lamps ...................................53
headlamps .................................52
headlamps, flash to pass ..........54
instrument panel, dimming .....54
interior lamps ...............56–57, 59
replacing bulbs .........................60
LATCH anchors .........................161
Liftgate ................................86, 103
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........214
Load limits .................................194Loading instructions .................200
Locks
autolock ...............................97, 99
childproof ................................101
doors ..........................................97
Lubricant specifications ...........323
Lug nuts ....................................263
Luggage rack ...............................88
Lumbar support, seats .....114–115
M
Message center ...........................18
english/metric button ...............22
system check button ................22
warning messages .....................22
Mirrors ...................................72–73
automatic dimming rearview
mirror ........................................72
fold away ...................................73
heated ........................................74
side view mirrors (power) .......73
Moon roof ....................................79
Motorcraft
parts ..............285, 322
MyKey ..........................................92
N
Navigation system .......................44
O
Octane rating ............................308
Oil (see Engine oil) ..................292
Overdrive ...................................224
P
Parental MyKey programming ...92
Index
337
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

Park Assist ................................230
Parking brake ............................214
Parts (see Motorcraft

parts) .........................................322
Passenger Occupant
Classification Sensor .................125
Power distribution box (see
Fuses) ........................................250
Power door locks ........................97
Power mirrors .............................73
Power point .................................70
Power steering ..........................221
fluid, refill capacity ................323
fluid, specifications .................323
Power Windows ...........................71
Preparing to drive your
vehicle ........................................222
R
Radio ............................................27
Rear-view camera system .........228
Recommendations for
attaching safety restraints for
children ......................................155
Relays ........................................246
Remote entry system .......101–102
illuminated entry ............104–105
locking/unlocking
doors ................................102–103
opening the trunk ...................103
panic alarm .............................103
replacement/additional
transmitters .............................104
replacing the batteries ...........103
Reverse sensing system ...........226
Roadside assistance ..................244Roof rack ...............................88–89
S
Safety belts (see Safety
restraints) ..................123, 127–131
Safety Canopy ...........146–147, 149
Safety defects, reporting ..277–278
Safety restraints ........123, 127–131
Belt-Minder
...........................132
extension assembly ................132
for adults .........................128–130
for children .............................152
Occupant Classification
Sensor ......................................125
warning light and chime ........132
Safety restraints - LATCH
anchors ......................................161
Safety seats for children ..........157
Safety Compliance
Certification Label ....................327
Satellite Radio Information ........41
Seats ..........................................111
child safety seats ....................157
heated ......................................116
SecuriCode keyless entry
system ........................................105
SecuriLock passive anti-theft
system ........................................107
Servicing your vehicle ..............287
Setting the clock .........................27
Snowplowing .................................6
SOS Post Crash Alert ...............152
Spark plugs,
specifications .....................322, 326
Special notice
ambulance conversions ..............7
Index
338
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
