Locking the doors
Turn the key in the door cylinder to lock the driver’s door only.
Autolock
The autolock feature will lock all the doors, liftgate and liftgate window
when:
•all doors are closed,
•the ignition is in the on position,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is in the on position
and the vehicle speed is 9 mph (15 km/h) or lower, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
Deactivating/activating autolock
Your vehicle comes with the autolock feature enabled. There are four
methods to enable/disable this feature:
•Through your authorized dealer, or
•Performing the power door lock control procedure, or
•Performing the keyless entry keypad procedure, or
•Performing the message center procedure.
Note:The autolock feature can be activated/deactivated independently
of the autounlock feature.
Before following the activation or deactivation procedures, make sure
that the anti-theft system is not armed, ignition is in the off position, and
all vehicle doors, liftgate and liftgate window are closed.
Power door unlock/lock procedure
You must complete Steps 1-5 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.
Note: Alldoors must be closed and remain closed throughout the
configuration process.
Locks and Security
96
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

1. The ignition must be off to begin
sequence.
2. Turn the ignition to the on
position.
3. Press the power door unlock
control three times.
4. Turn the ignition from the on to
the off position.
5. Press the power door unlock control three times.
6. Turn the ignition back to the on position. The horn will chirp.
7. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
8. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad procedure
1. Turn the ignition to the off position.
2. Close all doors, the liftgate and liftgate window.
3. Enter 5–digit entry code
4. Press and hold the 3•4. While holding the 3•4pressthe7•8.
5. Release the 7•8.
6. Release the 3•4.
The user should receive a horn chirp to indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Message center procedure
For information on activating/deactivating the autolock feature using the
vehicle’s message center, refer toMessage centerinformation in the
Instrument Clusterchapter.
Autounlock
The autounlock feature will unlock all the doors when:
•the ignition is in the on position, all the doors are closed, and the
vehicle has been in motion at a speed greater than 12 mph (20 km/h);
•the vehicle has then come to a stop and the ignition is turned to the
off or accessory position; and
Locks and Security
97
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

•the driver door is opened within 10 minutes of the ignition being
transitioned to the off or accessory position.
Note:The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.
Deactivating/activating autounlock
Your vehicle comes with the autounlock feature activated. There are four
methods to enable/disable this feature:
•Through your authorized dealer, or
•by using the power door unlock/lock sequence,
•Performing the keyless entry keypad procedure (if equipped), or
•Performing the message center procedure.
Note: The autounlock feature can be activated/deactivated
independently of the autolock feature.
Power door lock switch autounlock enable/disable procedure
Before starting, ensure the ignition is in the off position and all vehicle
doors are closed. You must complete Steps 1–5 within 30 seconds or the
procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
1. Place the key in the ignition and
turn the ignition to the on position.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition from the on
position to the off position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the on position. The horn will chirp one time
to confirm programming mode has been entered and is active.
6. To enable/disable the autounlock feature, press the lock control, then
press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.
7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad autounlock enable/disable procedure
1. Turn the ignition to the off position.
2. Close all doors.
Locks and Security
98
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

Illuminated entry
The interior lamps and puddle lamps (if equipped) illuminate when the
Integrated Keyhead Transmitter or the keyless entry system keypad is
used to unlock the door(s).
The illuminated entry system will turn off the interior lights if:
•the ignition is turned to the on position, or
•the Integrated Keyhead Transmitter lock control is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•after 25 seconds of illumination.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Illuminated exit
•The lamps will illuminate when the key is removed from the ignition.
The lamps automatically turn off after 25 seconds. The dome and cargo
lamp controls mustnotbe set to the off position for the illuminated exit
system to operate.
SECURICODE™ KEYLESS ENTRY SYSTEM
You can use the keyless entry keypad to:
•lock or unlock the doors without using a key,
•activate or deactivate the Autolock and Autounlock feature if
equipped
•release the liftgate glass,
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create your own
5–digit personal entry code.
When pressing the controls on the keyless entry keypad, press the
middle of the controls to ensure a good activation.
Programming your own personal entry code
To create your own personal entry code:
1. Enter the factory set code.
Locks and Security
103
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

2. Within five seconds press the 1•2 on the keypad. The doors will lock
and then unlock to confirm that the system is in programming mode.
3. Enter your personal 5–digit code.
Each number must be entered
within five seconds of each other.
4. Press 1•2 on the keypad to
assign the Driver 1 setting. The
doors will lock and then unlock to confirm that your personal entry code
has been programmed.
You can store up to three personal entry codes. The above procedure
shows how to set the Driver 1 setting. To assign the additional settings,
repeat Steps 1 through 3, then for Step 4, do one of the following:
•Press 3•4 to assign the Driver 2 setting.
•Press 5•6, 7•8, or 9•0 to assign the Driver 3 setting.
Ti p s
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1•2 on the keypad and release.
3. Press and hold the 1•2 for two seconds. This must be done within
five seconds of completing Step 2.
Your personal code is now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If the wrong code has been entered seven times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity,
•pressing the
control on the remote entry transmitter,
•or the ignition position changes.
Unlocking and locking the doors and liftgate using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate.
Locks and Security
104
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

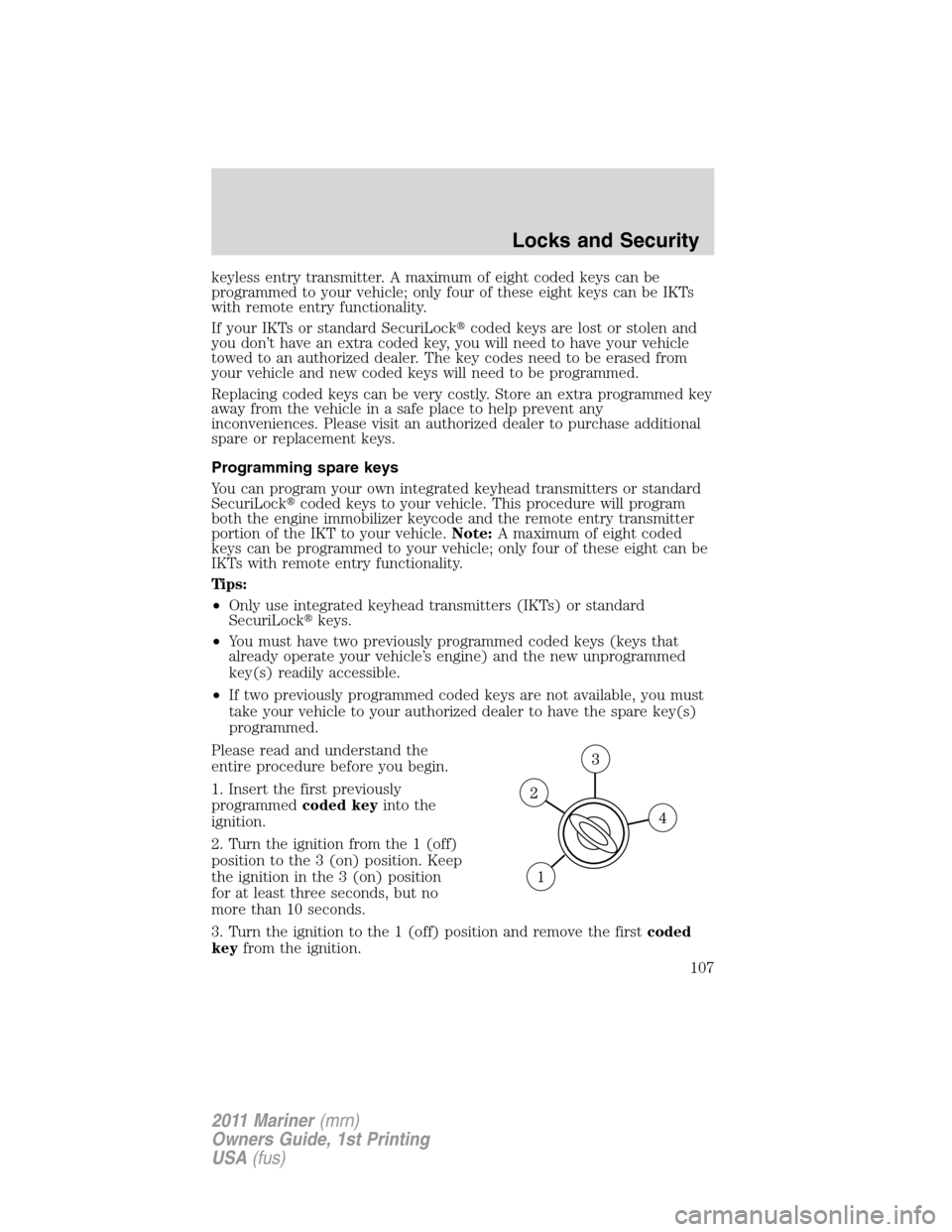

keyless entry transmitter. A maximum of eight coded keys can be
programmed to your vehicle; only four of these eight keys can be IKTs
with remote entry functionality.
If your IKTs or standard SecuriLockcoded keys are lost or stolen and
you don’t have an extra coded key, you will need to have your vehicle
towed to an authorized dealer. The key codes need to be erased from
your vehicle and new coded keys will need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
You can program your own integrated keyhead transmitters or standard
SecuriLockcoded keys to your vehicle. This procedure will program
both the engine immobilizer keycode and the remote entry transmitter
portion of the IKT to your vehicle.Note:A maximum of eight coded
keys can be programmed to your vehicle; only four of these eight can be
IKTs with remote entry functionality.
Tips:
•Only use integrated keyhead transmitters (IKTs) or standard
SecuriLockkeys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Please read and understand the
entire procedure before you begin.
1. Insert the first previously
programmedcoded keyinto the
ignition.
2. Turn the ignition from the 1 (off)
position to the 3 (on) position. Keep
the ignition in the 3 (on) position
for at least three seconds, but no
more than 10 seconds.
3. Turn the ignition to the 1 (off) position and remove the firstcoded
keyfrom the ignition.
Locks and Security
107
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

Illuminated visor mirror .............65
Infant seats (see Safety
seats) .........................................156
Inspection/maintenance (I/M)
testing ........................................313
Instrument panel
cleaning ...................................280
cluster ........................................12
lighting up panel and
interior .......................................53
J
Jack ............................................251
positioning ...............................251
storage .....................................251
Jump-starting your vehicle ......263
K
Keyless entry system
autolock ...............................96–97
keypad .....................................103
locking and unlocking doors ..104
programming entry code .......103
Keys .....................................89, 106
positions of the ignition .........206
L
Lamps
bulb replacement
specifications chart ..................58
daytime running light ...............53
fog lamps ...................................52
headlamps .................................51
headlamps, flash to pass ..........53
instrument panel, dimming .....53interior lamps ...............55–56, 58
replacing bulbs .........................59
LATCH anchors .........................160
Liftgate ................................84, 101
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........213
Load limits .................................192
Loading instructions .................199
Locks
autolock ...............................96–97
childproof ..................................99
doors ..........................................95
Lubricant specifications ...........321
Lug nuts ....................................261
Luggage rack ...............................86
Lumbar support, seats .....112–113
M
Message center ...........................18
english/metric button ...............22
system check button ................22
warning messages .....................22
Mirrors ...................................71–72
automatic dimming rearview
mirror ........................................71
fold away ...................................72
heated ........................................72
side view mirrors (power) .......72
Moon roof ....................................76
Motorcraftparts ..............283, 320
MyKey ..........................................90
N
Navigation system .......................43
Index
359
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)

What Maintenance Schedule
Should You Follow? ................336
Seats ..........................................109
child safety seats ....................156
cleaning ...................................282
heated ......................................114
SecuriCode keyless entry
system ........................................103
SecuriLock passive anti-theft
system ........................................105
Servicing your vehicle ..............284
Setting the clock .........................26
Snowplowing .................................6
SOS Post Crash Alert ...............151
Spark plugs,
specifications .....................320, 324
Special notice
ambulance conversions ..............6
utility-type vehicles ....................6
Specification chart,
lubricants ...................................321
Speed control ..............................73
Starting a flex fuel vehicle .......209
Starting your
vehicle ........................206–207, 209
jump starting ..........................263
Steering wheel
controls ......................................75
tilting .........................................64
Stereo
CD-MP3 .....................................26
SYNC..........................................43
T
Tilt steering wheel ......................64Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....187
Tires ...........................171–173, 251
alignment ................................180
care ..........................................176
changing ..................251, 254, 256
checking the pressure ............176
inflating ...................................174
label .........................................186
replacing
..................................177
rotating
....................................180
safety practices
.......................179
sidewall information
...............181
snow tires and chains
............192
spare tire
.........................252, 254
terminology
.............................173
tire grades
...............................172
treadwear
........................172, 176
Towing
.......................................200
recreational towing
.................204
trailer towing
..........................200
wrecker
....................................266
Transmission
.............................222
brake-shift interlock (BSI)
....221
fluid, checking and adding
(automatic)
.............................314
fluid, refill capacities
..............321
lubricant specifications
..........321
Trunk
...........................................86
Turn signal
..................................55
U
Universal garage door opener
....77
USB port
......................................36
Index
361
2011 Mariner(mrn)
Owners Guide, 1st Printing
USA(fus)
