Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Depress the lever and carefully
pry the license plate lamp assembly
(located above the license plate)
from the liftgate.
3. Rotate the bulb socket
counterclockwise and remove from
lamp assembly.
4. Pull bulb straight out of socket
and push in the new bulb.
5. Install the bulb socket into the
lamp assembly and rotate clockwise.
6. To install, carefully press the
lamp assembly into liftgate.
Replacing high-mount brake lamp bulbs
1. Remove the two screws and move
the lamp assembly away from the
liftgate.
2. Remove the bulb holder from the
lamp assembly by depressing the
snaps.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
53

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Courtesy wipe feature:One extra wipe will happen a few seconds
after washing the front window to clear any water that is dripping down
from the top of the windshield caused by the washing.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper features (if equipped with Autolamp feature)
The exterior lamps will turn on with the ignition on, headlamp control in
the Autolamp position and the windshield wipers are turned on (for a
fixed period of time).
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
55

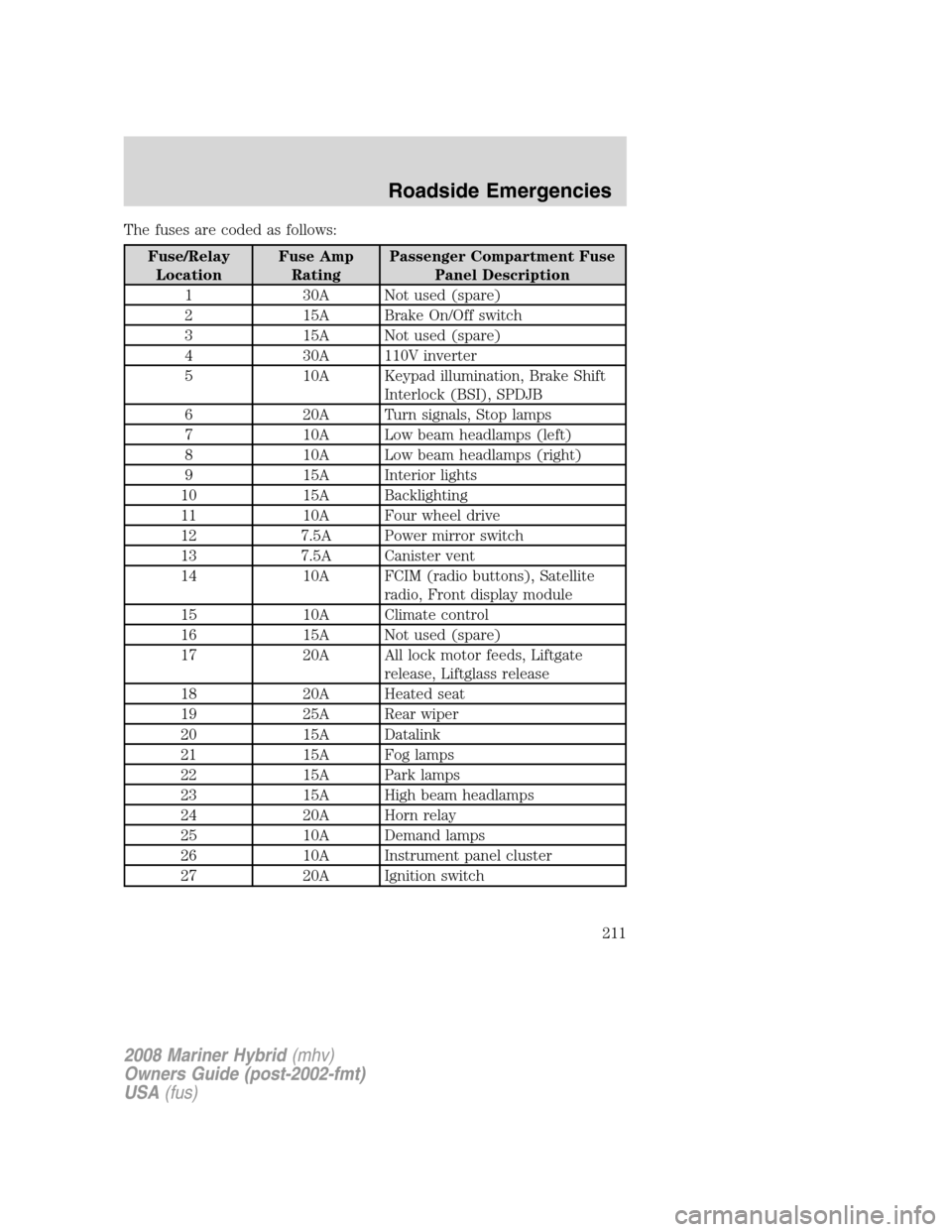

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 30A Not used (spare)
2 15A Brake On/Off switch
3 15A Not used (spare)
4 30A 110V inverter
5 10A Keypad illumination, Brake Shift
Interlock (BSI), SPDJB
6 20A Turn signals, Stop lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Backlighting
11 10A Four wheel drive
12 7.5A Power mirror switch
13 7.5A Canister vent
14 10A FCIM (radio buttons), Satellite
radio, Front display module
15 10A Climate control
16 15A Not used (spare)
17 20A All lock motor feeds, Liftgate
release, Liftglass release
18 20A Heated seat
19 25A Rear wiper
20 15A Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps
26 10A Instrument panel cluster
27 20A Ignition switch
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
211

PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
246

preparing to drive your
vehicle .....................................192
Fuel ............................................267
calculating fuel
economy ............................71, 272
cap ...........................................270
capacity ...................................285
choosing the right fuel ...........270
comparisons with EPA fuel
economy estimates .................274
detergent in fuel .....................271
filling your vehicle with
fuel ...........................267, 270, 272
filter, specifications ........267, 284
fuel pump/high voltage
shut-off switches ....................207
improving fuel economy ........272
octane rating ...................271, 287
quality ......................................271
running out of fuel .................271
safety information relating to
automotive fuels .....................267
Fuses ..................................209–210
G
Gas cap (see Fuel cap) ............270
Gas mileage
(see Fuel economy) .................272
Gauges .........................................23
H
Hazard flashers .........................207
Head restraints .................100, 104
Headlamps ...................................44
aiming ........................................47
bulb specifications ....................50
daytime running lights .............46
flash to pass ..............................46high beam .................................46
replacing bulbs .........................51
turning on and off
....................44
Heating
heating and air conditioning
system
.......................................39
Hood
..........................................252
I
Ignition
...............................184, 287
Illuminated visor mirror
.............57
Infant seats
(see Safety seats)
.....................142
Inspection/maintenance (I/M)
testing
........................................277
Instrument panel
cleaning
...................................247
cluster
........................................18
lighting up panel and
interior
.......................................47
J
Jump-starting your
vehicle
................................227, 232
K
Keyless entry system
.................94
autolock
...............................85, 87
keypad
.......................................95
locking and unlocking doors
....96
programming entry code
.........95
Keys
.......................................83, 97
positions of the ignition
.........184
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
311

L
Lamps
bulb replacement
specifications chart ..................50
daytime running light ...............46
fog lamps ...................................45
headlamps .................................44
headlamps, flash to pass ..........46
instrument panel, dimming .....47
interior lamps ...............48–49, 51
replacing bulbs .........................51
Lane change indicator
(see Turn signal) ........................48
Liftgate ..................................78, 91
Lights, warning and indicator ....18
anti-lock brakes (ABS) ..........189
Load limits .................................172
Loading instructions .................178
Locks
autolock ...............................85, 87
childproof ..................................89
doors ..........................................85
Lubricant specifications ...........285
Lug nuts ....................................226
Luggage rack ...............................80
M
Manual transmission
fluid capacities ........................285
lubricant specifications ..........285
Message center ...........................70
english/metric button ...............74
system check button ................73
warning messages .....................75Mirrors ...................................62, 65
automatic dimming rearview
mirror ........................................62
fold away ...................................65
heated ........................................65
side view mirrors (power) .......65
Moon roof ....................................69
Motorcraft parts ........249, 267, 284
N
Navigation system .......................38
O
Octane rating ............................271
Oil (see Engine oil) ..................256
P
Parking brake ............................190
Parts (see Motorcraft parts) ....284
Passenger Occupant
Classification Sensor .................110
Power distribution box
(see Fuses) ...............................212
Power door locks ........................85
Power mirrors .............................65
Power point .................................58
Power steering ..........................191
Power Windows ...........................61
Preparing to drive your
vehicle ........................................192
R
Radio ............................................25
Relays ........................................209
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
312
