air filter Mercury Mariner Hybrid 2009 Owner's Manuals

Maintenance and Specifications 270
Engine compartment 272
Engine oil 275
Battery 278
Engine Coolant and Motor/Electronics Coolant 280
Fuel information 286
Air filter(s) 301
Part numbers 303
Maintenance product specifications and capacities 304
Engine data 307
Accessories 310
Scheduled Maintenance Guide 312
Normal scheduled maintenance and log 317
Special operating conditions and log 322
Index 328
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2008 Ford Motor Company
Table of Contents
3
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Introduction
17

OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located under the
bottom of the instrument panel.
2. At the front of the vehicle, lift up
on the auxiliary latch handle located
in the center between the hood and
the grille.
3. Lift the hood open and secure it
with the prop rod.
IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
1. Engine coolant reservoir
2. Motor/Electronics (M/E) coolant
reservoir
3. Engine oil filler cap
4. Brake fluid reservoir
5. Power distribution box6. Low voltage (underhood) battery
7. Engine air filter assembly
8. Engine oil dipstick
9. Windshield washer fluid reservoir
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
272

AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Changing the air filter element
1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover. This could cause
filter damage and allow unfiltered air to enter the engine if not properly
seated.
6. Replace the air filter housing cover and secure the clamps.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be voided for any damage to
the engine if the correct air filter element is not used.
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
301

HIGH VOLTAGE BATTERY COOLING FILTER (REAR A/C)
MAINTENANCE
The high voltage battery has a dedicated A/C cooling system which
includes an air filter.
Refer to thescheduled maintenance informationfor the appropriate
intervals for air filter.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
Changing the high voltage battery air filter element
1. Remove access panel located in
the rear cargo area on the driver’s
side trim panel to expose the filter
cover.
2. Push the tabs (located on each
side of filter cover) while pulling
gently to remove filter cover.
Remove the old filter.
3. Install new filter and filter cover (note arrows indicating top side).
The arrow on the filter cover and the arrow on the filter both point in
the same direction (upward).
4. Re-install the access panel into the trim panel.
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
302

MOTORCRAFT PART NUMBERS
Component 2.5L I4 engine
Oil filter FL-910 or FL-2017-B1
PCV valve2
Spark plugs3
Engine air filter element FA-17724
Rear A/C (high voltage battery
cooling) air filter elementFP-51
Cabin air filter FP-66
Low voltage (underhood) battery BXT-96R
1When changing oil filter you must also replace the filter cap O-ring. The
oil filter drain plug O-ring must also be replaced whenever the oil filter
drain plug is removed. Reuse of the O-rings may cause engine oil leakage
and may result in severe engine damage. The customer warranty may be
void for any damage to the engine if the O-rings are not replaced.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationchapter and is essential
to the life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationchapter for the appropriate
intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationchapter for the appropriate
intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
4Failure to use the correct air filter element may result in severe engine
damage. The customer warranty may be void for any damage to the
engine if the correct air filter element is not used.
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
303

Multi-point Inspection
In order to keep your vehicle running right, it is important that you have
the systems on your vehicle checked regularly. This can help identify any
potential issue before there are any problems. Ford Motor Company
suggests the following multi-point inspection to be performed at every
scheduled maintenance as the way to ensure your vehicle keeps running
right.
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and correct air pressure, including spare tire
❑Check windshield washer fluid level
❑Check engine oil level
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check that externally mounted spare tire is properly stowed (tight)
❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, air bag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check low voltage (underhood) battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
Multi-point inspection - Recommended at every visit
❑Check and top up fluid levels: brake, engine coolant recovery reservoir, motor/electronics reservoir and window washer.❑Inspect tires for wear and correct air pressure.
❑Check exhaust system for leaks, damage, loose parts and foreign materials.
❑Check low voltage (underhood) battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers and heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air cleaner filter and elements.
❑Inspect half-shaft dust boots.
❑Check shocks, struts and other suspension components for leaks and damage.
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Scheduled Maintenance Guide
316

20,000 miles (32,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension and, if equipped, half-
shafts, driveshaft and ball joints
❑Inspect exhaust system and heat shields❑Replace high voltage battery A/C filter
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
30,000 miles (48,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect high voltage battery A/C filter, replace if necessary❑Replace engine air filter
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
40,000 miles (64,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension and, if equipped, half-
shafts, driveshaft and ball joints
❑Inspect exhaust system and heat shields❑Replace high voltage battery A/C filter
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Scheduled Maintenance Guide
318

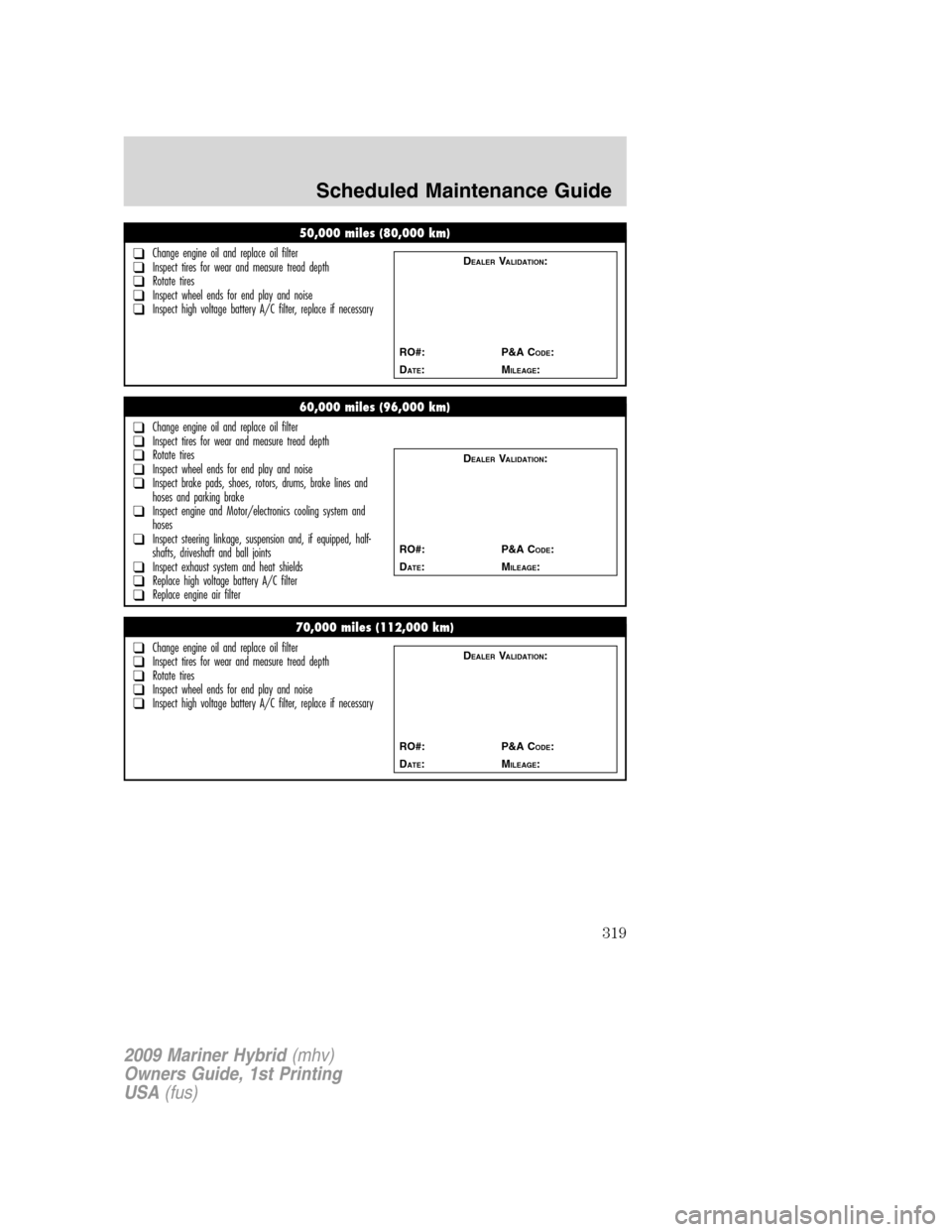

50,000 miles (80,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect high voltage battery A/C filter, replace if necessary
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
60,000 miles (96,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension and, if equipped, half-
shafts, driveshaft and ball joints
❑Inspect exhaust system and heat shields❑Replace high voltage battery A/C filter❑Replace engine air filter
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
70,000 miles (112,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect high voltage battery A/C filter, replace if necessary
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Scheduled Maintenance Guide
319

80,000 miles (128,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension and, if equipped, half-
shafts, driveshaft and ball joints
❑Inspect exhaust system and heat shields❑Replace high voltage battery A/C filter
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
90,000 miles (144,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect high voltage battery A/C filter, replace if necessary❑Replace engine air filter
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
100,000 miles (160,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension and, if equipped, half-
shafts, driveshaft and ball joints
❑Inspect exhaust system and heat shields❑Replace high voltage battery A/C filter❑Replace engine coolant and Motor/electronics coolant (see
Motorcraft Premium Gold Coolant Change Record)
❑Inspect accessory drive belt❑Replace spark plugs
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2009 Mariner Hybrid(mhv)
Owners Guide, 1st Printing
USA(fus)
Scheduled Maintenance Guide
320
