81
% [IP31700(MBC )05/95]
Rear Window Defroster
(If equipped)
(Standard in Canada)
*
[IP32000( ALL)12/91]
The defroster for the rear window clears frost,
fog, or thin ice from both the inside and outside
of the rear window.
[IP32600( BC )01/89]
The button for the rear window defroster is
located on the lower right side of the instrument
panel, just left of the climate control panel.
[IP32700( BC )06/93]
one third page art:0010190-B
The button that controls the rear window defroster
[IP33000( ALL)12/94]
Clear away any snow that is on the rear
window before using the defroster. With the
engine running, push the defrost button.
[IP33100( ALL)12/94]
After approximately 10 minutes, the defroster
will turn off. If the window is still not clear,
turn the defroster on again.
[IP33200( ALL)12/94]
The defroster will turn off when the ignition key
is turned to the OFF position.
*
[IP33300( ALL)02/95]
The heating elements are bonded to the inside of
the rear window. Do not use sharp objects to
scrape the inside of the rear window or use
abrasive cleaners to clean it. Doing so could
damage the heating elements.
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

82
%*
[IP34200( ALL)01/95]
The Interior and Exterior Lights
%*
[IP34310( ALL)01/95]
Daytime Running Light System
*
[IP34312( ALL)03/95]
(Canadian vehicles only)
*
[IP34320( ALL)03/95]
The Daytime Running Light (DRL) system turns
the high beam headlamps on, with a reduced
light output, when:
*
[IP34325( ALL)03/95]
q
The headlamp system is in the OFF position,
and
*
[IP34330( ALL)03/95]
q
The vehicle is running, and
*
[IP34340( ALL)01/95]
q
The vehicle has a fully released parking
brake.
*
[IP34360( BCGV)01/95]
NOTE: If you have a vehicle with an
automatic lighting system, the DRL
system is active until the automatic
system turns on the headlamps.
*
[IP34363( ALL)10/94]
NOTE: The high beam indicator will not turn
on in the flash-to-pass mode during
nighttime driving.
*
[IP34365( ALL)01/95]
NOTE: You may notice that the lights flicker
when the vehicle is turned on or off.
This is a normal condition.
*
[IP34367( ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

83 %
*
[IP34370( ALL)01/95]
Turning On the Exterior Lights
*
[IP34550( BCGV)05/95]
To turn on the headlamps, parking lamps, side
markers, and tail lamps, use the rotary knob that
is to the left of the steering wheel.
[IP35000( BC )05/95]
half page art:0010195-D
The knob that controls the headlamps and parking lamps
(shown with autolamp feature Ð other models similar)
[IP35200( ALL)12/91]
When you turn on the headlamps, the parking
lamps, tail lamps, and side markers
automatically turn on. But you can turn on the
parking lamps, tail lamps, and side markers
without turning on the headlamps.
*
[IP36100( ALL)01/95]
For more information about how the high beams
work, refer to theSteering Column Controls
chapter.
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

84 [IP36130( BCGV)05/95]Chime for headlamps on
*
[IP36160( BCGV)05/95]
This chime sounds if the driver or any passenger
door is open when the parking lamps or
headlamps are on. The chime sounds until you
close the door, turn off the lamps or turn the
ignition to the ON position.
%*
[IP36200( ALL)05/95]
Cleaning the Exterior Lamps
*
[IP36300( ALL)05/95]
Do not use dry paper towel, chemical solvents
or abrasive cleaners to clean the lamps, as these
may cause scratches or crack the lamps.
%*
[IP36900( BC )02/95]
Setting the Autolamp Delay System
(If equipped)
*
[IP37100( BCGV)02/95]
The autolamp sets the headlamps to turn on and
off automatically. You can use the autolamp to:
*
[IP37300( BCGV)01/95]
q
turn on the lamps automatically at night
*
[IP37400( BCGV)01/95]
q
turn off the lamps automatically during
daylight
*
[IP37500( BCGV)01/95]
q
keep the lamps on for up to three minutes
after you turn the key to OFF.
[IP37900( BC )05/95]
one third page art:0010199-D
The controls for the autolamp
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

85
*
[IP38200( BC )01/95]
To set the autolamp:
*
[IP38300( BC )05/95]
1. Make sure the headlamp knob is in the OFF
position. If the knob for the headlamps is
ON, you cancel the autolamp.
*
[IP38400( BC )01/95]
2. Turn the ignition key to ON or start your
vehicle.
[IP38500( BC )06/93]
3. Find the autolamp thumbwheel to the right
of the panel dim thumbwheel.
[IP38900( BC )11/92]
4. Turn the thumbwheel up to the beginning of
the MAX position (within the DELAY range).
*
[IP39200( BC )01/95]
5. The autolamp automatically turns the lamps
on and off for you.
*
[IP39275( BCGV)01/95]
Do not put any articles on top of the photocell
that is located in the top left corner of the
instrument panel. This photocell controls the
autolamp. If you cover it, the photocell reacts as
if it is nighttime, and the lamps turn on.
*
[IP39300( BC )01/95]
To turn the autolamp off, move the thumbwheel
back to OFF.
*
[IP39500( BCGV)12/92]
You can set the autolamp so the lamps stay on
for up to three minutes after you turn your
vehicle off.
[IP39600( BC )12/94]
To keep the lamps on after you leave your
vehicle, turn the thumbwheel as far into the
MAX range as you want.
[IP40000( BC )12/94]
If you move the thumbwheel only slightly into
the DELAY area, your lamps will stay on for
only a moment after you turn your vehicle off.
The further you move the thumbwheel into the
DELAY area (toward the MAX position), the
longer the lamps will stay on after you turn
your vehicle off.
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

86 %
*
[IP44500( ALL)01/95]
Lighting Up the Interior and Instrument
Panel
[IP44700( BC )01/89]
Manual operation
*
[IP44810( BC )05/95]
With the light knob in the parking lamps or the
headlamps position, you can brighten or dim the
lights in the instrument panel. To do this, use
the thumbwheel to the left of the steering wheel.
This wheel also turns on the interior lights with
the light knob on or off.
[IP45100( BC )06/93]
half page art:0010206-C
The thumbwheel controls the light on the instrument panel
and the interior light
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

87 [IP45450( BCGV)07/93]
Using the Automatic Illuminated Entry
System (If equipped)
[IP45600( BCGV)03/91]
The interior lights turn on when you lift the
outside door handle on either front door, when
any button of the keyless entry system is pushed
or when you press UNLOCK, TRUNK, or
PANIC on a programmed remote entry
transmitter if your vehicle is equipped with
remote entry.
[IP45900( BCGV)01/89]
These lights automatically turn off after 25
seconds or when you turn the ignition key to
ON or ACC. The inside lights will not turn off if
your have turned them on manually or if a door
is open.
[IP46000( BCGV)01/89]
Tips on the illuminated entry system:
[IP46100( BCGV)01/89]
q
The illuminated entry timer will not turn off
the courtesy lamp if that lamp has been
turned on manually or by the door switch.
[IP46200( BCGV)01/89]
q
Occasionally, you will need to clean the lens
of the door lock assembly. Use Ford
Multi-Purpose Cleaner Concentrate, a mild
soap, or household ammonia and water
solution. Apply with a soft cloth or cotton
swab, followed by a clear water rinse.
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

88 %
*
[IP46300( ALL)01/95]
Turning on the Map and Reading Lamps
*
[IP46425( ALL)01/95]
Your vehicle has two map lamps for the
passenger and the driver. To turn on the map
lamps, push the switch next to each lamp.
[IP46750( BC )07/93]

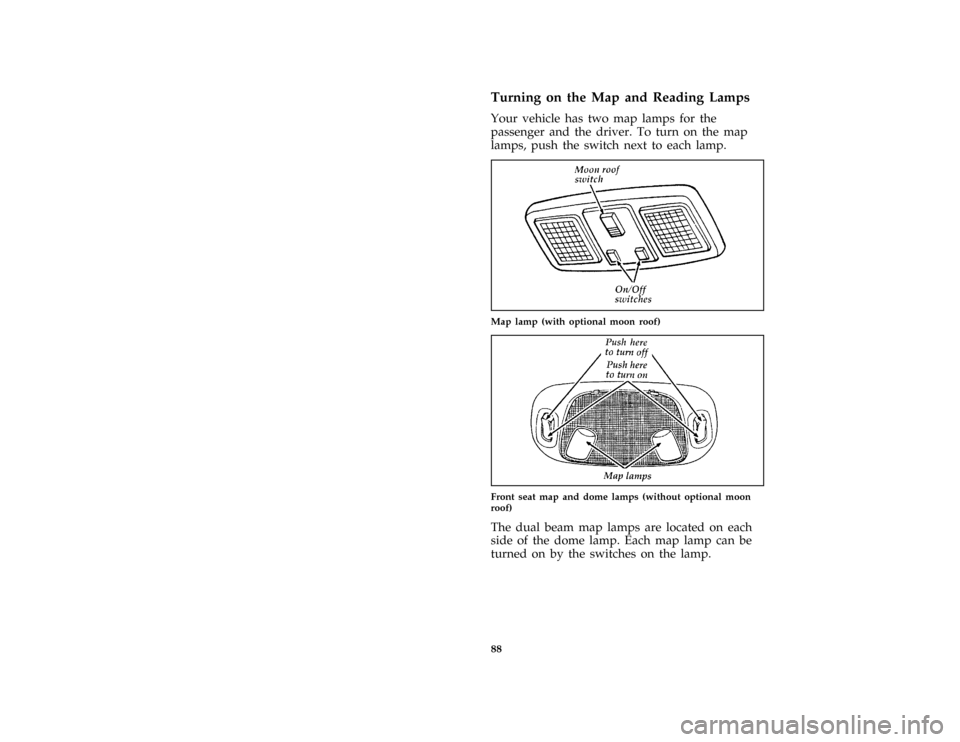

one third page art:0011214-A
Map lamp (with optional moon roof)
[IP46760( BC )07/93]
one third page art:0010651-C
Front seat map and dome lamps (without optional moon
roof)
*
[IP47010( ALL)01/95]
The dual beam map lamps are located on each
side of the dome lamp. Each map lamp can be
turned on by the switches on the lamp.
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

89 % [IP47220( BC )11/92]
Rear Seat Courtesy Lamps
[IP47250( BC )03/91]
Your vehicle has rear seat courtesy lamps which
are activated when the interior lights are turned
on. These lamps are located on the quarter trim
panels.
%*
[IP47270( ALL)04/95]
Cleaning the Interior Lamps
*
[IP47290( ALL)04/95]
Your interior dome lamps and map lamps are
plastic and should be cleaned with a mild
detergent diluted in water. Rinse them with clear
water.
%
*
[IP47300( ALL)03/95]
Clock
[IP47460( BC )05/95]
quarter page art:0011164-B
The digital clock
[IP47500( ALL)05/95]
1. To set the hour, press and hold the H
button. When the desired hour appears,
release the button.
[IP47600( ALL)05/95]
2. To set the minutes, press and hold the M
button. When the desired minute appears,
release the button.
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995

90 %
*
[IP49100( BC )04/95]
Cellular Phone (If equipped)
[IP49200( BC )03/95]
For information about the cellular phone in your
vehicle, refer to theCellular Phone User's Manual
provided with your phone. For further questions
about your Ford or Lincoln-Mercury cellular
phone, contact the Ford Cellular System at
1-800-367-3013. In Canada contact your Ford
Dealer.
[IP49300( BC )03/95]
NOTE: It is recommended that you remove
your cellular phone antenna before
entering a car wash. Unscrew the
antenna from its base, located on the
rear window.
%*
[IP49400( ALL)04/95]
Cleaning the Instrument Panel Lens
*
[IP49500( ALL)04/95]
Clean the instrument panel lens with a soft cloth
and a glass cleaner, such as Ford Ultra-Clear
Spray Glass Cleaner, or equivalent. Do not use
paper towel or any abrasive cleaner to clean the
lens as these may cause scratches.
File:rcipc.ex
Update:Mon Jun 12 16:49:31 1995
