lock Mercury Mercury Cougar 1997 s User Guide

91 %
*
[CF42400( BCGV)12/95]
Using the Illuminated Entry System
(If equipped)
[CF42600( BC )05/96]
The interior lights turn on when you lift the
outside door handle on the driver's side door or
when you press UNLOCK, TRUNK, or PANIC
on a programmed remote entry transmitter if
your vehicle is equipped with remote entry.
[CF42700( BCGV)05/96]
These lights automatically turn off after 25
seconds or when you turn the ignition key to
ON or ACC. The inside lights will not turn off if
you have turned them on manually or if a door
is opened.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

97 %
*
[CF54400(MBC )03/96]
Arming the system
[CF54500(MBC )12/95]
To arm the system, do the following steps in
sequence:
*
[CF54600(MBC )01/96]
1. Remove the key from the ignition. The hood
must be closed to arm the system.
[CF54700( BC )03/96]
At this point, the anti-theft system automatically
monitors the ignition keylock cylinder. If the
lock cylinder is forcibly removed, the anti-theft
alarm system will trigger. To arm the remaining
portion of the system, follow steps 2-4.
*
[CF54800(MBC )05/96]
2. Open any door. The alarm indicator light
will start flashing to remind you to arm the
system.
[CF54900(MBC )05/96]
3. Lock the doors by using the power door
lock switch or by pressing the remote entry
transmitter LOCK control.
[CF55000(MBC )12/95]
The alarm indicator will now glow steadily.
[CF55100(MBC )12/95]
4. Close all doors. The alarm indicator light
will then remain on steadily for
approximately 30 seconds and then go out.
When the light goes out, the system is
armed.
*
[CF55200(MBC )01/96]
NOTE: Be sure to close all doors completely. If
not, the alarm indicator light will
remain on. Remember, your anti-theft
system is armed only after the alarm
indicator light remains on steadily for
approximately 30 seconds after the last
door is closed, and then goes out.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

98 [CF55300(MBC )12/95]You can also arm the anti-theft system by
following this sequence:
[CF55400(MBC )12/95]
1. Remove key from ignition.
*
[CF55500(MBC )01/96]
2. Close all of the doors.
[CF55600(MBC )05/96]
3. Press the remote entry transmitter LOCK
control. The alarm indicator will come on for
30 seconds to show the alarm is arming and
then turn off to show that the alarm has
armed.
*
[CF55800(MBC )01/96]
The anti-theft system is designed to work with
the factory installed remote entry system. It may
not work with other remote entry systems.
%*
[CF55900(MBC )03/96]
Disarming an Untriggered Anti-Theft
System
*
[CF56000(MBC )12/95]
You can disarm the system by:
[CF56100(MBC )12/95]
q
unlocking a door with the key (turn the key
all the way to the end of travel or the system
may not disarm.
*
[CF56200(MBC )04/96]
q
using the UNLOCK control on the remote
entry transmitter
[CF56300(MBC )12/95]
q
if remaining in the vehicle, turn the ignition
switch to ON or ACC
*
[CF56400(MBC )03/96]
Triggering the Alarm System
*
[CF56500(MBC )01/96]
The armed system will be triggered if:
[CF56600(MBC )12/95]
q
any door is opened without disarming the
system first (see previous paragraphs)
*
[CF56700(MBC )05/96]
q
the trunk lock cylinder is removed
*
[CF56800(MBC )05/96]
NOTE: You can open the trunk with your key
without setting off the alarm.
[CF57100( BC )12/95]
q
the ignition key lock cylinder is forcibly
removed from the steering column.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

99 %
*
[CF57200(MBC )03/96]
Disarming a Triggered System
*
[CF57300(MBC )01/96]
The alarm can be disarmed by:
*
[CF57400(MBC )12/95]
q
unlocking a front door with the key
*
[CF57500(MBC )04/96]
q
using the UNLOCK control on the remote
entry transmitter
*
[CF57600(MBC )01/96]
NOTE: The flashing lights and honking horn
will shut off automatically within 2
minutes 45 seconds after the system is
triggered. It will trigger again if
another intrusion occurs. However, the
starter circuit remains disabled until
the system is disarmed.
*
[CF65000( ALL)05/96]
Remote Entry System
(If equipped)
*
[CF65100( ALL)05/96]
If your vehicle has the remote entry system, you
can lock and unlock the vehicle doors and open
the trunk without using a key. The remote also
has a personal alarm feature. The controls for
the system are located on the hand held
remote(s) that came with your vehicle.
*
[CF65200( ALL)05/96]
The system will work with up to four remotes.
Your vehicle came with two remotes. Additional
remotes can be ordered from your dealer.
*
[CF65300(MBC )01/96]
The remote entry features only operate with the
ignition in the OFF position.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

100 [CF65500(MBC )05/96]
one third page art:0001000-ARemote
%*
[CF65700( ALL)02/96]
Unlocking the doors and opening the
trunk
*
[CF65800( ALL)04/96]
To unlock the driver's door, press the UNLOCK
control.
*
[CF65900( ALL)04/96]
To unlock the other doors, press the UNLOCK
control a second time within five seconds of
unlocking the driver's door.
*
[CF66000( ALL)05/96]
To open the trunk, press the TRUNK control.
*
[CF66200( ALL)04/96]
Locking the doors
*
[CF66300( ALL)04/96]
To lock all the doors, press the LOCK control.
*
[CF66400(MBC )05/96]
If you would like a signal that the doors are
being locked, press the LOCK control again
within five seconds. The doors will lock again
and the horn will beep.
%*
[CF67200( ALL)03/96]
Activating the remote personal alarm
*
[CF67300( ALL)04/96]
If you wish to activate the remote personal
alarm, press the PANIC control. This will honk
the horn and flash the parking lamps and tail
lamps for approximately two minutes and
forty-five seconds. You can turn it OFF by
pressing the PANIC control again or by turning
the ignition key to the RUN position.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

101 [CF67400( ALL)05/96]
When you use the remote entry UNLOCK,
TRUNK or PANIC controls, the illuminated
entry system turns on the interior lights for 25
seconds. You can turn these lights off with the
LOCK control or by turning the ignition to the
RUN position. The interior lights will not turn
off if you have turned them on manually or if a
door is open.
%*
[CF68400( ALL)03/96]
Replacing the Batteries
*
[CF68500(MBC )05/96]
The remote is powered by two coin type
three-volt lithium 2016 batteries (included) that
should last for several years of normal use. If
you notice a significant decrease in operating
range, the batteries should be replaced.
Replacement batteries can be purchased at most
pharmacies, watch stores or at your Ford or
Lincoln-Mercury dealer.
*
[CF68700( ALL)01/96]
NOTE: The operating range of the remote
entry system can also be affected by
weather conditions (such as very cold
temperatures) or structures around the
vehicle (buildings, other vehicles, radio
and TV towers, etc.). Typical operating
range will allow you to be up to 33
feet (10 meters) away from your
vehicle.
*
[CF68800(MBC )01/96]
quarter page art:0020790-A
Replacing the batteries
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

104 % [SS01200(MBC )12/95]Adjusting Manual Seats
*
[SS01400( ALL)01/96]
In the front seats, you can move the whole seat
forward or backward or tilt the back of the seat
forward or backward.
[SS01500(MBC )12/95]
To move the seats forward or backward:
[SS01700( BCGV)12/95]
1. Find the adjustment bar underneath the front
part of the seat.
[SS01900( BCGV)12/95]
2. Lift the bar to unlatch the seat.
*
[SS02100( ALL)01/96]
3. Move the seat to the desired position.
*
[SS02200( BCGV)01/96]
4. Release the bar to latch the seat in its new
position. Make sure the seat locks securely in
place.
[SS02400( BC )12/95]
quarter page art:0010252-A
The front seat adjustment bar
*
[SS02700(MBC )12/95]
To recline the front manual seats:
*
[SS02900( ALL)01/96]
1. On the side of the seat, find the handle for
the recliner.
*
[SS03000( ALL)01/96]
2. Lift the handle up and hold it in place.
*
[SS03100( ALL)12/95]
3. Lean against the back of the seat and adjust
it to the position you want. You can tilt the
seat back or bring it forward.
*
[SS03200( ALL)12/95]
4. Release the handle to lock the seat in its new
position.
File:06rcssc.ex
Update:Fri Jun 7 13:59:45 1996

105
*
[SS03400( ALL)05/96]
RWARNING
Never adjust the driver's seat or seatback
when the vehicle is moving.
*
[SS03500( ALL)02/96]
RWARNING
Always drive and ride with your seatback
upright and the lap belt snug and low
across the hips.
%*
[SS03700(MBC )01/96]
Seatback Recline
[SS03900( BC )12/95]

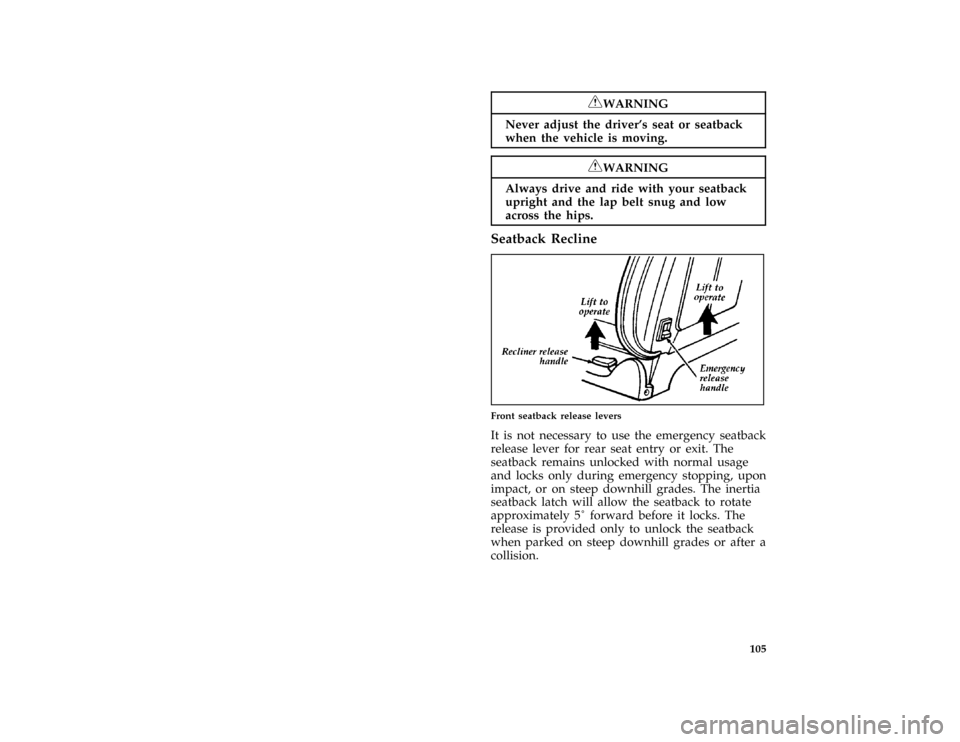

one third page art:0010256-A
Front seatback release levers
*
[SS04200( BC )12/95]
It is not necessary to use the emergency seatback
release lever for rear seat entry or exit. The
seatback remains unlocked with normal usage
and locks only during emergency stopping, upon
impact, or on steep downhill grades. The inertia
seatback latch will allow the seatback to rotate
approximately 5Ê forward before it locks. The
release is provided only to unlock the seatback
when parked on steep downhill grades or after a
collision.
File:06rcssc.ex
Update:Fri Jun 7 13:59:45 1996

110
*
[SS11900( ALL)02/96]
RWARNING
Children should always ride with the
seatback in the fully upright position.
*
[SS12000( ALL)02/96]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SS12100( ALL)02/96]
RWARNING
Lock the doors of your vehicle before
driving to lessen the risk of the door
coming open in a collision.
%
*
[SS12200( ALL)02/96]
Combination Lap and Shoulder
Belts
*
[SS12300( ALL)12/95]
While your vehicle is in motion, the combination
lap and shoulder belt adjusts to your movement.
However, if you brake hard, corner hard or if
your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap and shoulder belt
locks and helps reduce your forward movement.
*
[SS12400( ALL)01/96]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
[SS12600( ALL)12/95]
To fasten the belt,pull the lap/shoulder belt
from the retractor so that the shoulder portion of
the belt crosses your shoulder and chest. Be sure
the belt is not twisted. If it is, remove the twist.
Insert the belt tongue into the proper buckle
until you hear a snap and feel it latch. Make
sure the tongue is securely fastened in the
buckle.
File:06rcssc.ex
Update:Fri Jun 7 13:59:45 1996

111
*
[SS12700( BCGV)01/96]

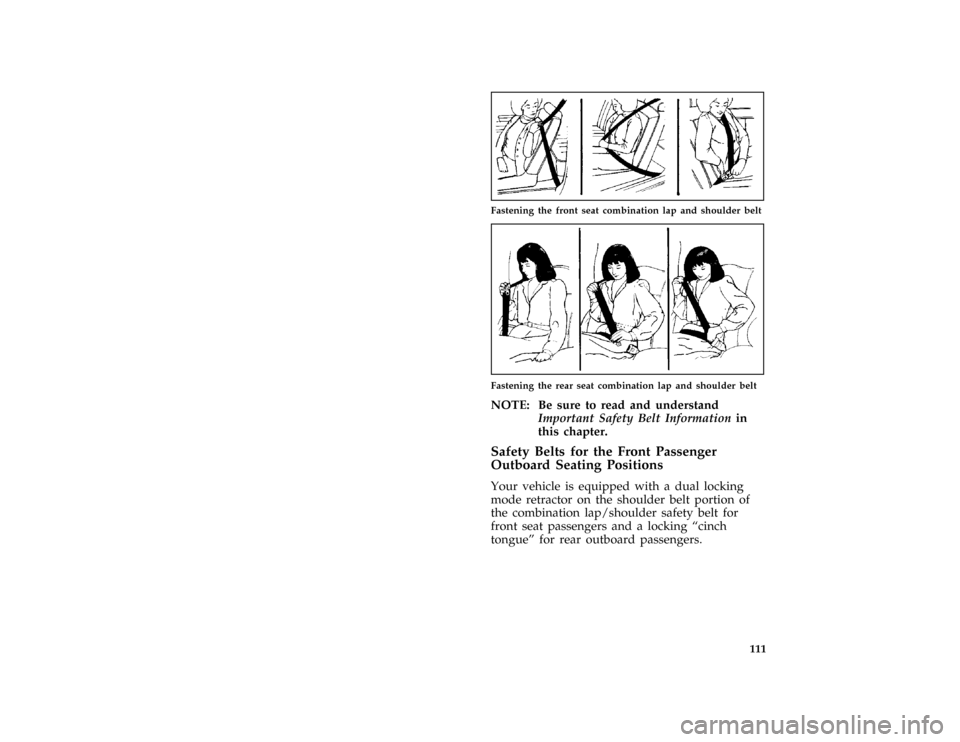

quarter page art:0010018-B
Fastening the front seat combination lap and shoulder belt
[SS13000( BCGV)12/95]
one third page art:0010502-A
Fastening the rear seat combination lap and shoulder belt
*
[SS13200( ALL)02/96]
NOTE: Be sure to read and understand
Important Safety Belt Informationin
this chapter.
%*
[SS13400( BC )05/96]
Safety Belts for the Front Passenger
Outboard Seating Positions
*
[SS13700( BC )05/96]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for
front seat passengers and a locking ªcinch
tongueº for rear outboard passengers.
File:06rcssc.ex
Update:Fri Jun 7 13:59:45 1996
