window Mercury Mercury Cougar 1997 Owner's Manuals

60 [CF04100( BC )05/96]
one third page art:0011216-CThe controls for the manual heating and air conditioning
system
[CF04300( BC )04/96]
To heat the interior of your vehicle, turn the
SELECT control to FLOOR, turn the TEMP
control to the end of the red range (full right)
and turn the FAN control to HI. Temperature
and fan speed can be adjusted as desired.
% [CF04500( BC )04/96]
To defrost the windshield and side windows,
turn the SELECT control to defrostV, turn the
TEMP control to the end of the red range (full
right) and turn the FAN control to HI.
Temperature and fan speed can be adjusted as
desired.
[CF04700( BC )04/96]
To heat the interior and defrost the windshield
and side windows, at the same time, turn the
SELECT control to FLOOR & DEF, turn the
TEMP control to the end of the red range (full
right) and turn the FAN control to HI.
[CF04900( BC )04/96]
To direct either heated or cooled air to the panel
registers and the floor at the same time, turn the
SELECT control to PANEL & FLOOR, turn the
TEMP control for the temperature desired and
set the fan speed as desired.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

61 [CF05100( BC )04/96]
To cool your vehicle using outside air, turn the
SELECT control to A/C, turn the TEMP control
all the way to the end of the blue range (full
left) and turn the FAN control to the desired
speed between LO and HI. A/C provides quieter
system operation than MAX A/C, but it is not
as efficient as MAX A/C which uses recirculated
air.
% [CF05300( BC )04/96]
To ventilate your vehicle with outside air,
during mild weather, turn the SELECT control to
PANEL, turn the TEMP control for the
temperature desired and set the FAN control to
the speed desired.
[CF05500( BC )04/96]
Under normal conditions, the SELECT control
should be left in any position other than MAX
A/C or OFF when the vehicle is parked. This
allows the vehicle to ªbreatheº through the
outside air inlet duct.
[CF05700( BC )05/96]
To cool your vehicle quickly in warm weather,
turn the SELECT control to MAX A/C, turn the
TEMP control all the way to the end of the blue
range (full left) and turn the FAN control to HI.
MAX A/C uses recirculated air and is the most
fuel efficient way to cool your vehicle and can
also be used in heavy traffic to prevent exhaust
fumes from entering the vehicle. MAX A/C can
also be used in high humidity areas for more
efficient operation.
[CF05900( BC )12/95]
If the interior of your vehicle is very warm,
drive for the first few minutes with the windows
open. This forces most of the hot, stale air out of
the vehicle and allows the air conditioning to
work faster.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

64 [CF07300( BC )05/96]If the control is pressed after65ÊF (18ÊC) is
reached, only60ÊF (16ÊC)will be displayed and
the system will provide continuous maximum
cooling.
[CF07400( BC )05/96]
Warm control
[CF07500( BC )05/96]
This control is used to RAISE the temperature
setting. Press the control once to raise the
displayed temperature one degree. Holding the
control in will continuously increase the
temperature setting in one degree increments
until you either release it or85ÊF (29ÊC) is
reached.
[CF07600( BC )05/96]
If the control is pressed after85ÊF (29ÊC) is
reached, only90ÊF (32ÊC)will be displayed and
the system will provide continuous maximum
heating.
[CF07700( BC )12/95]
System Operation
[CF07800( BC )05/96]
To heat the inside of your vehicle, turn the
SELECT control to FLOOR and turn the FAN
control to AUTO. The fan will remain off until
the engine reaches operating temperature or
until 3-1/2 minutes have elapsed. As the interior
of your vehicle warms up, the discharge air
temperature and the fan speed will be
automatically and gradually changed to maintain
the set temperature. If you prefer a fixed fan
speed, turn the fan speed control to the desired
setting.
% [CF07900( BC )05/96]
To defrost the windshield and side windows,
turn the SELECT control to DefrostV, turn the
FAN control to HI and set the temperature as
necessary to clear the windshield.
[CF08000( BC )05/96]
To direct either cooled or heated air to the panel
registers and the floor at the same time, turn the
SELECT control to PANEL & FLOOR, push the
COOL or WARM control for the desired
temperature and set the FAN speed as desired.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

65 [CF08100( BC )05/96]
To cool your vehicle quickly in warm weather,
turn the SELECT control to MAX A/C and turn
the FAN control to AUTO. As the vehicle
interior cools down, the discharge air
temperature and fan speed will automatically
and gradually be changed to maintain the set
temperature with airflow from the instrument
panel registers.
[CF08200( BC )12/95]
If the interior of your vehicle is very warm,
drive for the first few minutes with the windows
open. This will force the hot, stale air out and
allow the air conditioning to work faster.
% [CF08300( BC )05/96]
To cool your vehicle with outside air, turn the
SELECT control to A/C and turn the FAN
control to AUTO or to a fixed speed setting as
you desire. Cooling your vehicle in this manner
provides a quieter system operation, but it will
not cool as efficiently and is not as fuel efficient
as MAX A/C which uses recirculated air.
[CF08400( BC )05/96]
To ventilate your vehicle with outside air, turn
the SELECT control to PANEL and the FAN
control to AUTO. The fan will remain off until
the engine is warm enough to provide heat.
However, if the interior temperature is above the
set temperature, the fan will turn on
immediately. Temperature may be set as desired
and FAN speed can be selected.
[CF08500( BC )12/95]
A/C compressor override
[CF08600( BC )05/96]
The A/C compressor can be disengaged for
more economical driving. This can be done by
turning the SELECT control to PANEL. The A/C
compressor is automatically engaged by the
control in MAX A/C, PANEL & FLOOR, NORM
A/C, FLOOR & DEF, and DEFROST positions if
the outside temperature is above45ÊF (7ÊC).
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

66
%*
[CF14400(MBC )03/96]
Rear Window Defroster
(If equipped)
*
[CF14600( ALL)03/96]
The defroster for the rear window clears frost,
fog, or thin ice from both the inside and outside
of the rear window.
[CF14900( BC )05/96]
The control for the rear window defroster is
located on the lower right side of the instrument
panel, just left of the climate control panel.
[CF15000( BC )05/96]
one third page art:0010190-B
The control for the rear window defroster
[CF15300( ALL)12/95]
Clear away any snow that is on the rear
window before using the defroster. With the
engine running, push the defrost button.
[CF15400( ALL)12/95]
After approximately 10 minutes, the defroster
will turn off. If the window is still not clear,
turn the defroster on again.
[CF15500( ALL)12/95]
The defroster will turn off when the ignition key
is turned to the OFF position.
*
[CF15600( ALL)12/95]
The heating elements are bonded to the inside of
the rear window. Do not use sharp objects to
scrape the inside of the rear window or use
abrasive cleaners to clean it. Doing so could
damage the heating elements.
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

92
%*
[CF43405( ALL)04/96]
Windows
%*
[CF43415( BCGV)12/95]
Using the Power Windows
[CF43420(MBC )12/95]
Each door has a power control that opens and
closes the window on that door. The driver's
door has a master control panel that operates the
windows.
*
[CF43430( ALL)12/95]
Power windows can only be opened or closed
when the ignition switch is in the ON or ACC
position.
*
[CF43435( ALL)01/96]
RWARNING
Do not let children play with the power
windows.
[CF43445( BC )05/96]
half page art:0010233-H
The master controls on the driver's door
File:05rccfc.ex
Update:Fri Jun 7 13:58:04 1996

150
*
[TO05100( ALL)01/96]
Have the exhaust and body ventilation systems
checked whenever:
*
[TO05200( ALL)01/96]
q
your vehicle is raised for service
*
[TO05300( ALL)01/96]
q
the sound of the exhaust system changes
*
[TO05400( ALL)01/96]
q
your vehicle has been damaged in a collision
*
[TO05500( ALL)01/96]
Improve your ventilation by keeping all air inlet
vents clear of snow, leaves, and other debris.
[TO05600( ALL)12/95]
If the engine is idling while you are stopped in
an open area for long periods of time, open the
windows at least one inch (2.5 cm). Also, the
heating or air conditioning system should be set
to any function except MAX A/C or AUTO.
[TO05800( BCGV)12/95]
q
If you use the heater, set the fan speed on
MEDIUM or HIGH with the function control
on any position except OFF and the
temperature control at any desired position.
[TO06000( BCGV)12/95]
q
If you use the air conditioner, set the fan
speed on MEDIUM or HIGH with the
function control on any position except OFF
or MAX and the temperature control at any
desired position.
*
[TO06100( ALL)01/96]
Pushing
[TO06300( BCGV)01/96]
Vehicles with automatic transmissions cannot be
started by pushing. Follow the directions under
If Your Vehicle Needs a Jump-Start.
File:08rctoc.ex
Update:Thu May 30 10:28:08 1996

222 [MC20300( BC )03/96]4.6L SFI engine
[MC20400(MBC )12/95]
1. Check the fluid level when the system is
COLD (allow at least one half hour after
driving for the power steering fluid to cool).
[MC20500(MBC )04/96]
2. Locate the power steering reservoir mounted
to the front upper left-hand corner of the
engine.
[MC20600(MBC )12/95]
3. Visually verify that the fluid level is above
the MIN line adjacent to the reservoir ªsight
window.º
[MC20700(MBC )12/95]
4. If the power steering fluid is below the MIN
line, remove the cap and add fluid in small
amounts until the level is between the MIN
and MAX lines.
[MC20800(MBC )12/95]
5. Reinstall the reservoir cap.
[MC20900( BC )04/96]
half page art:0011153-A
Fluid level for power steering
File:11rcmcc.ex
Update:Mon Jun 3 09:27:52 1996

238
*
[MC33700( ALL)01/96]
To calculate fuel economy:
*
[MC33800( ALL)01/96]
1. Fill the fuel tank completely and record the
initial odometer reading.
*
[MC33900( ALL)01/96]
2. Every time you buy fuel, record the
amount (in gallons or liters) purchased.
*
[MC34000( ALL)01/96]
3. After at least 3-5 tankfuls, fill the fuel tank
and record the final odometer reading.
*
[MC34100( ALL)01/96]
4. Use these equations to calculate your fuel
economy:
*
[MC34200( ALL)01/96]
q
English: MPG = (total miles driven)v
(gallons used)
*
[MC34300( ALL)01/96]
q
Metric: L/100k = (liters used)v
(100 kilometers)
*
[MC34400( ALL)01/96]
Comparisons With EPA Estimates
*
[MC34500( ALL)05/96]
EPA fuel economy figures are obtained from
laboratory tests under simulated road conditions
and may not reflect the actual conditions you
experience or your style of driving. The EPA
fuel economy estimate is not a guarantee that
you will achieve the fuel economy shown.
*
[MC34600( ALL)01/96]
The following decrease fuel economy:
*
[MC34700( ALL)01/96]
q
Lack of regular, scheduled maintenance
*
[MC34800( ALL)01/96]
q
Rapid acceleration and excessive speed
*
[MC34900( ALL)01/96]
q
Driving with your foot on the brake
*
[MC35000( ALL)01/96]
q
Sudden stops
*
[MC35100( ALL)01/96]
q
Extended engine idling
*
[MC35200( ALL)01/96]
q
Using speed control in hilly terrain
*
[MC35300( ALL)01/96]
q
Extended use of the A/C, defroster, rear
window defroster and other accessories
*
[MC35400( ALL)01/96]
q
Underinflated tires
File:11rcmcc.ex
Update:Mon Jun 3 09:27:52 1996

246 %
*
[MC45700( BCGV)01/96]
High-Mount Brakelamp Bulbs
[MC45800( BCGV)12/95]
Your vehicle has a brakelamp mounted in the
rear window, called a high-mount brakelamp.
You may need to remove this lamp at times to
replace the brakelamp bulb or to clean the rear
window.
[MC46000( C )12/95]

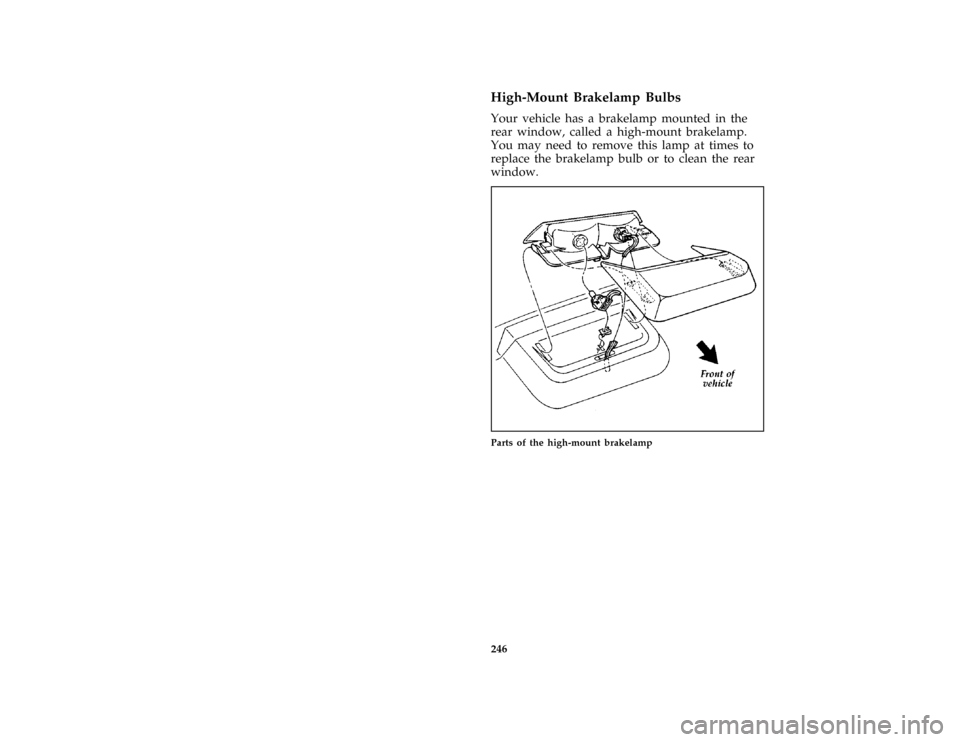

half page art:0010435-A
Parts of the high-mount brakelamp
File:11rcmcc.ex
Update:Mon Jun 3 09:27:52 1996
