INTERIOR TRUNK CONTROL
Press the remote trunk release
control on the instrument panel to
the left of the steering wheel.
Driver Controls
85
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

POWER DOOR LOCKS
•Press the
control to unlock all
doors.
•Press the
control to lock all
doors.
Smart locks
This feature attempts to help prevent you from locking yourself out of
the vehicle if your key is still in the ignition.
When you open one of the front doors and you lock the vehicle with the
power door lock control (on the driver or passenger door trim panel), all
the doors will lock, then all doors will automatically unlock reminding
you that your key is still in the ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock control on the door, locking the driver’s door with a key, or
using the lock control on the remote entry transmitter portion of your
Integrated Keyhead Transmitter.
If both front doors are closed, the vehicle can be locked from any
method, regardless of whether the key is in the ignition or not.
Autolock feature
The autolock feature will lock all the doors when:
•all the doors are closed,
•the ignition is in the on position,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is in the on position
and the vehicle speed is 9 mph (15 km/h) or lower, and
•the vehicle then attains a speed greater than 12 mph (20 km/h).
Locks and Security
87
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

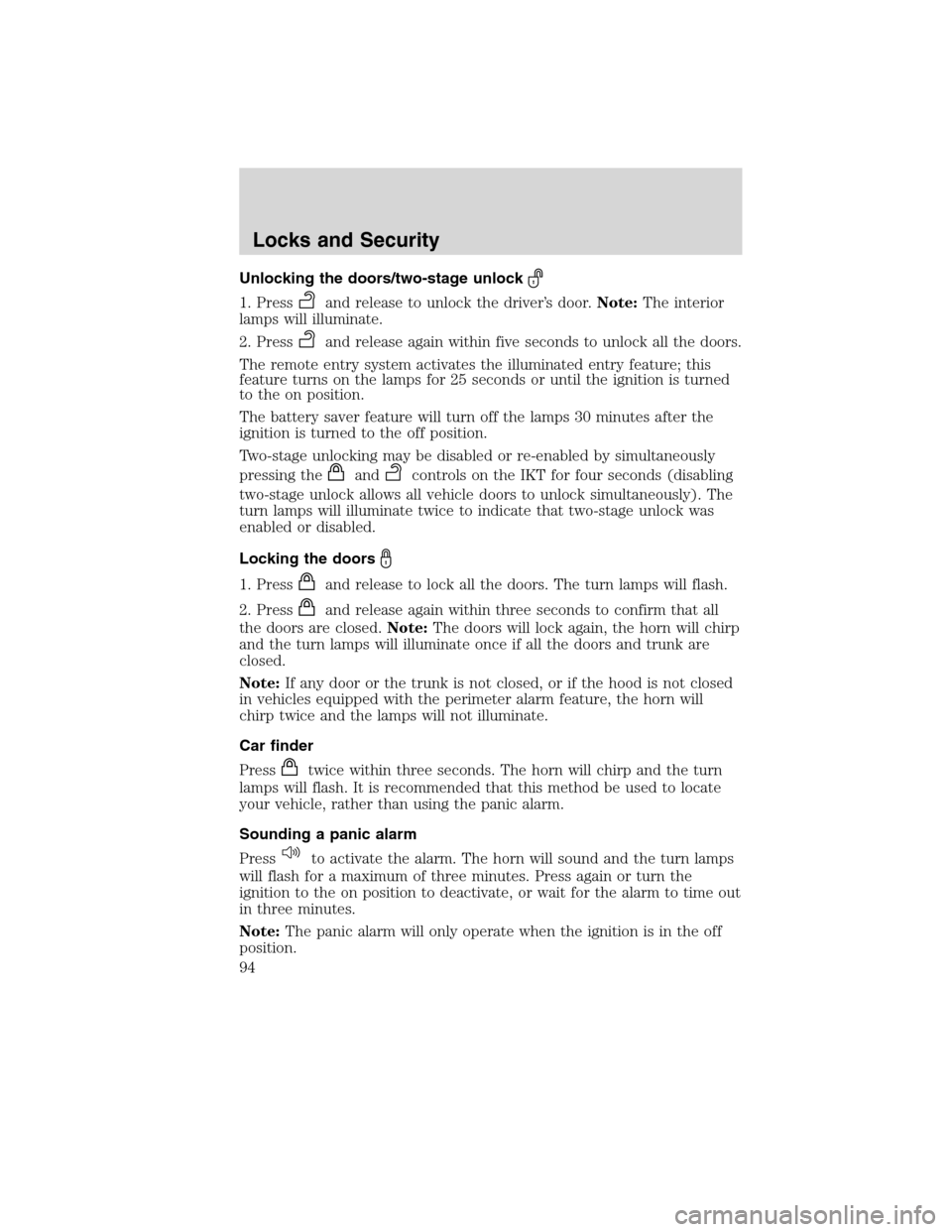

Unlocking the doors/two-stage unlock
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate.
2. Press
and release again within five seconds to unlock all the doors.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
to the on position.
The battery saver feature will turn off the lamps 30 minutes after the
ignition is turned to the off position.
Two-stage unlocking may be disabled or re-enabled by simultaneously
pressing the
andcontrols on the IKT for four seconds (disabling
two-stage unlock allows all vehicle doors to unlock simultaneously). The
turn lamps will illuminate twice to indicate that two-stage unlock was
enabled or disabled.
Locking the doors
1. Pressand release to lock all the doors. The turn lamps will flash.
2. Press
and release again within three seconds to confirm that all
the doors are closed.Note:The doors will lock again, the horn will chirp
and the turn lamps will illuminate once if all the doors and trunk are
closed.
Note:If any door or the trunk is not closed, or if the hood is not closed
in vehicles equipped with the perimeter alarm feature, the horn will
chirp twice and the lamps will not illuminate.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of three minutes. Press again or turn the
ignition to the on position to deactivate, or wait for the alarm to time out
in three minutes.
Note:The panic alarm will only operate when the ignition is in the off
position.
Locks and Security
94
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the remote entry transmitter portion of
your Integrated Keyhead Transmitter.
•the ignition is turned on.
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate.Note:If the two-stage unlocking
feature is disabled, all doors will unlock; for more information regarding
two-stage unlocking, refer to theUnlocking the doors/Two stage unlock
section earlier in this chapter.
To unlock all doors,enter the factory set code or your personal code,
then press the 3•4 control within five seconds.
To open the trunk,enter the factory set code or your personal code,
then press the 5•6 control within five seconds.
To lock all doors,press and hold the 7•8 and the 9•0 at the same
time (with the driver’s door closed). Youdo notneed to enter the
keypad code first.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded integrated keyhead transmitter (IKT)
programmed to your vehicleis used. The use of the wrong type of
coded key may lead to a “no-start” condition.
Your vehicle comes with two coded integrated keyhead transmitters;
additional coded IKTs may be purchased from your authorized dealer.
Standard SecuriLockkeys without remote entry transmitter
functionality can also be purchased from your authorized dealer if
desired. The authorized dealer can program your spare IKTs to your
vehicle or you can program the IKTs yourself. Refer toProgramming
spare keysfor instructions on how to program the coded key.
Note:The SecuriLockpassive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Locks and Security
99
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

PERIMETER ALARM SYSTEM
The perimeter anti-theft system will help protect your vehicle from
unauthorized entry.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL Integrated Keyhead Transmittersare brought to the
authorized dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
The system is ready to arm whenever the key is in the 1 (off) position,
or is removed from the ignition. Either of the following actions will
prearm the alarm system:
•Press the
control on the remote entry transmitter portion of your
Integrated Keyhead Transmitter.
When you press the lock control twice within three seconds on the
remote entry transmitter portion of your IKT, the horn will chirp once to
let you know that all doors, the hood and the trunk are closed. If any of
these are not closed, the horn will chirp twice to warn you that a door,
the hood or the trunk is still open.
•Press the driver or passenger
interior door lock control while
the door is open, then close the
door.
•Press the 7•8 and the 9•0
controls on the keyless entry
keypad (if equipped) at the same
time to lock the doors (driver’s
door must be closed).
There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
Each door, the hood or the trunk is armed individually, and if any are
open, they must be closed for the system to enter the 20 second
countdown.
The turn signal lamps will flash once when all doors, the hood and the
trunk are closed indicating the vehicle is locked and entering the
20 second countdown.
Locks and Security
103
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by using the remote entry transmitter portion of
your Integrated Keyhead Transmitter.
•Unlocking the doors using the keyless entry keypad (if equipped).
•Turn ignition to the on position with a valid SecuriLock™ key.
•Press the panic control on the remote entry transmitter portion of
your IKT. This will only shut off the horn and turn lamps when the
alarm is sounding. The alarm system will still be armed.
If using a key in the driver’s door to unlock the vehicle, a chime will
sound and the message center will display TO STOP ALARM START
VEHICLE when you open the door and you will have 12 seconds to
disarm the alarm system using any of the actions above, otherwise the
alarm will trigger.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if:
•Any door, the hood or the trunk is opened without using the door key
or the remote entry transmitter portion of your IKT.
•The ignition is turned to the 3 (on) position with an invalid
SecuriLockkey.
Locks and Security
104
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

Determining if the system is operational
The SRS uses a readiness light in the instrument cluster or a tone to
indicate the condition of the system. Refer to theWarning lights and
chimessection in theInstrument Clusterchapter. Routine maintenance
of the airbag is not required.
Any difficulty with the system is indicated by one or more of the
following:
•The readiness light (same light as used for front airbag system) will
either flash or stay lit.
•The readiness light will not illuminate immediately after ignition is
turned to the on position.
•A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and light are repaired.
If any of these things happen, even intermittently, have the SRS serviced
at an authorized dealer immediately. Unless serviced, the system may not
function properly in the event of a collision.
SOS Post-Crash Alert System™
The system automatically flashes the turn signal lamps and sounds the
horn three times at four second intervals in the event of a serious impact
that deploys an airbag (front, side, side curtain or Safety Canopy)or
the safety belt pretensioners.
The system can be turned off when any one of the following actions are
taken by the driver or any other person:
•pressing the hazard control button,
•or pressing the panic button on the remote entry transmitter.
The feature will continue to operate until the vehicle runs out of power.
Disposal of airbags and airbag equipped vehicles
(including pretensioners)
Contact your authorized dealer as soon as possible. Airbags MUST BE
disposed of by qualified personnel.
Seating and Safety Restraints
147
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

Oil (see Engine oil) ..................278
P
Parking brake ............................202
Parts (see Motorcraftparts)...313
Passenger Occupant
Classification Sensor .................120
Power distribution box
(see Fuses) ...............................240
Power door locks ........................87
Power mirrors .............................79
Power point .................................75
Power steering ..................207–208
fluid, refill capacity ................314
fluid, specifications .................314
Power Windows ...........................76
R
Radio ............................................29
Rear-view camera system .........219
Recommendations for
attaching safety restraints for
children ......................................150
Relays ........................................236
Remote entry system ...........93–94
illuminated entry ................96–97
locking/unlocking doors ...........94
opening the trunk .....................95
panic alarm ...............................94
replacement/additional
transmitters ...............................95
replacing the batteries .............95
Reverse sensing system ...........217
Roadside assistance ..................234S
Safety belts (see Safety
restraints) ..................118, 122–125
Safety Canopy ...........................141
Safety defects, reporting ..........264
Safety restraints ........118, 122–126
Belt-Minder...........................127
extension assembly ................126
for adults .........................123–125
for children .............................148
Occupant Classification
Sensor ......................................120
warning light and chime ........127
Safety restraints - LATCH
anchors ......................................158
Safety seats for children ..........152
Safety Compliance
Certification Label ....................318
Satellite Radio (if equipped) .....29
Satellite Radio Information ........42
Seats ..........................................105
child safety seats ....................152
front seats ...............................108
heated ......................................112
SecuriCode keyless entry
system ..........................................98
SecuriLock passive anti-theft
system ..........................................99
Servicing your vehicle ..............273
Side air curtain .........................144
SOS Post Crash Alert ...............147
Spark plugs, specifications ......313,
317
Specification chart,
lubricants ...................................314
Speed control ..............................80
Index
329
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)

Starting your
vehicle ........................196–197, 199
jump starting ..........................251
Steering
speed sensitive .......................208
Steering wheel
controls ......................................82
tilting .........................................71
Stereo
CD-MP3 .....................................29
SYNC..........................................45
T
Tilt steering wheel ......................71
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....182
Tires ...........................167–168, 243
alignment ................................175
care ..........................................171
changing ..................................243
checking the pressure ............171
inflating ...................................169
label .........................................181
replacing ..................................173
rotating ....................................176
safety practices .......................174
sidewall information ...............177
snow tires and chains ............186
spare tire .................................244
terminology .............................168
tire grades ...............................168
treadwear ........................167, 172
Towing .......................................193
recreational towing .................193
trailer towing ..........................193
wrecker ....................................256Transmission .............................210
brake-shift interlock (BSI) ....209
fluid, checking and adding
(automatic) .............................306
fluid, checking and adding
(manual) .........................306, 310
fluid, refill capacities ..............314
lubricant specifications ..........314
manual operation ....................215
Trunk ...........................................91
remote release ....................85, 95
Turn signal ..................................60
U
USB port ......................................39
V
Vehicle Identification Number
(VIN) ..........................................318
Vehicle loading ..........................187
Ventilating your vehicle ...........199
W
Warning lights (see Lights) .......12
Washer fluid ..............................277
Water, Driving through .............233
Windows
power .........................................76
Windshield washer fluid and
wipers ..........................................70
checking and adding fluid .....277
replacing wiper blades ...........277
Wrecker towing .........................256
Index
330
2010 Milan(mln)
Owners Guide, 3rd Printing
USA(fus)
