Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol car or livery
As required– Change engine oil and replace oil filter as indicated by
message center and perform services as listed in the
Normal Scheduled Maintenance chart (except Fiesta)
Inspect frequently, service as
required– Replace cabin air filter (if equipped)
– Replace engine air filter
Every 300 hours of engine
operation*– Change engine oil and replace oil filter (Fiesta)
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except Fiesta and
vehicles equipped with a 6R80 transmission)
Every 60,000 miles (96,000 km)– Replace spark plugs
* Engine hour meter installation is recommended for these operating
conditions.
Perform the services noted in the preceding table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance Guide
341
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently, service as
required– Replace cabin air filter (if equipped)
– Replace engine air filter
Every 5,000 miles (8,000 km)– Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
– Rotate tires, inspect tires for wear and measure tread
depth
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and replace oil filter
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except Fiesta and
vehicles equipped with a 6R80 transmission)
Every 50,000 miles (80,000 km)– Change manual transmission fluid
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter.
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change interval– If ran exclusively on E85, fill the fuel tank full with
regular unleaded fuel
Scheduled Maintenance Guide
342
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

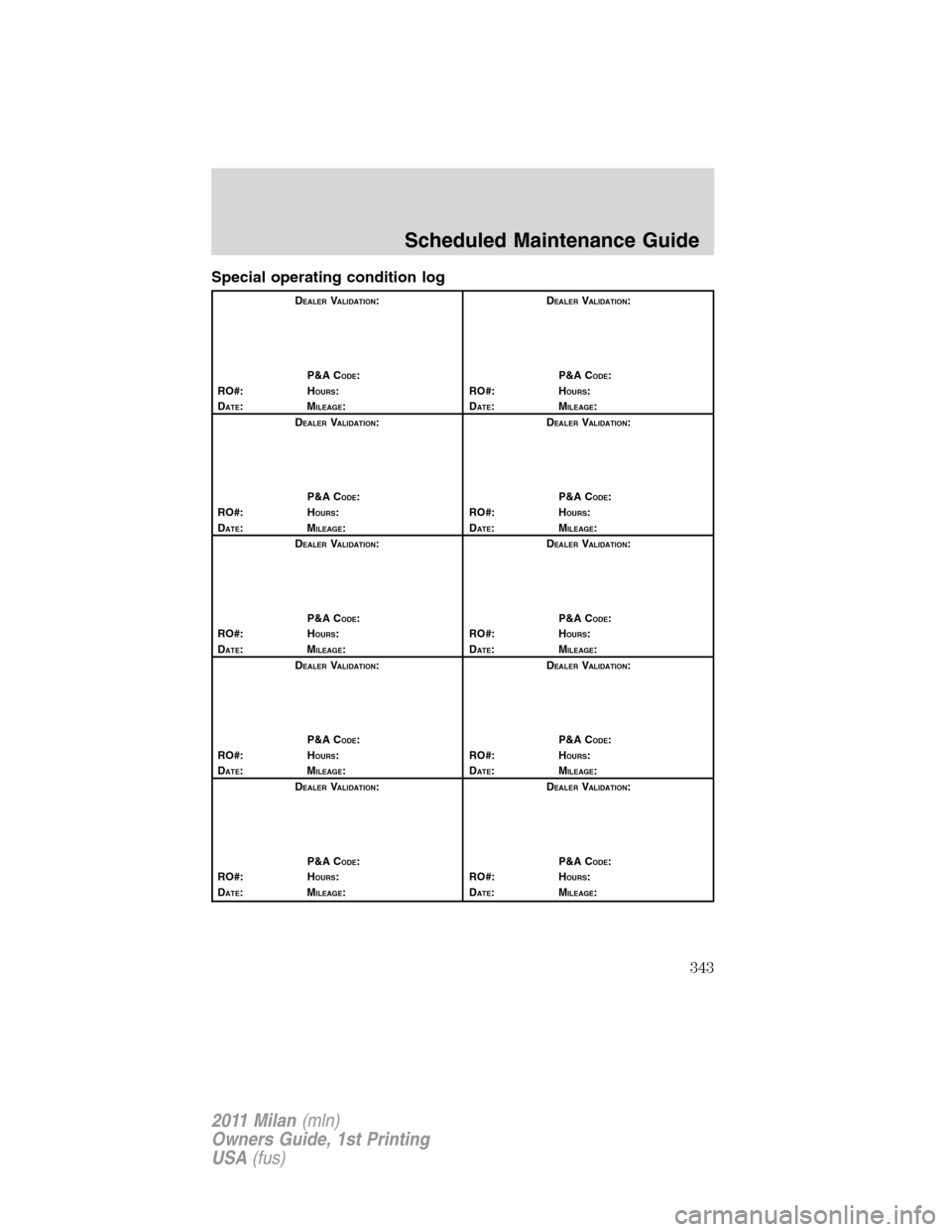

Special operating condition log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
Scheduled Maintenance Guide
343
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

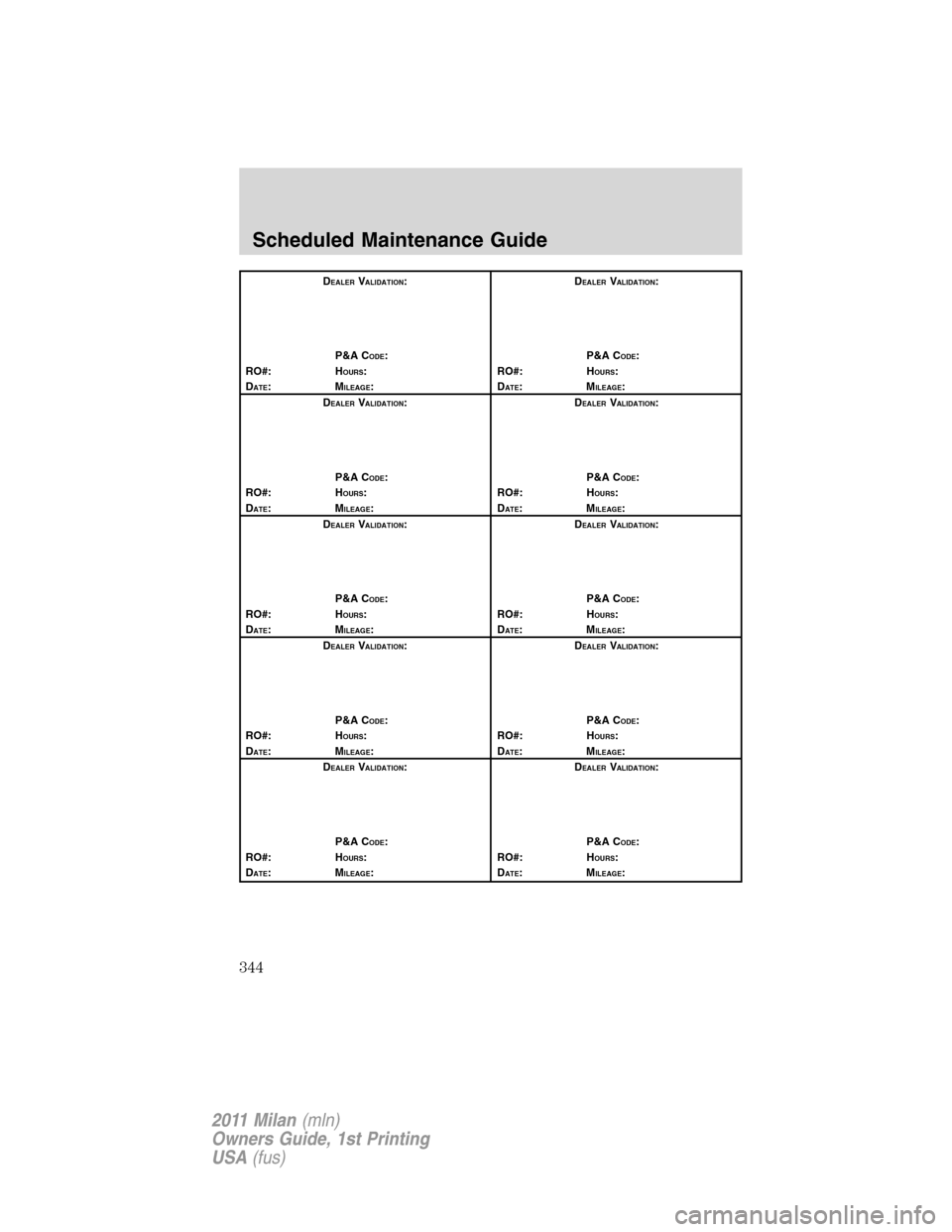

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
Scheduled Maintenance Guide
344
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic lubricant and light duty trucks equipped with Ford-design
axles are lubricated for life. These lubricants are not to be checked or changed unless a leak is suspected, service is re-
quired or the axle assembly has been submerged in water. The axle and PTO lubricant should be changed anytime the axle
and PTO have been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open
throttle for extended periods above 45 mph (72 km/h), non-synthetic rear axle lubricants should be replaced every
3,000 miles (4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) lubricant change interval
may be waived if the axle was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles (refer to
Maintenance product and specificationsin theMaintenance and Specificationschapter for details).
The axle lubricant should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km). Rear axle lubricant change may be waived if the axle
was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles. The axle lubricant should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this main-
tenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life.
Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified inter-
vals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
345
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

COOLANT CHANGE RECORD
Engine coolant
❑6 years or 100,000 miles (160,000 km) - change coolant (whichever comes first).❑After initial change - change coolant every 3 years or 50,000 miles (80,000 km).
Scheduled Maintenance Guide
346
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
Scheduled Maintenance Guide
347
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................77
AdvanceTrac ..............................207
Air cleaner filter .......309–310, 314
Air conditioning
automatic temperature
control system ....................46, 49
Airbag supplemental restraint
system ........................140, 149, 152
and child safety seats ............142
description ..............140, 149, 152
disposal ....................................155
driver airbag ....140, 142, 150, 153
indicator light .........148, 151, 155
operation .........140, 142, 150, 153
passenger airbag ............140, 142,
150, 153
side airbag ...............................149
All Wheel Drive (AWD),
driving off road .........................230
Ambient mood/lighting ...............59
AM/FM .........................................28
Antifreeze
(see Engine coolant) ................286
Anti-lock brake system
(see Brakes) ......................205–206
Anti-theft system ..............108, 112
arming the system ..................112
disarming a triggered
system .....................................113
triggering .................................113
Audio system
6-CD in dash .............................28
Single CD ..................................28
Audio system (see Radio) .........28Automatic transmission
driving an automatic
overdrive .........................213, 215
fluid, adding ............................309
fluid, checking ........................309
fluid, refill capacities ..............315
fluid, specification ..................315
Selectshift (SST) ....................216
Auxiliary input jack (Line in) ....35
Axle
lubricant specifications ..........315
B
Battery .......................................284
acid, treating emergencies .....284
jumping a disabled battery ....253
maintenance-free ....................284
replacement, specifications ...314
servicing ..................................284
Belt-Minder.............................135
Blind Spot Information
System .......................................224
Blind spot mirror ......................223
Booster seats .............................169
Brakes ........................................205
anti-lock ...........................205–206
anti-lock brake system (ABS)
warning light ...........................206
fluid, checking and adding ....306
fluid, refill capacities ..............315
fluid, specifications .................315
lubricant specifications ..........315
parking ....................................206
shift interlock ..........................212
Break-in period .............................5
Bulbs ............................................59
Index
348
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

C
Capacities for refilling fluids ....315
Car2UHome Automation
System .........................................84
CD ................................................28
Cell phone use ..............................8
Changing a tire .........................246
Child safety seats ......................160
attaching with
tether straps ...........................167
in front seat ............................161
in rear seat ..............................161
LATCH .....................................164
recommendations ...................158
Child safety seats - booster
seats ...........................................169
Cleaning your vehicle
engine compartment ..............268
instrument panel ....................270
interior .....................................271
plastic parts ............................269
washing ....................................266
waxing .....................................267
wheels ......................................267
wiper blades ............................270
Climate control (see Air
conditioning or Heating) ......46, 49
Clutch
fluid ..........................................306
operation while driving ..........217
recommended shift speeds ....217
Compass, electronic ....................71
calibration .................................72
set zone adjustment .................72
Console ........................................73
overhead ..............................70–71Controls
power seat ...............................117
steering column ........................81
Coolant
checking and adding ..............286
refill capacities ................290, 315
specifications ..........................315
Cross Traffic Alert ....................224
Cruise control
(see Speed control) ....................79
Cupholder(s) .............................125
Customer Assistance ................237
Ford Extended
Service Plan ....................324, 327
Getting assistance outside the
U.S. and Canada .....................262
Getting roadside assistance ...237
Getting the service
you need .................................258
Ordering additional owner’s
literature .................................264
Utilizing the
Mediation/Arbitration
Program ...................................262
D
Daytime running lamps
(see Lamps) ................................56
Defrost
windshield .................................49
Dipstick
automatic transmission
fluid ..........................................307
engine oil .................................280
Driving under special
conditions ..................216, 231, 233
sand .........................................232
snow and ice ...........................234
through water .................233, 236
Index
349
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)

E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................253
running out of fuel .........252, 299
Emission control system ..........303
Engine ........................................318
cleaning ...................................268
coolant .....................................286
fail-safe cooling .......................291
idle speed control ...................284
lubrication specifications .......315
refill capacities ........................315
service points ..................277–278
Engine block heater .................203
Engine oil ..................................280
checking and adding ..............280
dipstick ....................................280
filter, specifications ........283, 314
recommendations ...................283
refill capacities ........................315
specifications ..........................315
Event data recording ....................6
Exhaust fumes ..........................203
F
Fail safe cooling ........................291
Fleet MyKey programming ........92
Flexible Fuel Vehicle (FFV) ....293
Floor mats ...................................90
Fluid capacities .........................315
Fog lamps ....................................55
Four-Wheel Drive vehicles
driving off road .......................230
Fuel ............................................293calculating fuel
economy ............................21, 300
cap ...........................................296
capacity ...................................315
choosing the right fuel ...........297
detergent in fuel .....................298
filler funnel .............................299
filling your vehicle with
fuel ...........................293, 296, 300
filter, specifications ........292, 314
fuel pump shut-off ..................239
improving fuel economy ........300
octane rating ...................297, 318
quality ......................................298
running out of fuel .........252, 299
safety information relating to
automotive fuels .....................293
Fuel - flex fuel vehicle
(FFV) .................................293, 297
Fuses ..................................239–240
G
Garage door opener ....................84
Gas cap (see Fuel cap) ............296
Gas mileage
(see Fuel economy) .................300
Gauges .........................................17
H
Hazard flashers .........................238
Headlamps ...................................54
aiming ........................................57
autolamp system .......................54
bulb specifications ....................60
daytime running lights .............56
flash to pass ..............................56
high beam .................................55
replacing bulbs .........................61
Index
350
2011 Milan(mln)
Owners Guide, 1st Printing
USA(fus)
