mirror Mercury Milan Hybrid 2010 s User Guide

The BLIS™ has an amber indicator
(also referred to as the alert)
located in the left and right exterior
mirrors. When the vehicle is started,
the BLIS™ automatically illuminates
both indicators for several seconds
indicating the system is operating.
The first time you place the
transmission in D (Drive) after starting the engine and drive forward at a
speed greater than 3 mph (5 km/h) the BLIS™ system becomes active.
Afterwards, the BLIS remains active for all speeds including zero mph.
BLIS™ is also active if the transmission is placed in N (Neutral). If the
transmission is shifted out of D (Drive) or N (Neutral) the system will
enter the CTA mode (see CTA operation below). Once shifted back in to
D (Drive) the BLIS™ mode will activate once driven above 3 mph
(5 km/h).
The BLIS™ will trigger the alert for vehicles that enter your blind zone
from the rear or merge in to the blind zone from the side. Vehicles that
you pass, or a vehicle that enters the blind zone from the front, will
trigger the alert only after the vehicle is present in the blind zone for
three seconds.Note:For vehicles that pass through the blind zone
quickly, typically less then two seconds, the BLIS will not illuminate the
alert.
The BLIS™ consists of two radar
sensors each located at rearward of
the rear wheel hidden behind the
bumper fascia. For proper operation
do not allow large build ups of mud,
snow, and ice in this area. Small to
moderate build ups of such
materials will not hinder the
performance. Do not place any type
of bumper sticker in this area.
Note:The BLIS™ typically will not detect parked vehicles, humans,
animals, or infrastructure (fences, guard rails, trees, etc.). The BLIS™
does not function when the transmission is in R (Reverse) or P (Park).
The BLIS™ does not provide any additional warning when your turn
signal is activated.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Driving
230

BLIS™ Detection Limitations:Due to the nature of radar technology,
there may be certain instances where vehicles entering and exiting the
blind spot zones may not be detected. Below is a list of circumstances
that may cause non-detection:
•Debris build up on the rear quarter panel fascias
•Certain maneuvering of vehicles entering and exiting the blind zone
•Vehicles passing through the blind zone at very fast rates
•Severe weather conditions
•When several vehicles forming a convoy pass through the blind zone.
Cross traffic alert (CTA) system operation
The cross traffic alert system warns
the driver of approaching vehicles
when R (Reverse) is selected and
the vehicle is backing out of a
front-in parking spot. It sounds a
series of tones and flashes the
BLIS™ indicator found on the
exterior mirror on the side of the
approaching vehicle. Additionally, the message center will display either,
VEHICLE COMING FROM RIGHT or VEHICLE COMING FROM LEFT to
warn the driver from which direction vehicles are approaching.
The system is not designed to prevent contact with other vehicles or
objects. The system is designed to provide a warning to assist the driver
in detecting vehicles in the blind zones. The system will not detect
infrastructure, pedestrians, or bicyclists.
WARNING:To help avoid personal injury, NEVER use the Cross
Traffic Alert system as a replacement for using the side and rear
view mirrors and looking over your shoulder before backing out of a
parking space. CTA is not a replacement for careful driving and only an
assist.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Driving
231

BLIS™-CTA fault operation
If the BLIS™-CTA senses a fault on either the left or right sensor, the
BLIS™ alert indicator will go ON and remain ON and the message center
will display BLIND SPOT SYSTEM FAULT or CROSS TRAFFIC SYSTEM
FAULT. For faults that may cause the associated left or right alert
indicator not to illuminate, only the message center faults will occur.
Blocked sensor
An extreme build up of materials on
the left and/or right quarter panel
fascias such as mud or snow can
cause degraded performance of the
BLIS™. Also, heavy rain can cause
the same effect. The BLIS™ can
detect this degraded performance
and issue a blocked warning to the driver via the message center. If
condition is determined by the system, the message center displays
BLIND SPOT NOT AVAILABLE or CROSS TRAFFIC NOT AVAILABLE
warning and the appropriate left and/or right exterior mirror alert
indicator will illuminate. The message center warning may be cleared by
the driver but the exterior mirror alert indicator will remain illuminated.
WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLIS™ as a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLIS™ is not a replacement for
careful driving and only an assist.
Once blockage is removed, the system will require some driving time and
detection of at least two vehicle object prior to realizing it is unblocked,
or the driver can cycle the ignition key. If blocked and the ignition key is
cycled, the system resets to unblocked. If however blockage is still
present after the key cycle, the system will sense again that it is blocked
after driving in traffic.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Driving
234

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
11 10A Not used (Spare)
12 7.5A Power outside mirrors
13 5A SYNC module
14 10A Electronic Finish Panel (EFP)
radio and climate control buttons
module, Navigation display, Center
information display, GPS module
15 10A Climate control
16 15A Not used (Spare)
17 20A Door locks, Trunk release
18 20A Heated seats
19 25A Amplifier
20 15A On-Board Diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park
lamps, License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (Spare)
31 10A Not used (Spare)
32 10A Restraint control module
33 10A Not used (Spare)
34 5A Not used (Spare)
35 10A Rear park assist, Blind spot
monitor system, Heated seats,
Rear video camera, 110V inverter
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
241

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
36 5A Passive Anti-Theft Sensor (PATS)
transceiver
37 10A Humidity sensor
38 20A Subwoofer amplifier
39 20A Radio
40 20A Not used (Spare)
41 15A Automatic dimming mirror, Moon
roof, Compass, Ambient lighting
42 10A Electronic power assist steering
43 10A Not used (Spare)
44 10A Fuel diode/Powertrain control
module
45 5A Heated backlight and blower relay
coil, Wiper washer
46 7.5A Occupant Classification Sensor
(OCS) module, Passenger airbag
off lamp
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
242

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
16 — Not used
17 10A** HEV high voltage battery module
18 — Not used
19 — Not used
20 — Not used
21 — Not used
22 20A* Console power point
23 10A** Powertrain control module/
Transmission control module
keep-alive power, Canister vent
24 — Not used
25 — Not used
26 15A** Left headlamp (aux relay 1 power)
27 15A** Right headlamp (aux relay 2 power)
28 60A* Cooling fan motor
29 20A* Front power point
30 30A* Fuel relay (relay 43 power)
31 30A* Passenger power seat
32 30A* Driver power seat
33 20A* Moon roof
34 — Not used
35 40A* Front A/C blower motor (aux relay 3
power)
36 1A Diode Fuel pump
37 5A** Vacuum pump monitoring
38 10A** Heated side mirrors
39 10A** Transmission control module
40 10A** Powertrain control module
41 G8VA relay Backup lamps
42 G8VA relay Heater pump
43 G8VA relay Fuel pump
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
244

WAXING
•Wash the vehicle first.
•Do not use waxes that contain abrasives; use Motorcraft Premium
Liquid Wax (ZC-53-A), which is available from your authorized dealer,
or an equivalent quality product.
•Do not allow paint sealant to come in contact with any non-body
(low-gloss black) colored trim, such as grained door handles, roof
racks, bumpers, side moldings, mirror housings or the windshield cowl
area. The paint sealant will “gray” or stain the parts over time.
PAINT CHIPS
Your authorized dealer has touch-up paint to match your vehicle’s color.
Take your color code (printed on a sticker in the driver’s door jamb) to
your authorized dealer to ensure you get the correct color.
•Remove particles such as bird droppings, tree sap, insect deposits, tar
spots, road salt and industrial fallout before repairing paint chips.
•Always read the instructions before using the products.
ALUMINUM WHEELS AND WHEEL COVERS
Aluminum wheels and wheel covers are coated with a clearcoat paint
finish. In order to maintain their shine:
•Clean weekly with Motorcraft Wheel and Tire Cleaner (ZC-37-A),
which is available from your authorized dealer. Heavy dirt and brake
dust accumulation may require agitation with a sponge. Rinse
thoroughly with a strong stream of water.
•Never apply any cleaning chemical to hot or warm wheel rims or
covers.
•Some automatic car washes may cause damage to the finish on your
wheel rims or covers. Chemical-strength cleaners, or cleaning
chemicals, in combination with brush agitation to remove brake dust
and dirt, could wear away the clearcoat finish over time.
•Do not use hydrofluoric acid-based or high caustic-based wheel
cleaners, steel wool, fuels or strong household detergent.
•To remove tar and grease, use Motorcraft Bug and Tar Remover
(ZC-42), available from your authorized dealer.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Cleaning
268

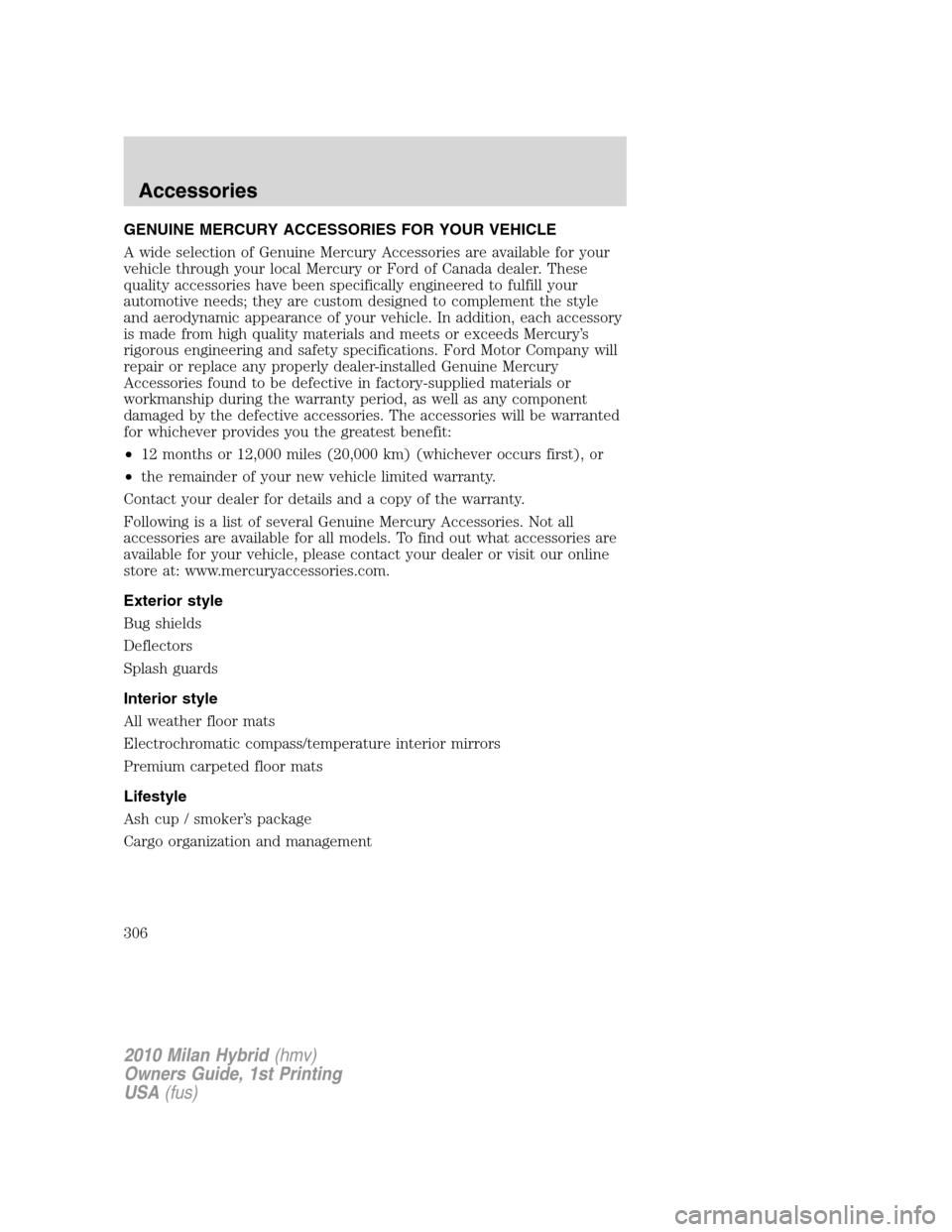

GENUINE MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Mercury Accessories are available for your
vehicle through your local Mercury or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Mercury
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Mercury Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.mercuryaccessories.com.
Exterior style
Bug shields
Deflectors
Splash guards
Interior style
All weather floor mats
Electrochromatic compass/temperature interior mirrors
Premium carpeted floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Accessories
306

specifications ..........................301
Event data recording ..................12
Exhaust fumes ..........................212
F
Floor mats .................................101
Fluid capacities .........................301
Fog lamps ....................................73
Fuel ............................................288
calculating fuel
economy ............................35, 294
cap ...........................................290
capacity ...................................301
choosing the right fuel ...........291
comparisons with EPA fuel
economy estimates .................296
detergent in fuel .....................292
filler funnel .............................292
filling your vehicle with
fuel ...........................288, 290, 294
filter, specifications ........288, 300
improving fuel economy ........294
octane rating ...................292, 303
quality ......................................292
running out of fuel .........252, 292
safety information relating to
automotive fuels .....................288
Fuses ..................................238–239
G
Gas cap (see Fuel cap) ............290
Gas mileage (see Fuel
economy) ...................................294
Gauges .........................................23
H
Hazard flashers .........................237Headlamps ...................................72
aiming ........................................75
autolamp system .......................72
bulb specifications ....................78
daytime running lights .............73
flash to pass ..............................74
high beam .................................74
replacing bulbs .........................79
turning on and off ....................72
Heating
heating and air conditioning
system .................................65, 67
Hood ..........................................275
I
Ignition ...............................209, 303
Illuminated visor mirror .............84
Infant seats
(see Safety seats) .....................168
Inspection/maintenance (I/M)
testing ........................................298
Instrument panel ........................88
cleaning ...................................271
cluster ........................................16
lighting up panel and
interior .......................................74
J
Jack ............................................246
positioning ...............................246
storage .....................................246
Jump-starting your vehicle ......253
K
Keyless entry system
autolock ...................................104
keypad .....................................115
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Index
326

locking and unlocking
doors ........................................116
programming entry code .......115
Keys ...................................102, 119
positions of the ignition .........209
L
Lamps
autolamp system .......................72
bulb replacement
specifications chart ..................78
daytime running light ...............73
fog lamps ...................................73
headlamps .................................72
headlamps, flash to pass ..........74
instrument panel, dimming .....74
interior lamps ...........................76
replacing bulbs .........................79
LATCH anchors .........................174
Lights, warning and indicator ....16
anti-lock brakes (ABS) ..........214
Load limits .................................202
Locks
autolock ...................................104
childproof ................................108
doors ........................................104
Lubricant specifications ...........301
Lug nuts ....................................252
Lumbar support, seats .............126
M
Manual transmission
fluid capacities ........................301
lubricant specifications ..........301
Message center .....................32–33
system check button ................42
warning messages .....................43Mirrors ...................................92–93
automatic dimming rearview
mirror ........................................92
heated ........................................94
side view mirrors (power) .......93
Moon roof ....................................99
Motorcraft parts ................273, 300
N
Navigation system .......................64
O
Octane rating ............................292
Oil (see Engine oil) ..................278
P
Parking brake ............................215
Parts (see Motorcraft parts) ....300
Passenger Occupant
Classification Sensor .................135
Power distribution box
(see Fuses) ...............................242
Power door locks ......................104
Power mirrors .............................93
Power point .................................88
Power steering ..................220–221
Power Windows ...........................90
R
Radio ............................................48
Rear-view camera system .........227
Recommendations for
attaching safety restraints for
children ......................................166
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Index
327
