CTA Detection Limitations:Due to the nature of radar technology,
there may be certain instances where vehicles entering and exiting the
blind spot zones may not be detected. Below is a list of circumstances
that may cause non detection:
•Debris build up on the rear quarter panel fascias
•The rear quarter panel radar beams are obstructed or partially
obstructed by an adjacently parked vehicle or object.
•Approaching vehicles passing at speeds greater than 15 mph
(24 km/h).
•Severe weather conditions
•Driving in reverse faster than 3 mph (5 km/h).
•Backing out of an angled parking spot.
CTA and Reverse Sensing System (RSS) interaction
CTA works along with the Reverse Sensing System (RSS) (if equipped).
Become familiar with the warning tones of both systems.
BLIS™-CTA on/off and disable operation
The BLIS™ and/or the CTA can be turned off via the message center.
Turning the BLIS™ off does not turn off the CTA and visa versa. If either
the BLIS™ or CTA is turned off, the systems will automatically turn back
on at the next ignition key cycle. When either the BLIS™ or CTA is
turned off, the message center displays BLIND SPOT SYS OFF and/or
CTA SYSTEM OFF. When the BLIS™ or CTA system is off, the driver
will not receive alerts. Refer toMessage Centerin theInstrument
Clusterchapter.
The BLIS™-CTA can be disabled permanently even after an ignition key
cycle. This must be done by your dealership service technician.
Once either of the systems are disabled, enabling must also be performed
at the dealership. When disabled, the message center will display BLIND
SPOT DISABLED and/or CTA DISABLED.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Driving
233

BLIS™-CTA fault operation
If the BLIS™-CTA senses a fault on either the left or right sensor, the
BLIS™ alert indicator will go ON and remain ON and the message center
will display BLIND SPOT SYSTEM FAULT or CROSS TRAFFIC SYSTEM
FAULT. For faults that may cause the associated left or right alert
indicator not to illuminate, only the message center faults will occur.
Blocked sensor
An extreme build up of materials on
the left and/or right quarter panel
fascias such as mud or snow can
cause degraded performance of the
BLIS™. Also, heavy rain can cause
the same effect. The BLIS™ can
detect this degraded performance
and issue a blocked warning to the driver via the message center. If
condition is determined by the system, the message center displays
BLIND SPOT NOT AVAILABLE or CROSS TRAFFIC NOT AVAILABLE
warning and the appropriate left and/or right exterior mirror alert
indicator will illuminate. The message center warning may be cleared by
the driver but the exterior mirror alert indicator will remain illuminated.
WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLIS™ as a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLIS™ is not a replacement for
careful driving and only an assist.
Once blockage is removed, the system will require some driving time and
detection of at least two vehicle object prior to realizing it is unblocked,
or the driver can cycle the ignition key. If blocked and the ignition key is
cycled, the system resets to unblocked. If however blockage is still
present after the key cycle, the system will sense again that it is blocked
after driving in traffic.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Driving
234

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
236

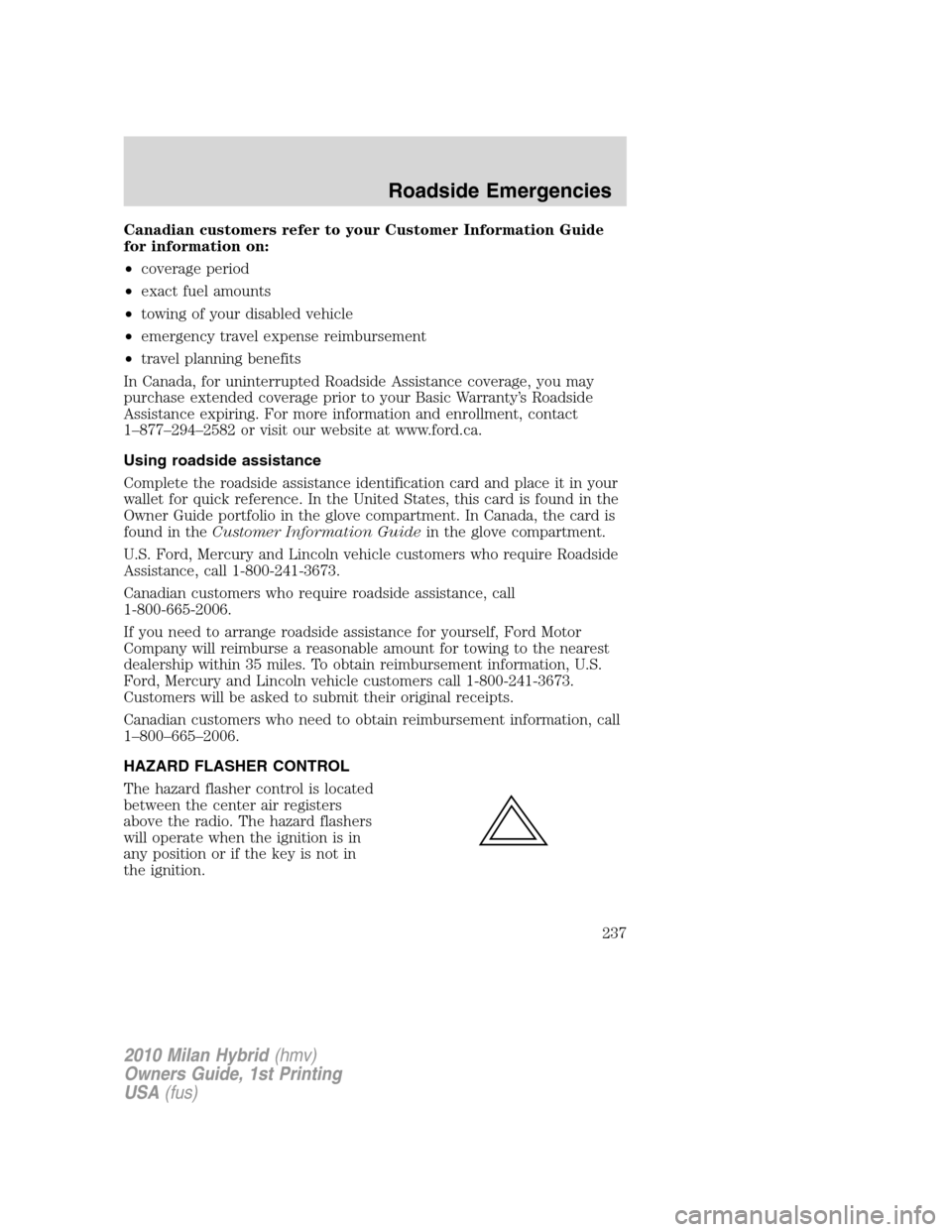

Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
• exact fuel amounts
• towing of your disabled vehicle
• emergency travel expense reimbursement
• travel planning benefits
In Canada, for uninterrupted Roadside Assistance coverage, you may
purchase extended coverage prior to your Basic Warranty’s Roadside
Assistance expiring. For more information and enrollment, contact
1–877–294–2582 or visit our website at www.ford.ca.
Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in the Customer Information Guide in the glove compartment.
U.S. Ford, Mercury and Lincoln vehicle customers who require Roadside
Assistance, call 1-800-241-3673.
Canadian customers who require roadside assistance, call
1-800-665-2006.
If you need to arrange roadside assistance for yourself, Ford Motor
Company will reimburse a reasonable amount for towing to the nearest
dealership within 35 miles. To obtain reimbursement information, U.S.
Ford, Mercury and Lincoln vehicle customers call 1-800-241-3673.
Customers will be asked to submit their original receipts.
Canadian customers who need to obtain reimbursement information, call
1–800–665–2006.
HAZARD FLASHER CONTROL
The hazard flasher control is located
between the center air registers
above the radio. The hazard flashers
will operate when the ignition is in
any position or if the key is not in
the ignition.
2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
237

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Brake on/off switch, Center
high-mount stop lamp
3 15A HEV battery fan
4 30A 110V Inverter
5 10A Keypad illumination, Brake shift
interlock
6 20A Turn signal lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Courtesy lights
10 15A Backlighting, Puddle lamps
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
240

SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check yourWarranty
Guide/Customer Information Guideto find out which parts and
services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Motorcraft parts are designed and built to
provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other burning (cigarettes) material away
from the battery and all fuel related parts.
High Voltage Information
WARNING:Exposure to high voltage may result in severe
personal injury or death. High voltage components must be
serviced by a trained service technician.
Your vehicle consists of various high voltage components and wiring. All
of the high voltage power flows through specific wiring assemblies which
are labeled as such and/or are covered with a solid orange convolute or
orange stripe tape. Do not come in contact with these components.
Working with the engine off
1. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
2. Turn off the engine and remove the key.
3. Block the wheels to prevent the vehicle from moving unexpectedly.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
274

properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If theService engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If theService engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if theService engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Check fluid levels with the ignition
in the RUN position. Fluid levels
between the “MIN” and “MAX” lines
are within the normal operating
range; there is no need to add fluid.
If the fluid levels are outside of the
normal operating range the performance of your brake system could be
compromised; seek service from your authorized dealer immediately.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
299

specifications ..........................301
Event data recording ..................12
Exhaust fumes ..........................212
F
Floor mats .................................101
Fluid capacities .........................301
Fog lamps ....................................73
Fuel ............................................288
calculating fuel
economy ............................35, 294
cap ...........................................290
capacity ...................................301
choosing the right fuel ...........291
comparisons with EPA fuel
economy estimates .................296
detergent in fuel .....................292
filler funnel .............................292
filling your vehicle with
fuel ...........................288, 290, 294
filter, specifications ........288, 300
improving fuel economy ........294
octane rating ...................292, 303
quality ......................................292
running out of fuel .........252, 292
safety information relating to
automotive fuels .....................288
Fuses ..................................238–239
G
Gas cap (see Fuel cap) ............290
Gas mileage (see Fuel
economy) ...................................294
Gauges .........................................23
H
Hazard flashers .........................237Headlamps ...................................72
aiming ........................................75
autolamp system .......................72
bulb specifications ....................78
daytime running lights .............73
flash to pass ..............................74
high beam .................................74
replacing bulbs .........................79
turning on and off ....................72
Heating
heating and air conditioning
system .................................65, 67
Hood ..........................................275
I
Ignition ...............................209, 303
Illuminated visor mirror .............84
Infant seats
(see Safety seats) .....................168
Inspection/maintenance (I/M)
testing ........................................298
Instrument panel ........................88
cleaning ...................................271
cluster ........................................16
lighting up panel and
interior .......................................74
J
Jack ............................................246
positioning ...............................246
storage .....................................246
Jump-starting your vehicle ......253
K
Keyless entry system
autolock ...................................104
keypad .....................................115
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Index
326

locking and unlocking
doors ........................................116
programming entry code .......115
Keys ...................................102, 119
positions of the ignition .........209
L
Lamps
autolamp system .......................72
bulb replacement
specifications chart ..................78
daytime running light ...............73
fog lamps ...................................73
headlamps .................................72
headlamps, flash to pass ..........74
instrument panel, dimming .....74
interior lamps ...........................76
replacing bulbs .........................79
LATCH anchors .........................174
Lights, warning and indicator ....16
anti-lock brakes (ABS) ..........214
Load limits .................................202
Locks
autolock ...................................104
childproof ................................108
doors ........................................104
Lubricant specifications ...........301
Lug nuts ....................................252
Lumbar support, seats .............126
M
Manual transmission
fluid capacities ........................301
lubricant specifications ..........301
Message center .....................32–33
system check button ................42
warning messages .....................43Mirrors ...................................92–93
automatic dimming rearview
mirror ........................................92
heated ........................................94
side view mirrors (power) .......93
Moon roof ....................................99
Motorcraft parts ................273, 300
N
Navigation system .......................64
O
Octane rating ............................292
Oil (see Engine oil) ..................278
P
Parking brake ............................215
Parts (see Motorcraft parts) ....300
Passenger Occupant
Classification Sensor .................135
Power distribution box
(see Fuses) ...............................242
Power door locks ......................104
Power mirrors .............................93
Power point .................................88
Power steering ..................220–221
Power Windows ...........................90
R
Radio ............................................48
Rear-view camera system .........227
Recommendations for
attaching safety restraints for
children ......................................166
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Index
327

Relays ................................238, 245
Remote entry system .......110–111
illuminated entry ............113–114
locking/unlocking doors .........111
opening the trunk ...................112
panic alarm .............................111
replacement/additional
transmitters .............................113
replacing the batteries ...........112
Reverse sensing system ...........225
Roadside assistance ..................236
S
Safety belts (see Safety
restraints) ..........134, 137, 139–141
Safety Canopy ...........................157
Safety defects, reporting ..........266
Safety
restraints ...........134, 137, 139–142
Belt-Minder...........................143
extension assembly ................142
for adults .........................139–141
for children .............................164
Occupant Classification
Sensor ......................................135
warning light and
chime ...............................142–143
Safety restraints - LATCH
anchors ......................................174
Safety seats for children ..........168
Safety Compliance
Certification Label ....................304
Satellite Radio (if equipped) .....48
Satellite Radio Information ........61Scheduled Maintenance
Guide .........................................308
General Maintenance
Information .............................308
Normal Scheduled
Maintenance and Log .............312
Special Operating
Conditions ...............................318
What Maintenance Schedule
Should You Follow? ................310
Seats ..........................................123
child safety seats ....................168
front seats ...............................126
heated ......................................129
SecuriCode keyless entry
system ........................................115
SecuriLock passive anti-theft
system ........................................117
Servicing your vehicle ..............274
Side air curtain .........................160
Spark plugs,
specifications .....................300, 303
Specification chart,
lubricants ...................................301
Speed control ..............................94
Starting your vehicle ........209, 211
jump starting ..........................253
Steering
speed sensitive .......................221
Steering wheel
controls ......................................97
tilting .........................................84
Stereo
CD-MP3 .....................................48
SYNC..........................................64
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Index
328
