Note:The panic alarm will only operate when the ignition is in the off
position.
Opening the trunk
Presstwice within three seconds to open the trunk.
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.

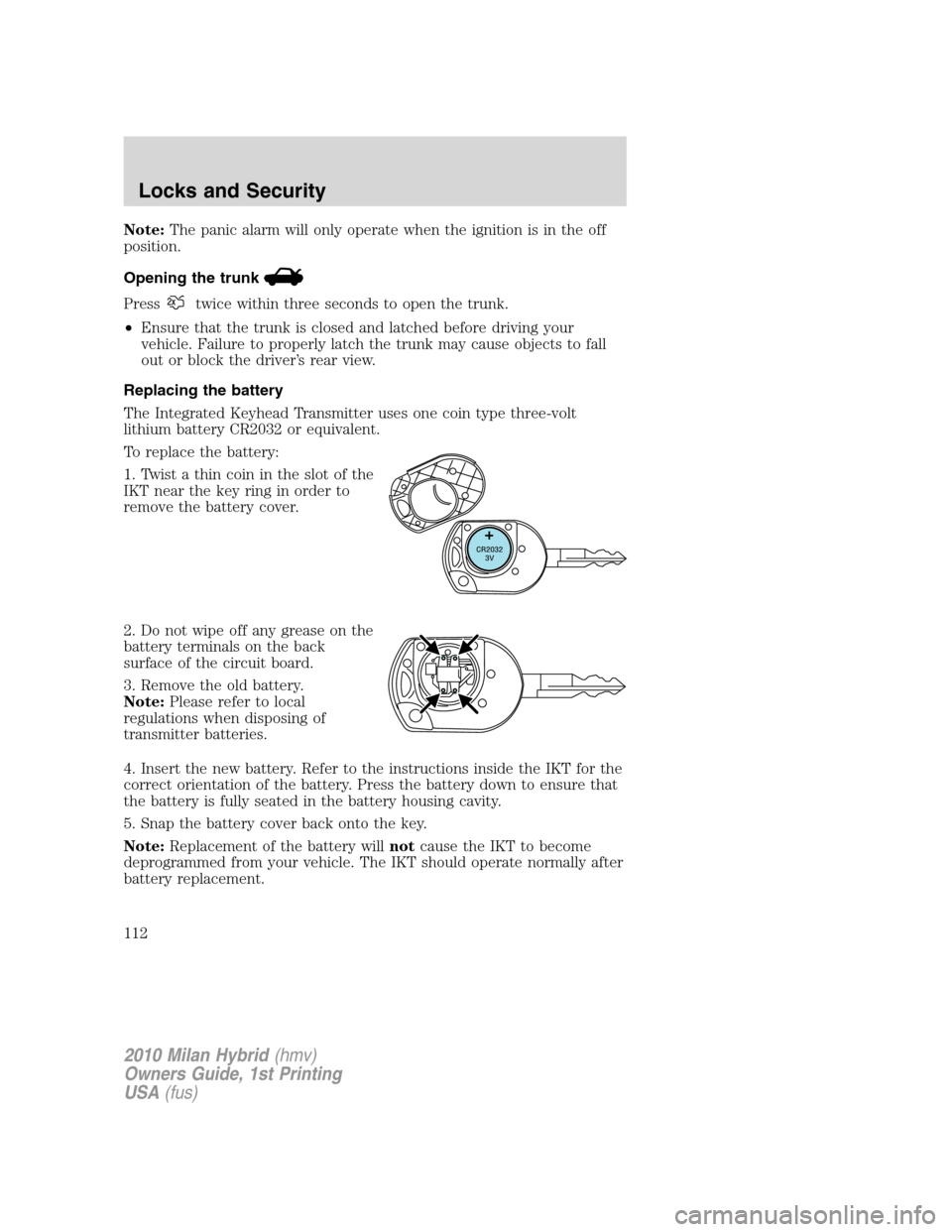

Replacing the battery
The Integrated Keyhead Transmitter uses one coin type three-volt
lithium battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin in the slot of the
IKT near the key ring in order to
remove the battery cover.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
4. Insert the new battery. Refer to the instructions inside the IKT for the
correct orientation of the battery. Press the battery down to ensure that
the battery is fully seated in the battery housing cavity.
5. Snap the battery cover back onto the key.
Note:Replacement of the battery willnotcause the IKT to become
deprogrammed from your vehicle. The IKT should operate normally after
battery replacement.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Locks and Security
112

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
236

Use SAE 5W-20 engine oil
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use Motorcraft SAE 5W-20
or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C930-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.Refer toMaintenance product specifications and
capacitieslater in this section for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
Ford production and Motorcraft replacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft oil filter or
another with equivalent performance for your engine application.
LOW VOLTAGE (UNDERHOOD) BATTERY
Your vehicle is equipped with a
Motorcraft maintenance-free battery
which normally does not require
additional water during its life of
service.
If your battery has a cover/shield, make sure it is reinstalled
after the battery has been cleaned or replaced.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
280

TRANSMISSION FLUID
Checking electronically controlled Continuously Variable
Transmission (eCVT)
The eCVT does not have an underhood transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. It is designed to be filled for life. However, the fluid level
should be checked if the transmission is not working properly, or if you
notice some sign of fluid leakage.
Transmission fluid should be checked and, if required, fluid
should be added by an authorized dealer.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Your vehicle is equipped with a long life air filter. The air filter is
designed to last the life of the vehicle. See your authorized dealer or a
qualified technician for replacement. The technician can check the
diagnostics system for the possibility of an excessively dirty air filter.
MOTORCRAFT PART NUMBERS
Component 2.5L iVCT engine
Oil filter FL-2017-B
Spark plugs
1
Cabin air filter FP-67
Low voltage (underhood)
batteryBXT-67-R
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationchapter for the appropriate
intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
300

Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out,like brakes and shocks.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford, Lincoln, or Mercury dealership today and
arrange for a customized Ford Extended Service Plan that fits your
driving lifestyle and budget.
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Ford Extended Service Plan
322

A
Accessory delay ..........................92
AdvanceTrac ..............................216
Air cleaner filter .......................300
Air conditioning
automatic temperature
control system ....................65, 67
Airbag supplemental restraint
system ........................148, 157, 160
and child safety seats ............150
description ..............148, 157, 160
disposal ....................................163
driver airbag ....148, 150, 158, 161
indicator light .........157, 159, 163
operation .........148, 150, 158, 161
passenger
airbag ...............148, 150, 158, 161
side airbag ...............................157
Ambient mood/lighting ...............77
AM/FM .........................................48
Anti-lock brake system
(see Brakes) ..............................214
Anti-theft system ..............117, 121
arming the system ..................121
disarming a triggered
system .....................................122
triggering .................................122
Audio system
6-CD in dash .............................48
Single CD ..................................48
Audio system (see Radio) .........48
Automatic transaxle
fluid, adding ............................300
fluid, checking ........................300
Automatic transmission
driving an automatic
overdrive .................................223fluid, refill capacities ..............301
fluid, specification ..................301
Auxiliary input jack (Line in) ....56
Axle
lubricant specifications ..........301
refill capacities ........................301
B
Battery .......................................280
acid, treating emergencies .....280
jumping a disabled battery ....253
maintenance-free ....................280
replacement, specifications ...300
servicing ..................................280
Belt-Minder.............................143
Blind Spot Information
System .......................................229
Booster seats .............................179
Brakes ........................................213
anti-lock ...................................214
anti-lock brake system (ABS)
warning light ...........................214
fluid, checking and adding ....299
fluid, refill capacities ..............301
fluid, specifications .................301
lubricant specifications ..........301
parking ....................................215
shift interlock ..........................221
Break-in period .............................5
Bulbs ............................................77
C
Capacities for refilling fluids ....301
CD ................................................48
Cell phone use ............................13
Changing a tire .........................246
Child safety seats ......................168
attaching with tether straps ..176
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Index
324
