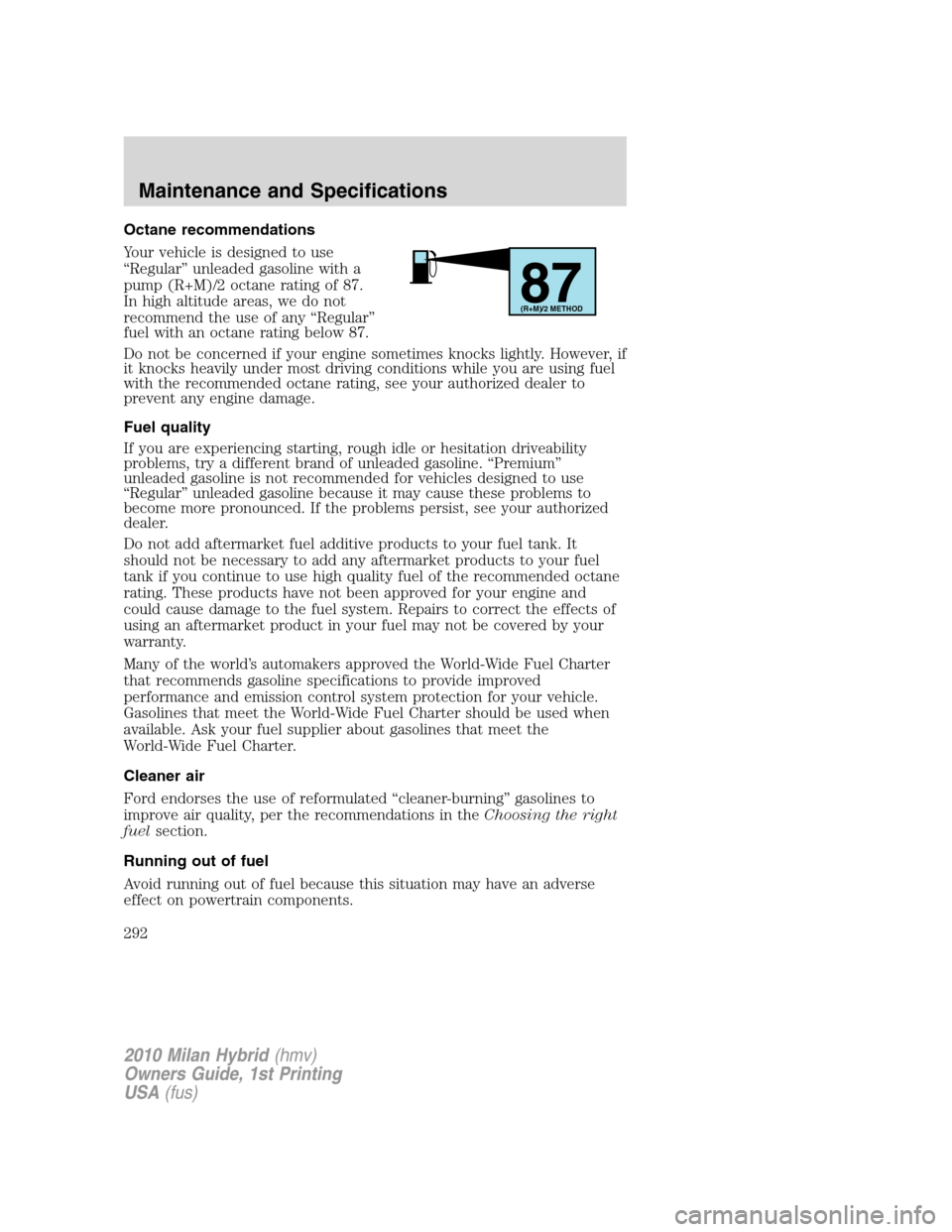

Octane recommendations
Your vehicle is designed to use
“Regular” unleaded gasoline with a
pump (R+M)/2 octane rating of 87.
In high altitude areas, we do not
recommend the use of any “Regular”
fuel with an octane rating below 87.
Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
Fuel quality
If you are experiencing starting, rough idle or hesitation driveability
problems, try a different brand of unleaded gasoline. “Premium”
unleaded gasoline is not recommended for vehicles designed to use
“Regular” unleaded gasoline because it may cause these problems to
become more pronounced. If the problems persist, see your authorized
dealer.
Do not add aftermarket fuel additive products to your fuel tank. It
should not be necessary to add any aftermarket products to your fuel
tank if you continue to use high quality fuel of the recommended octane
rating. These products have not been approved for your engine and
could cause damage to the fuel system. Repairs to correct the effects of
using an aftermarket product in your fuel may not be covered by your
warranty.
Many of the world’s automakers approved the World-Wide Fuel Charter
that recommends gasoline specifications to provide improved
performance and emission control system protection for your vehicle.
Gasolines that meet the World-Wide Fuel Charter should be used when
available. Ask your fuel supplier about gasolines that meet the
World-Wide Fuel Charter.
Cleaner air
Ford endorses the use of reformulated “cleaner-burning” gasolines to
improve air quality, per the recommendations in theChoosing the right
fuelsection.
Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
87(R+M)/2 METHOD
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
292

3. Fill the vehicle with fuel from the portable fuel container.
4. When done, clean the funnel or properly dispose of it. Extra funnels
can be purchased from your authorized dealer if you choose to dispose
of the funnel.Do notuse aftermarket funnels; they will not work with
the Easy Fuel™ system and can damage it. The included funnel has
been specially designed to work safely with your vehicle.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You will get a more
accurate measurement after 2,000 miles–3,000 miles (3,000 km–5,000
km).
Filling the tank
When the fuel gauge indicates empty, there is still a small reserve of fuel
in the fuel system. When refueling your vehicle after the fuel gauge
indicates empty, you might not be able to refuel the full amount of the
advertised capacity of the fuel tank due to the empty reserve still
present in the tank. The amount of usable fuel in the empty reserve
varies and should not be relied upon to increase driving range.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling;
an error in the reading will result if the engine is left running.
•Allow no more than two automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
Your results will be most accurate if your filling method is consistent.
Calculating fuel economy
1. Fill the fuel tank completely and record the initial odometer reading
(in miles or kilometers).
2. Each time you fill the tank, record the amount of fuel added (in
gallons or liters).
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
294

ENGINE DATA
Engine 2.5L I4 engine
Cubic inches 152
Required fuel 87 octane
Firing order 1-3-4-2
Ignition system Coil on plug
Spark plug gap 0.049–0.053 inch (1.25–1.35mm)
Compression ratio 12.3:1
Engine drivebelt routing
High voltage battery data
High Voltage Battery
Battery chemistry Nickel metal hydride
Nominal voltage 275 volts
Battery system capacity 5.5 amp-hours
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
303

specifications ..........................301
Event data recording ..................12
Exhaust fumes ..........................212
F
Floor mats .................................101
Fluid capacities .........................301
Fog lamps ....................................73
Fuel ............................................288
calculating fuel
economy ............................35, 294
cap ...........................................290
capacity ...................................301
choosing the right fuel ...........291
comparisons with EPA fuel
economy estimates .................296
detergent in fuel .....................292
filler funnel .............................292
filling your vehicle with
fuel ...........................288, 290, 294
filter, specifications ........288, 300
improving fuel economy ........294
octane rating ...................292, 303
quality ......................................292
running out of fuel .........252, 292
safety information relating to
automotive fuels .....................288
Fuses ..................................238–239
G
Gas cap (see Fuel cap) ............290
Gas mileage (see Fuel
economy) ...................................294
Gauges .........................................23
H
Hazard flashers .........................237Headlamps ...................................72
aiming ........................................75
autolamp system .......................72
bulb specifications ....................78
daytime running lights .............73
flash to pass ..............................74
high beam .................................74
replacing bulbs .........................79
turning on and off ....................72
Heating
heating and air conditioning
system .................................65, 67
Hood ..........................................275
I
Ignition ...............................209, 303
Illuminated visor mirror .............84
Infant seats
(see Safety seats) .....................168
Inspection/maintenance (I/M)
testing ........................................298
Instrument panel ........................88
cleaning ...................................271
cluster ........................................16
lighting up panel and
interior .......................................74
J
Jack ............................................246
positioning ...............................246
storage .....................................246
Jump-starting your vehicle ......253
K
Keyless entry system
autolock ...................................104
keypad .....................................115
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Index
326

locking and unlocking
doors ........................................116
programming entry code .......115
Keys ...................................102, 119
positions of the ignition .........209
L
Lamps
autolamp system .......................72
bulb replacement
specifications chart ..................78
daytime running light ...............73
fog lamps ...................................73
headlamps .................................72
headlamps, flash to pass ..........74
instrument panel, dimming .....74
interior lamps ...........................76
replacing bulbs .........................79
LATCH anchors .........................174
Lights, warning and indicator ....16
anti-lock brakes (ABS) ..........214
Load limits .................................202
Locks
autolock ...................................104
childproof ................................108
doors ........................................104
Lubricant specifications ...........301
Lug nuts ....................................252
Lumbar support, seats .............126
M
Manual transmission
fluid capacities ........................301
lubricant specifications ..........301
Message center .....................32–33
system check button ................42
warning messages .....................43Mirrors ...................................92–93
automatic dimming rearview
mirror ........................................92
heated ........................................94
side view mirrors (power) .......93
Moon roof ....................................99
Motorcraft parts ................273, 300
N
Navigation system .......................64
O
Octane rating ............................292
Oil (see Engine oil) ..................278
P
Parking brake ............................215
Parts (see Motorcraft parts) ....300
Passenger Occupant
Classification Sensor .................135
Power distribution box
(see Fuses) ...............................242
Power door locks ......................104
Power mirrors .............................93
Power point .................................88
Power steering ..................220–221
Power Windows ...........................90
R
Radio ............................................48
Rear-view camera system .........227
Recommendations for
attaching safety restraints for
children ......................................166
2010 Milan Hybrid(hmv)
Owners Guide, 1st Printing
USA(fus)
Index
327
