These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAir Bag-Front
Air Bag-SideChild Seat
Child Seat Installation
WarningChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemBrake Fluid -
Non-Petroleum Based
Powertrain MalfunctionSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Introduction
8

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH
HEATED SEATS (IF EQUIPPED)
1.
Defrost: Distributes outside air through the windshield defroster
and demister vents. Can be used to clear ice or fog from the windshield.
2.Passenger temperature control:Press to increase/decrease the
airflow temperature for the passenger in the front of the vehicle.
3.
RRear defroster:Press to activate/deactivate rear window
defroster. Refer toRear window defrosterin this section for more
information.
4.DUAL (Dual temperature control):Press to engage/disengage
separate passenger side temperature control.
5.
Passenger heated seat control:Press once to activate high heat
setting (2 indicator lights), press again to activate low heat setting (1
indicator light), and press again to deactivate the passenger heated seat.
6.
Recirculated air:Press to activate/deactivate air recirculation
in the cabin. Recirculated air may reduce the amount of time to cool
down the interior of the vehicle and may also help reduce undesired
odors from reaching the interior of the vehicle. Recirculation can be
engaged manually in any other airflow selection except defrost.
Recirculation may turn off automatically in all airflow selections.
7.A/C:Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. Engages
automatically in AUTO, defrost and floor/defrost.
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Climate Controls
28

OPERATING TIPS
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
airflow selector in the OFF or with recirculated air engaged.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•For maximum cooling performance (MAX A/C):
In AUTO mode, press AUTO control and set to desired temperature.
In manual override control, select
or, A/C and recirculated
air
and set the temperature to 60°F (16°C). Set the fan to the
highest speed initially, then adjust to maintain passenger comfort.
•To improve the A/C cool down, drive with the windows slightly open
for 2–3 minutes after starting the vehicle or until the vehicle has
“aired out.”
In extremely cold temperatures, to maximize overall heater performance
it is suggested to not operate the auxiliary system (if so equipped) until
the engine temperature gauge crosses into the normal operating range.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan to the highest speed.
5. Direct the outer instrument panel vents towards the side windows.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Climate Controls
30

5. Wait the desired amount of time for the exit delay you want (up to
three minutes), then turn the headlamp switch to
. The headlamps
will turn off.
Foglamp control (if equipped)
With the ignition on, the foglamps
can be turned on when the
headlamp control is pulled toward
you and is in any of the following
positions:
•Parking lamps
•Low beams
•Autolamps (when active)
The foglamps will not operate when
the high beams are active.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the ON position,
•the headlamp control is in the OFF, autolamps or parking lamp
position and
•the transmission must be out of the Park position.
Always remember to turn on your headlamps at dusk or during
inclement weather. The Daytime Running Lamp (DRL) system
does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Lights
33

“E” for Europe to assure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of bulbsTrade
number
*Headlamp high beam 2 9005
*Headlamp low beam 2 D1R (HID)
Sidemarker lamp 2194A
(amber)
Park/turn signal lamp 23157AK or
3157A
(amber)
*Stop/tail lamp N/A LED
Backup lamp 2 921
Rear turn signal lamp 23157A
(amber)
License plate lamp 2 168
*High-mount brake lamp N/A LED
Foglamp (if equipped) 2 9145 (H10)
Map lamp 2 12V6W
Dome/reading lamp 6 578
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer.
*To replace these lamps - see your dealer.
Replacing headlamp bulbs
If either the low beam or high beam headlamp bulb fails, take
your vehicle to your dealer or a qualified service technician to
have it replaced.
Replacing HID headlamp bulbs
The low beam headlamps on your vehicle use a “high intensity discharge”
source. These lamps operate at a high voltage. The bulb is NOT
replaceable. When the bulb is burned out, the bulb assembly must be
replaced by your dealer or a qualified technician.
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Lights
37

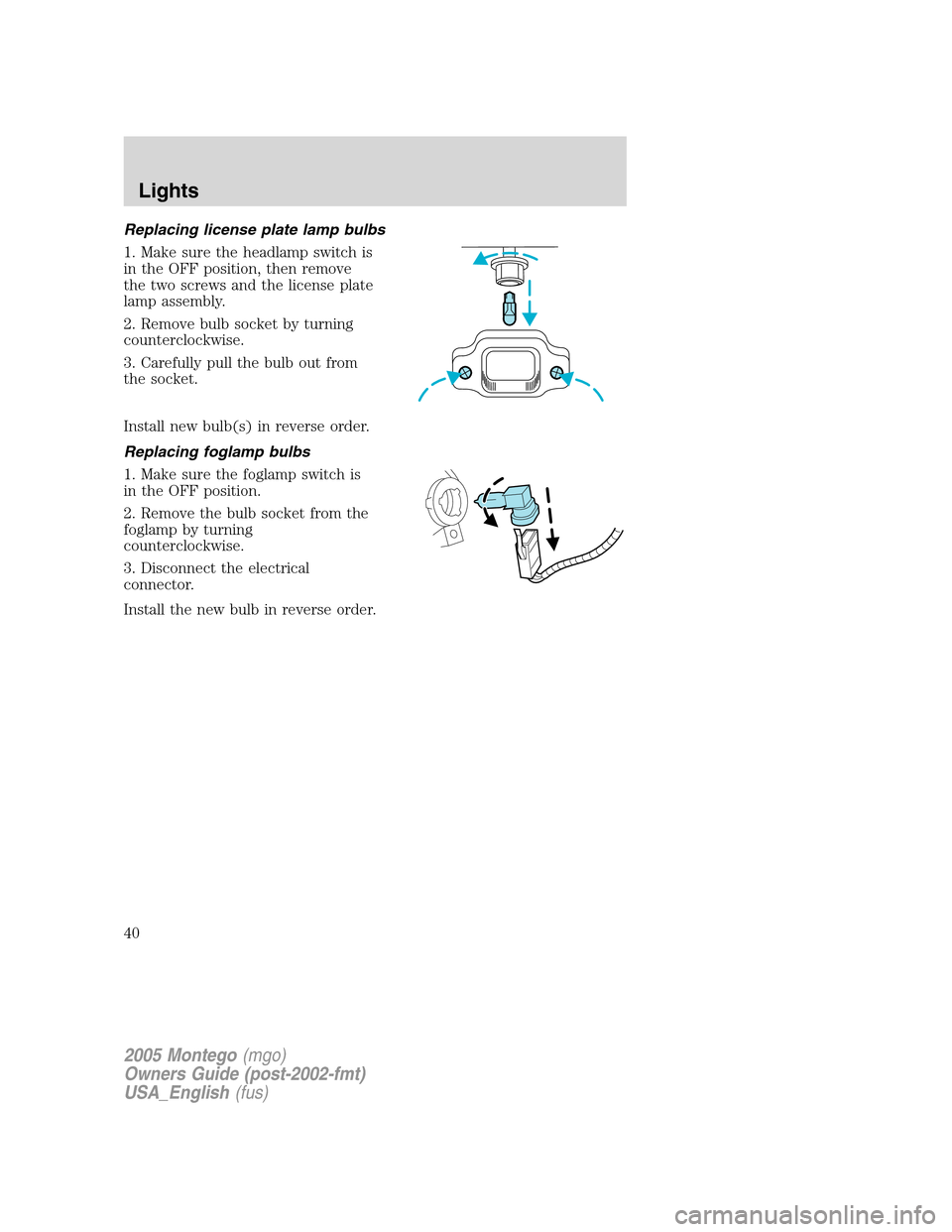

Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position, then remove
the two screws and the license plate
lamp assembly.
2. Remove bulb socket by turning
counterclockwise.
3. Carefully pull the bulb out from
the socket.
Install new bulb(s) in reverse order.
Replacing foglamp bulbs
1. Make sure the foglamp switch is
in the OFF position.
2. Remove the bulb socket from the
foglamp by turning
counterclockwise.
3. Disconnect the electrical
connector.
Install the new bulb in reverse order.
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Lights
40

•If the courtesy lamps were turned on because one of the vehicle doors
was opened, the battery saver will shut off them off 10 minutes after
the ignition has been turned to the 1 (LOCK) position.
•The battery saver will shut off the headlamps and foglamps 10
minutes after the ignition has been turned to the 1 (LOCK) position.
Illuminated exit
•When all vehicle doors and the trunk are closed, and the key is
removed from the ignition, the interior dome lamps (and the exterior
mirror puddle lamps, if equipped) will illuminate.
The lights will turn off if all the doors and the trunk remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•open the trunk.
•recall memory seat/power
mirrors/adjustable pedals
positions 1 or 2.
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s
wallet card in the glove box, is
marked on the computer module,
and is available from your
authorized dealer. You can also
create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory seats, mirrors and pedals
To create your own personal entry code:
1. Enter the factory set code.
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
78

specifications ..................245, 247
Exhaust fumes ..........................165
F
Fluid capacities .........................242
Foglamps .....................................33
Four-Wheel Drive vehicles
driving off road .......................175
Fuel ............................................228
calculating fuel
economy ............................58, 233
cap ...........................................230
capacity ...................................242
choosing the right fuel ...........231
comparisons with EPA fuel
economy estimates .................236
detergent in fuel .....................232
filling your vehicle
with fuel ..................228, 230, 233
filter, specifications ........232, 241
fuel pump shut-off switch .....183
improving fuel economy ........233
octane rating ...................231, 247
quality ......................................232
running out of fuel .................232
safety information relating to
automotive fuels .....................228
Fuel pump shut-off switch .......183
Fuses ..........................................184
G
Garage Door Opener
(see Homelink wireless
control system) ...........................53
Gas cap (see Fuel cap) ............230
Gas mileage
(see Fuel economy) .................233
Gauges .........................................14H
Hazard flashers .........................183
Head restraints .....................87, 92
Headlamps ...................................32
aiming ..................................34–35
autolamp system .......................32
bulb specifications ....................36
daytime running lights .............33
flash to pass ..............................34
high beam .................................34
replacing bulbs .........................37
turning on and off ....................32
Heating
heating and air conditioning
system ...........................24, 26, 28
Homelink wireless control
system ..........................................53
Hood ..........................................214
I
Ignition ...............................162, 247
Infant seats
(see Safety seats) .....................122
Inspection/maintenance
(I/M) testing ..............................238
Instrument panel ........................43
cleaning ...................................210
cluster ........................................10
lighting up panel and
interior .......................................34
J
Jack ............................................135
positioning ...............................135
storage .....................................135
Jump-starting your vehicle ......191
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Index
255

K
Keyless entry system .................78
autolock .....................................80
Keys
positions of the ignition .........162
L
Lamps
autolamp system .......................32
bulb replacement
specifications chart ..................36
daytime running light ...............33
fog lamps ...................................33
headlamps .................................32
headlamps, flash to pass ..........34
instrument panel, dimming .....34
interior lamps ...........................36
replacing bulbs ...................36–40
Lane change indicator
(see Turn signal) ........................36
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........166
Load limits .................................152
Locks
autolock .....................................80
childproof ..................................71
doors ..........................................70
Lubricant specifications ...245, 247
Lug nuts ....................................142
Lumbar support, seats ...............88
M
Message center ...........................57
english/metric button ...............61
system check button ................62
warning messages .....................62
Mirrors ...................................43, 47automatic dimming rearview
mirror ........................................47
fold away ...................................47
side view mirrors (power) .......47
Moon roof ....................................52
Motorcraft parts ................232, 241
O
Octane rating ............................231
Oil (see Engine oil) ..................216
P
Parking brake ............................167
Parts (see Motorcraft parts) ....241
Passenger Occupant
Classification Sensor ...................95
Power adjustable foot pedals .....48
Power distribution box
(see Fuses) ...............................187
Power door locks ........................70
Power mirrors .............................47
Power point .................................44
Power steering ..........................168
fluid, checking and adding ....238
fluid, refill capacity ................242
fluid, specifications .........245, 247
Power Windows ...........................44
R
Radio ......................................16, 19
Relays ........................................184
Remote entry system .................73
illuminated entry ................77–78
opening the trunk .....................74
2005 Montego(mgo)
Owners Guide (post-2002-fmt)
USA_English(fus)
Index
256
