Mercury Montego 2005 Quick Reference Guide

Driver and Passenger Side Temperature
Set desired cabin temperature with the 1or 4red and blue buttons. Press 1 for driver’s
side, 4for passenger’s side. Recommended
setting is 72°F (22°C) to 75°F (24°C).
Dual Control (if equipped)
Press 10DUAL to engage/disengage separate
passenger side temperature control. For controlswithout a 10DUAL button, press and hold 2
AUTO to engage/disengage separatepassenger
side temperature control.
Automatic Operation
Set desired 1cabin temperature. Press 2AUTO
button for full automatic operation. The systemwill automatically adjust airflow temperature,fan speed, airflow direction, A/C, andrecirculated air based on the selectedtemperature to heat or cool the vehicle to thedesired temperature as soon as possible.
Max A/C Operation
Automatic operation: Press 2AUTO button for
full automatic operation. Do not override A/C or
recirculated air. Set the desired temperature.Override Operation: Select 7air distribution.
Select 8A/C and 9 recirculated air. Use
recirculated air with A/C to provide colder
airflow. Set temperature setting to 60°F
(15.5°C). Initially set to highest fan speed 5,
then adjust to maintain comfort.Manual Override Operation:Press 1to set
desired cabin temperature. Adjust any of thefollowing for personal comfort preferences: 5
fan speed, 7 airflow direction, 8 A/C, and
9 recirculated air. Fan speed, A/C, and
recirculated air overrides will not turn off the
AUTO indicator light. Airflow direction overrides
will turn off the AUTO indicator light.
One Button Airflow Direction Control (if equipped)Press 7repeatedly to select airflow direction.
Defogging / Demisting
Press 3to distribute outside air through the
windshield defroster vents and demister vents.
To reduce humidity buildup in the vehicle,do not drive with the Climate Control turned off. Also, do not drive with recirculated air selectedunless A/C is operating.
Heated Seats (if equipped)
Press 6to cycle through available settings of
high heat (2 lights), low heat (1 light), and off(no lights). 1
2
4
57910
3
686

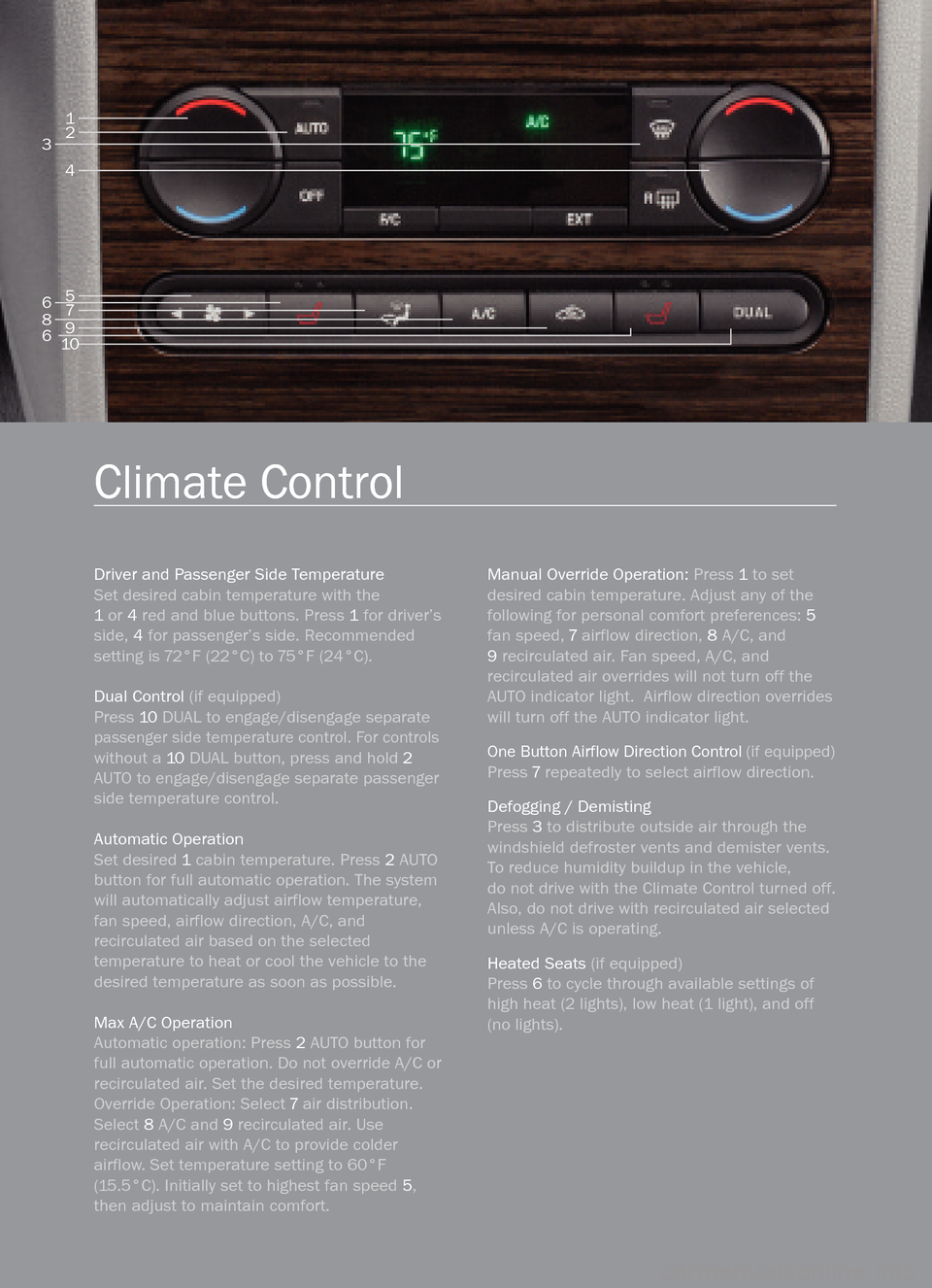

Climate Control

2005 Mercury |Montego
Quick Reference Guide
