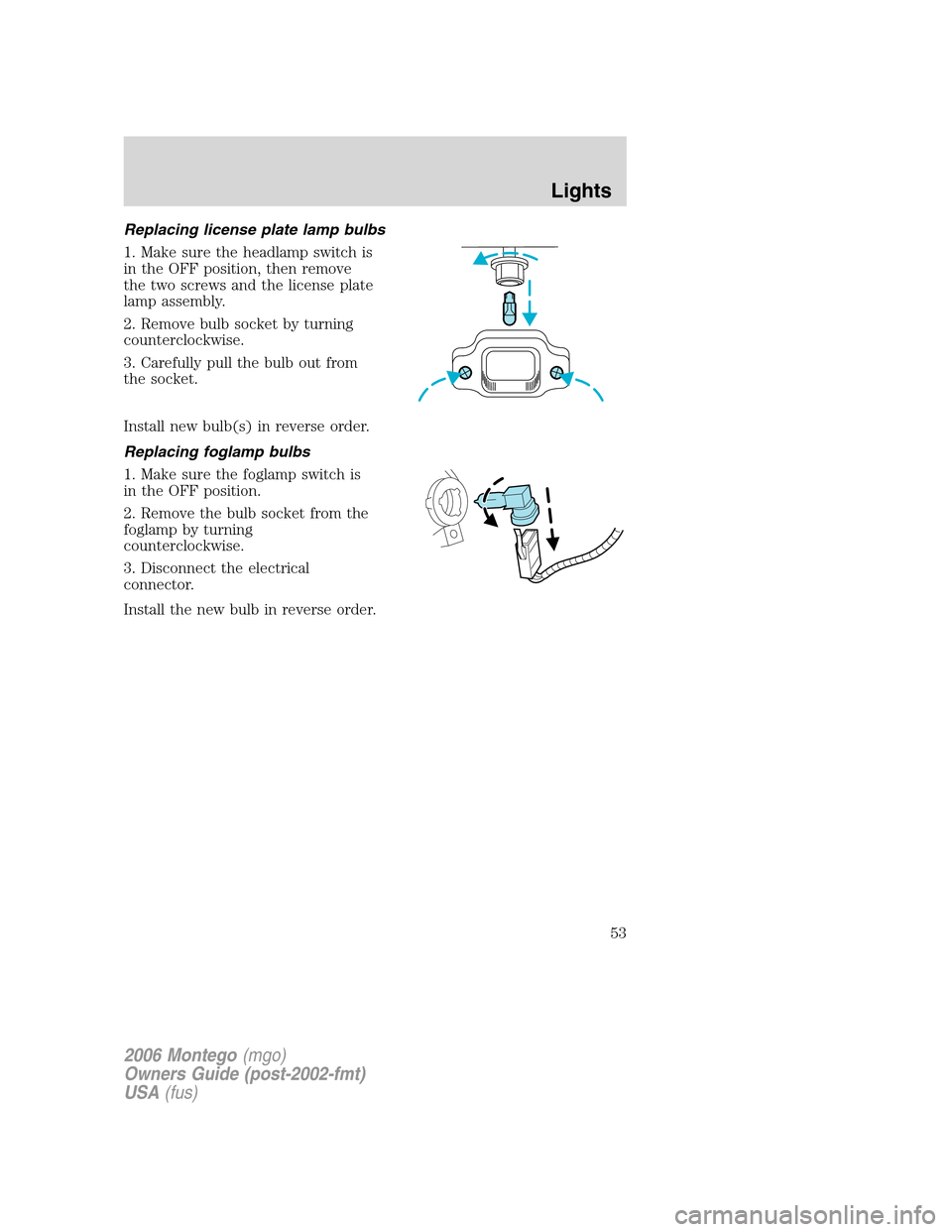

Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position, then remove
the two screws and the license plate
lamp assembly.
2. Remove bulb socket by turning
counterclockwise.
3. Carefully pull the bulb out from
the socket.
Install new bulb(s) in reverse order.
Replacing foglamp bulbs
1. Make sure the foglamp switch is
in the OFF position.
2. Remove the bulb socket from the
foglamp by turning
counterclockwise.
3. Disconnect the electrical
connector.
Install the new bulb in reverse order.
2006 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
53

The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Battery saver
The battery saver will shut off the interior lamps 30 minutes after the
ignition has been turned to the 1 (LOCK) position.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut off them off 30 minutes after the ignition has
been turned to the 1 (LOCK) position.
•If the courtesy lamps were turned on because one of the vehicle doors
was opened, the battery saver will shut them off 10 minutes after the
ignition has been turned to the 1 (LOCK) position.
•
The battery saver will shut off the headlamps and foglamps 10 minutes
after the ignition has been turned to the 1 (LOCK) position.
Illuminated exit
•When all vehicle doors and the trunk are closed, and the key is
removed from the ignition, the interior dome lamps (and the exterior
mirror puddle lamps, if equipped) will illuminate.
The lights will turn off if all the doors and the trunk remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
2006 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
88

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
10 30A* Starter
11 30A* Powertrain Control Module (PCM)
relay
12 20A* ABS (Valves)
13 — Not used
14 — Not used
15 15A** Traction Control Module (TCM)
16 20A** Power point (Console)
17 10A** Alternator
18 40A* Logic feed to SJB, SJB solid state
devices
19 20A* Right-hand HID low beam
headlamp
20 40A* Rear defroster
21 30A* Power seat motors (passenger)
22 30A* Heated seat modules
23 15A** Fog lamps
24 10A** A/C clutch relay, A/C compressor
clutch
25 — Not used
26 — Not used
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
28 80A* SJB power, SJB (Circuit breaker,
Fuses 6, 7, 9, 10, 11 and 15)
29 30A* Driver window motor
30 20A* Left-hand HID low beam
headlamp
31 — Not used
32 30A* Driver seat motors, Memory
module
33 30A* Ignition switch (to SJB)
2006 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
195

ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray Motorcraft Engine Shampoo and Degreaser (ZC-20) on all parts
that require cleaning and pressure rinse clean.
•Cover the highlighted areas to prevent water damage when cleaning
the engine.
•3.0L Duratec engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3–A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
2006 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
220

Foglamps .....................................46
Four-Wheel Drive vehicles
driving off road .......................181
Fuel ............................................240
calculating fuel
economy ............................71, 245
cap ...........................................242
capacity ...................................255
choosing the right fuel ...........243
comparisons with EPA fuel
economy estimates .................247
detergent in fuel .....................244
filling your vehicle
with fuel ..................240, 242, 245
filter, specifications ........240, 254
fuel pump shut-off switch .....190
improving fuel economy ........245
octane rating ...................243, 259
quality ......................................244
running out of fuel .................244
safety information relating to
automotive fuels .....................240
Fuel pump shut-off switch .......190
Fuses ..........................................190
G
Gas cap (see Fuel cap) ............242
Gas mileage
(see Fuel economy) .................245
Gauges .........................................14
H
Hazard flashers .........................189
Head restraints ...................97, 103
Headlamps ...................................45
aiming ........................................47
autolamp system .......................45
bulb specifications ....................50daytime running lights .............47
flash to pass ..............................46
high beam .................................46
replacing bulbs .........................50
turning on and off ....................45
Heating
heating and air conditioning
system .................................39, 41
Homelink wireless control
system ..........................................66
Hood ..........................................226
I
Ignition ...............................168, 259
Illuminated visor mirror .............55
Infant seats
(see Safety seats) .....................136
Inspection/maintenance (I/M)
testing ........................................249
Instrument panel ........................56
cleaning ...................................221
cluster ........................................10
lighting up panel and
interior .......................................47
J
Jack ............................................197
positioning ...............................197
storage .....................................197
Jump-starting your vehicle ......203
K
Keyless entry system .................89
autolock .....................................90
keypad .......................................89
locking and unlocking doors ....90
programming entry code .........89
2006 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Index
267

Keys .............................................93
positions of the ignition .........168
L
Lamps
autolamp system .......................45
bulb replacement
specifications chart ..................50
daytime running light ...............47
fog lamps ...................................46
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....47
interior lamps ...........................49
replacing bulbs ...................50, 53
Lane change indicator
(see Turn signal) ........................49
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........172
Load limits .................................158
Locks
autolock .....................................90
childproof ..................................81
doors ..........................................80
Lubricant specifications ...257, 259
Lug nuts ....................................203
Lumbar support, seats ...............98
M
Message center ...........................70
english/metric button ...............75
system check button ................75
warning messages .....................76
Mirrors .........................................60
automatic dimming rearview
mirror ........................................59
fold away ...................................60
heated ........................................61
side view mirrors (power) .......60Moon roof ....................................65
Motorcraft parts ........223, 240, 254
N
Navigation system .......................24
O
Octane rating ............................243
Oil (see Engine oil) ..................229
P
Parking brake ............................172
Parts (see Motorcraft parts) ....254
Passenger Occupant
Classification Sensor .................106
Power adjustable foot pedals .....61
Power distribution box (see
Fuses) ........................................193
Power door locks ........................80
Power mirrors .............................60
Power point .................................57
Power steering ..........................174
fluid, checking and adding ....250
fluid, refill capacity ................255
fluid, specifications .........257, 259
Power Windows ...........................57
R
Radio ......................................16, 19
Relays ........................................190
Remote entry system .................83
illuminated entry ................87–88
locking/unlocking doors .....83–84
opening the trunk .....................84
2006 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Index
268
