Introduction 4
Instrument Cluster 10
Warning lights and chimes 10
Gauges 14
Entertainment Systems 16
AM/FM stereo with CD 16
AM/FM stereo with in-dash six CD 21
Satellite radio information 27
Family entertainment system 31
Climate Controls 46
Automatic temperature control 46
Rear window defroster 51
Lights 52
Headlamps 52
Turn signal control 56
Bulb replacement 56
Driver Controls 61
Windshield wiper/washer control 61
Steering wheel adjustment 62
Power windows 65
Mirrors 67
Speed control 69
Moon roof 72
Message center 78
Locks and Security 88
Keys 88
Locks 88
Anti-theft system 100
Table of Contents
1
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)

Speed control:Illuminates when
the speed control is engaged. Turns
off when the speed control system
is disengaged.
Low washer fluid (if equipped):
Illuminates when the windshield
washer fluid is low.
Door ajar (if equipped):
Illuminates when the ignition is in
the ON position and any door or
decklid is open.
Anti-theft system:Flashes when
the SecuriLockPassive Anti-theft
System has been activated.
Throttle Control/Transmission:
Illuminates when a powertrain fault
or an AWD fault (if equipped) has
been detected. Contact your
authorized dealer as soon as possible.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
13

TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps and map lamps
The map lamps are located on the
overhead console. Press the controls
on either side of each map lamp to
turn on the lamps.
Your vehicle may also have reading
lamps within the rear dome lamp(s).
Press the switches on either side of
the dome lamp to turn on the
lamps.
BULB REPLACEMENT
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
56

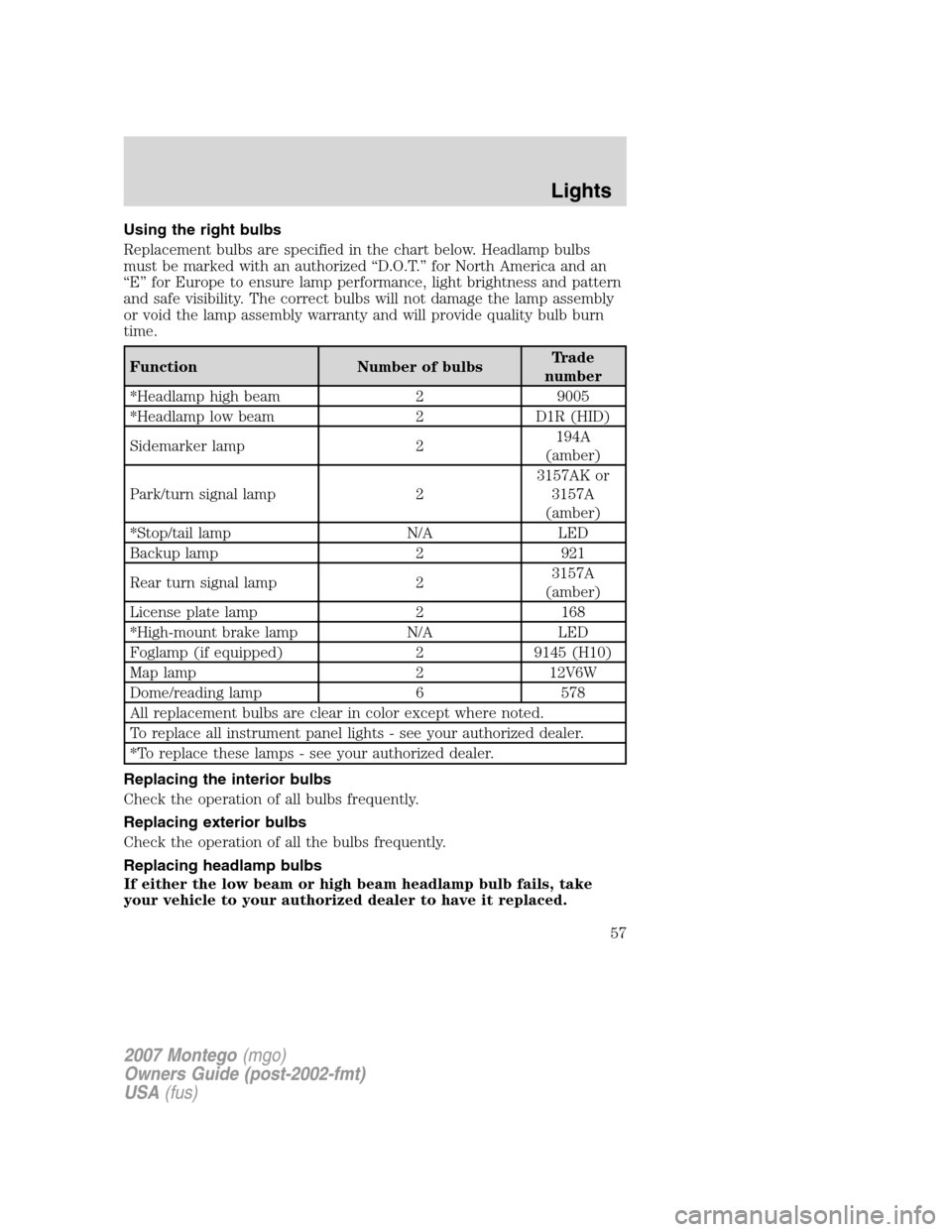

Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of bulbsTrade
number
*Headlamp high beam 2 9005
*Headlamp low beam 2 D1R (HID)
Sidemarker lamp 2194A
(amber)
Park/turn signal lamp 23157AK or
3157A
(amber)
*Stop/tail lamp N/A LED
Backup lamp 2 921
Rear turn signal lamp 23157A
(amber)
License plate lamp 2 168
*High-mount brake lamp N/A LED
Foglamp (if equipped) 2 9145 (H10)
Map lamp 2 12V6W
Dome/reading lamp 6 578
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
*To replace these lamps - see your authorized dealer.
Replacing the interior bulbs
Check the operation of all bulbs frequently.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing headlamp bulbs
If either the low beam or high beam headlamp bulb fails, take
your vehicle to your authorized dealer to have it replaced.
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
57

Replacing HID headlamp bulbs
The low beam headlamps on your vehicle use a “high intensity discharge”
source. These lamps operate at a high voltage. The bulb is NOT
replaceable. When the bulb is burned out, the bulb assembly must be
replaced by your authorized dealer.
Replacing front parking lamp/turn signal bulbs
1. Make sure headlamp switch is in the OFF position, then open the
hood.
2. Turn the front wheels inboard and loosen the three screws on the
splash shield in front of the tire.
3. Remove the bulb socket by
turning it counterclockwise and
pulling it straight out.
4. To remove the bulb, pull it
straight out of the bulb socket.
Install the new bulb(s) in reverse order.
Replacing front sidemarker bulbs
1. Make sure headlamp switch is in the OFF position, then open the
hood.
2. Turn the front wheels inboard and loosen the three screws on the
splash shield in front of the tire.
3. Locate the sidemarker lamp
electrical connector and remove it
by pulling it straight off.
4. Remove the bulb socket by
turning it counterclockwise and
pulling it straight out.
5. To remove the bulb, pull it
straight out of the bulb socket.
Install the new bulb(s) in reverse order.
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
58

Replacing turn signal lamp/backup lamp bulbs
The backup lamp and turn signal lamp bulbs are located in the tail lamp
assembly. Follow the same steps to replace either bulb.
1.Turn signal lamp
2.Backup lamp
1. Make sure the headlamp switch is in the OFF position and open the
trunk.
2. Remove the cargo net fastener. Carefully pull the carpet away to
expose the backside of the tail lamp assembly.
3. Remove the nut and washer assemblies, then pull the lamp assembly
away from the vehicle.
4. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
5. Pull the bulb straight from the
socket.
Install new bulb(s) in reverse order.
Replacing brake and tail lamp bulbs
These must be replaced by your authorized dealer.
Replacing high-mount brake lamp bulbs
This must be replaced by your authorized dealer.
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
59
