6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
7. Close the hood and turn off the lamps.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
The interior lights illuminate when:
•any door is opened (and the operation switch is in the middle
position).
•the instrument panel dimmer switch is moved to the passenger side
position (right position).
•any of the remote entry controls are pressed and the ignition is OFF
(an the operation switch is in the middle position).
Map lamps (if equipped)
The map lamps and controls are
located on the center overhead
console. Press the raised portion on
each lens to activate the lamps.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
41

•pushing and releasing the right or
left hand second row passenger
control. The control(s) are
located on the trim panel in front
of the sliding door.
•manually pulling the inside or
outside sliding door handle.
•by manually moving the door
when the door is in the open position. Manually pull the door about 6
inches in the desired direction of travel. The power door assist will
take over and complete the open or close operation.
•operating the remote transmitter. Refer toRemote Entry Systemin
theLocks and securitychapter. Operating the transmitter will also
simultaneously unlock the doors.
Pressing any of the switches, overhead console, second row passenger, or
remote transmitter while the door is moving will cause the door to either
reverse direction or stop depending on the position and direction of
movement of the door.
Disabling PSD power operation
Pressing the Power Door Lockout Control to the OFF position prevents
power operation of the PSD using the rear seat control(s), inside or
outside handle or by manually moving the door. With the PSD rear
controls disabled, the door(s) can be opened manually with the inside or
outside handles. With the Power Door Lockout control in the OFF
position, the overhead console right and left hand controls and the
Remote Entry System remain functional. Disabling the PSD may be
desirable to prevent power operation of the door by rear seat passengers
or if manual operation of the door is desired or necessary when the
vehicle is stopped or parked on a steep downhill grade.
Refer toManual Operation of the Sliding Doorin this chapter for more
information.
With the child safety lock engaged, the inside handle operation will
always be disabled regardless of the position of the Power Door Lockout
control. SeeSliding Door Child Safety Lockin this section for more
information. The trim mounted rear seat control and the outside handle
remain functional for power operation.
Safety/Obstructions
If anything obstructs the Power Sliding Door while it is power closing or
opening, the door will automatically reverse or stop depending on the
position of the door, provided it meets sufficient resistance.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
54

To open the sliding door when the
child safety lock is on:
•Unlock the sliding door and open
the door from the outside.
•Press the right or left hand
control on the overhead console
or the remote to open the door.
•The second row passenger switch will still be functional to open the
door. To prevent the second row passenger from operating the PSD,
turn the Power Door Lockout control to the OFF position.
Cleaning the Sliding Door Contacts
The sliding door contact switches
provide electrical information
between the sliding door and body,
which control the power locks and
the power sliding door (if
equipped). Care should be taken
while using waxes or polishes to
avoid contaminating the electrical
contact surfaces. Beverage and
other spills on the surfaces should
be cleaned immediately with a soap
and water solution and dried with a clean towel. Never use any abrasives
or dielectric grease on the contact surfaces. Periodically wiping the
surfaces with a soft clean cloth or paper towel will help remove oxidation
due to normal use. Refer to the Scheduled Maintenance Guide for
additional information.
INSTRUMENT PANEL STORAGE COMPARTMENT
The storage compartment may be
used to secure sunglasses or similar
sized objects. Press the control to
open the storage compartment.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
56

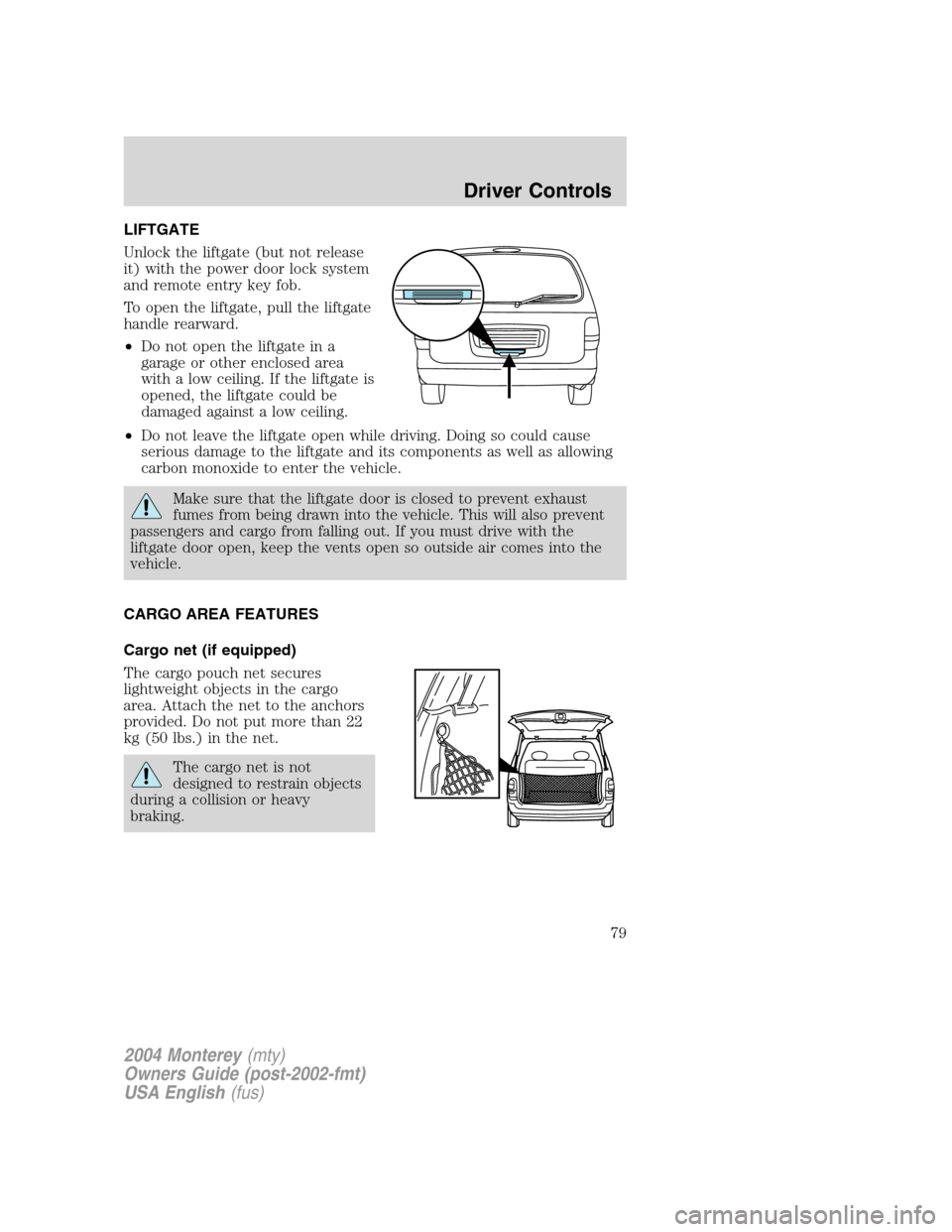

LIFTGATE
Unlock the liftgate (but not release
it) with the power door lock system
and remote entry key fob.
To open the liftgate, pull the liftgate
handle rearward.
•Do not open the liftgate in a
garage or other enclosed area
with a low ceiling. If the liftgate is
opened, the liftgate could be
damaged against a low ceiling.
•Do not leave the liftgate open while driving. Doing so could cause
serious damage to the liftgate and its components as well as allowing
carbon monoxide to enter the vehicle.
Make sure that the liftgate door is closed to prevent exhaust
fumes from being drawn into the vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate door open, keep the vents open so outside air comes into the
vehicle.
CARGO AREA FEATURES
Cargo net (if equipped)
The cargo pouch net secures
lightweight objects in the cargo
area. Attach the net to the anchors
provided. Do not put more than 22
kg (50 lbs.) in the net.
The cargo net is not
designed to restrain objects
during a collision or heavy
braking.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
79

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
Refer toSecuriLock
Passive Anti-Theft Systemfor more information.
POWER DOOR LOCKS
Press control to unlock all doors.
Note:When the perimeter alarm is
armed, the power door locks
“inhibit”state is enabled and this
switch is disabled.
Press control to lock all doors.
Memory lock
If you lock your doors with the power lock switch, the keyless entry
system or the remote entry transmitter while the sliding door is open,
the door will automatically lock after it is closed.
Smart locks (if equipped)
This feature prevents you from locking yourself out of the vehicle if your
key is still in the ignition.
When you open the driver’s door and you lock the vehicle with the power
door lock control, all the doors will lock, then the driver’s door will
automatically unlock reminding you that your key is still in the ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock button on the door, locking the driver’s door with a key, by
simultaneously pressing button 7•8 and the 9•0 controls on the
remote entry keypad (if equipped), or using the lock button on the
remote entry transmitter (if equipped).
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
Locks and Security
82

Childproof door locks
•When these locks are set, the
sliding doors cannot be opened
with the inside handle.
•The sliding doors can be opened
from the outside when the doors
are unlocked.
The childproof lock controls are
located on front edge of each sliding
door and must be set separately for each door. Setting the lock for one
door will not automatically set the lock for both doors.
•Move lock control up to engage the childproof lock feature.
•Move control down to disengage childproof lock feature.
If your vehicle is equipped with power sliding door(s), refer to the
Power Sliding Doorsection of this chapter for more information on how
the childproof locks operate with this system.
REMOTE ENTRY SYSTEM
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
•3–button remote
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
83

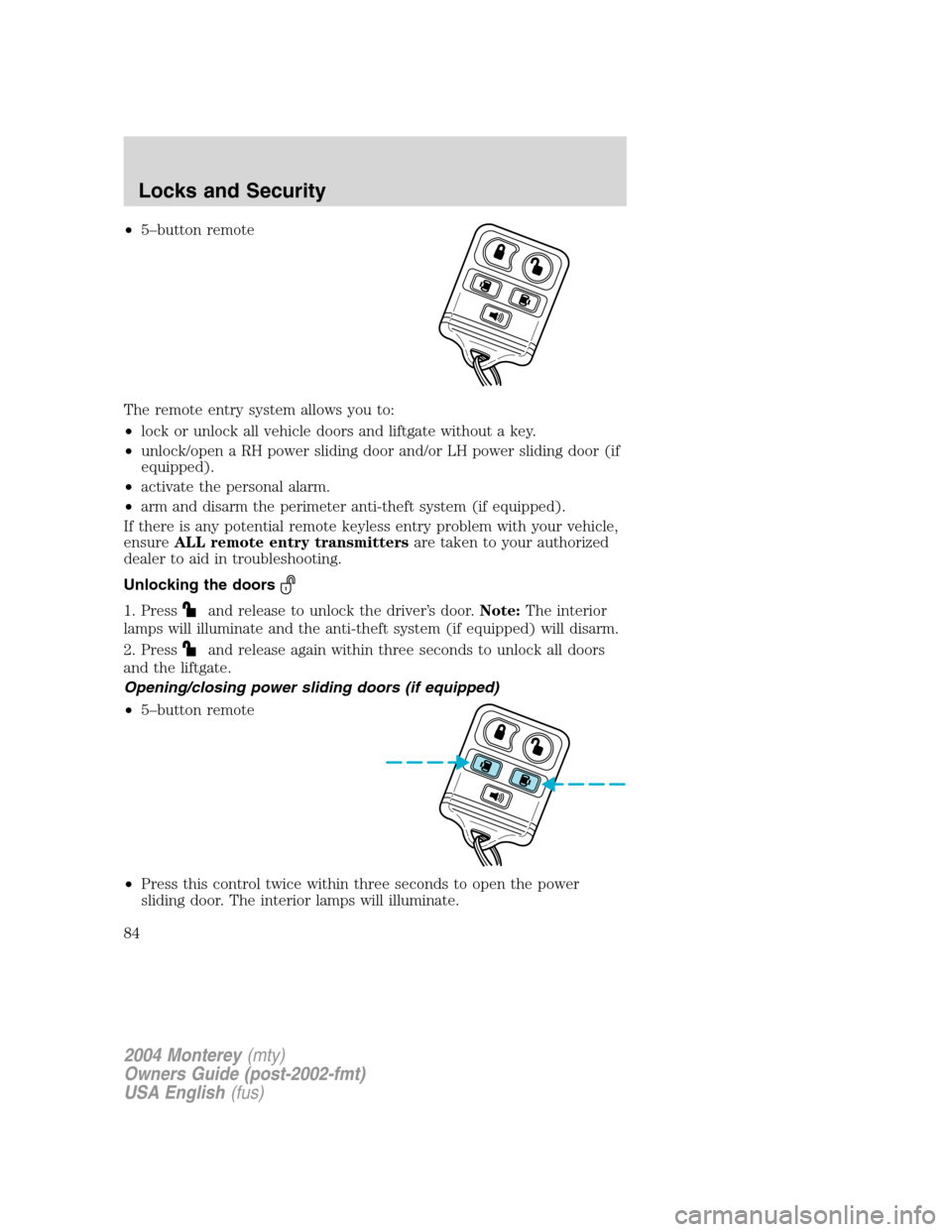

•5–button remote
The remote entry system allows you to:
•lock or unlock all vehicle doors and liftgate without a key.
•unlock/open a RH power sliding door and/or LH power sliding door (if
equipped).
•activate the personal alarm.
•arm and disarm the perimeter anti-theft system (if equipped).
If there is any potential remote keyless entry problem with your vehicle,
ensureALL remote entry transmittersare taken to your authorized
dealer to aid in troubleshooting.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate and the anti-theft system (if equipped) will disarm.
2. Press
and release again within three seconds to unlock all doors
and the liftgate.
Opening/closing power sliding doors (if equipped)
•5–button remote
•Press this control twice within three seconds to open the power
sliding door. The interior lamps will illuminate.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
84

•Press this control another two times within three seconds to close the
power sliding door and turn off the interior lights.
Locking the doors
1. Pressand release to lock all the doors and liftgate. The parking
lamps will flash once if all doors, the liftgate and the hood are closed and
locked.
2. Press
and release again within three seconds to confirm that all the
doors and liftgate are closed and locked.Note:The doors will lock again,
the horn will chirp once, and the parking lamps will flash once more.
If any of the doors, the liftgate or the hood are not properly closed, the
horn will make two quick chirps.
Sounding a panic alarm
Press
to activate the alarm. The alarm will cycle the horn, the turn
signals will flash, and the interior lamps will illuminate.
Press again or turn the ignition to RUN or ACC to deactivate.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent. The typical operating range for your
remote entry transmitter is approximately 10 meters (33 feet). A
decrease in the operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle and
•other vehicles parked next to the vehicle.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
85

The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the RUN position, or
•the keyless entry system or the remote entry transmitter lock control
is pressed, or
•after 25 seconds of illumination.
The panel dimmer control mustnotbe set to the OFF/LOCK position for
the illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the panel dimmer control, or
•any door, power sliding door (if equipped) or the liftgate is open.
The battery saver will shut off the interior lamps 30 minutes after the
last door is closed, even if the panel dimmer control is left on.
Illuminated exit
•The interior lights will illuminate when the key is removed from the
ignition.
•When the headlamp control is on the“sleeping baby mode”, only the
lower interior lights will illuminate.
The system automatically turns off after 25 seconds. The panel dimmer
control mustnotbe set to the OFF/LOCK position for the illuminated
exit to operate.
Perimeter lamps illuminated entry (if equipped)
The exterior lamps illuminate when the vehicle is unlocked using the
remote entry transmitter, keyless keypad, or the driver’s door key lock
cylinder. The following items will illuminate:
•Puddle lamps
•Head lamps
•Park lamps
•Tail lamps
The system will automatically turn off if:
•the vehicle is locked using the remote entry system, the keyless entry
keypad or a key in the driver’s door key cylinder, or
•the ignition switch is turned to the RUN position, or
•after 25 seconds of illumination.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
88

Deactivating/activating the autolock feature
The deactivating/activating the autolock feature can be turned off by the
keyless entry pad (if equipped) on your door, driver configuration mode
or by your dealer.
Memory seat feature (if equipped)
The remote entry system allows you to recall the memory
seat/mirrors/adjustable pedals feature.
Press
to automatically move the seat/mirrors/adjustable pedals to the
desired memory position.Note:The seat will not travel to its final
position if the key is not in the ignition and the easy entry feature is
enabled.
Activating the memory feature
To activate this feature:
1. Position the seat, mirrors and adjustable pedals to the positions you
desire.
2. Press the SET control on the
driver’s door panel.
3. Within 5 five seconds, press any
control on the remote transmitter
and then press the 1 or 2 control on
the driver’s door panel to associate
with the Driver 1 or Driver 2
positions.
4. Repeat this procedure for another
remote transmitter if desired.
Deactivating the memory feature
To deactivate this feature:
1. Press the SET control on the driver’s door panel.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on
the driver’s door panel again.
3. Repeat this procedure for another remote transmitter if desired.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
90
