Replacing tail lamp/backup/turn lamp bulbs
1. Make sure the headlamp switch is
in the OFF position and open the
liftgate to expose the tail lamp
assembly, then remove the retaining
screws for the lamp assembly.
2. Carefully remove the lamp
assembly.
3. Rotate bulb socket
counterclockwise and remove from
lamp assembly.
4. Pull bulb straight out of socket and push in new bulb.
Install the new bulb(s) in reverse order.
Replacing high-mount brakelamp bulbs
For bulb replacement, see a dealer or qualified technician.
Replacing license plate lamp bulb
The license plate bulbs are located in the license plate housing assembly
on the liftgate. To change the license plate bulbs:
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the license lamp screw
from the assembly.
3. Pull the lamp down and twist the
bulb socket counterclockwise.
Remove the bulb socket from the
lamp.
4. Pull out the old bulb and push in
the new bulb.
5. Install the bulb socket in the lamp assembly by turning it clockwise.
6. Install the lamp assembly and secure it with the retaining screw.
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Lights
51

Liftgate ajar Warning returns after the ignition key
is turned from OFF to ON
Check left park lamp
Check right park lamp
Check left headlamp
Check fuel cap
Check right headlamp
Check left turn lamp
Washer fluid low
Check right turn lamp
Change oil soon
Check tires
Check brake lamps
Turn signal on reminder
DRIVER’S DOOR AJAR.Displayed when the driver’s door is not
completely closed.
PASSENGER DOOR AJAR.Displayed when the passenger side door is
not completely closed.
LEFT REAR DOOR AJAR.Displayed when the driver’s rear door is not
completely closed.
RIGHT REAR DOOR AJAR.Displayed when the passenger side rear
door is not completely closed.
LIFTGATE AJAR.Displayed when the liftgate is not completely closed.
TRANSMISSION OVERHEATED.Indicates the transmission is
overheating. This warning may appear when towing heavy loads or when
driving in a low gear at a high speed for an extended period of time.
Stop the vehicle as soon as safely possible, turn off the engine and let it
cool. Check the transmission fluid and level. Refer toTransmission
fluidin theMaintenance and Specificationschapter. If the warning
stays on or continues to come on, contact your dealer for transmission
service as soon as possible.
PARK BRAKE SET.Displayed when the manual park brake is set. If
the warning stays on after the park brake is released, contact your dealer
as soon as possible.
CHECK BRAKE SYSTEM.Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your dealer as soon as possible.
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Driver Controls
81

REDUCED ENGINE POWER.Displayed when the engine temperature
exceeds safe driving operating range and the vehicle limits engine power
to prevent engine damage.
STOP ENGINE SAFELY.Displayed when the engine temperature
exceeds safe driving operating range and the engine must be shut down
to prevent damage. Stop the vehicle as soon as possible and turn off the
engine. If this warning stays on, contact your dealer as soon as possible.
CHECK BRAKE LAMPS.Displayed when the brake lamps are
activated and at least one is burned out. Check the lamps as soon as
possible and have the burned out lamp replaced. The center high-mount
brakelamp is not monitored.
CHECK LEFT OR RIGHT HEADLAMPS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT PARK LAMPS.Displayed when the park
lamps are activated and at least one is burned out. Check the lamps as
soon as possible and have the burned out lamp replaced.
CHECK LEFT OR RIGHT TURN LAMPS.Displayed when the turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced.
CHECK TRACTION CONTROL (if equipped).Displayed when the
Traction Control
system is not operating properly. If this warning stays
on, contact your dealer for service as soon as possible. For further
information, refer toAdvanceTracstability enhancement systemin
theDrivingchapter.
CHECK FUEL CAP.Displayed when the fuel filler cap is not properly
installed. Check the fuel filler cap for proper installation. Refer toFuel
filler capin theMaintenance and Specificationschapter.
CHECK TIRES.Displayed when one or more tires on your vehicle have
low tire pressure. Refer toInspecting and Inflating Your Tiresin the
Tires, Wheels and Loadingchapter.
TURN SIGNAL ON REMINDER.Displayed when the turn signal is
activated and the vehicle is driven more that 0.8 km (1/2 mile).
WASHER FLUID LOW.Indicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level. Refer toWindshield
washer fluidin theMaintenance and Specificationschapter.
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Driver Controls
82

Illuminated entry
The interior lamps illuminate when the key in the driver’s door lock
cylinder, the keyless entry system or the remote entry transmitter is
used to unlock the door(s), power sliding doors (if equipped) or liftgate.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 4 (ON) position, or
•the keyless entry system or the remote entry transmitter lock control
is pressed, or
•after 25 seconds of illumination.
The panel dimmer control mustnotbe set to the off position for the
illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the panel dimmer control, or
•any door, power sliding door (if equipped) or the liftgate is open.
The battery saver will shut off the interior lamps 30 minutes after the
last door is closed, even if the panel dimmer control is left on.
Illuminated exit
•The interior lights will illuminate when the key is removed from the
ignition.
•When the headlamp control is on the “sleeping baby mode”, only the
lower interior lights will illuminate.
The system automatically turns off after 25 seconds. The panel dimmer
control mustnotbe set to the off position for the illuminated exit to
operate.
Perimeter lamps illuminated entry (if equipped)
The exterior lamps illuminate when the vehicle is unlocked using the
remote entry transmitter, keyless keypad, or the driver’s door key lock
cylinder. The following items will illuminate:
•Puddle lamps
•Head lamps
•Park lamps
•Tail lamps
The system will automatically turn off if:
•the vehicle is locked using the remote entry system, the keyless entry
keypad or a key in the driver’s door key cylinder, or
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
99

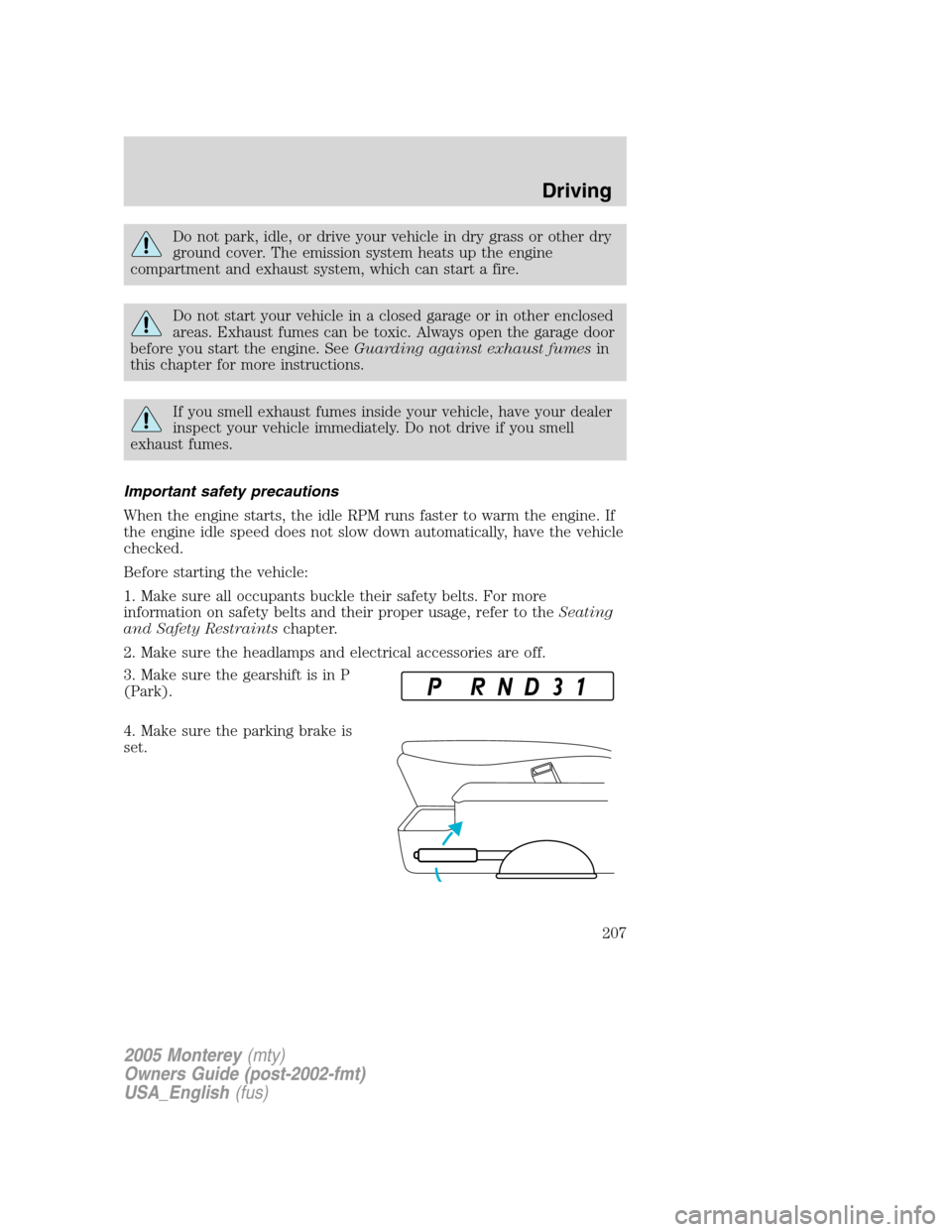

Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
3. Make sure the gearshift is in P
(Park).
4. Make sure the parking brake is
set.
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Driving
207

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
61 20A* Spare
62 30A* SJB #3 – Right cornering/auxiliary
lamps, Right low beam, Left front
park/turn lamps, Left rear
park/stop/turn lamps, Instrument
panel courtesy lamps, Step well
lamps, Left signal mirror, Clock,
Cluster, Message center (SJB
F–15), Switch illumination for:
overhead console, DVD/Rear
climate control system, Headlamp
switch illumination, Climate
control illumination
63 20A* Instrument panel power point,
Cigar lighter
64 20A* Ignition switch #1 feed
65 30A* SJB #2 – Left cornering/auxiliary
lamps, Left low beam, Right front
park/turn lamps, Right rear
park/stop/turn lamps, Puddle
lamps, Mirror signals, Visors, 2nd
and 3rd row lamps, Cargo lamp,
Defroster indicator
66 20A*
2nd and 3rd row seat power points
67 20A* Ignition switch #2 feed
70 — Not used
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 Diode PCM
76 Diode A/C clutch
* Mini Fuse ** Cartridge Fuse
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Roadside Emergencies
231

MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Mercury Accessories are available for your
vehicle through your local authorized Mercury or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Mercury
Accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Mercury Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
Following is a list of several Genuine Mercury Accessory products. Not
all accessories are available for all models. To find out what accessories
are available for your vehicle, please contact your dealer or visit our
online store at: www.mercuryaccessories.com.
Exterior style
Bug shields
Deflectors
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Bike racks
Cargo organization and management
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Accessories
293

Fluid capacities .........................286
Foglamps .....................................41
Fuel ............................................268
calculating fuel economy .......273
cap ...........................................270
capacity ...................................286
choosing the right fuel ...........271
comparisons with EPA fuel
economy estimates .................275
detergent in fuel .....................272
filling your vehicle with
fuel ...........................268, 270, 273
filter, specifications ........272, 285
fuel pump shut-off switch .....223
improving fuel economy ........273
octane rating ...................271, 289
quality ......................................272
running out of fuel .................272
safety information relating to
automotive fuels .....................268
Fuses ..................................224–225
G
Garage Door Opener
(see Homelink wireless control
system) ........................................72
Gas cap (see Fuel cap) ............270
Gas mileage
(see Fuel economy) .................273
Gauges .........................................15
H
Hazard flashers .........................223
Head restraints .................109, 113
Headlamps ...................................41
aiming ........................................44
autolamp system .......................42
bulb specifications ....................48daytime running lights .............42
flash to pass ..............................43
high beam .................................43
replacing bulbs .........................49
turning on and off ....................41
Heating
heating and air conditioning
system .......................................30
Homelink wireless control
system ..........................................72
Hood ..........................................255
I
Ignition ...............................206, 289
Infant seats
(see Safety seats) .....................158
Inspection/maintenance (I/M)
testing ........................................277
Instrument panel ........................63
cleaning ...................................251
cluster ........................................10
lighting up panel and
interior .......................................44
J
Jump-starting your vehicle ......232
K
Keyless entry system ...............101
autolock ...................................103
Keys ...........................................106
positions of the ignition .........206
L
Lamps
autolamp system .......................42
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Index
297

bulb replacement
specifications chart ..................48
daytime running light ...............42
fog lamps ...................................41
headlamps .................................41
headlamps, flash to pass ..........43
instrument panel, dimming .....44
interior lamps .....................46–48
replacing bulbs ...................48–52
Lane change indicator
(see Turn signal) ........................46
Liftgate ............................85, 89, 96
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........210
Load limits .................................194
Locks
autolock ...................................103
childproof ..................................92
doors ..........................................91
Low tire warning .................15, 191
Lubricant specifications ...287, 289
Lug nuts ....................................182
Luggage rack ...............................89
Lumbar support, seats .............112
M
Message center ...........................76
english/metric button ...............79
system check button ................79
warning messages .....................80
Mirrors ...................................55, 66
automatic dimming rearview
mirror ........................................66
fold away ...................................67
heated ........................................67
programmable memory ..........100
side view mirrors (power) .......66signal .........................................67
Motorcraft parts ................272, 285
O
Octane rating ............................271
Oil (see Engine oil) ..................257
Overdrive ...................................215
P
Park Assist ................................218
Parking brake ............................211
Parts (see Motorcraft parts) ....285
Passenger Occupant
Classification Sensor .................129
Pedals (see Power adjustable
foot pedals) .................................68
Power adjustable foot pedals .....68
Power distribution box
(see Fuses) ...............................228
Power door locks ................91, 103
Power liftgate ........................85, 96
Power mirrors .............................66
Power point .................................63
Power steering ..........................214
fluid, checking and adding ....278
fluid, refill capacity ................286
fluid, specifications .........287, 289
Power Windows ...........................65
R
Radio ................................17, 20, 23
Relays ........................................224
Remote entry system .................95
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Index
298
