2Ensure the correct automatic transmission fluid is used MERCONand
MERCONV are not interchangeable. DO NOT MIX MERCONand
MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval.

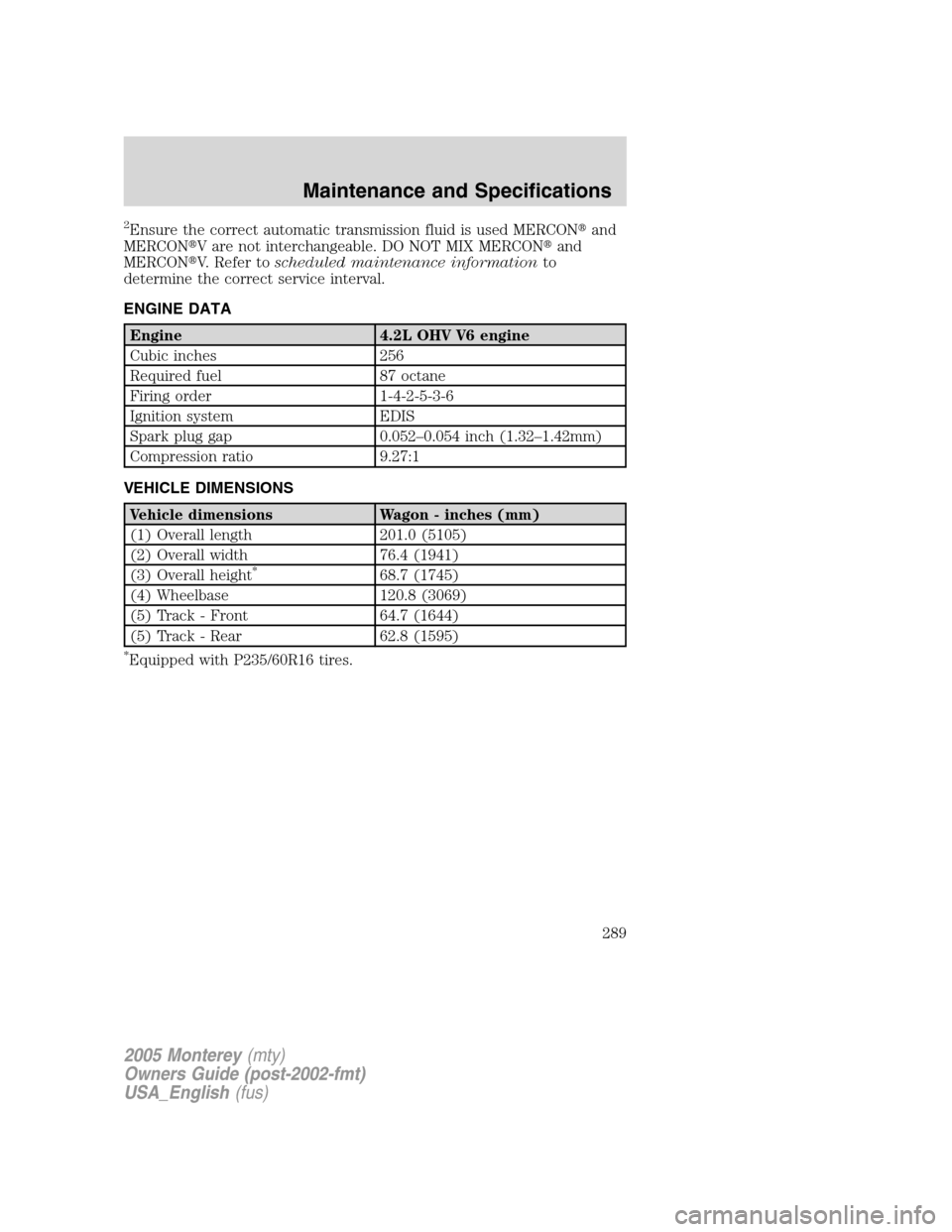

ENGINE DATA
Engine 4.2L OHV V6 engine
Cubic inches 256
Required fuel 87 octane
Firing order 1-4-2-5-3-6
Ignition system EDIS
Spark plug gap 0.052–0.054 inch (1.32–1.42mm)
Compression ratio 9.27:1
VEHICLE DIMENSIONS
Vehicle dimensions Wagon - inches (mm)
(1) Overall length 201.0 (5105)
(2) Overall width 76.4 (1941)
(3) Overall height
*68.7 (1745)
(4) Wheelbase 120.8 (3069)
(5) Track - Front 64.7 (1644)
(5) Track - Rear 62.8 (1595)
*Equipped with P235/60R16 tires.
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
289

Transmission
brake-shift interlock (BSI) ....214
fluid, checking and adding
(automatic) .............................279
lubricant specifications ..........287
Turn signal ..................................46
V
Vehicle dimensions ...................289
Vehicle Identification Number
(VIN) ..........................................291
Vehicle loading ..........................194
Ventilating your vehicle ...........209W
Warning lights (see Lights) .......10
Washer fluid ..............................257
Water, Driving through .............221
Windows
power .........................................65
rear wiper/washer .....................53
Windshield washer fluid and
wipers ..........................................53
checking and adding fluid .....257
liftgate reservoir .....................257
replacing wiper blades .............54
Wrecker towing .........................238
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Index
300
