adding oil Mercury Monterey 2006 Owner's Manuals

5. Locate and carefully remove the
engine oil level indicator (dipstick).
6. Wipe the indicator clean. Insert the indicator fully, then remove it
again.
•If the oil level iswithin this
range,the oil level is acceptable.
DO NOT ADD OIL.
•If the oil level isbelow this
mark,engineoil must be added
to raise the level within the
normal operating range.
•If required, add engine oil to the
engine. Refer toAdding engine
oilin this chapter.
2006 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
275

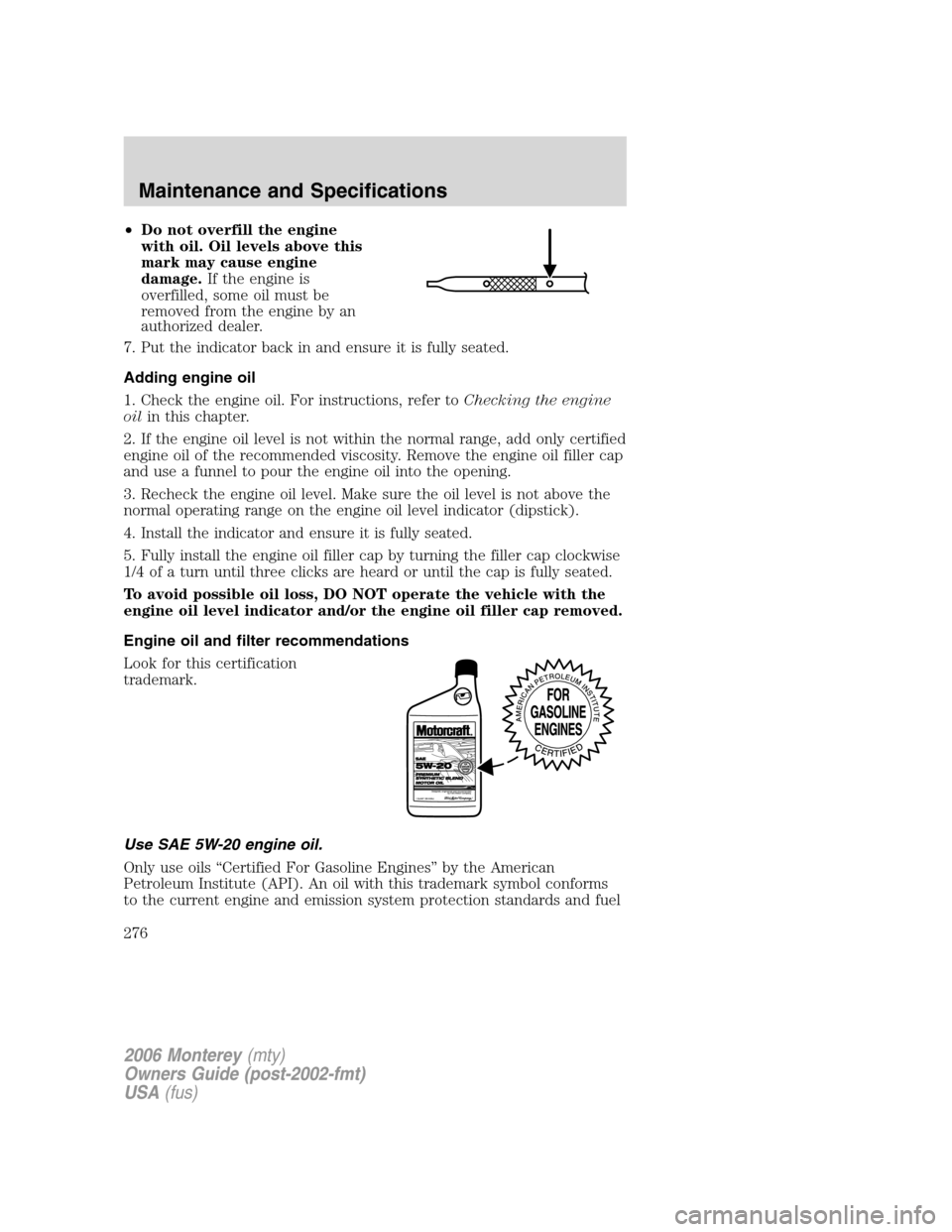

•Do not overfill the engine
with oil. Oil levels above this
mark may cause engine
damage.If the engine is
overfilled, some oil must be
removed from the engine by an
authorized dealer.
7. Put the indicator back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
1/4 of a turn until three clicks are heard or until the cap is fully seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil.
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
2006 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
276

•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
L
E
A
D
RETURN
RECYCLE
2006 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
280

•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toLubricant specificationsin
this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
EPA window sticker
Every new vehicle should have the EPA window sticker. Contact your
authorized dealer if the window sticker is not supplied with your vehicle.
The EPA window sticker should be your guide for the fuel economy
comparisons with other vehicles.
It is important to note the box in the lower left corner of the window
sticker. These numbers represent the Range of MPG (L/100 km)
2006 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
292

wiper blades ............................266
Clock ............................................62
Compass, electronic ....................55
calibration .................................56
set zone adjustment .................56
Console ........................................71
overhead ..............................54–55
Controls
power seat ...............................110
steering column ........................70
Coolant
checking and adding ..............280
refill capacities ................284, 303
specifications ..................304, 306
Cruise control
(see Speed control) ....................67
Cupholder(s) .............................114
Customer Assistance ................227
Ford Extended Service Plan .261
Getting assistance outside
the U.S. and Canada ..............261
Getting roadside assistance ...227
Getting the service
you need .................................254
Ordering additional
owner’s literature ...................262
Utilizing the Mediation/
Arbitration Program ...............260
D
Daytime running lamps
(see Lamps) ................................42
Dipstick
automatic transmission
fluid ..........................................296
engine oil .................................274
Doors ...........................................57
lubricant specifications ..........304power sliding ............................58
Driving under special
conditions ..................................222
through water .........................226
DVD system .................................29
E
Emergencies, roadside
jump-starting ..........................247
Emission control system ..........293
Engine ........................................306
cleaning ...................................265
coolant .....................................280
idle speed control ...................277
lubrication
specifications ..................304, 306
refill capacities ........................303
service points ..........................272
starting after a collision .........228
Engine block heater .................214
Engine oil ..................................274
change oil soon warning,
message center .......................274
checking and adding ..............274
dipstick ....................................274
filter, specifications ........276, 302
recommendations ...................276
refill capacities ........................303
specifications ..................304, 306
Exhaust fumes ..........................213
F
Floor mats ...................................71
Fluid capacities .........................303
Foglamps .....................................41
Fuel ............................................285
calculating fuel economy .......289
2006 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Index
313

headlamps .................................41
headlamps, flash to pass ..........43
instrument panel, dimming .....44
interior lamps .....................46–48
replacing bulbs ...................48–52
Lane change indicator
(see Turn signal) ........................46
Liftgate ............................83, 87, 95
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........215
Load limits .................................199
Locks
autolock ...................................102
childproof ..................................92
doors ..........................................90
Low tire warning .........................14
Lubricant specifications ...304, 306
Lug nuts ....................................246
Luggage rack ...............................87
Lumbar support, seats .............112
M
Message center ...........................75
english/metric button ...............77
system check button ................78
warning messages .....................78
Mirrors ...................................54, 65
automatic dimming
rearview mirror .........................65
fold away ...................................67
heated ........................................66
programmable memory ............99
side view mirrors (power) .......66
signal .........................................66
Motorcraft parts ........268, 285, 302
O
Octane rating ............................288Oil (see Engine oil) ..................274
Overdrive ...................................220
P
Park Assist ................................223
Parking brake ............................216
Parts (see Motorcraft parts) ....302
Passenger Occupant
Classification Sensor .................134
Pedals (see Power
adjustable foot pedals) ...............67
Power adjustable foot pedals .....67
Power distribution box
(see Fuses) ...............................233
Power door locks ................90, 102
Power liftgate ........................83, 95
Power mirrors .............................66
Power point .................................62
Power steering ..........................218
fluid, checking and adding ....295
fluid, refill capacity ................303
fluid, specifications .........304, 306
Power Windows ...........................64
R
Radio ................................17, 20, 23
Relays ........................................229
Remote entry system .................94
illuminated entry ................43, 98
locking/unlocking doors .....90, 94
Roadside assistance ..................227
Roof rack .....................................87
S
Safety Belt Maintenance ..........146
2006 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Index
315
