child lock Mercury Monterey 2007 s User Guide

7. Pull the lap belt portion across
the child seat toward the buckle and
pull up on the shoulder belt while
pushing down with your knee on the
child seat.
8. Allow the safety belt to retract to
remove any slack in the belt.
9. Before placing the child in the
seat, forcibly move the seat forward
and back to make sure the seat is
securely held in place. To check
this, grab the seat at the belt path
and attempt to move it side to side
and forward. There should be no
more than one inch of movement for
proper installation.
10. Try to pull the belt out of the retractor to make sure the retractor is
in the automatic locking mode (you should not be able to pull more belt
out). If the retractor is not locked, unbuckle the belt and repeat Steps
two through nine.
Check to make sure the child seat is properly secured before each use.
Attaching child safety seats with tether straps
Most new forward-facing child safety seats include a tether strap which
goes over the back of the seat and hooks to an anchoring point. Tether
straps are available as an accessory for many older safety seats. Contact
the manufacturer of your child seat for information about ordering a
tether strap.
Children should be placed in the rear in an appropriate child
safety seat that is properly secured to the vehicle.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
172

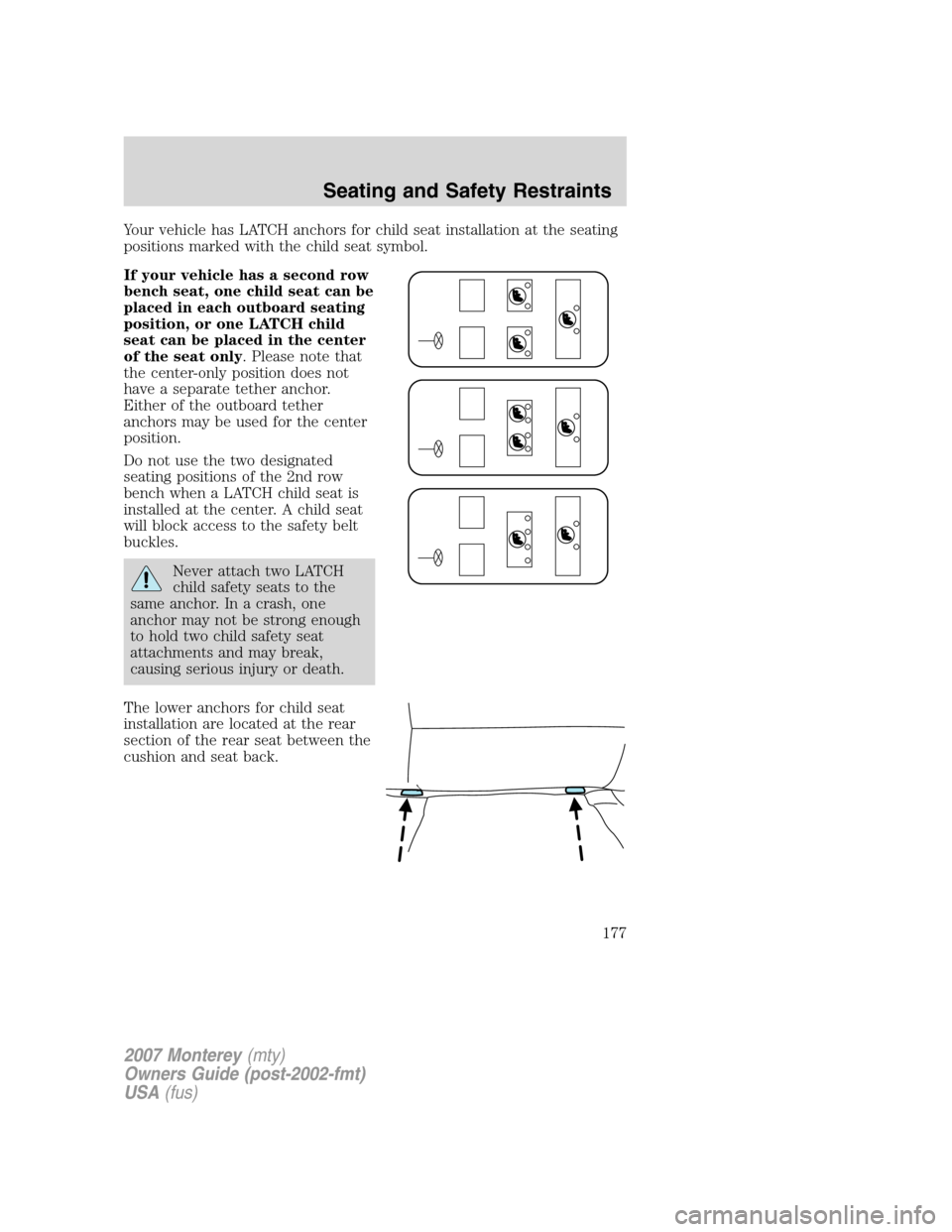

Your vehicle has LATCH anchors for child seat installation at the seating
positions marked with the child seat symbol.
If your vehicle has a second row
bench seat, one child seat can be
placed in each outboard seating
position, or one LATCH child
seat can be placed in the center
of the seat only. Please note that
the center-only position does not
have a separate tether anchor.
Either of the outboard tether
anchors may be used for the center
position.
Do not use the two designated
seating positions of the 2nd row
bench when a LATCH child seat is
installed at the center. A child seat
will block access to the safety belt
buckles.
Never attach two LATCH
child safety seats to the
same anchor. In a crash, one
anchor may not be strong enough
to hold two child safety seat
attachments and may break,
causing serious injury or death.
The lower anchors for child seat
installation are located at the rear
section of the rear seat between the
cushion and seat back.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
177

A
Accessory delay ..........................65
AdvanceTrac ..............................213
Air cleaner filter ...............292, 297
Air filter, cabin ............................40
Airbag supplemental
restraint system ........150, 159, 161
and child safety seats ............152
description ..............150, 159, 161
disposal ....................................164
driver airbag ............152, 159, 162
indicator light .................158, 164
operation .................152, 159, 162
passenger airbag .....152, 159, 162
side airbag ...............................159
Antifreeze
(see Engine coolant) ................274
Anti-lock brake system
(see Brakes) ......................211–212
Anti-theft system ..............106, 108
arming the system ..................108
disarming a triggered
system .....................................109
Audio system
(see Radio) ......................17, 20, 23
Automatic transaxle .................216
fluid, adding ............................290
fluid, checking ........................290
fluid, refill capacities ..............298
fluid, specification ..................298
Automatic transmission
driving an automatic
overdrive .................................218
Auxiliary power point .................63
B
Battery .......................................272acid, treating emergencies .....272
battery saver .............................43
jumping a disabled battery ....244
maintenance-free ....................272
replacement, specifications ...297
servicing ..................................272
BeltMinder
...............................145
Brakes ........................................211
anti-lock ...........................211–212
anti-lock brake system
(ABS) warning light ...............212
fluid, checking and adding ....290
fluid, refill capacities ..............298
fluid, specifications .................298
lubricant specifications ..........298
parking ....................................213
shift interlock ..........................216
Bulbs ............................................48
C
Capacities for refilling fluids ....298
Cargo net .....................................88
Cassette tape player .......17, 20, 23
Cell phone use ..............................7
Child safety restraints ..............165
child safety belts ....................165
Child safety seats ......................168
in front seat ............................170
in rear seat ..............................170
tether anchorage hardware ...172
Cleaning your vehicle
engine compartment ..............260
instrument panel ....................261
interior .....................................262
interior trim ............................262
plastic parts ............................260
washing ....................................258
waxing .....................................259
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Index
305

bulb replacement
specifications chart ..................48
daytime running light ...............43
fog lamps ...................................42
headlamps .................................41
headlamps, flash to pass ..........43
instrument panel, dimming .....44
interior lamps .....................46–48
replacing bulbs ...................49, 52
Lane change indicator
(see Turn signal) ........................46
Liftgate ............................84–85, 89
remote release ....................92, 98
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........212
Load limits .................................197
Locks
autolock .....................................93
childproof ..................................95
doors ..........................................92
Lubricant specifications ...........298
Lug nuts ....................................243
Luggage rack ...............................89
Lumbar support, seats .............112
M
Message center .....................75–76
english/metric button ...............78
system check button ................78
warning messages .....................79
Mirrors .........................................66
automatic dimming rearview
mirror ........................................66
fold away ...................................67
heated ........................................67
programmable memory ............99
side view mirrors (power) .......66
signal .........................................67Motorcraft parts ........263, 279, 297
O
Octane rating ............................283
Oil (see Engine oil) ..................269
Overdrive ...................................217
P
Park Assist ................................220
Parking brake ............................213
Parts (see Motorcraft parts) ....297
Passenger Occupant
Classification Sensor .................136
Pedals (see Power
adjustable foot pedals) ...............68
Power adjustable foot pedals .....68
Power distribution box
(see Fuses) ...............................230
Power door locks ..................92–93
Power liftgate ........................85, 98
Power mirrors .............................66
Power point .................................63
Power steering ..........................215
fluid, checking and adding ....289
fluid, refill capacity ................298
fluid, specifications .................298
Power Windows ...........................64
R
Radio ................................17, 20, 23
Relays ........................................226
Remote entry system ...........95, 97
illuminated entry ....................102
locking/unlocking doors .....97–98
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Index
308

panic alarm ...............................99
replacement/additional
transmitters .............................101
replacing the batteries ...........100
Roadside assistance ..................224
Roof rack .....................................89
S
Safety Belt Maintenance ..........144
Safety belts (see Safety
restraints) ..........135, 138, 140–142
Safety Canopy ...........................161
Safety defects, reporting ..........257
Safety
restraints ...........135, 138, 140–142
BeltMinder
............................145
extension assembly ................143
for adults .........................140–142
for children .....................164–165
Occupant Classification
Sensor ......................................136
safety belt maintenance .........144
warning light and chime ........145
Safety seats for children ..........168
Safety Compliance
Certification Label ....................301
Seat belts (see
Safety restraints) ......................135
Seats ..........................................110
child safety seats ....................168
front seats .......................111–113
memory seat .....................99, 114
second row seats ....117, 120–121
third row
seats .................121, 128, 132–134
SecuriLock passive
anti-theft system ...............106–107Servicing your vehicle ..............265
Spare tire (see
Changing the Tire) ...................237
Spark plugs,
specifications .....................297, 300
Specification chart,
lubricants ...................................298
Speed control ..............................68
Starting your vehicle ........208–210
jump starting ..........................244
Steering wheel
controls ......................................71
tilting .........................................54
T
Tilt steering wheel ......................54
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....193
Warning Displays ......................10
Tires ...................................179–180
alignment ................................187
care ..........................................183
changing ..........................237, 239
checking the pressure ............183
inflating ...................................181
label .........................................192
replacing ..................................185
rotating ....................................187
safety practices .......................186
sidewall information ...............188
snow tires and chains ............197
spare tire .................................235
terminology .............................180
tire grades ...............................180
treadwear ........................179, 184
Towing .......................................203
recreational towing .................207
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Index
309
