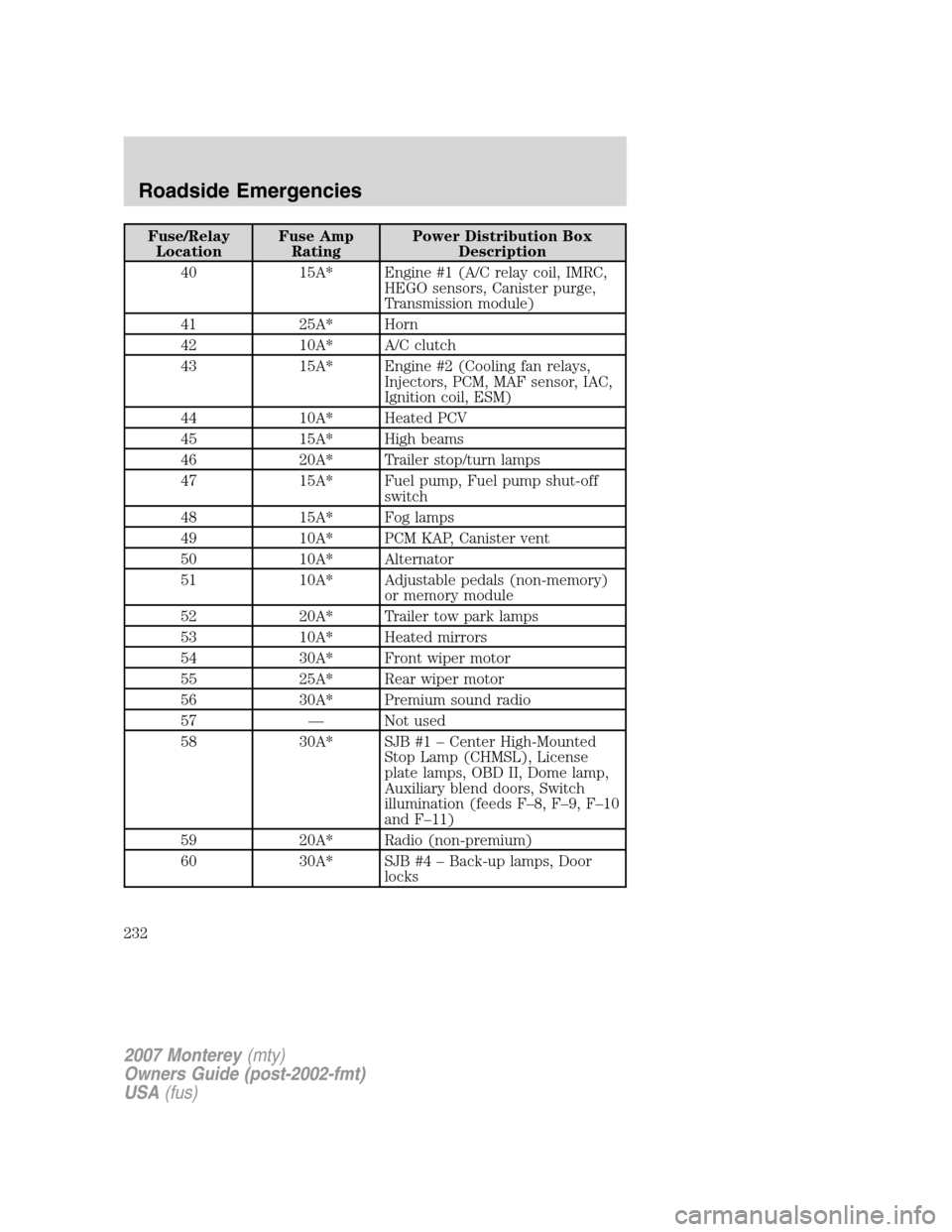

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
40 15A* Engine #1 (A/C relay coil, IMRC,
HEGO sensors, Canister purge,
Transmission module)
41 25A* Horn
42 10A* A/C clutch
43 15A* Engine #2 (Cooling fan relays,
Injectors, PCM, MAF sensor, IAC,
Ignition coil, ESM)
44 10A* Heated PCV
45 15A* High beams
46 20A* Trailer stop/turn lamps
47 15A* Fuel pump, Fuel pump shut-off
switch
48 15A* Fog lamps
49 10A* PCM KAP, Canister vent
50 10A* Alternator
51 10A* Adjustable pedals (non-memory)
or memory module
52 20A* Trailer tow park lamps
53 10A* Heated mirrors
54 30A* Front wiper motor
55 25A* Rear wiper motor
56 30A* Premium sound radio
57 — Not used
58 30A* SJB #1 – Center High-Mounted
Stop Lamp (CHMSL), License
plate lamps, OBD II, Dome lamp,
Auxiliary blend doors, Switch
illumination (feeds F–8, F–9, F–10
and F–11)
59 20A* Radio (non-premium)
60 30A* SJB #4 – Back-up lamps, Door
locks
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
232

The use of tire sealants may damage your tires. The use of tire
sealants may also damage your Tire Pressure Monitoring System
and should not be used.
Your vehicle is equipped with a Tire Pressure Monitoring System.
Refer toTire Pressure Monitoring System (TPMS)in the
Tires, Wheels and Loadingchapter for important information. If the
tire pressure monitor sensor becomes damaged, it will no longer
function.
Dissimilar spare tire/wheel information
Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
235

•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Location of the spare tire and tools
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the TPMS system, all road wheels equipped with the tire pressure
monitoring sensors must be mounted on the vehicle
Have a flat tire serviced by an authorized dealer in order to prevent
damage to the TPMS sensor, refer toTire Pressure Monitoring System
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible.
The spare tire and tools for your vehicle are stowed in the following
locations:
Item Location
Spare tire Under the vehicle, just forward of
the rear bumper.
Jack Behind the access panel located
on the right rear quarter panel
interior trim.
Jack handle Attached to the jack with a clip.
Flat tire tether, wing screw Inside tire tether kit, next to jack.
Removing the jack and tools
1. Locate the access panel on the interior trim. Rotate the panel
retaining clip and remove the panel.
2. Remove the jack and lug nut wrench by turning the thumbscrew
counterclockwise to relieve tension against the stowage bracket.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
237

If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
To reduce the risk of vehicle damage and/or personal burn
injuries do not start your engine with the air cleaner removed
and do not remove it while the engine is running.
1. Disconnect the Mass Air Flow
Sensor electrical connector from the
air outlet tube.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
292

10. Ensure the pads on the bottom
of the air cleaner assembly are
properly seated.
11. Reconnect the outlet tube to the
air cleaner assembly and tighten the
clamp.
12. Reconnect the Mass Air Flow
Sensor electrical connector to the
outlet tube. Make sure the locking
tab on the connector is in “locked”
position.
Note:If hose clamp is not secured properly or Mass Air Flow Sensor
electrical connector is not properly installed the Check Engine light will
illuminate when vehicle is operated.
Note:Do not use oil-impregnated air filter elements. Failure to use the
correct air filter element may result in severe engine damage. The
customer warranty may be voided for any damage to the engine if the
correct air filter element is not used.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
296

bulb replacement
specifications chart ..................48
daytime running light ...............43
fog lamps ...................................42
headlamps .................................41
headlamps, flash to pass ..........43
instrument panel, dimming .....44
interior lamps .....................46–48
replacing bulbs ...................49, 52
Lane change indicator
(see Turn signal) ........................46
Liftgate ............................84–85, 89
remote release ....................92, 98
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........212
Load limits .................................197
Locks
autolock .....................................93
childproof ..................................95
doors ..........................................92
Lubricant specifications ...........298
Lug nuts ....................................243
Luggage rack ...............................89
Lumbar support, seats .............112
M
Message center .....................75–76
english/metric button ...............78
system check button ................78
warning messages .....................79
Mirrors .........................................66
automatic dimming rearview
mirror ........................................66
fold away ...................................67
heated ........................................67
programmable memory ............99
side view mirrors (power) .......66
signal .........................................67Motorcraft parts ........263, 279, 297
O
Octane rating ............................283
Oil (see Engine oil) ..................269
Overdrive ...................................217
P
Park Assist ................................220
Parking brake ............................213
Parts (see Motorcraft parts) ....297
Passenger Occupant
Classification Sensor .................136
Pedals (see Power
adjustable foot pedals) ...............68
Power adjustable foot pedals .....68
Power distribution box
(see Fuses) ...............................230
Power door locks ..................92–93
Power liftgate ........................85, 98
Power mirrors .............................66
Power point .................................63
Power steering ..........................215
fluid, checking and adding ....289
fluid, refill capacity ................298
fluid, specifications .................298
Power Windows ...........................64
R
Radio ................................17, 20, 23
Relays ........................................226
Remote entry system ...........95, 97
illuminated entry ....................102
locking/unlocking doors .....97–98
