Driver controls Mercury Monterey 2007 s Workshop Manual

Note:Continued force applied after unlatching may activate the obstacle
detection feature and stop the power system. For the best performance
allow the power system to open the PLG after releasing the handle.
To power close the PLG from the
liftgate trim switch:
1. Ensure the Power Door Lockout
Control is in the ON position.
2. Press and release the control on
the bottom of the liftgate trim panel
to engage the power assist feature.
If a single chime is heard, check to
be sure that the Power Door
Lockout Switch is set to ON and
that the transaxle is in Park.
To operate the PLG manually:
1. Disable the liftgate power function by placing the Power Door Lockout
Control in the OFF position.
2. Open and close the liftgate as you would a standard liftgate.
Note:In case of operation in extreme cold -40° F (-40° C), or on
extreme inclines, manual operation of the liftgate is suggested.
Safety/Obstructions
If anything obstructs the PLG while it is power opening or closing, the
PLG will automatically reverse or stop depending on the position of the
liftgate, provided it meets sufficient resistance. If the PLG encounters an
obstacle while closing, the PLG will reverse to full open. Once the
obstacle is removed, the PLG can be again closed under power. If the
PLG encounters an obstacle while opening, the PLG will stop when it
encounters a solid obstacle. Close the liftgate manually and remove the
obstruction. Normal operation can then be resumed.
Resetting the PLG:
The power liftgate may not operate properly if any of the following
conditions occur:
•a low voltage or dead battery
•disconnected battery
•the liftgate has been left open or unlatched for more than six (6)
hours
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
87

If any of these conditions occur, the PLG must be reset. To reset the
PLG:
1. Manually close and fully latch the liftgate.
2. Power open the liftgate by using the remote entry transmitter or
overhead console button.
3. Once the liftgate is fully open, close the liftgate using the power
switch on the liftgate, remote entry transmitter or overhead console
button.
Liftgate ajar signal
If the liftgate is not fully latched, you will receive a “LIFTGATE AJAR”
message on the instrument panel. If you see this message, check the
liftgate to ensure it is fully latched.
Make sure the liftgate is closed to prevent exhaust fumes from
being drawn into the vehicle. If you must drive with the liftgate
open, keep the climate control vents open so that fresh outside air
circulates through the vehicle.
CARGO AREA FEATURES
Cargo net (if equipped)
The cargo pouch net secures
lightweight objects in the cargo
area. Attach the net to the anchors
provided. Do not put more than
50 lbs. (22 kg) in the net.
The cargo net is not
designed to restrain objects
during a collision or heavy
braking.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
88

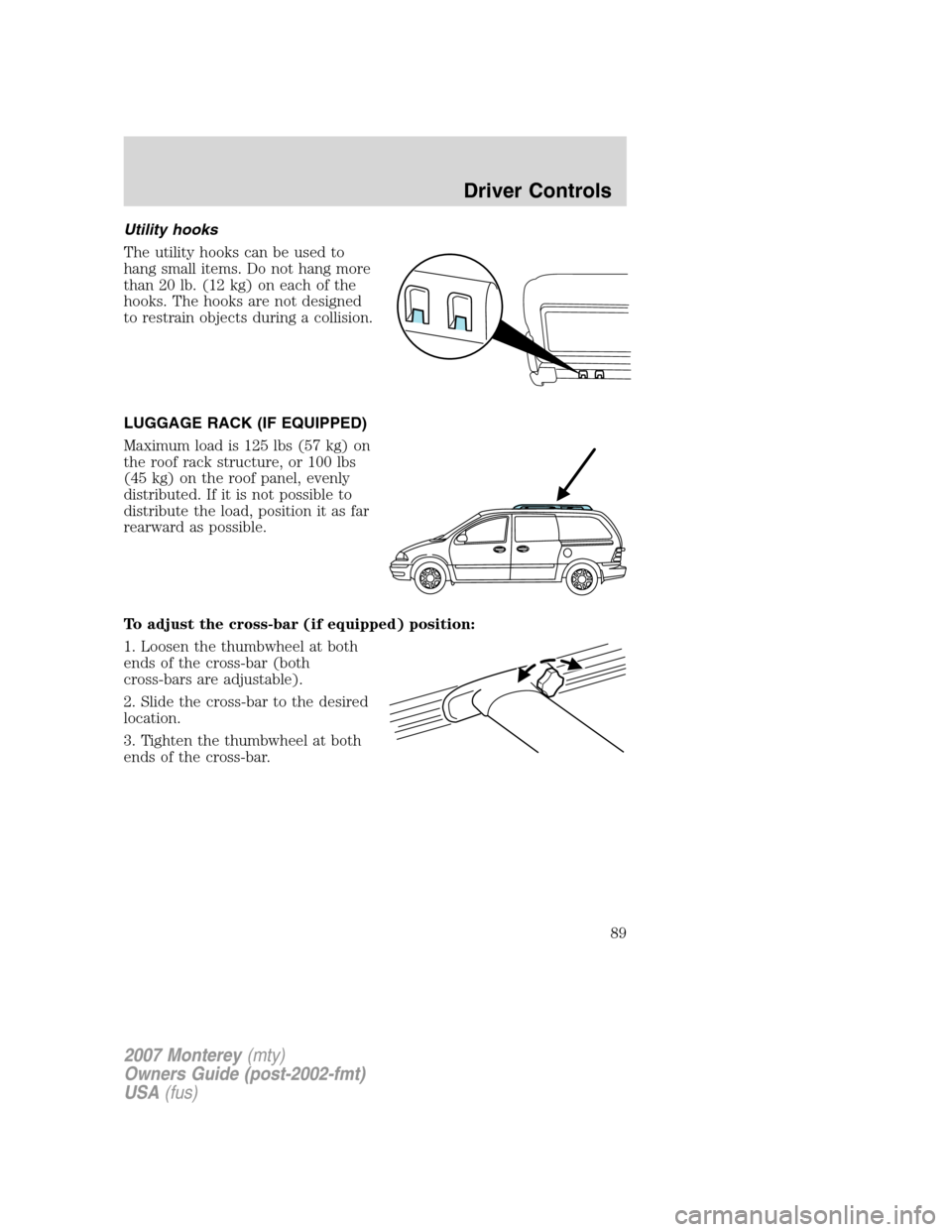

Utility hooks
The utility hooks can be used to
hang small items. Do not hang more
than 20 lb. (12 kg) on each of the
hooks. The hooks are not designed
to restrain objects during a collision.
LUGGAGE RACK (IF EQUIPPED)
Maximum load is 125 lbs (57 kg) on
the roof rack structure, or 100 lbs
(45 kg) on the roof panel, evenly
distributed. If it is not possible to
distribute the load, position it as far
rearward as possible.
To adjust the cross-bar (if equipped) position:
1. Loosen the thumbwheel at both
ends of the cross-bar (both
cross-bars are adjustable).
2. Slide the cross-bar to the desired
location.
3. Tighten the thumbwheel at both
ends of the cross-bar.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
89

To remove the cross-bar assembly (if equipped):
1. Remove rear support covers from
the rear rails. Place a small object
into the pin holes and slide the
cover out towards the rear of the
vehicle.
2. Loosen the thumbwheel at both
ends of the cross-bar and slide the
cross-bar towards the rear of the
vehicle.
3. De-press the metal retention clip
located in the inner rail channel on
both sides, and slide the crossbar
out simultaneously.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
90

To reinstall the cross-bar assembly (if equipped):
1. Slide the cross-bar into the rail
track with the arrow facing towards
the front of the vehicle. Slide the
bar forward passed the retaining
clip.
2. Firmly tighten the thumbscrews
at both ends of the cross-bar.
3. Install both support covers by
sliding the covers back into the
channel and pushing gently into
place.
Note:When the cross-bars are not in use, remove or move the
cross-bars to the back of the roof rack for optimum wind noise.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
91

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
Refer to theSecuriLockpassive anti-theft systemsection in this
chapter for more information.
POWER DOOR LOCKS
Press the top portion of the control
to unlock all doors and the bottom
portion to lock all doors.Note:
When the perimeter alarm is armed,
the power door locks “inhibit” state
is enabled and this switch is
disabled.
Memory lock
If you lock your doors with the power lock switch, the keyless entry
system or the remote entry transmitter while the sliding door is open,
the door will automatically lock after it is closed.
Smart locks (if equipped)
This feature prevents you from locking yourself out of the vehicle if your
key is still in the ignition.
When you open the driver’s door and you lock the vehicle with the
power door lock control, all the doors will lock, then the driver’s door
will automatically unlock reminding you that your key is still in the
ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock button on the door, locking the driver’s door with a key, by
simultaneously pressing button 7•8 and the 9•0 controls on the
remote entry keypad (if equipped), or using the lock button on the
remote entry transmitter (if equipped).
Unlocking the liftgate during a battery failure
In the event of a vehicle power failure affecting the liftgate latch, the
liftgate can be unlocked manually.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
92

Opening power liftgate (PLG) (if equipped)
Press the control twice within three seconds to power open the power
liftgate. The interior lamps will illuminate.
Make sure all persons are
clear of the power liftgate
area before using the power
liftgate controls to open or close
the liftgate.
Press the control another two times
within three seconds to close the
power liftgate and turn off the
interior lights.
If anything obstructs the power liftgate while it is power opening or
closing, the power liftgate will automatically reverse or stop depending
on the position of the liftgate, provided it meets sufficient resistance. If
the power liftgate encounters an obstacle while closing, the power
liftgate will reverse to full open. Once the obstacle is removed, the power
liftgate can be again closed under power. If the power liftgate encounters
an obstacle while opening, the power liftgate will stop when it
encounters a solid obstacle. Close the liftgate manually and remove the
obstruction. Normal operation can then be resumed.
Make sure the power liftgate is closed to prevent exhaust fumes
from being drawn into the vehicle. If you must drive with the
liftgate open, keep the climate control vents open so that fresh outside
air circulates through the vehicle.
For more information regarding the operation of the power liftgate, refer
toPower liftgate (PLG) (if equipped)in theDriver Controlschapter.
Locking the doors
1. Pressand release to lock all the doors and liftgate. The parking
lamps will flash once if all doors, the liftgate and the hood (if equipped
with perimeter alarm) are closed and locked.
2. Press
and release again within three seconds to confirm that all the
doors and liftgate are closed and locked.Note:The doors will lock again,
the horn will chirp once, and the parking lamps will flash once more.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
98

KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without using a key.
•activate or deactivate the autolock feature.
•open and close the right and left power sliding doors (if equipped).
•recall memory seat/side view mirrors/adjustable pedals position Driver
1 or Driver 2 (if equipped).
The keypad can be operated with the factory set 5–digit entry code; this
code is located:
•on the owner’s wallet card in the glove box,
•marked on the passenger compartment fuse panel (located below and
to the left of the steering, near the brake pedal),
•and is available from your
authorized dealer.
You can also create your own 5–digit
personal entry code.
When pressing the controls on the
keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry
code
To create your own personal entry code(s):
1. Enter the factory set code.Note:The driver’s door will unlock.
2. Within five seconds press and release the 1•2 on the keypad.Note:
The lock motors will cycle, locked then unlocked.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Enter a sixth digit if you wish to have the personal entry code recall
memory position Driver 1 or Driver 2 (if equipped with the memory
seat/side view mirrors/adjustable pedals feature).Note:The lock motors
will cycle, locked then unlocked.
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
104

•Push twice to activate low heat.
•Push a third time to deactivate.
The indicator light on the control will illuminate when activated.
The heating of the seat turns off after 10 minutes or when the vehicle is
turned off.
Heated/Cooled seats
•Push the appropriate control
located on the climate control
system panel once for maximum
heating (red) or cooling (blue)
function.
•Push again to operate the heated/cooled system at a lower level.
•Push again to deactivate.
The climate controlled seat system
includes an air filter that has to be
replaced periodically. Refer to the
scheduled maintenance
informationfor more information.
Do not run heated/cooled system
with the filter removed.
The heat / cool function turns off
after 30 minutes or when vehicle is
turned off
Memory seats/sideview mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat,
outside rearview mirrors, and
adjustable pedals to two
programmable positions.
The memory seat control is located
on the door next to the window
inside from the mirror.
•To program position one, move
the driver seat to the desired
position using the seat controls. Press the SET control. The SET
control indicator light will briefly illuminate. While the light is
illuminated, press control 1.
SE T
12
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
114

•Maneuvering quickly to avoid an accident, pedestrian or obstacle
•Hitting a patch of ice
•Changing lanes on a snow-rutted road
•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Hitting a curb while turning
•Cornering at excessive speeds while towing a heavily loaded trailer
(refer toTrailer Towingin this chapter)
The AdvanceTrac
system automatically turns on when the engine is
started. However, the system does not function when the vehicle is
traveling in R (Reverse).
If you are operating the speed control system and road conditions
change causing the AdvanceTrac
to activate, the AdvanceTrac
will
disengage the speed control. When driving conditions permit, you can
return to speed control by pressing RESUME. Refer toSpeed controlin
theDriver controlschapter.
The AdvanceTrac
button allows the
driver to control the availability of
the AdvanceTrac
system.
AdvanceTrac
system status is
indicated by the AdvanceTrac

indicator light in the instrument
cluster when the system is
deactivated.
If a failure is detected in the AdvanceTrac
system, the AdvanceTrac

indicator light in the instrument cluster will stay on. Have the vehicle
system serviced by an authorized dealer immediately.
If the vehicle is stuck in snow or mud or when driving in deep sand,
switching off the AdvanceTrac
system may be beneficial so the wheels
are allowed to spin. If your vehicle seems to lose engine power while
driving in deep sand or very deep snow, switching off the AdvanceTrac

stability enhancement feature will restore full engine power and will
enhance momentum through the obstacle.
Some drivers may notice a slight movement of the brake pedal when the
AdvanceTrac
performs a system self-check. During AdvanceTrac

operation you may experience the following:
•A rumble or grinding noise
2007 Monterey(mty)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
214
