Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
6 20A Liftglass release motor, Door
unlock/lock
7 15A Trailer stop/turn
8 15A Ignition switch power, PATS
9 2A 6R TCM/PCM (Ignition
RUN/START), Fuel pump relay
10 5A Front wiper RUN/ACC relay in
PDB
11 5A Radio start
12 5A Rear wiper motor RUN/ACC,
Trailer battery charge relay in
PDB, Radio
13 15A Heated mirror, Rear defrost
indicator
14 20A Horn
15 10A Reverse lamps
16 10A Trailer reverse lamps
17 10A RCM, PAD lamp, OCS module
18 10A Reverse park aid, IVD switch,
IVD, AWD module, Heated seat
switches, Compass,
Electrochromatic mirror, AUX
climate control
19 — Not used
20 10A Manual climate, DEATC, Brake
shift
21 — Not used
22 15A Brake switch, Bi-color stop lamps,
CHMSL all turn
23 15A Power mirrors, Interior lamps,
Puddle lamps, Battery saver,
Instrument illumination, Homelink
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
251

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
14 30A** Memory seats (DSM)
40A** Non-memory seats
15 40A** Rear defrost, Heated mirrors
16 40A** Blower motor
17 30A** Trailer electronic brakes
18 30A** Auxiliary blower motor
19 30A** Running boards
20 — Not used
21 20A* Rear power point
22 20A* Subwoofer
23 — Not used
24 10A* Powertrain Control Module
(PCM) KAP, CAN vent
25 20A* Front power point/Cigar lighter
26 20A* AWD module
27 20A* 6R Transmission module
28 20A* Heated seats
29 20A* Headlamps (right)
30 25A* Rear wiper
31 15A* Fog lamps
32 — Not used
33 30A* IVD module
34 20A* Headlamps (left)
35 10A* AC clutch
36 — Not used
37 30A* Front wiper
38 15A* 5R Transmission
39 15A* PCM power
40 15A* Fan clutch, PCV valve, AC clutch
relay, GCC fan
41 15A* SDARS/DVD
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
255

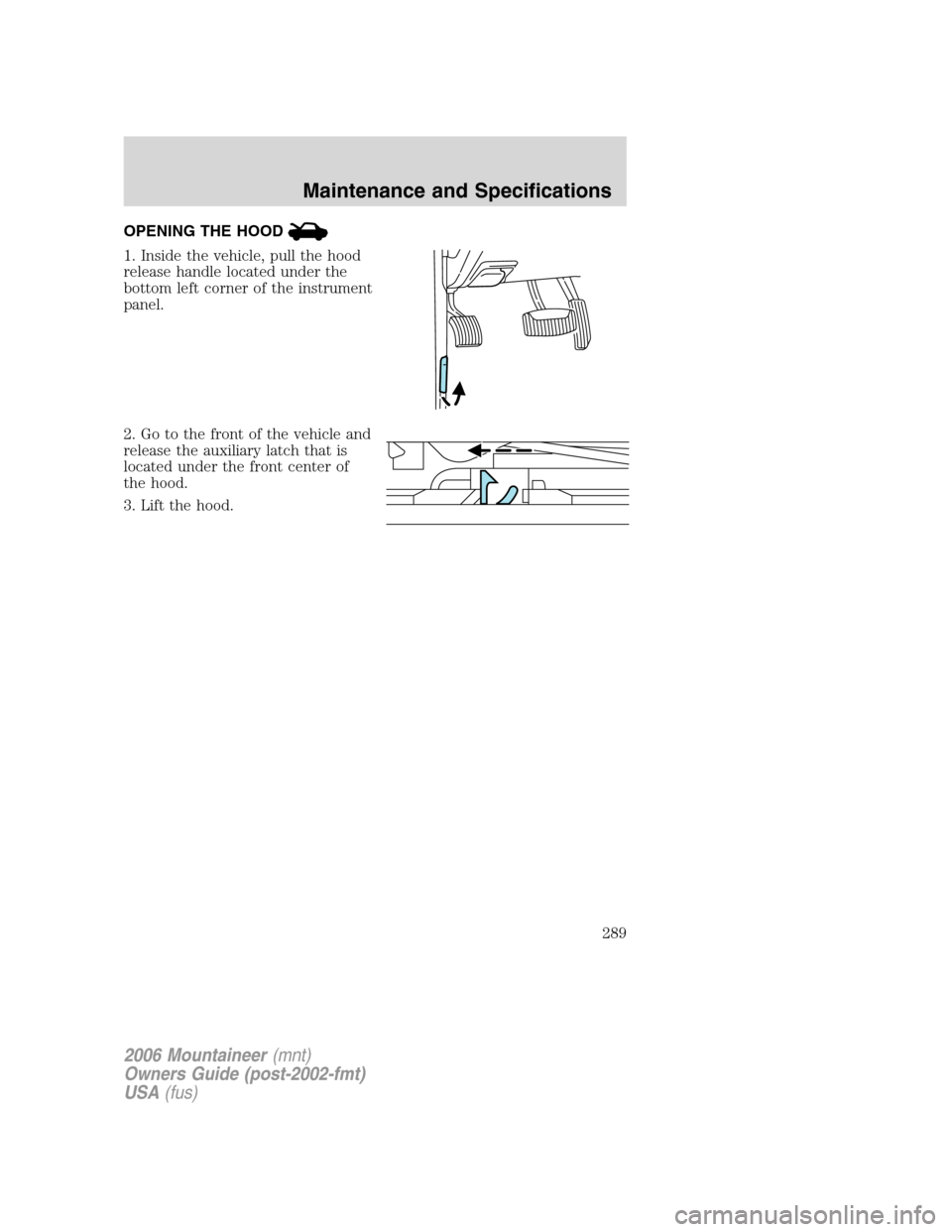

OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located under the
bottom left corner of the instrument
panel.
2. Go to the front of the vehicle and
release the auxiliary latch that is
located under the front center of
the hood.
3. Lift the hood.
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
289

Fluid Ford Part Name Application Capacity
Transfer case Motorcraft
MERCONAT FAWD 1.3 quarts
(1.25L)
Engine coolant
3Motorcraft Premium
Gold Engine
Coolant
(yellow-colored)4.0L SOHC V6
enginewithout
auxiliary
climate control12.2 quarts
(11.5L)
4.0L SOHC V6
enginewith
auxiliary
climate control13.9 quarts
(13.2L)
4.6L V8 engine
without
auxiliary
climate control13.9 quarts
(13.2L)
4.6L V8 engine
withauxiliary
climate control15.7 quarts
(14.9L)
Front axle
lubricant (if
equipped)Motorcraft SAE
80W-90 Premium
Rear Axle LubricantAWD 2.7 pints
(1.3L)
Rear axle
lubricantMotorcraft 75W-140
Synthetic Rear Axle
LubricantAll 3.5 pints
(1.7L)
Windshield
washer fluidMotorcraft Premium
Windshield Washer
ConcentrateAll vehicles 4.2 quarts
(4.0L)
1Ensure the correct automatic transmission fluid is used. MERCON,
MERCONV and MERCONSP are not interchangeable. DO NOT mix
MERCON, MERCONV and MERCONSP. Use of dual usage fluids in
an automatic transmission application requiring MERCONSP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage. Refer to your
scheduled maintenance informationto determine the correct service
interval.
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
322

2Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be checked by a qualified
technician.
3Add the coolant type originally equipped in your vehicle.
4Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only have the API Certification mark and meet the requirements
of Ford specification WSS-M2C929-A (4.0L) or WSS-M2C930-A (4.6L).
LUBRICANT SPECIFICATIONS
ItemFord Part
Name or
equivalentFord Part
NumberFord
Specification
Brake fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 or PM-1-C ESA-M6C25 -A
Body hinges,
latches, door
striker plates
and rotors, seat
tracks, fuel filler
door hinge and
spring, hood
latch, auxiliary
latch, seat
tracksMulti-Purpose
GreaseXG–4 or XL-5 ESB-M1C93–B
Door
weatherstripsSilicone Spray
LubricantXL-6 ESR-M13P4-A
Lock cylindersMotorcraft
Penetrating and
Lock LubricantXL-1 none
Driveshaft, slip
spline, universal
jointsPremium Long
Life GreaseXG-1-C ESA-M1C75-B
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
323

A
Accessory delay ..........................65
AdvanceTrac ..............................221
Air cleaner filter .......................319
Air conditioning ..........................43
Airbag supplemental restraint
system ................151–152, 160, 162
and child safety seats ............153
description ..............152, 160, 162
disposal ....................................165
driver airbag ............154, 161, 163
indicator light .................160, 165
operation .................154, 161, 163
passenger airbag .....154, 161, 163
side airbag ...............................160
All Wheel Drive (AWD),
driving off road .........................235
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................300
Anti-lock brake system
(see Brakes) ..............................220
Anti-theft system ......................121
Audio system
(see Radio) ......................21, 26, 31
Automatic transmission
driving an automatic
overdrive .........................228, 231
fluid, adding ............................317
fluid, checking ........................317
fluid, refill capacities ..............321
fluid, specification ..................326
Auxiliary power point .................62
Axle
lubricant specifications ..323, 326
refill capacities ........................321
B
Battery .......................................298acid, treating emergencies .....298
jumping a disabled battery ....266
maintenance-free ....................298
replacement, specifications ...319
servicing ..................................298
BeltMinder .................................146
Brakes ........................................219
anti-lock ...................................220
anti-lock brake system (ABS)
warning light ...........................220
fluid, checking and adding ....317
fluid, refill capacities ..............321
fluid, specifications .........323, 326
lubricant specifications ..323, 326
parking ....................................220
shift interlock ..........................227
C
Calculating load ........................209
Capacities for refilling fluids ....321
Cargo cover ...............................105
Cargo management system ......105
Cassette tape player .............21, 26
Cell phone use ..............................9
Changing a tire .........................256
Child safety restraints ..............166
child safety belts ....................166
Child safety seats ......................170
attaching with tether straps ..174
in front seat ............................171
in rear seat ..............................171
Cleaning your vehicle
engine compartment ..............283
instrument panel ....................285
interior .....................................286
interior trim ............................285
plastic parts ............................284
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
332
