Page 41 of 344

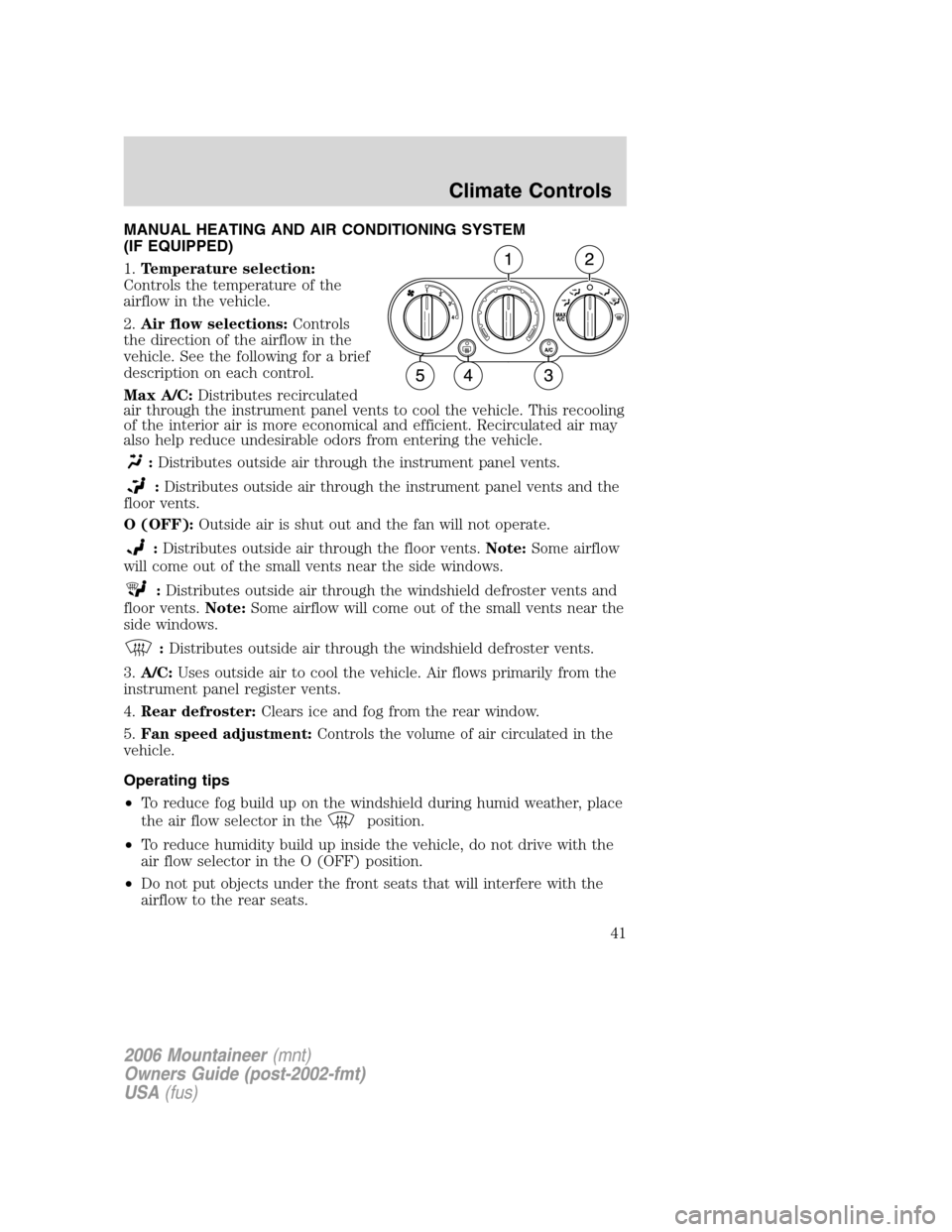

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)
1.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
2.Air flow selections:Controls
the direction of the airflow in the
vehicle. See the following for a brief
description on each control.
Max A/C:Distributes recirculated
air through the instrument panel vents to cool the vehicle. This recooling
of the interior air is more economical and efficient. Recirculated air may
also help reduce undesirable odors from entering the vehicle.
:Distributes outside air through the instrument panel vents.
:Distributes outside air through the instrument panel vents and the
floor vents.
O (OFF):Outside air is shut out and the fan will not operate.
:Distributes outside air through the floor vents.Note:Some airflow
will come out of the small vents near the side windows.
:Distributes outside air through the windshield defroster vents and
floor vents.Note:Some airflow will come out of the small vents near the
side windows.
:Distributes outside air through the windshield defroster vents.
3.A/C:Uses outside air to cool the vehicle. Air flows primarily from the
instrument panel register vents.
4.Rear defroster:Clears ice and fog from the rear window.
5.Fan speed adjustment:Controls the volume of air circulated in the
vehicle.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in the O (OFF) position.
•Do not put objects under the front seats that will interfere with the
airflow to the rear seats.
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
41
Page 141 of 344

Combination lap and shoulder belts
1. Insert the belt tongue into the proper buckle (the buckle closest to
the direction the tongue is coming from) until you hear a snap and feel it
latch. Make sure the tongue is securely fastened in the buckle.
•Front and rear seats
2. To unfasten, push the release button and remove the tongue from the
buckle.
•Front and rear seats
All safety restraints in the vehicle are combination lap and shoulder
belts. All of the passenger combination lap and shoulder belts have two
types of locking modes described below:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph (8
km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
141
Page 144 of 344

Refer to theSafety belt maintenancesection in this chapter.
Front safety belt height adjustment
Your vehicle has safety belt height
adjustments at the front outboard
seating positions. Adjust the height
of the shoulder belt so the belt rests
across the middle of your shoulder.
To adjust the shoulder belt height,
squeeze and hold the buttons on the
side and slide the height adjuster up
or down. Release the buttons and
pull down on the height adjuster to
make sure it is locked in place.
Position the safety belt height adjusters so that the belt rests
across the middle of your shoulder. Failure to adjust the safety
belt properly could reduce the effectiveness of the safety belt and
increase the risk of injury in a collision.
Second row comfort guide
The second row outboard
lap/shoulder belt is equipped with a
belt comfort guide. This guide is
attached to the quarter trim panel
and is used to adjust the comfort of
the shoulder belt for smaller
occupants in the outboard second
row seats.
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
144
Page 333 of 344

washing ....................................281
waxing .....................................281
wheels ......................................282
wiper blades ............................284
Climate control (see Air
conditioning or Heating) ............43
Clock adjust
6-CD in dash .............................32
AM/FM/CD .................................22
AM/FM/Tape/CD .......................27
Compass, electronic ....................83
calibration .................................85
set zone adjustment ...........84, 98
Console ..................................63–64
overhead ....................................61
rear ............................................64
Controls
power seat ...............................126
steering column ........................70
Coolant
checking and adding ..............300
refill capacities ................304, 321
specifications ..................323, 326
Cruise control
(see Speed control) ....................67
Customer Assistance ................245
Ford Extended Service
Plan ..........................................278
Getting assistance outside the
U.S. and Canada .....................278
Getting roadside assistance ...245
Getting the service you
need .........................................274
Ordering additional owner’s
literature .................................279
Utilizing the
Mediation/Arbitration
Program ...................................277D
Daytime running lamps
(see Lamps) ................................49
Defrost
rear window ..............................47
Dipstick
automatic transmission
fluid ..........................................317
engine oil .................................293
Doors
lubricant specifications ..........323
Driveline universal joint and
slip yoke ....................................318
Driving under special
conditions ..................234, 239, 242
sand .........................................240
snow and ice ...........................243
through water .................241, 244
Dual automatic temperature
control (DATC) ...........................43
DVD system .................................40
E
Electronic message center ...77, 88
Emergencies, roadside
jump-starting ..........................266
Emergency Flashers .................247
Emission control system ..........314
Engine ........................................326
cleaning ...................................283
coolant .....................................300
fail-safe cooling .......................305
idle speed control ...................298
lubrication
specifications ..................323, 326
refill capacities ........................321
2006 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
333
