•DELETE SONG:Press OK to delete a song from the system’s
memory. Press
/to cycle through the saved songs. When the
song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again
and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press
/to select either
RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•DELETE ALL SONGS:Press OK to delete all songs from the
system’s memory. The display will read ARE YOU SURE ? Press OK to
confirm deletion of all saved songs and the display will read ALL
DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Setting the clock:Press MENU until SET HOURS or SET MINUTES is
displayed. Use
/to manually increase/decrease. Press MENU
again to disengage clock mode. Press OK to close and return to the main
menu.
AUTOSET:Press MENU until the display reads AUTOSET. Autoset
allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. Use
/to
turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. Press OK to close and
return to the main menu.
RBDS: Available only in FM mode. This feature allows you to search
RBDS-equipped stations for a certain category of music format:
CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Entertainment Systems
25

•SAVE SONG:Press OK to save the currently playing song’s title in
the system’s memory. (If you try to save something other than a song,
CANT SAVE will appear in the display.) When the chosen song is
playing on any satellite radio channel, the system will alert you with
an audible prompt. Press OK while SONG ALERT is in the display and
the system will take you to the channel playing the desired song. You
can save up to 20 song titles. If you attempt to save more than 20
titles, the display will read REPLACE SONG? Press OK to access the
saved titles and press
/to cycle through the saved titles. When
the song title appears in the display that you would like to replace,
press OK. SONG REPLACED will appear in the display.
•DELETE SONG:Press OK to delete a song from the system’s
memory. Press
/to cycle through the saved songs. When the
song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again
and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press
/to select either
RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•DELETE ALL SONGS:Press OK to delete all songs from the
system’s memory. The display will read ARE YOU SURE ? Press OK to
confirm deletion of all saved songs and the display will read ALL
DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Setting the clock:Press MENU until SET HOURS or SET MINUTES is
displayed. Use
/to manually increase/decrease. Press MENU
again to disengage clock mode. Press OK to close and return to the main
menu.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Entertainment Systems
32

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control
The autolamp control sets the
headlamps to turn on and off
automatically. The autolamp control,
located on the headlamp control,
may be set to:
•turn on the lamps automatically
at night
•turn off the lamps automatically
during the daylight
•keep the lamps on for up to three minutes after the key is turned to
off.
To turn the autolamps on, rotate the control counterclockwise to
.
Note:With autolamps, your vehicle has awindshield wiper rainlamp
feature. When the headlamp control is in the autolamp position and the
windshield wipers are turned on during daylight, the exterior lamps will
turn on after a brief delay.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Lights
85

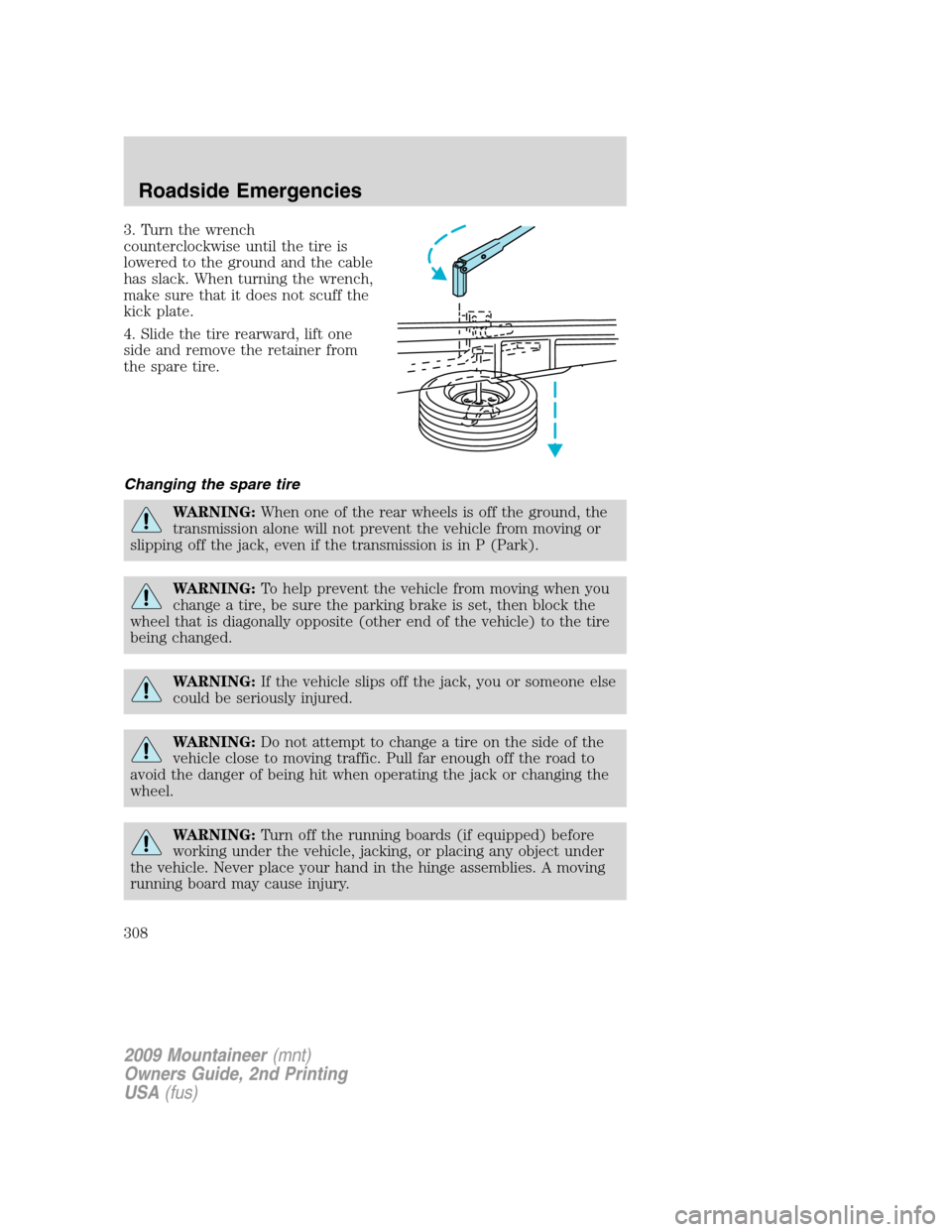

3. Turn the wrench
counterclockwise until the tire is
lowered to the ground and the cable
has slack. When turning the wrench,
make sure that it does not scuff the
kick plate.
4. Slide the tire rearward, lift one
side and remove the retainer from
the spare tire.
Changing the spare tire
WARNING:When one of the rear wheels is off the ground, the
transmission alone will not prevent the vehicle from moving or
slipping off the jack, even if the transmission is in P (Park).
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure the parking brake is set, then block the
wheel that is diagonally opposite (other end of the vehicle) to the tire
being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
WARNING:Turn off the running boards (if equipped) before
working under the vehicle, jacking, or placing any object under
the vehicle. Never place your hand in the hinge assemblies. A moving
running board may cause injury.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
308

WARNING:Keep batteries out of reach of children. Batteries
contain sulfuric acid. Avoid contact with skin, eyes or clothing.
Shield your eyes when working near the battery to protect against
possible splashing of acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and
get prompt medical attention. If acid is swallowed, call a physician
immediately.
WARNING:Battery posts, terminals and related accessories
contain lead and lead compounds.Wash hands after handling.
Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected. Additionally, the power running boards, if equipped, will
default to the off mode and must be turned on again.
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
348

Cleaning your vehicle
engine compartment ..............330
instrument panel ....................332
interior .....................................333
plastic parts ............................331
washing ....................................328
waxing .....................................329
wheels ......................................329
wiper blades ............................331
Climate control (see Air
conditioning or Heating) ............80
Clock adjust
6-CD in dash .............................32
AM/FM/CD .................................25
Compass, electronic
set zone adjustment ...............129
Console ..............................100–101
overhead ....................................99
rear ..........................................101
Controls
power seat ...............................160
steering column ......................111
Coolant
checking and adding ..............349
refill capacities ................353, 372
specifications ..........................372
Cruise control
(see Speed control) ..................108
Customer Assistance ................292
Ford Extended
Service Plan ............................325
Getting assistance outside the
U.S. and Canada .....................326
Getting roadside assistance ...292
Getting the service
you need .................................321
Ordering additional owner’s
literature .................................326Utilizing the
Mediation/Arbitration
Program ...................................324
D
Daytime running lamps
(see Lamps) ................................86
Defrost
rear window ..............................84
Dipstick
automatic transmission
fluid ..........................................368
engine oil .................................342
Driveline universal joint and
slip yoke ....................................369
Driving under special
conditions ..................282, 286, 289
sand .........................................287
snow and ice ...........................289
through water .................288, 291
Dual automatic temperature
control (DATC) ...........................80
DVD system .................................46
E
Electronic message center .......120
Emergencies, roadside
jump-starting ..........................313
running out of fuel .........313, 360
Emergency Flashers .................293
Emission control system ..........364
Engine ........................................377
cleaning ...................................330
coolant .....................................349
fail-safe cooling .......................354
idle speed control ...................347
lubrication specifications .......372
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Index
383

easy access/easyout
feature .....................................163
front seats ...............................159
heated ..............................164–165
memory seat ...................147, 162
SecuriCode keyless entry
system ........................................151
SecuriLock passive anti-theft
system ........................................152
Setting the clock
AM/FM single CD .....................25
AM/FM/In-dash 6 CD ................32
Snowplowing .................................8
Spark plugs,
specifications .....................371, 377
Special notice
ambulance conversions ..............8
utility-type vehicles ....................7
Specification chart,
lubricants ...................................372
Speed control ............................108
Starting your vehicle .......261–262,
264
jump starting ..........................313
Steering wheel
controls ....................................111
tilting .........................................98
SYNC
..........................................77
T
Tilt steering wheel ......................98
Tire Pressure Monitoring
System (TPMS)
Roadside Emergencies ...........303
Tires, Wheels and Loading ....241
Warning Displays ..............12, 132
Tires ...........................226–228, 303alignment ................................234
care ..........................................231
changing ..........................303, 308
checking the pressure ............231
inflating ...................................229
label .........................................240
replacing ..........................232, 308
rotating ....................................235
safety practices .......................234
sidewall information ...............236
snow tires and cables .............246
spare tire .................303, 306–307
terminology .............................228
tire grades ...............................227
treadwear ........................227, 231
Towing .......................................254
recreational towing .................259
trailer towing ..........................254
wrecker ....................................319
Transfer case
fluid checking .........................369
Transmission .............................276
brake-shift interlock (BSI) ....276
fluid, checking and adding
(automatic) .............................368
fluid, refill capacities ..............372
lubricant specifications ..........372
Turn signal ..................................89
U
USB port ......................................40
V
Vehicle Identification Number
(VIN) ..........................................378
Vehicle loading ..........................247
Ventilating your vehicle ...........264
2009 Mountaineer(mnt)
Owners Guide, 2nd Printing
USA(fus)
Index
387
