Safety Restraints
23
%*
[SR18450(ALL)05/95]
The air bag system uses a readiness light on the instrument
cluster and a tone to indicate the condition of the system. When
you turn the ignition key to the ON position, this light will
illuminate for approximately six (6) seconds and then turn off.
This indicates that the system is operating normally. NOTE:
Maintenance of the air bag system is not required.
%*
[SR18475(ALL)05/95]
A problem with the system is indicated by one or more of the
following:
*
[SR18501(ALL)05/95]
n
the readiness light will either flash or stay lit,
*
[SR18525(ALL)05/95]
n
or it will not light immediately after ignition is turned on,
*
[SR18550(ALL)05/95]
n
or a group of five beeps will be heard. The tone pattern will
repeat periodically until the problem and light are repaired.
*
[SR18575(ALL)05/95]
If any of these things happen, have the air bag system serviced
at your Ford or Lincoln-Mercury dealer immediately. Unless
serviced, the air bag supplemental restraint system may not
function properly in the event of a collision.
*
[SR18601(ALL)05/95]
RWARNING
Do not attempt to service, repair, or modify the Air Bag
Supplemental Restraint System or its fuses. See your
Ford or Lincoln-Mercury dealer.
%*
[SR19000(ALL)05/95]
Disposal of air bags or air bag equipped vehicles
*
[SR19500(ALL)05/95]
For disposal of air bags or air bag equipped vehicles, see your
local Ford or Lincoln-Mercury dealer. Air bagsMUSTbe
disposed of by qualified personnel.
File:cdsrz.ex
Update:Fri Feb 23 11:09:40 1996

53
Warning Lights and Gauges
*
[LG01150( Z)06/93]
In your vehicle, the warning lights and gauges are grouped
together on the instrument panel. We call this grouping a
cluster.
[LG01250( Z)02/94]
Your vehicle has a sport cluster.
File:cdlgz.ex
Update:Fri Feb 23 11:08:00 1996

Warning Lights and Gauges
59
%*
[LG07000(ALL)05/95]
Chime for Headlamps On
[LG07100(ALL)05/94]
This chime sounds if the driver's door is open when the parking
lamps or headlamps are on. The chime sounds until you close
the door or turn off the lamps.
*
[LG07200(ALL)01/95]
Air Bag Readiness Light
*
[LG07300(ALL)05/95]
The air bag system uses a readiness light and a tone to indicate
the condition of the system. The readiness light is in the
instrument cluster. When you turn the ignition to the ON
position, this light will illuminate for approximately six (6)
seconds and then turn off. This indicates that the system is
operating normally.NOTE:Maintenance of the air bag system is
not required.
[LG07400(ALL)05/95]
A problem with the system is indicated by one or more of the
following: the readiness light will either flash or stay lit, or it
will not light or a group of five beeps will be heard.
*
[LG07500(ALL)05/95]
RWARNING
If any of these things happen, even intermittently, have
the air bag system serviced at your Ford or
Lincoln-Mercury dealer immediately.
[LG07600(ALL)03/95]
6 pica art:0001212-AFile:cdlgz.ex
Update:Fri Feb 23 11:08:00 1996

76
%*
[IP24700( Z)05/95]
Cleaning the Exterior Lamps
[IP25000(ALL)01/95]
10-1/2 pica
art:0001186-D
Turning on the high beams
[IP25100(ALL)05/95]
To change the headlamps from low to high beam, push the
lever away from you until it latches, and release. The high beam
indicator in the instrument cluster glows when the headlamps
are on high beam. To change the headlamps from high beam to
low beam, pull the lever toward you until it latches.
*
[IP25200(ALL)04/95]
Fog Lamps (If equipped)
[IP25220(ALL)05/94]
The fog lamps act as a supplement to the low beam headlamps
under limited visibility conditions such as rain, snow, dust or
fog.
[IP25300(ALL)05/94]
The fog lamps operate only when the low beam headlamps are
on. To operate the fog lamps, turn the headlamp control knob
to the second position (headlamps on) and pull the knob out.
An indicator lamp will glow when the fog lamps are on.
[IP25325(ALL)02/94]
To turn off, push the headlamp control knob in.
*
[IP25401(ALL)02/93]
To maximize fog lamp bulb life it is recommended that the fog
lamp switch be turned off after each use prior to turning off the
headlamps.
File:cdipz.ex
Update:Fri Feb 23 11:07:15 1996

Instrument Panel Controls
77
*
[IP25605(ALL)01/95]
Daytime Running Light System
*
[IP25610(ALL)03/95]
(Canadian vehicles only)
*
[IP25615(ALL)03/95]
The Daytime Running Light (DRL) system is designed to turn
the high beam headlamps on, with a reduced light output and
without illuminating the high beam indicator lamp in the
instrument panel. The DRL system operates when all of the
following conditions are met:
*
[IP25620(ALL)03/95]
n
The vehicle is ªrunning.º
*
[IP25630(ALL)03/95]
n
The headlamp system is in the OFF position.
*
[IP25632(ALL)05/95]
The high beam indicator light on the instrument cluster will not
be on.
[IP25633(ALL)05/94]
A flashing high beam light in the instrument cluster indicates a
failure in the DRL system circuit, like a burnt bulb or fuse.
*
[IP25638(ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system will not
illuminate the tail lamps and parking lamps. Turn on
your headlamps at dusk. Failure to do so may result in a
collision.
[IP25700(ALL)06/95]
Cleaning the Exterior Lamps
*
[IP25800(ALL)05/95]
Do not use dry paper towel, chemical solvents or abrasive
cleaners to clean the lamps, as these may cause scratches or
crack the lamps.
*
[IP29800(ALL)01/95]
Lighting Up the Interior and Instrument Panel
[IP29850(ALL)05/94]
When either front door is opened, the footwell lights and the
door courtesy lights come on.
[IP29900(ALL)05/94]
The instrument panel lights, window control lights and door
handle lights come on whenever the headlamp switch is turned
from the OFF position. To dim the instrument panel lights, use
the thumbwheel on the instrument panel to the right of the
steering wheel.
File:cdipz.ex
Update:Fri Feb 23 11:07:15 1996

81
Steering Column Controls
*
[SC00400(ALL)01/95]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
*
[SC00500(ALL)01/95]
The Turn Signal Lever
*
[SC00600(ALL)01/95]
You can use the turn signal lever on the left side of the steering
column to:
*
[SC00700(ALL)03/95]
n
operate the turn signals and cornering lamps
*
[SC00800(ALL)01/95]
n
turn the high beams on/off
*
[SC00900(ALL)05/95]
n
flash the lamps
*
[SC01100(ALL)01/95]
Turn Signals
[SC01200(ALL)01/95]
10-1/2 pica
art:0001186-D
The turn signal lever
*
[SC01300(ALL)03/95]
Move the lever up to signal a right turn. Move it down to
signal a left turn. The corresponding indicator light in the
instrument cluster will flash.
*
[SC01400(ALL)03/95]
If the turn signal stays on after you turn, move the lever back
to the center (off) position.
*
[SC01500(ALL)03/95]
For lane changes, move the lever far enough to signal but not to
latch. The lever will return to the off position when you release
it.
File:cdscz.ex
Update:Fri Feb 23 11:06:33 1996

82
*
[SC02800(ALL)05/95]
High Beams and Flashing the Lamps
[SC02900(ALL)05/95]
To turn on the high beams, turn the headlamp control knob to
the headlamp ON position and push the turn signal lever away
from you until it latches. When the high beams are on, the high
beam indicator light on the instrument cluster comes on.
[SC03000(ALL)10/93]
To turn off the high beams, pull the lever back to the off
position.
*
[SC03400(ALL)06/95]
To flash the headlamps, pull the lever toward you for a moment
and then release it. The headlamps will flash whether the
headlamp knob is in the on or off position.
*
[SC03700(ALL)03/95]
Windshield Wipers and Washer
*
[SC03800(ALL)03/95]
To turn on the windshield wipers, the ignition key must be
turned to the ON or ACC position.
[SC04400(ALL)05/95]
10-1/2 pica
art:0001189-D
Using the windshield wiper
[SC04500(ALL)02/94]
The windshield wipers can be set on high, low speed or interval
wipe. Turn the ring on the lever to set a longer or shorter pause
between wiping cycles.
File:cdscz.ex
Update:Fri Feb 23 11:06:33 1996

269
[QI01700( Z)05/95]
33-1/2 pica
art:0001174-C

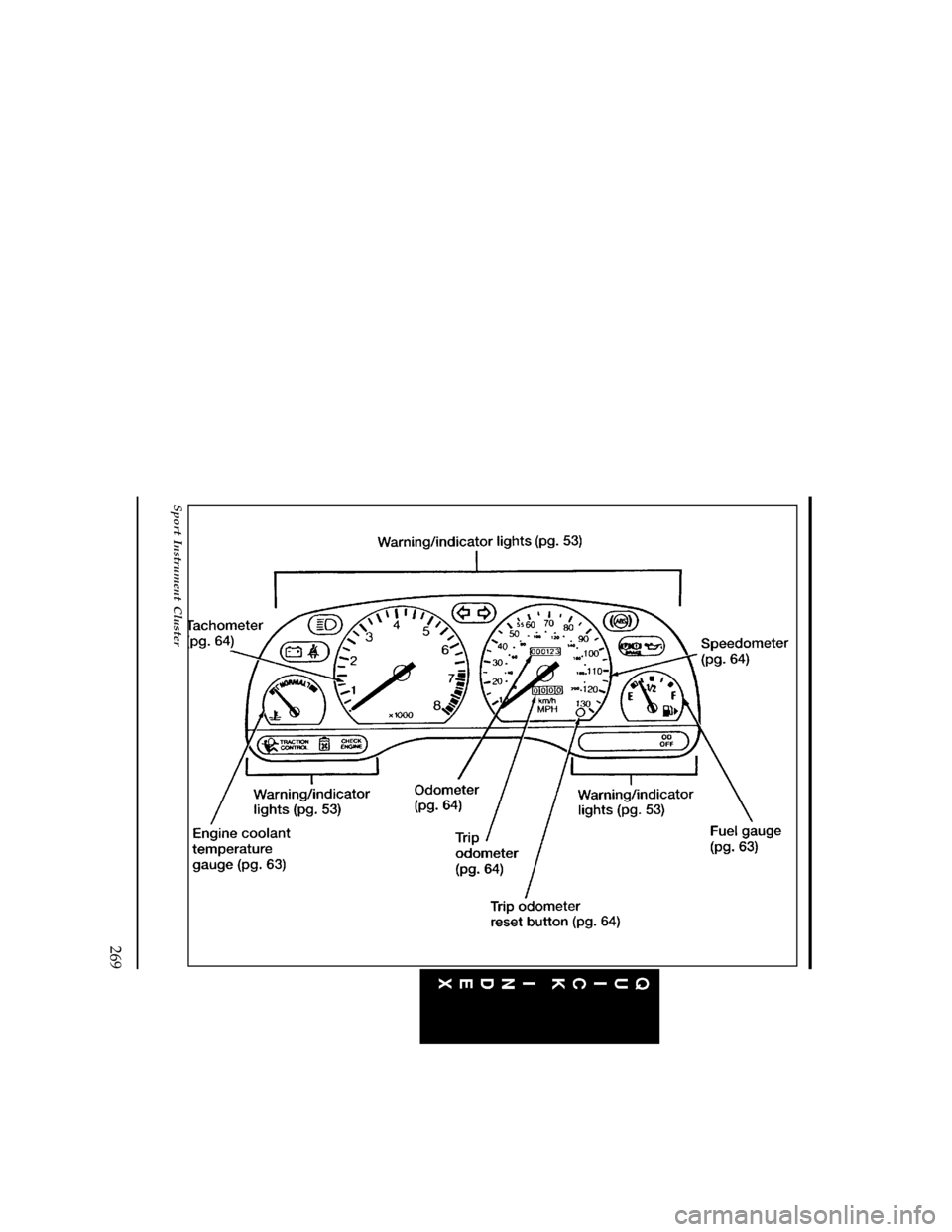

Sport Instrument Cluster
File:cdqiz.ex
Update:Fri Feb 23 10:59:10 1996

282 Hood
latch location.................... 198
lubrication specifications............... 254
release lever.................... 198
working under the hood............... 196
Horn.......................... 84
I
Identification Number, Vehicle (VIN)........177, 182
Idle
relearning..................... 163
speed........................ 48
Ignition
chime........................ 43
positions of the ignition................ 41
removing the key................... 42
Indicator lights and chimes (see Lights).......... 67
Infant seats (see Safety seats)............... 24
Instrument cluster.................... 53
Instrument panel
lighting up panel and interior............. 77
location of components................ 67
Interval wipers..................... 82
J
Jack
operation...................... 167
positioning..................... 167
Jump-starting your vehicle
attaching cables................... 161
disconnecting cables................. 163
K
Keys
key in ignition chime................. 43
positions of the ignition................ 41
removing from the ignition.............. 42
stuck in lock position................. 41
File:cdixz.ex
Update:Fri Feb 23 10:58:07 1996
